Save 15% off your Dream House Plan with our Fall Savings Sale!

Limited plans not eligible for discounts.

Cottage House Plan 4848-00322

Sq Ft1,420
Beds3
Baths2
1/2 Baths0
Stories1
Cars2
Width51' 0"
Depth54' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

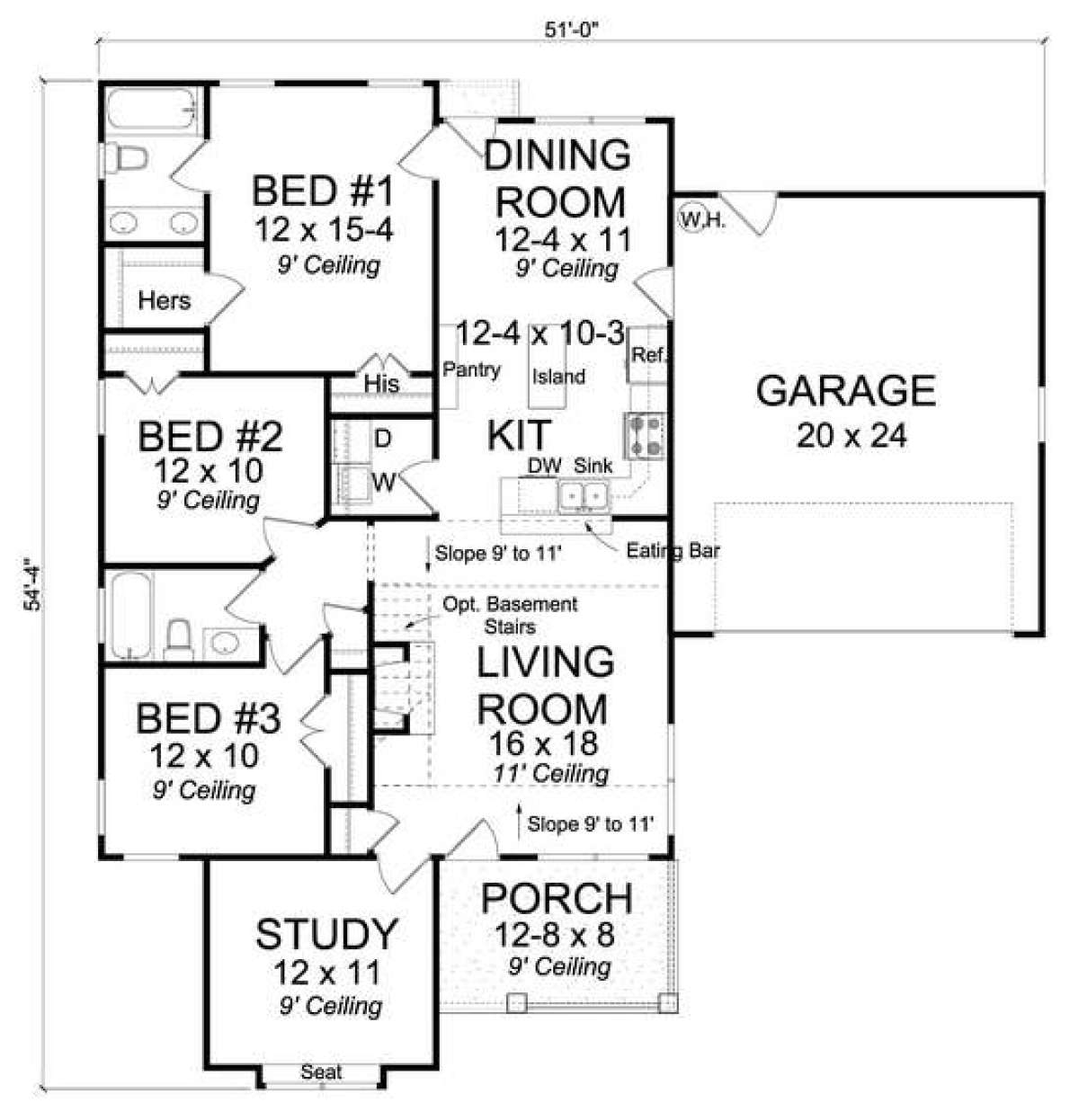

Floorplan 1 for House Plan #4848-00322
Floorplan 1
Floorplan 1 for House Plan #4848-00322


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Page
    This home plan features the front elevation and informative reference sections including general notes and design criteria.
  • Elevations
    Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
  • Foundations
    Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan
    Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.
  • Second Level Floor Plan
    Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations
    Kitchen cabinet elevations are drawn.
  • Sections
    The plans include two pages of sections; a typical wall section, stair section and foundation details.
  • Roof Plan
    A Roof plan showing roof pitches, valleys, ridges and rafters.
  • No Re-use Fee
    As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

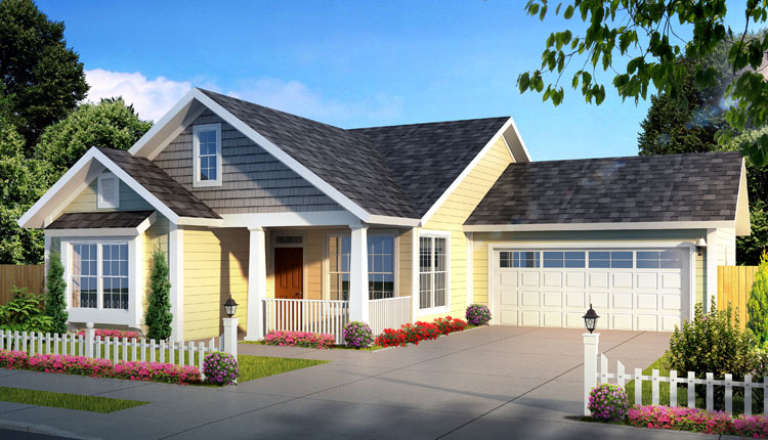

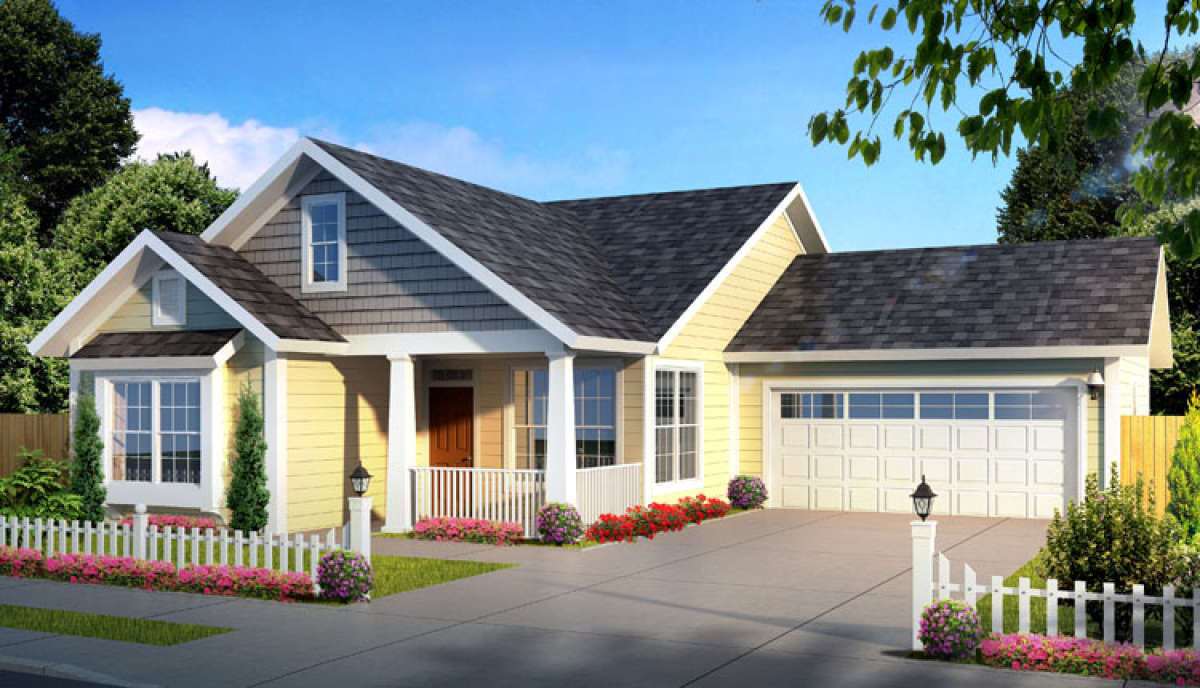

This delightfully charming and cozy Cottage house plan is highlighted with an exceptional exterior and an interior that is open and efficiently laid out. Simple construction, double gables, cedar shakes and horizontal siding are featured on the exterior along with great window views and a front covered porch. The porch is highlighted with open railing, large substantial beams and plenty of space to greet family and friends. The two car front loading garage is great space for vehicles and storage and there is a rear pedestrian door for the loading/unloading of lawn and sporting equipment. The single story home features approximately 1,420 square feet of living space along with an open floor plan, three bedrooms and two baths. There are nine foot ceiling heights, including the front covered porch, found in the home’s interior and the living room features 11’ ceiling heights lending the home an open and spacious feel. Entering the home from the covered porch, the open floor plan becomes apparent with a large living room available and views running from the front to rear of the home. The living room is spacious with great window views overlooking the front porch and side yard as well as a handsome fireplace. An optional basement staircase is located off the living room in case a basement foundation is needed. There is a cozy study situated off the living room for privacy and comfortable relaxing or the space could be utilized for a home office. Beyond the living room is the kitchen which offers breakfast bar seating, a center island, a separate pantry and the laundry room is nearby for convenience. The dining space is located at the rear of the common rooms and offers comfortable family dining space.

Bedrooms two and three are of equivalent size; each has wonderful window views and plentiful closet space. There is a shared hall linen closet as well as the shared bath which features a vanity space, a toilet area and a tub/shower combination. The master suite is situated at the rear of the home and offers a spacious master bedroom with great window views onto the rear yard. His and hers attached walk-in closets are available and there is a master bath within the suite. The master bath features dual vanities, a toilet area and a tub/shower combination. This charming Cottage home features an attractive exterior façade, efficient and functional interior space and the possibility of expansion space.
