Craftsman Plan 4848-00320

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,570
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 48' 10"
Depth 57' 6"

Floorplan Drawings

Floorplan 1

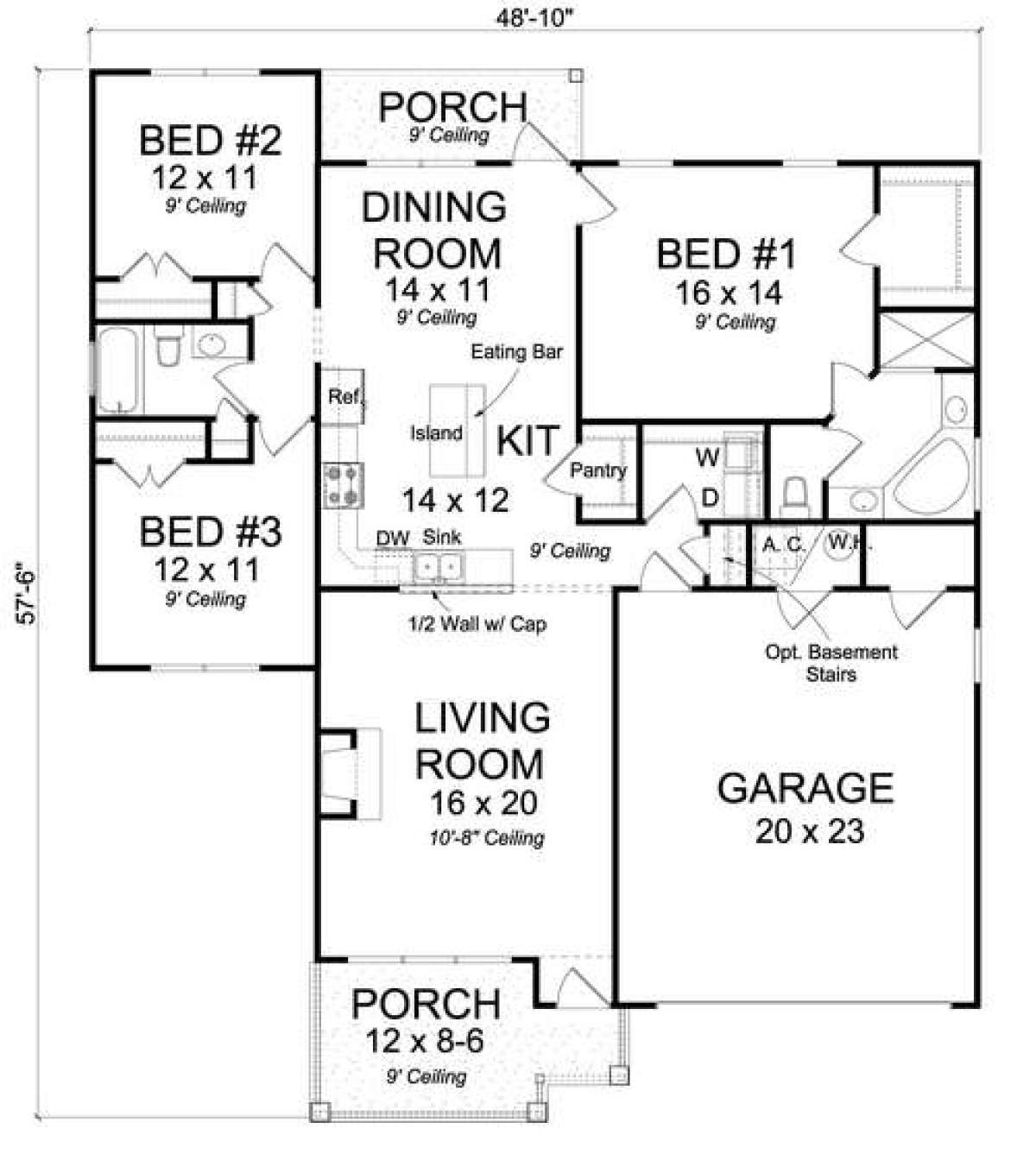

Floorplan 1 for House Plan #4848-00320


What's Included in these plans?

  • Cover Page
    This home plan features the front elevation and informative reference sections including general notes and design criteria.
  • Elevations

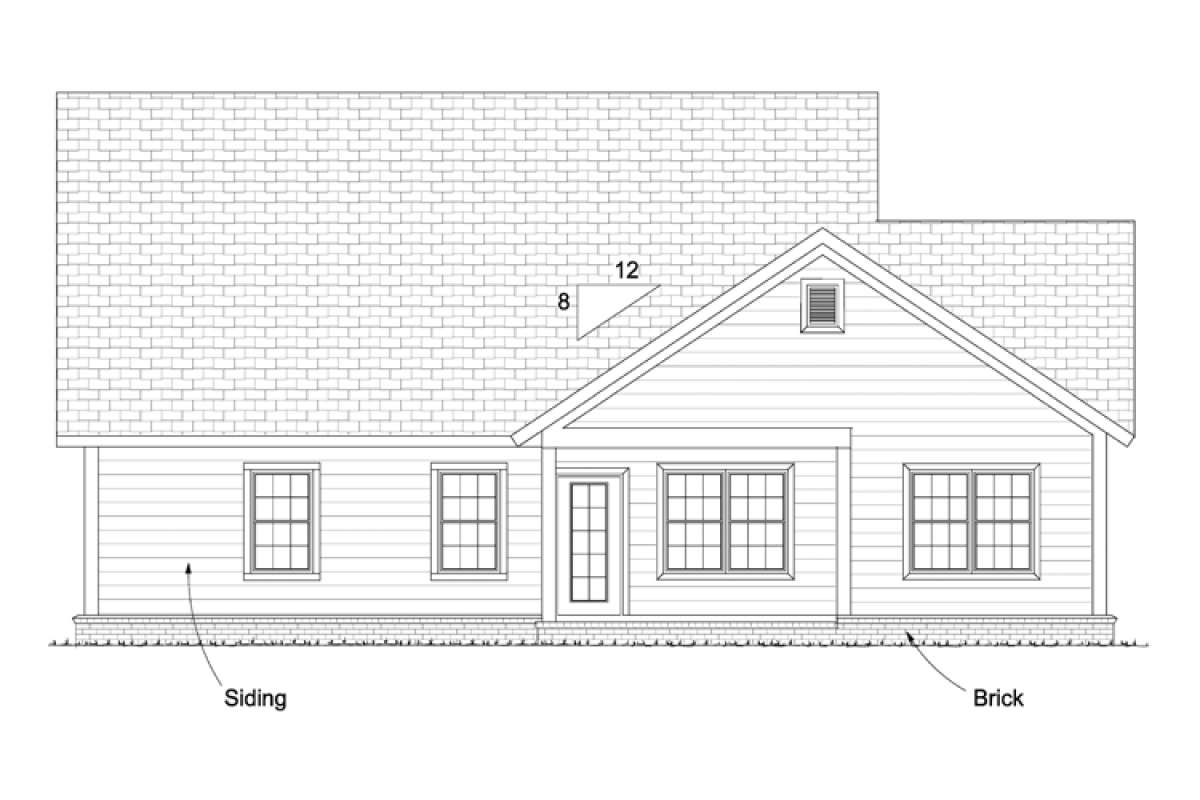

    Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
  • Foundations
    Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan
    Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.
  • Second Level Floor Plan
    Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations
    Kitchen cabinet elevations are drawn.
  • Sections
    The plans include two pages of sections; a typical wall section, stair section and foundation details.
  • Roof Plan
    A Roof plan showing roof pitches, valleys, ridges and rafters.
  • No Re-use Fee
    As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

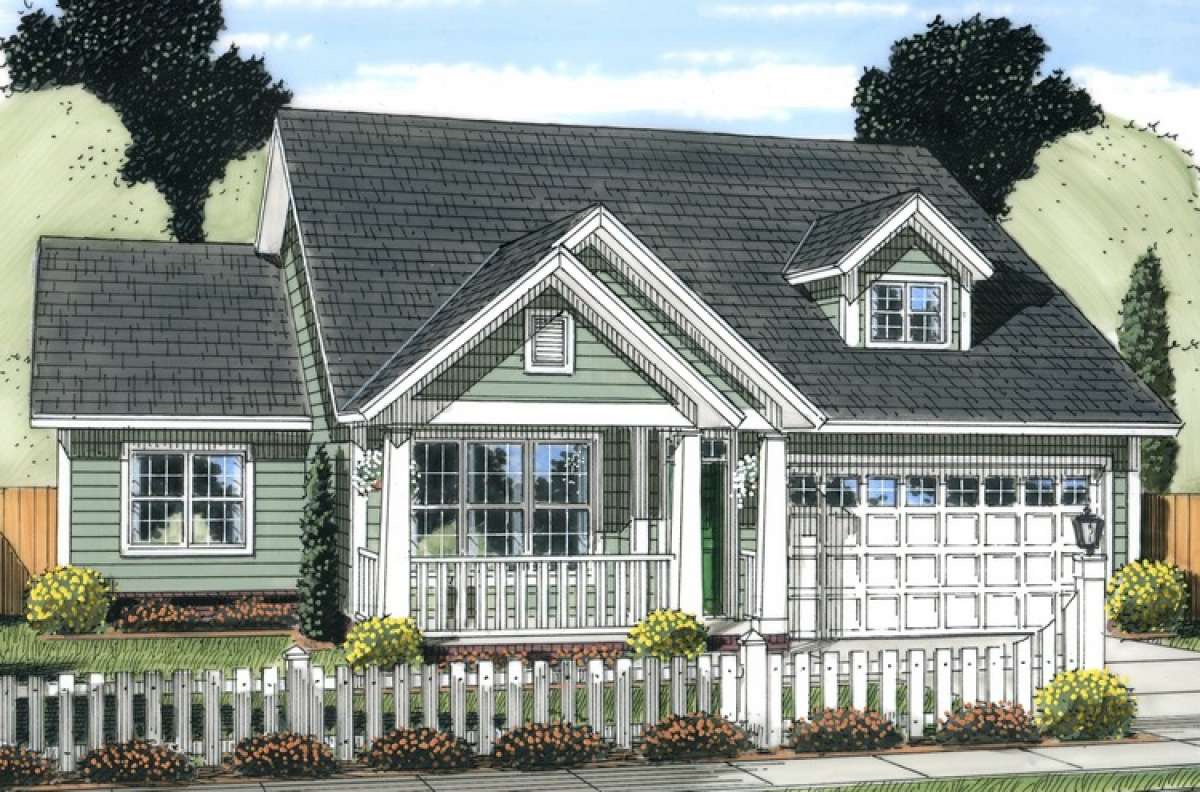

This beautiful Craftsman one story house design features double gables, wide eaves and an overhead window dormer on the exterior. The front covered porch is highlighted with 9’ ceiling heights, open railing and columned beams for an inviting façade. The interior layout houses three bedrooms, two baths and an open floor plan in approximately 1,570 square feet of living space. This efficient house plan is compact; however, there is very little wasted space within the interior making the home cozy and comfortable. The two car garage is a front loader and offers good vehicle space with a storage room and separate mechanical room at the rear of the space. There is an entry/exit point into the home’s interior off the garage where the nearby laundry room is located. The open floor plan is revealed once you enter the home front entrance where you will find a large living room with a warming fireplace and a gorgeous three piece window set overlooking the front covered porch. Located directly beyond the living room is the kitchen which is highlighted with a center island featuring additional seating at the breakfast bar, great wraparound counter and cabinet space and a separate walk-in pantry. The adjacent dining room is spacious with double window views and rear covered porch access; perfect for entertaining and/or dining al fresco.

The split bedroom plan features the master bedroom suite on one side of the home and the secondary bedrooms and bath on the opposite side. The master suite is composed of a spacious master bedroom with excellent floor space, two rear window views and an attached walk-in master closet. The master bath features modern amenities that include a corner garden tub, dual vanities, a compartmentalized toilet and a separate shower. Bedrooms two and three are equivalent sized with 9’ ceiling heights, double window views and plentiful closet space. There is a hall linen closet and the shared bath is situated between the two bedrooms for ease of entry. The bath features a second linen closet, a vanity space, toilet area and a tub/shower combination. This cozy and comfortable Craftsman house plan features great family space to entertain, private bedrooms and plenty of outdoor space.
