Traditional Plan 4848-00315


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,147
Beds 2
Bath 2
1/2 Baths 0
Car 0
Stories 1
Width 53' 4"
Depth 48' 4"

Floorplan Drawings

Floorplan 1

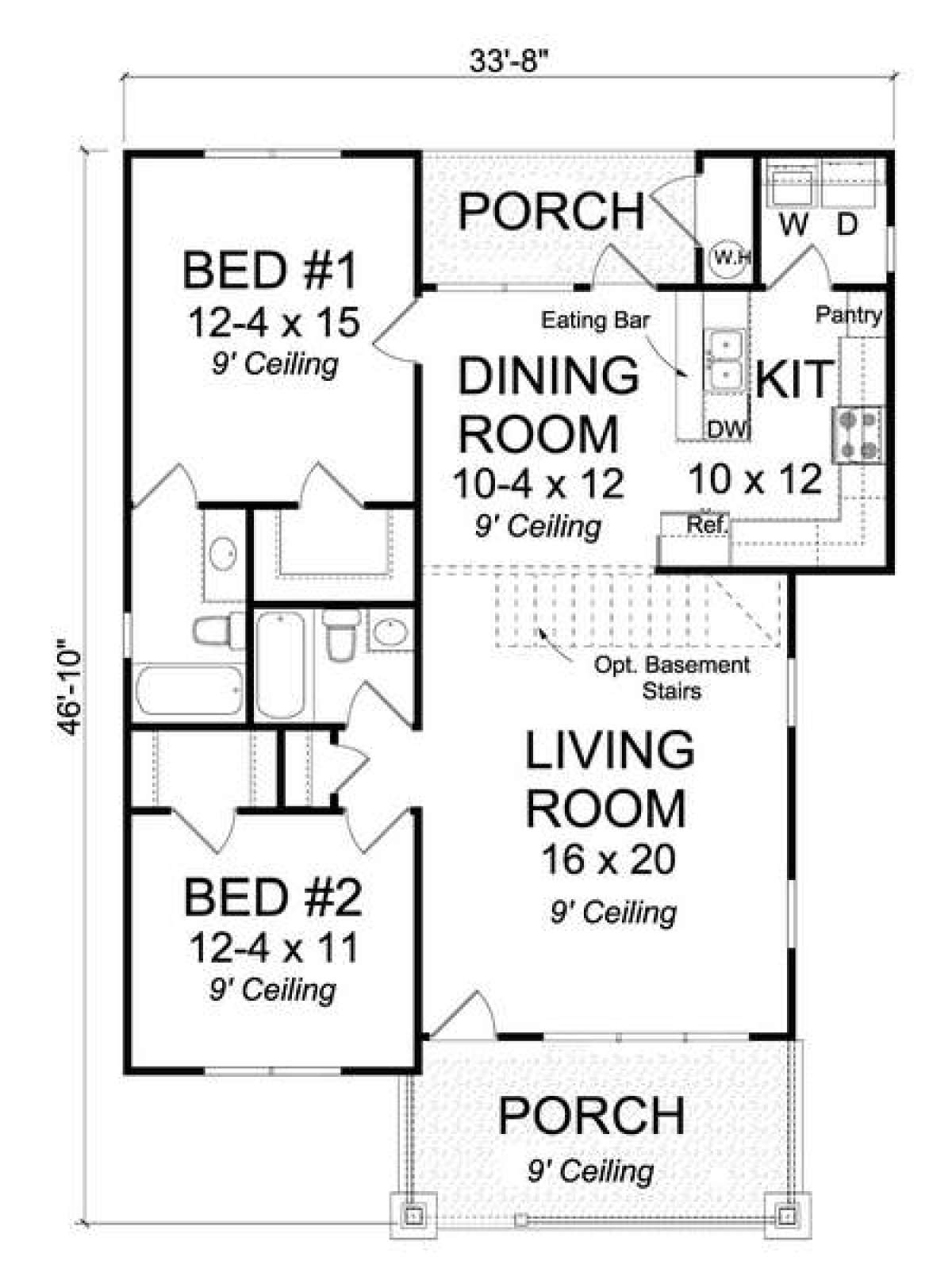

Floorplan 1 for House Plan #4848-00315

What's Included in these plans?

  • Cover Page
    This home plan features the front elevation and informative reference sections including general notes and design criteria.

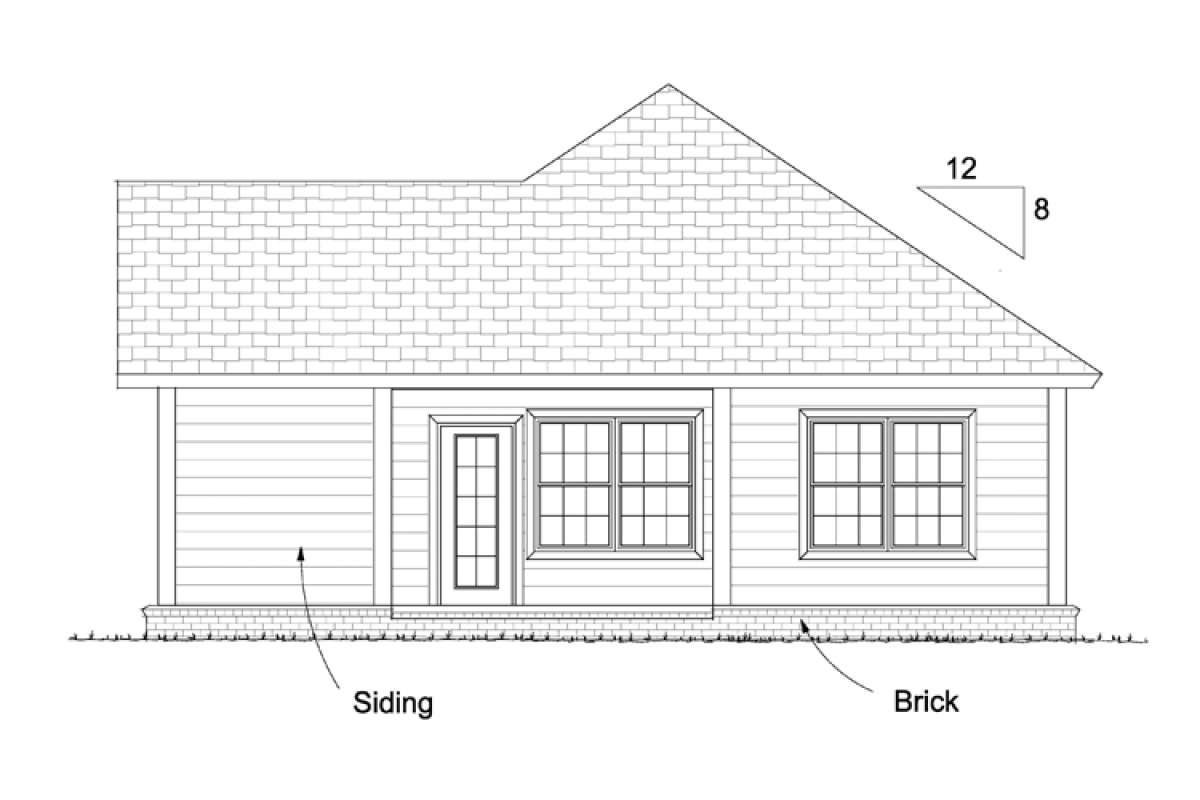

  • Elevations
    Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
  • Foundations
    Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan
    Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.
  • Second Level Floor Plan
    Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Sections
    The plans include two pages of sections; a typical wall section, stair section and foundation details.
  • Roof Plan
    A Roof plan showing roof pitches, valleys, ridges and rafters.
  • No Re-use Fee
    As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

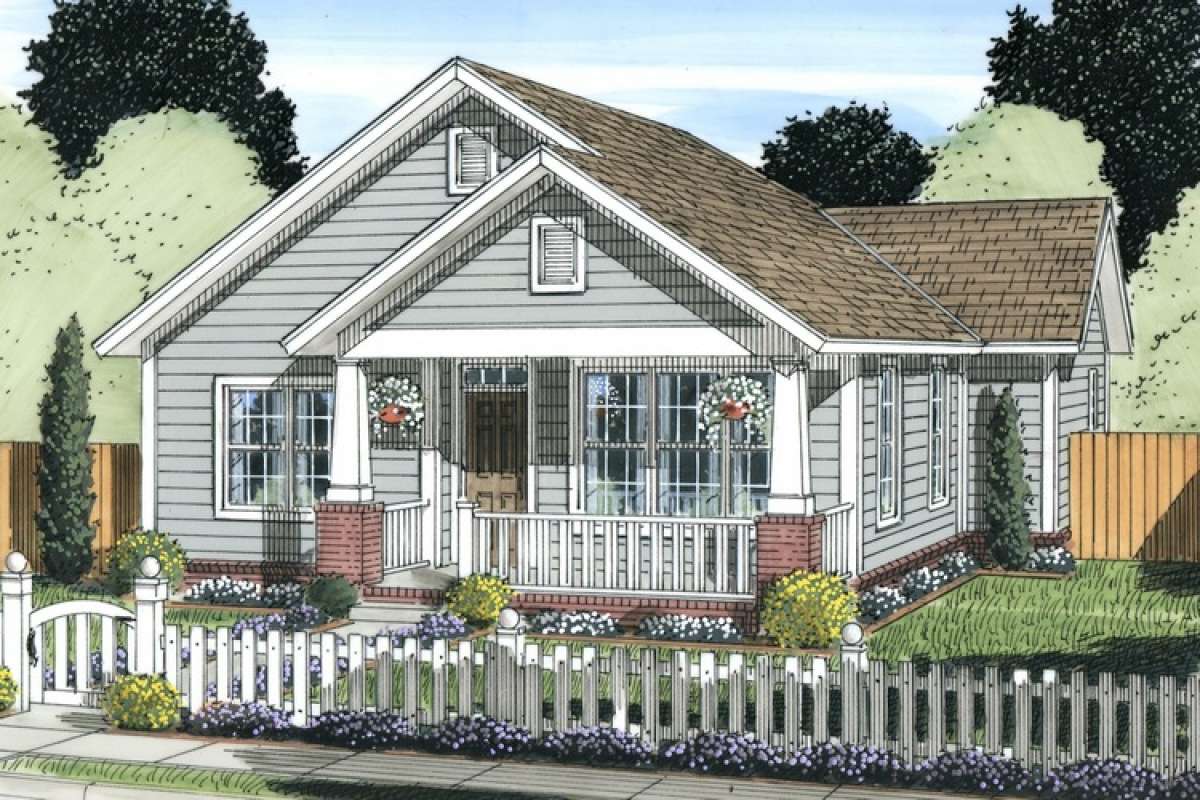

This Cottage house plan features an attractive exterior façade that is highlighted with charming detail that includes wide eaves, open gables, a brick perimeter and an aesthetically pleasing front covered porch. The porch features open railing, brick pillars and wide tapered beams along with great space in which to relax and/or greet family and guests. Imagine sitting on the front porch with a tall glass of iced tea while visiting with neighbors and watching the day go by. This home would make the perfect vacation or “forever” home for young professionals, a small family or empty nesters with all its charming detail. The interior floor plan is quite functional and spacious; there are approximately 1,147 square feet of usable living space which incorporates two bedrooms and two baths into the home’s interior. Nine foot ceilings dominate the floor plan and actually begin on the front covered porch where you step into the home’s living room. This space is generously proportioned and measures 16’x20 with a plethora of wonderful window views. There is a dining room directly accessible from the living room which also opens onto the kitchen. A peninsula bar is conveniently located in the kitchen and anchors the dining space and kitchen with additional seating for family and guests. The dining room grants access onto the rear covered porch for a second excellent outdoor space. The kitchen boasts of a separate pantry and plenty of counter and cabinet space. An enclosed laundry room is situated at the rear of the kitchen and is self-contained for noise control. Bedroom one is the larger of the two and features adjacent access to the rear covered porch. There are double window views and an attached walk-in closet along with an en suite bath. The bath is highlighted with an extended vanity space, a toilet area and a tub/shower combination. The second bedroom enjoys good floor space, an attached walk-in closet as well as a private bath with a tub/shower combination and there is a hall linen/storage closet nearby. This comfortable home is fully functional, highlighted with outstanding outdoor space and features an attractive and inviting exterior façade.
