Traditional House Plan 4848-00242

Sq Ft1,270
1/2 Baths0
Width42' 0"
Depth47' 0"

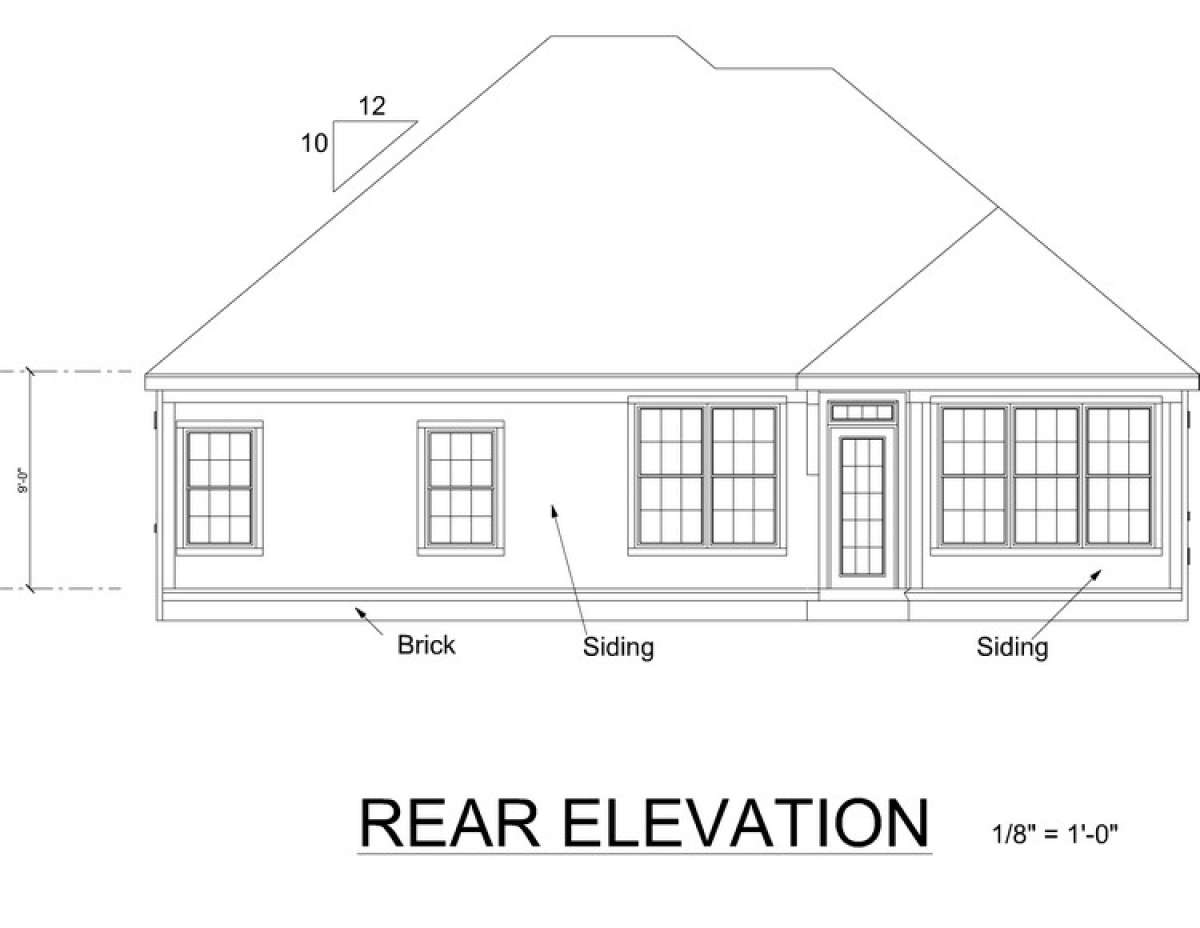

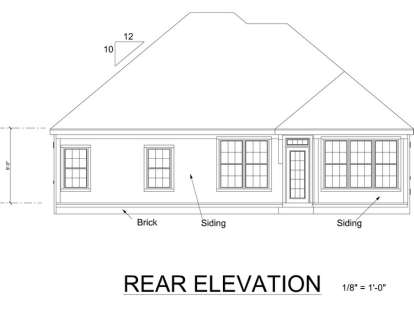

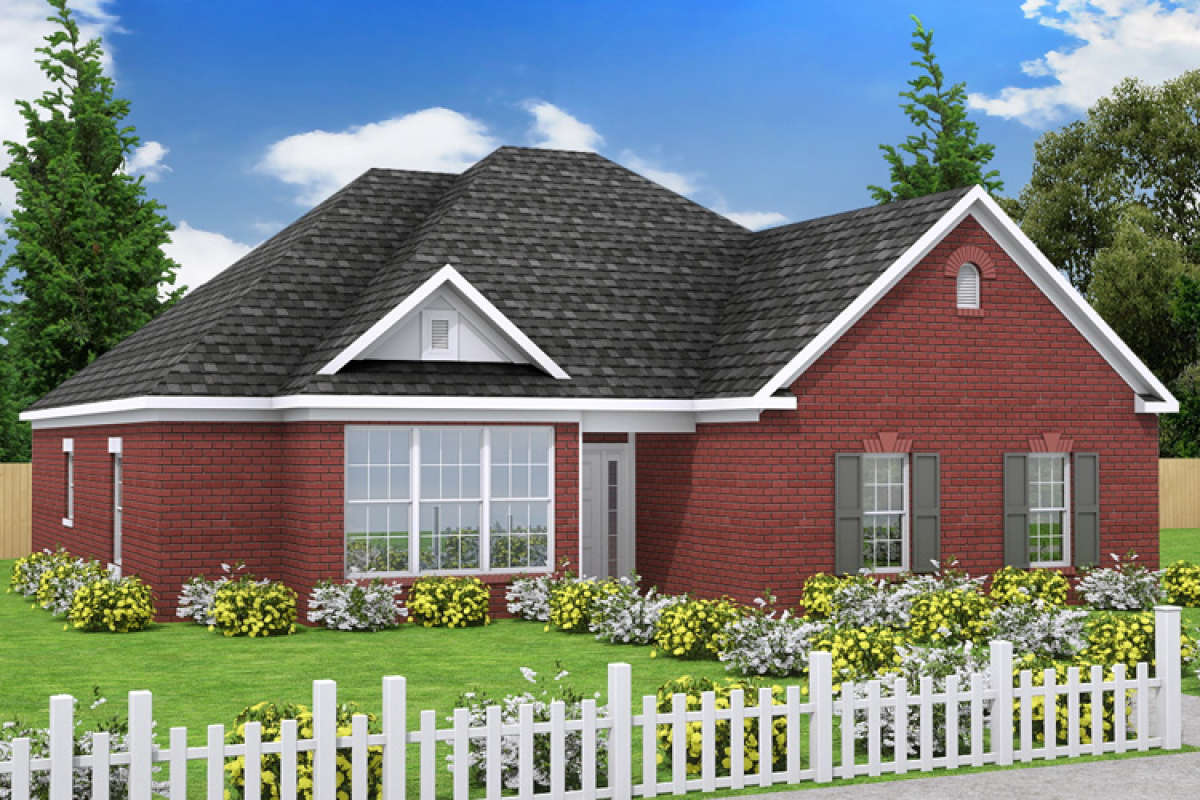

Traditional House Plan #4848-00242 Elevation Photo

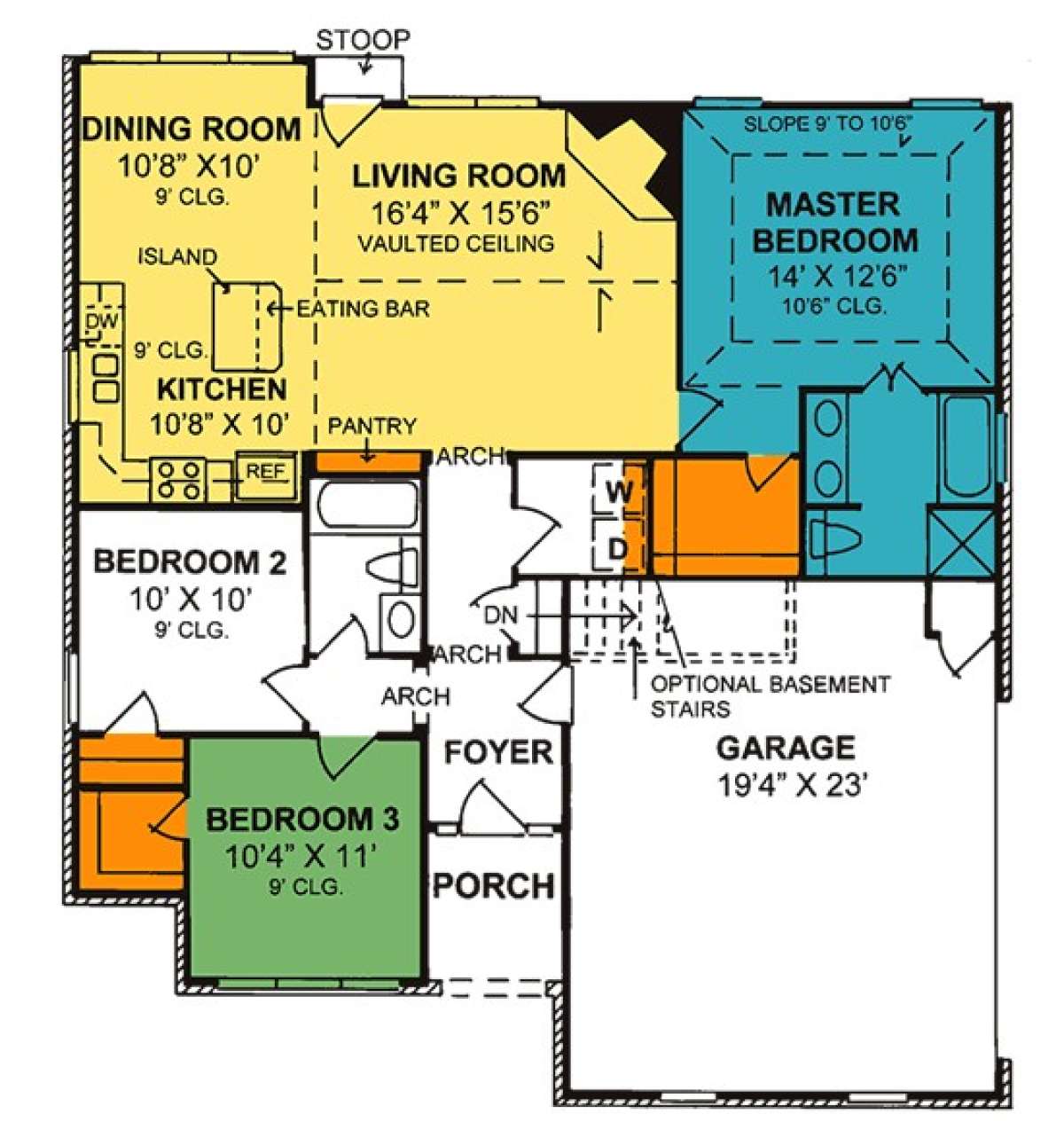

Floorplan 1
Floorplan 1 for House Plan #4848-00242
Traditional House Plan #4848-00242 Elevation Photo
Traditional House Plan #4848-00242 Elevation Photo
Floorplan 1 for House Plan #4848-00242
Traditional House Plan #4848-00242 Elevation Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #4848-00242
Floorplan 1
Floorplan 1 for House Plan #4848-00242

Frequently Asked Questions


What's Included in these plans?

  • Cover Page
    This home plan features the front elevation and informative reference sections including general notes and design criteria.
  • Elevations
    Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
  • Foundations
    Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan
    Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.
  • Second Level Floor Plan
    Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations
    Kitchen cabinet elevations are drawn.
  • Sections
    The plans include two pages of sections; a typical wall section, stair section and foundation details.
  • Roof Plan
    A Roof plan showing roof pitches, valleys, ridges and rafters.
  • No Re-use Fee
    As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This attractive Traditional house plan features a low maintenance brick exterior with a hip roof, overhead gables, beautiful window views and a covered alcove entryway. The interior floor plan is highlighted with approximately 1,270 square feet of living space. The one story house design contains three bedrooms and two baths in a split bedroom plan and the open floor plan is perfect for entertaining and/or family time. The home is situated on a slab foundation; however, there are options for either a crawl space or basement foundation, the latter being well-suited for expanding now or in the future. The two car front entry garage features good vehicle space and a small storage room at the rear edge. The main entrance into the home opens onto the foyer which has garage access and the ability to travel to the secondary bedrooms. Bedrooms two and three are similarly sized; one has a large walk-in closet, the other features plentiful closet space. There is a nearby shared hall bath with large vanity, a toilet area and a tub/shower combination. The master suite is located at the rear of the home for privacy and features large rooms and modern amenities. The master bedroom is spacious with a trey ceiling, wonderful window views and an attached walk-in master closet. An en suite bath is highlighted with dual sinks, a separate shower, garden tub and private toilet area.

There is a hall laundry room before accessing the open common rooms where the living room is first revealed. The living room is huge with a corner fireplace, vaulted ceilings and a rear wall of windows. The kitchen opens onto both the living room and dining room with a center island featuring an eat-in breakfast bar for additional seating options. The gourmet kitchen also boasts of a separate pantry and plenty of additional counter and cabinet space. The dining room is beautifully appointed with 9’ ceilings and a wall of windows allowing for a sundrenched space to dine and gather with family and friends. This home design is highlighted with a handsome exterior and a functional floor plan which has an efficient layout with minimal square footage waste.
