Traditional Plan 4848-00241


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,333
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 42'
Depth 52'

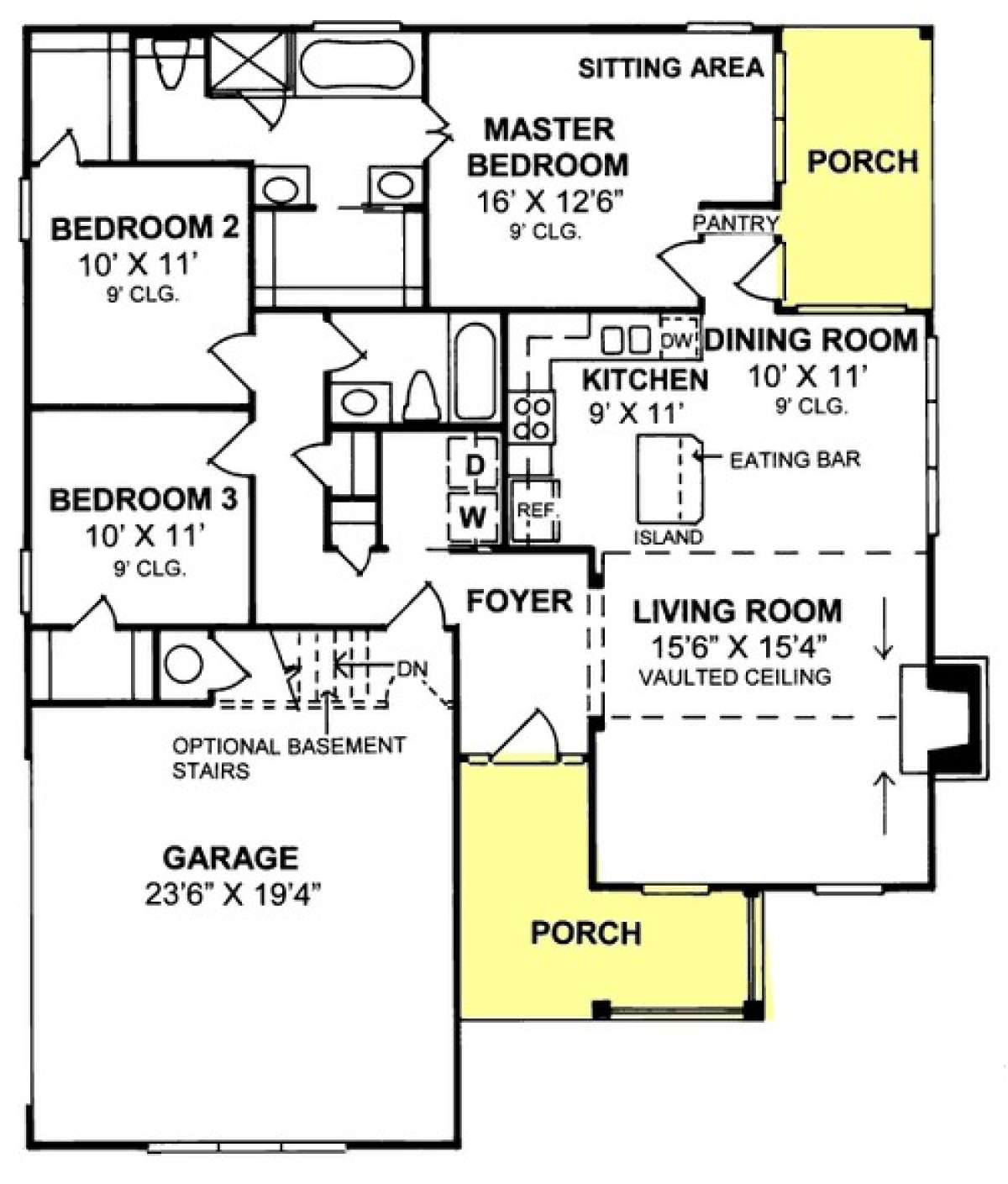

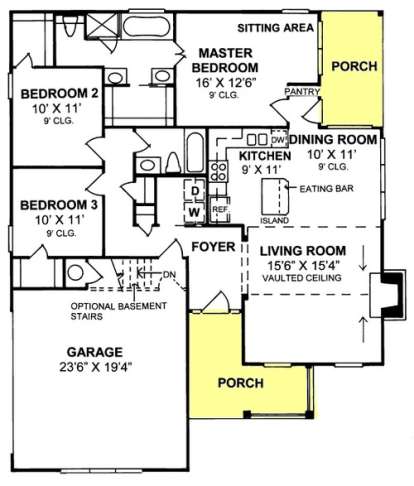

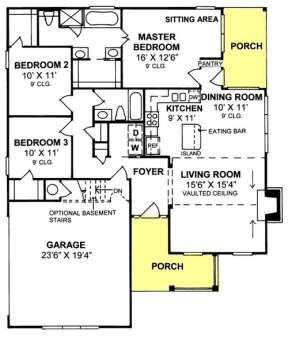

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #4848-00241

What's Included in these plans?

  • Cover Page
    This home plan features the front elevation and informative reference sections including general notes and design criteria.

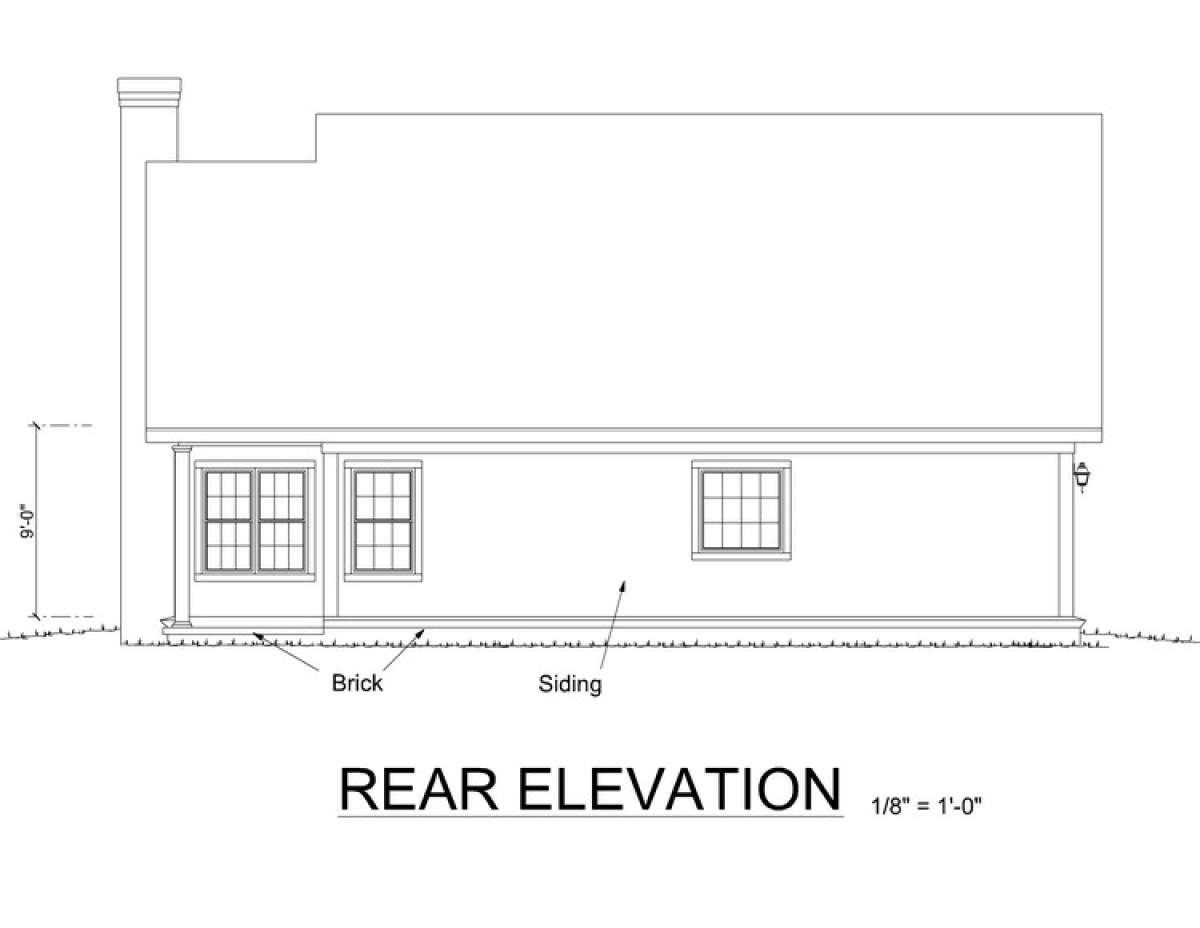

  • Elevations
    Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
  • Foundations
    Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan
    Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.
  • Second Level Floor Plan
    Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Sections
    The plans include two pages of sections; a typical wall section, stair section and foundation details.
  • Roof Plan
    A Roof plan showing roof pitches, valleys, ridges and rafters.
  • No Re-use Fee
    As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This charming Traditional house plan features warm and inviting exterior elements and an interior floor plan that is efficiently designed and functional. The façade consists of horizontal siding, an overhead gable displaying wide eaves, an exterior brick chimney and great window views. The accompanying front covered porch adds structure and balance to home’s exterior and is a wonderful spot for greeting family and friends or casually relaxing. The interior floor plan is highlighted with approximately 1,333 square feet of living space that includes three bedrooms, two baths and an open floor plan. The addition of multiple window views and nine foot ceiling heights results in a light and airy home interior. The one story plan features foyer entrance off the front covered porch which immediately opens onto the common rooms. There is a large living room with vaulted ceilings, a handsome fireplace and front window views. The subsequent dining room and kitchen feature two alternate dining spaces; one with a three wall window view and the other a breakfast bar center island. Plenty of counter and cabinet space are also available and there is a walk-in pantry as well. The side covered porch is a beautiful spot for morning coffee, entertaining or relaxing with a novel and cool summertime drink. There is a two car side entry garage with good vehicle and storage space before accessing the garage entrance into the home where there are two closets and a laundry room.

The three bedrooms and two baths round out the home nicely wrapping around the remaining perimeter of the home. Bedrooms two and three are equal sized, measuring 10’ x 11’, both have walk-in closets and window views. There is a shared hall bath offering a vanity, toilet area and a tub/shower combination. The master suite is rear positioned and spans the width of the home before abutting the side porch. The master bedroom is spacious and is highlighted with a sitting area featuring window views onto the rear porch. There is an en suite master bath with separate double vanities, a garden tub, separate shower and toilet area. The master walk-in closet is located beyond the bath for privacy and convenience. This small Traditional house plan features an efficient and functional floor plan, an attractive exterior and wonderful outdoor space.
