Traditional House Plan 4848-00145

Sq Ft1,416
Beds3
Baths2
1/2 Baths0
Stories1
Cars2
Width49' 0"
Depth58' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

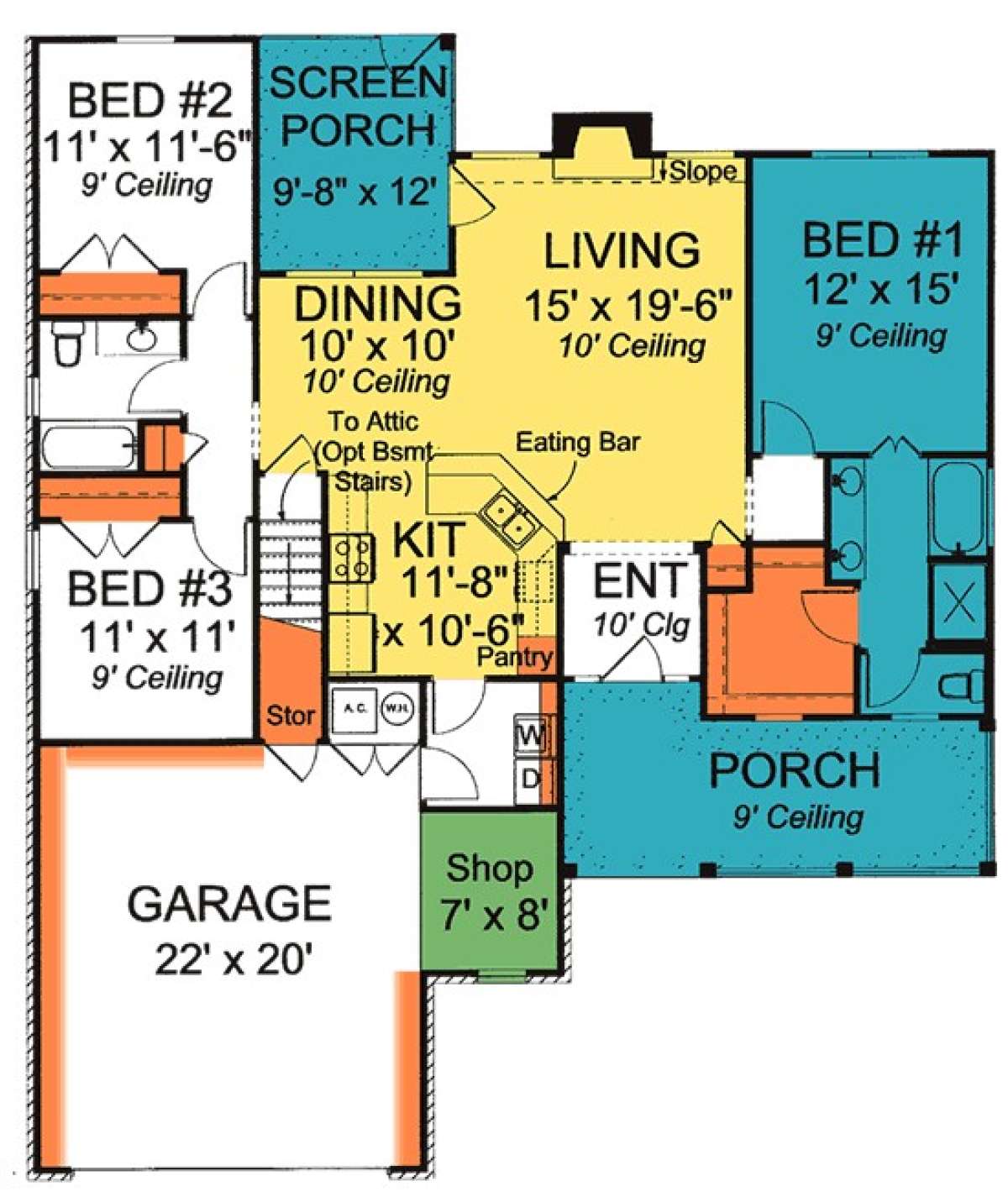

Floorplan 1 for House Plan #4848-00145
Floorplan 1
Floorplan 1 for House Plan #4848-00145


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Page
    This home plan features the front elevation and informative reference sections including general notes and design criteria.

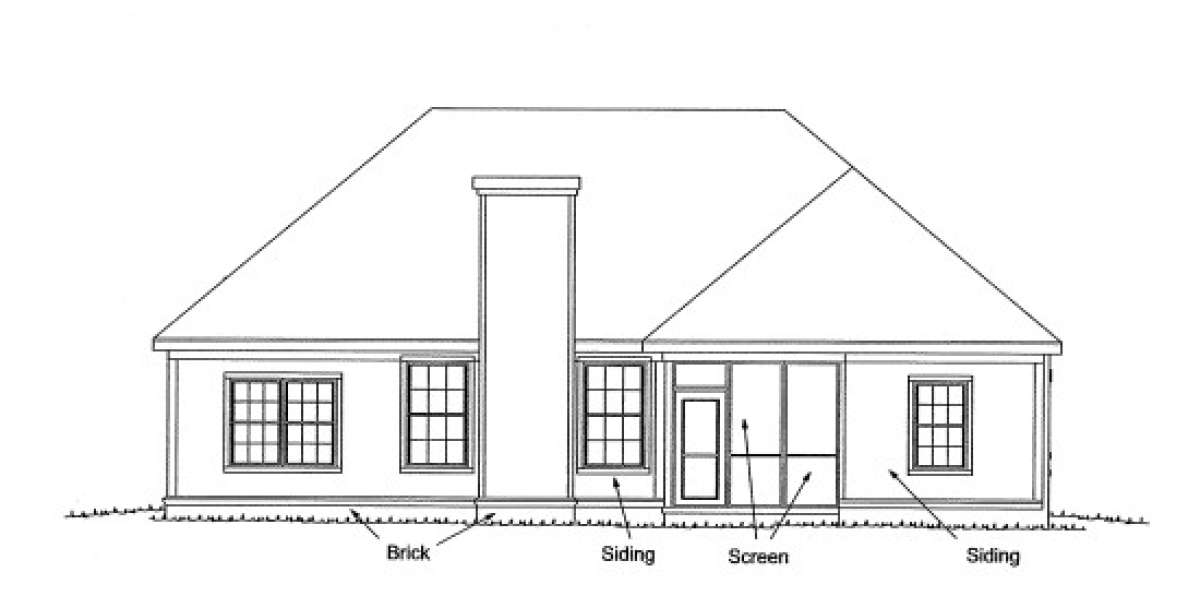

  • Elevations
    Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
  • Foundations
    Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan
    Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.
  • Second Level Floor Plan
    Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations
    Kitchen cabinet elevations are drawn.
  • Sections
    The plans include two pages of sections; a typical wall section, stair section and foundation details.
  • Roof Plan
    A Roof plan showing roof pitches, valleys, ridges and rafters.
  • No Re-use Fee
    As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

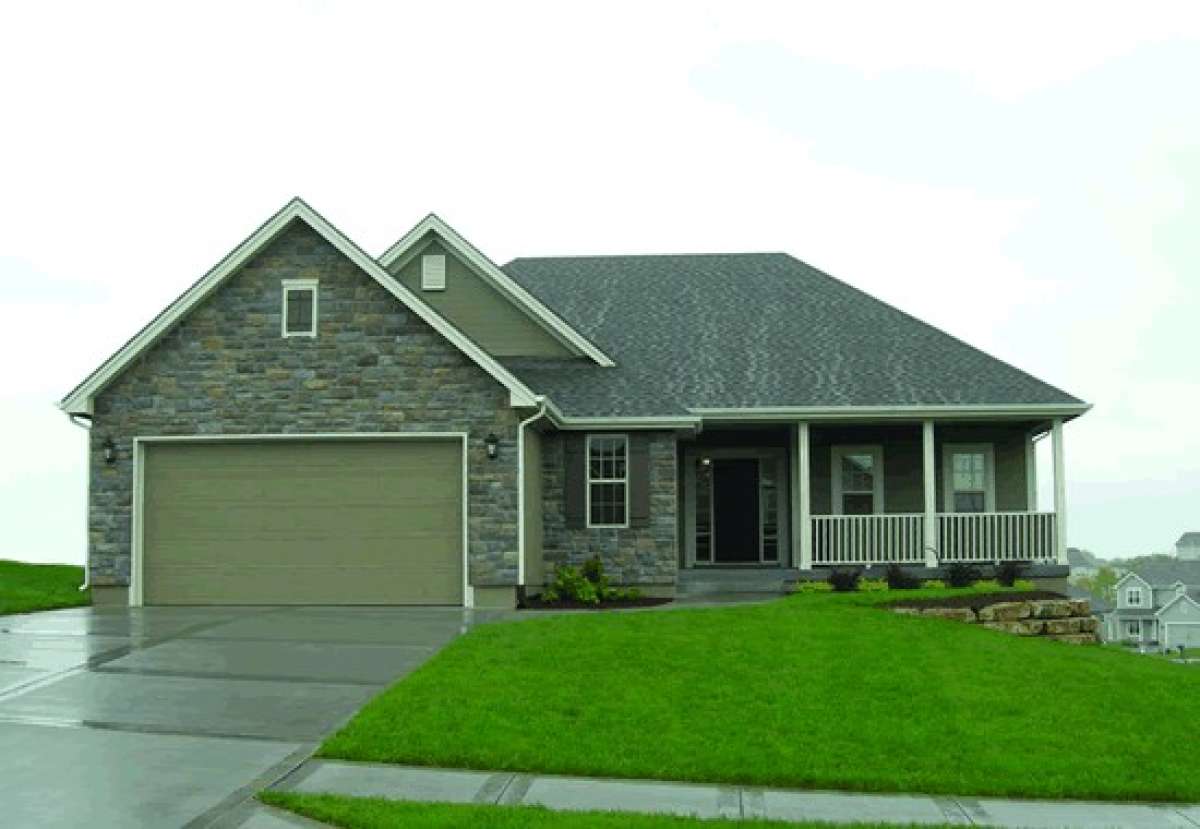

Beautiful detailing lines the clean exterior of this Traditional home where a front covered porch is offset, split gables adorn the roofline and abundant stacked stone elements decorate a front wall and the perimeter of the garage. This Ranch styled home features approximately 1,426 square feet of living space; while compact, the home’s efficient interior is highlighted with three bedrooms, two baths and an open layout. The front foyer enjoys 10’ ceiling heights that continue throughout the main living and dining areas creating a spacious and open feel within the home. There is a large living room which houses a warming fireplace flanked by picturesque window views and screened porch access. The casual dining space is sun drenched with double window views overlooking the screened porch and opening onto the kitchen. The grand kitchen features an angled eating bar and a separate pantry before heading into the family laundry room which is conveniently located off the two car garage. Within the garage’s 547 square feet of space are a workshop area and an additional storage room; great for woodworking, a potting bench and gardening tools and/or a car maintenance platform.
The split bedroom plan provides privacy for the master retreat where there is a large bedroom with window views and 9’ ceilings along with an en suite master bath highlighted with double vanities, a separate shower and a garden tub. There is an enormous master walk-in closet at the rear of the bath; it features door entry to avoid moisture and privacy. Two spacious bedrooms are directly situated on the opposite side of the home; each bedroom features window views, 9’ ceiling heights and plentiful closet space. Between the two rooms are a linen closet and a shared hall bath with a tub/shower combination. This home displays a beautiful exterior and an interior floor plan that is functional and complete for a small family or young professionals.
