Cottage Plan 4848-00109

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,260
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 52'
Depth 48'

Floorplan Drawings

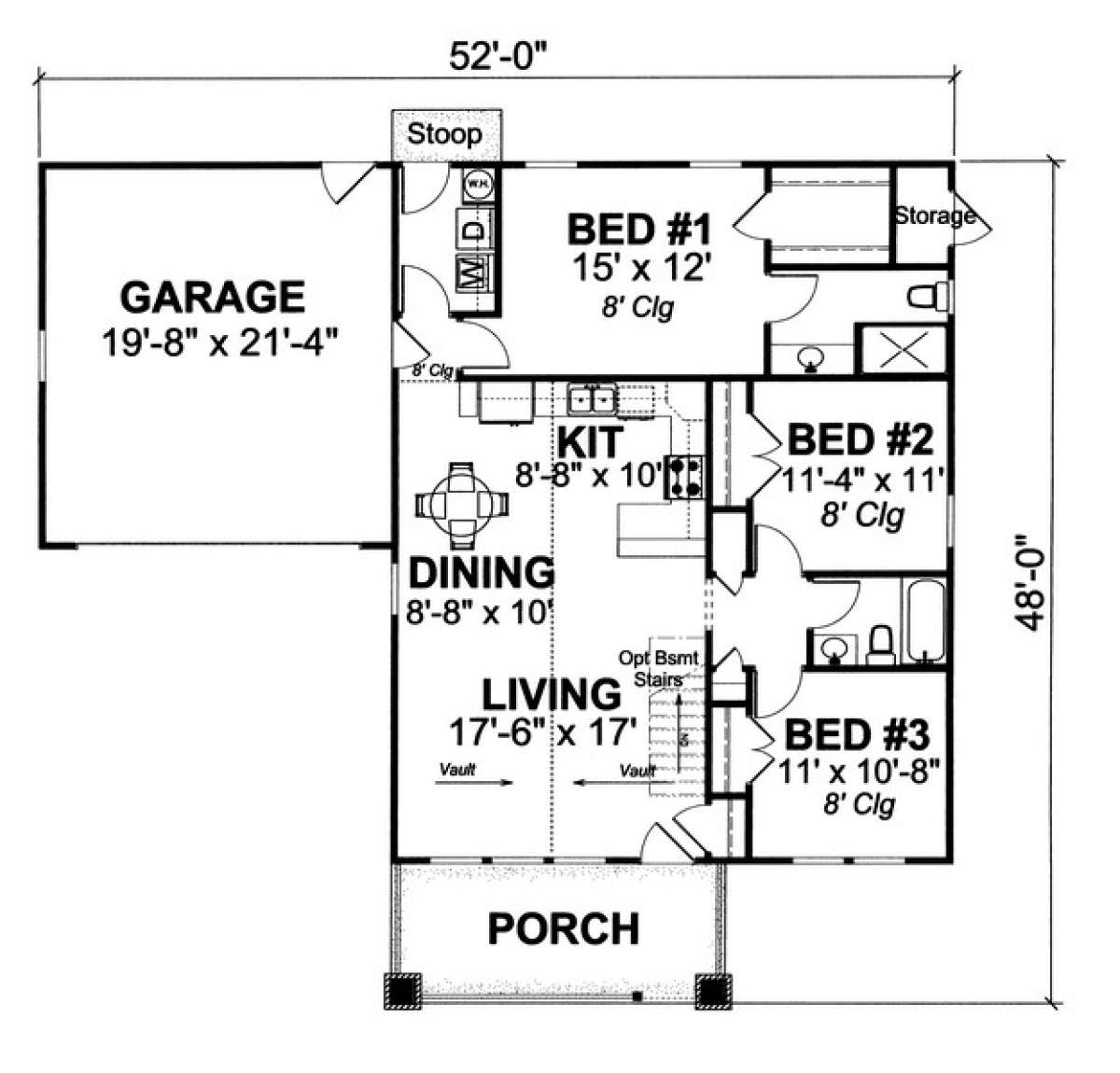

Floorplan 1
Floorplan 1 for House Plan #4848-00109


What's Included in these plans?

  • Cover Page
    This home plan features the front elevation and informative reference sections including general notes and design criteria.
  • Elevations

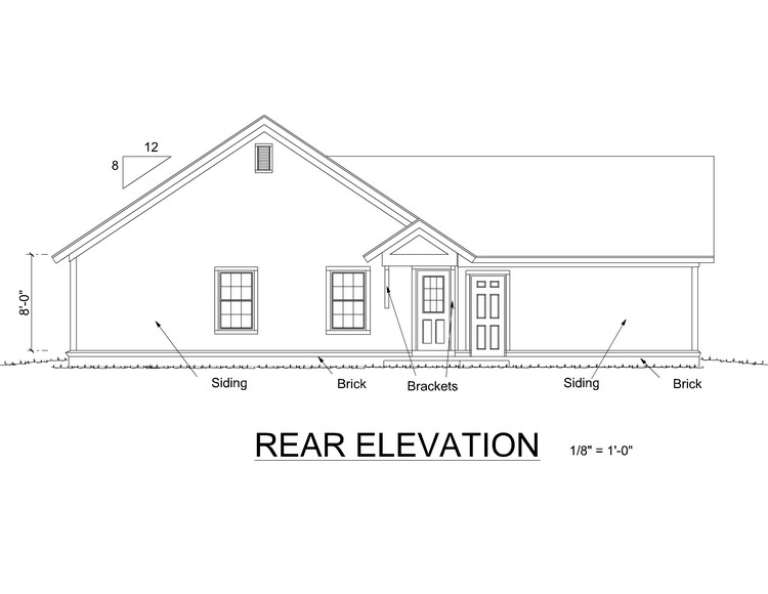

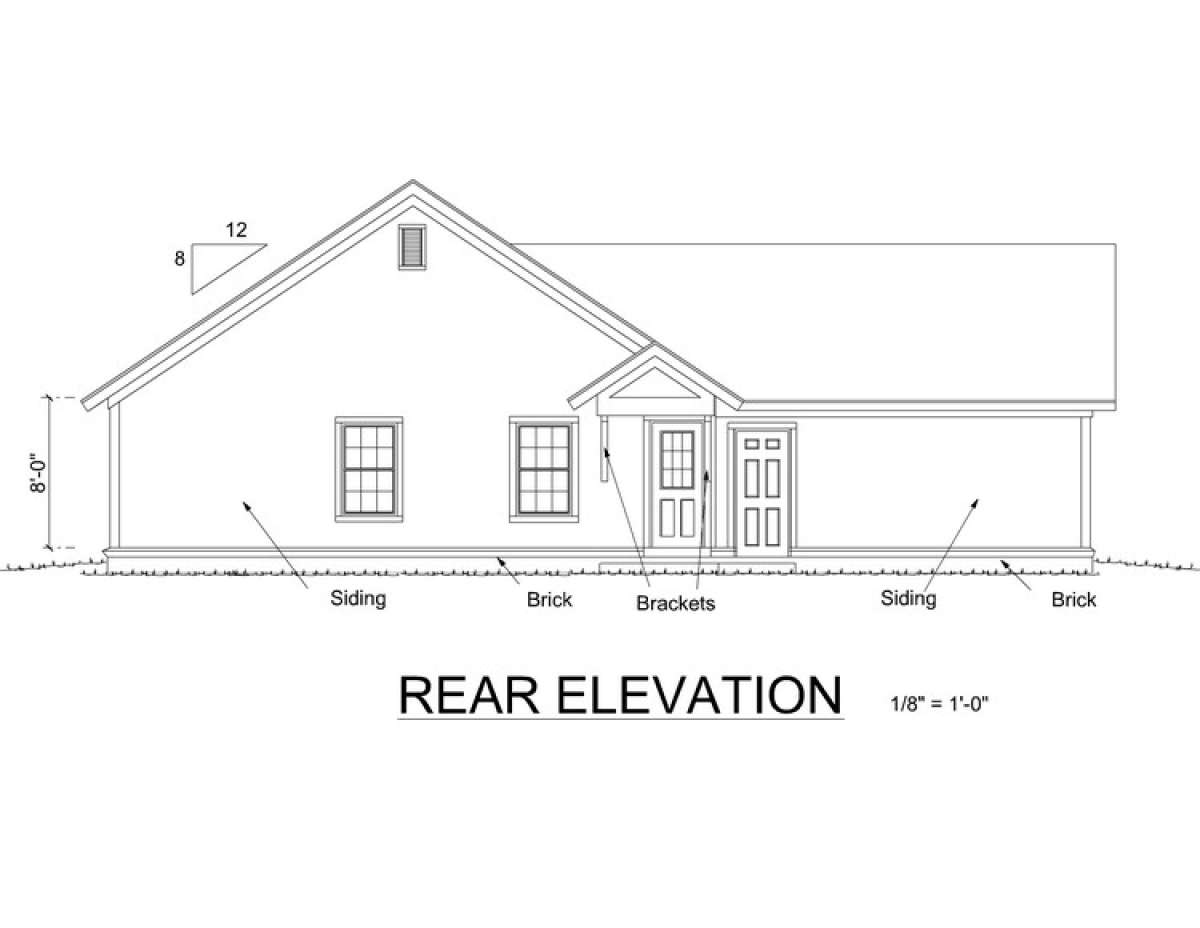

    Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
  • Foundations
    Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan
    Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.
  • Second Level Floor Plan
    Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations
    Kitchen cabinet elevations are drawn.
  • Sections
    The plans include two pages of sections; a typical wall section, stair section and foundation details.
  • Roof Plan
    A Roof plan showing roof pitches, valleys, ridges and rafters.
  • No Re-use Fee
    As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This attractive Cottage house plan features charming architectural design elements on the exterior of the home and a one story interior functional floor plan. The exterior is highlighted with horizontal siding, cedar shake detailed gables, beautiful window sets and a front covered porch. The front porch is inviting and welcoming with open railing, brick pillars and wide tapered beams; perfect for greeting family and guests or relaxing. There is a slab foundation with optional crawl space or basement foundation available; the basement, of course, is ideal for expansion space. The interior floor plan offers approximately 1,260 square feet of living space with three bedrooms and two baths. A two car front loading garage is attached to the home and is highlighted with a rear pedestrian door as well as entry into the interior laundry room which is helpful in maintaining a tidy home environment. There is a rear stoop with a separate entry into the laundry room as well; great for sloughing off muddy shoes or clothing. On the opposite side of the home is an outdoor storage room where lawn and sporting equipment can be easily stored away from the vehicles.

The interior layout is accessed off the front covered porch where the open floor plan is revealed. There is a coat closet and a large vaulted living room as well as the optional basement staircase. The front three window wall features natural light and there is a side window view as well off the dining space which is situated between the living room and kitchen. The kitchen offers a peninsula bar and plenty of counter and cabinet space. The master suite is located at the rear of the home and features generous floor space and two window views. There is a spacious attached master walk-in closet as well as an en suite bathroom that features a large vanity space, toilet area and a shower. Bedroom two features a window view and wall-to-wall closet space while the third bedroom offers double window views overlooking the front of the home and plentiful closet space. The interior hallway to the bedrooms features a linen closet and storage closet before accessing the shared hall bath that includes a vanity space, a toilet area and a tub/shower combination. This delightfully charming Cottage house design features an attractive exterior, an efficient and functional floor plan with minimal square footage waste and an optional basement foundation for expansion purposes.
