Ranch House Plan 4848-00090

Sq Ft892
1/2 Baths0
Width46' 6"
Depth40' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

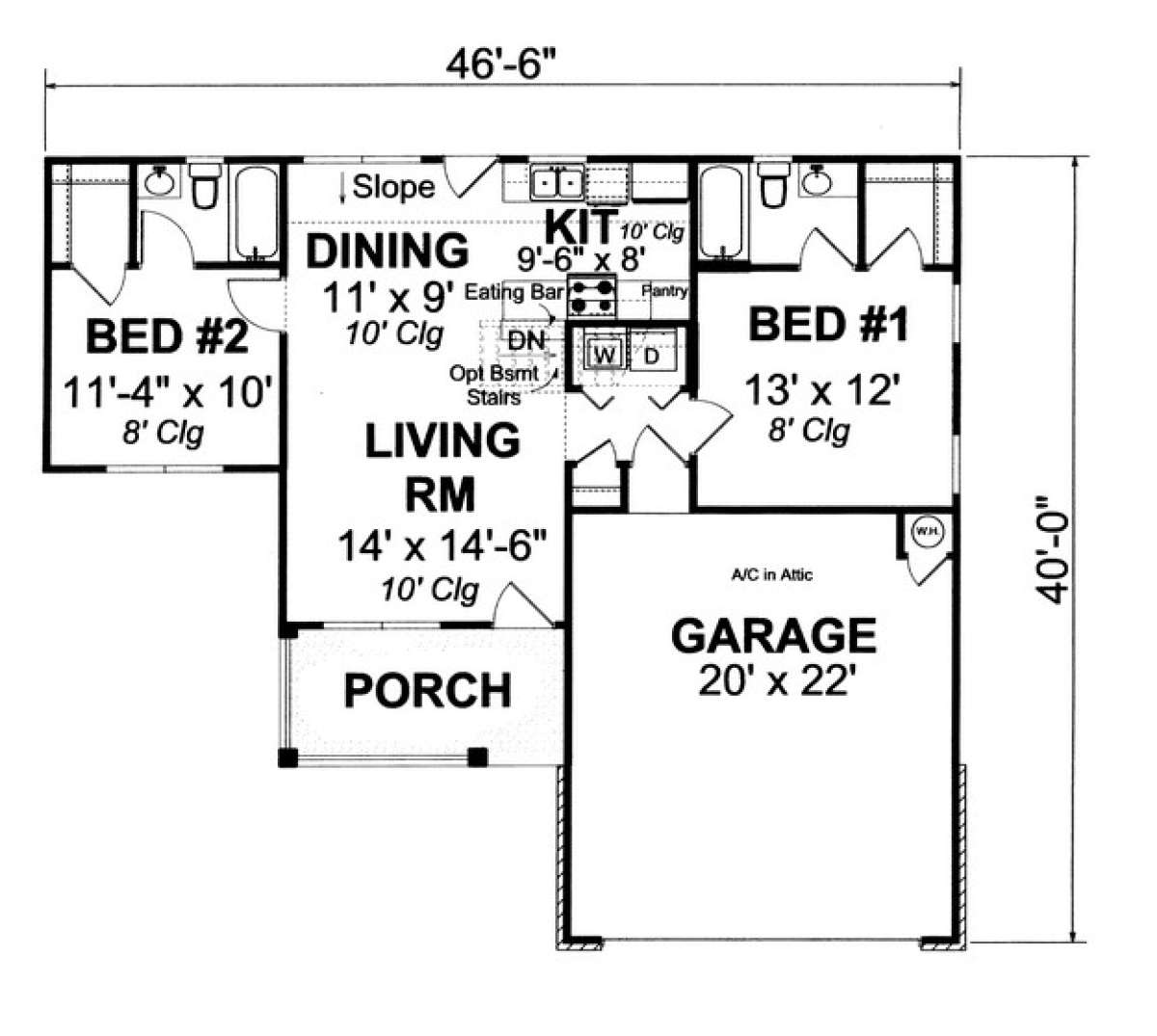

Floorplan 1 for House Plan #4848-00090
Floorplan 1
Floorplan 1 for House Plan #4848-00090

Frequently Asked Questions


What's Included in these plans?

  • Cover Page
    This home plan features the front elevation and informative reference sections including general notes and design criteria.
  • Elevations

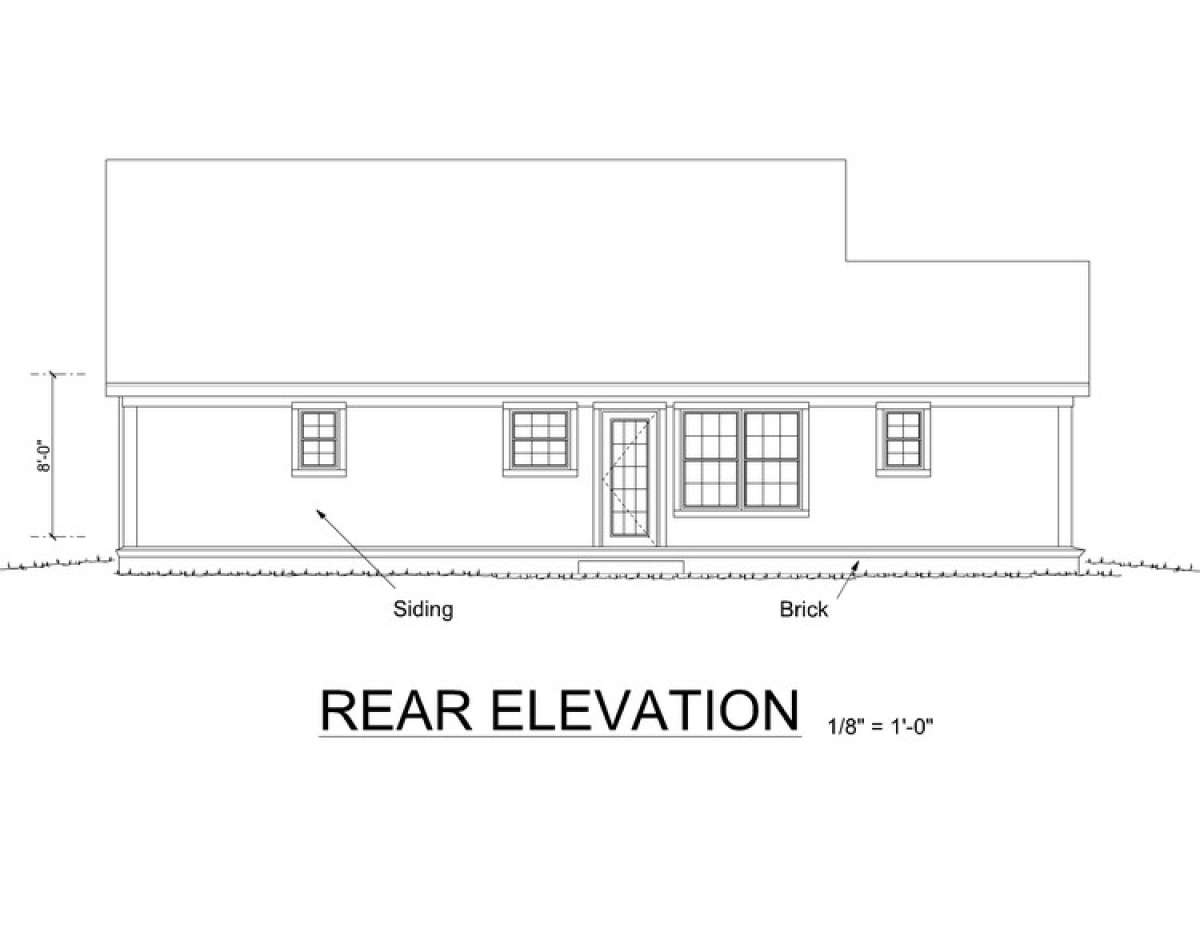

    Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
  • Foundations
    Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan
    Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.
  • Second Level Floor Plan
    Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations
    Kitchen cabinet elevations are drawn.
  • Sections
    The plans include two pages of sections; a typical wall section, stair section and foundation details.
  • Roof Plan
    A Roof plan showing roof pitches, valleys, ridges and rafters.
  • No Re-use Fee
    As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

A homey exterior and comfortable floor plan highlights this two bedroom, two bath home. The exterior is a showcase for traditional design elements and features split gables, open railing and a covered front porch. The width and depth dimensions come in at 46’+ and 40’ respectively making the home a lovely choice for a small or narrow lot. Whether situated in a vacation community, suburban neighborhood or urban lot, the home is nicely appointed with modern amenities and conveniences with an open layout and split bedroom plan. The interior floor plan features approximately 892 square feet of living space and there is a two car front loading garage with an additional 448 square feet of vehicle space. Ten foot ceilings dominate in the main living areas increasing the spacious atmosphere and entertaining value of the home. Walking into the home off the front covered porch, there is a large living room with double window views. Beyond the living room is a casual dining space which provides outdoor space for afternoon bar-b-ques and relaxing. The adjoining U-shaped kitchen features a peninsula bar, separate pantry and a double sink window view overlooking the rear yard. The laundry nook is tucked cleverly into the small hallway along with a coat closet and convenient garage entrance. Two bedroom suites lie on either side of the common rooms; each is quite spacious with window views, a walk-in closet and private bath with a tub/shower combination. This Ranch floor plan is perfectly suited for varying lifestyles, families of assorted sizes and a vacation or permanent home.
