Small Plan 4848-00088

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 998
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 48'
Depth 36'

Floorplan Drawings

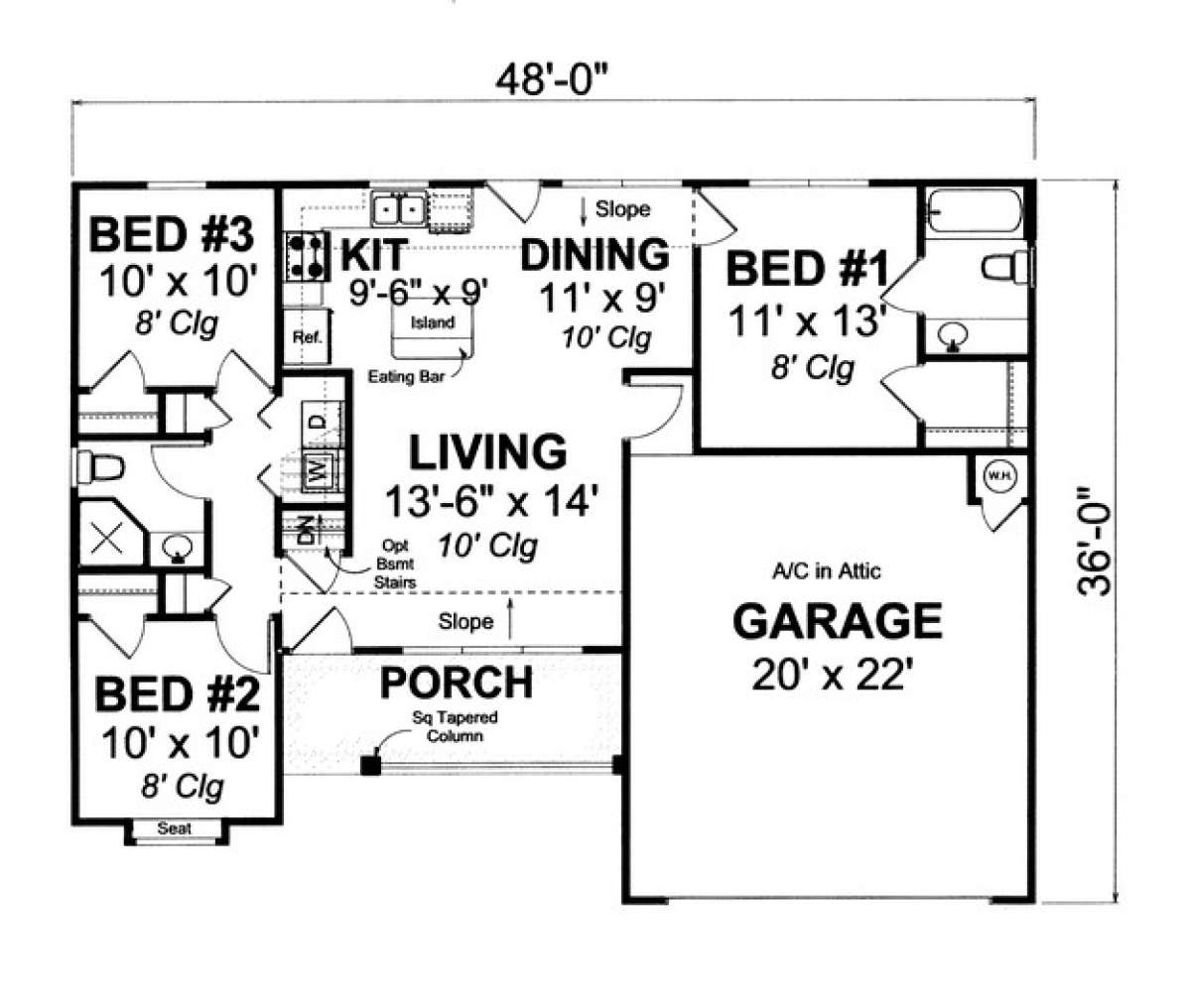

Floorplan 1

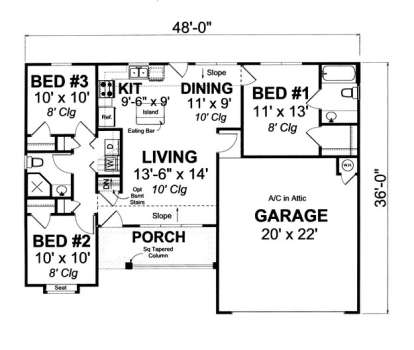

Floorplan 1 for House Plan #4848-00088


What's Included in these plans?

  • Cover Page
    This home plan features the front elevation and informative reference sections including general notes and design criteria.

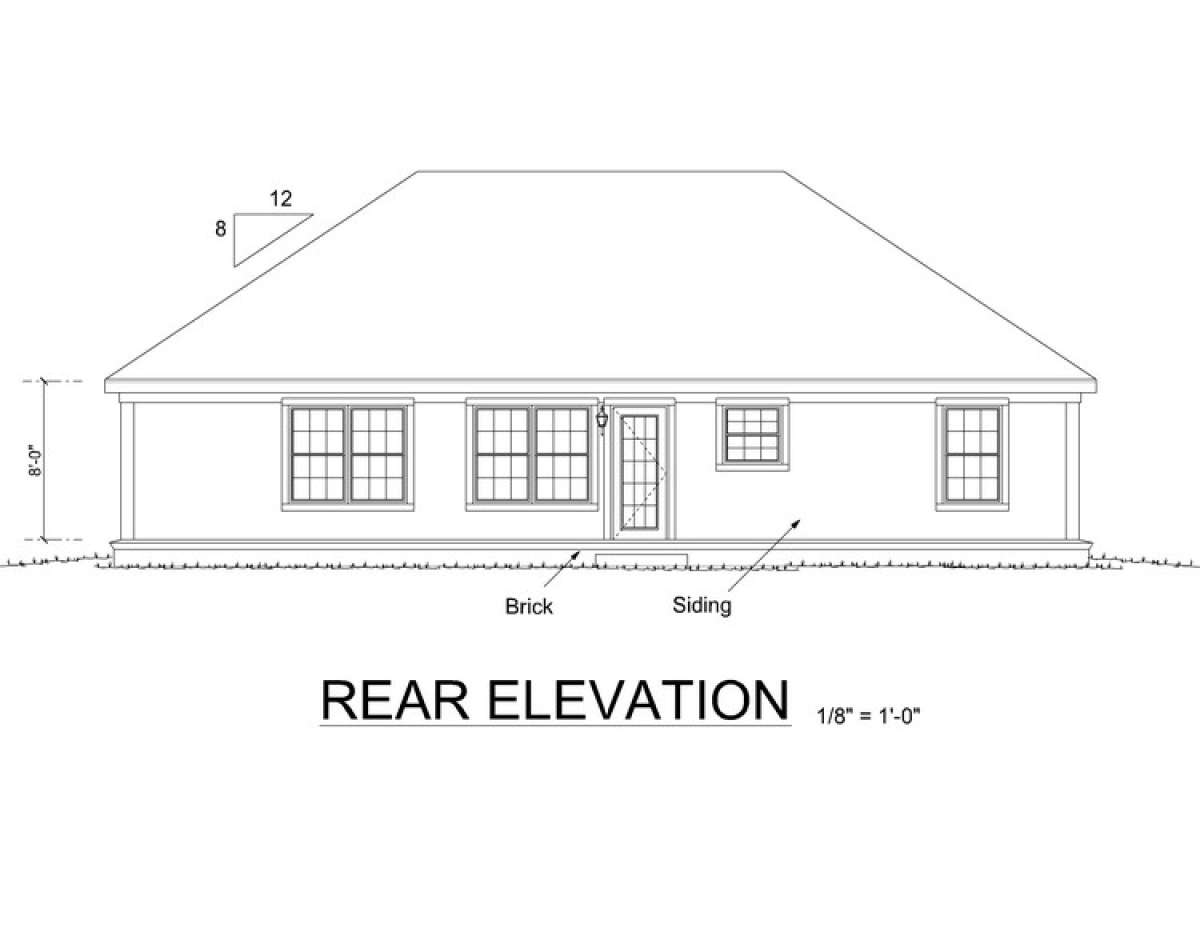

  • Elevations
    Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
  • Foundations
    Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan
    Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.
  • Second Level Floor Plan
    Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations
    Kitchen cabinet elevations are drawn.
  • Sections
    The plans include two pages of sections; a typical wall section, stair section and foundation details.
  • Roof Plan
    A Roof plan showing roof pitches, valleys, ridges and rafters.
  • No Re-use Fee
    As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

An attractive exterior façade composed of split gables with wide eaves and a front covered porch highlighted with widely tapered column beams and open railing frame this small house plan beautifully. While the home is compact at approximately 988 square feet of living space, the layout is efficiently and practically designed. There are three bedrooms, two baths and open main living spaces cleverly designed into the economical space. The addition of a 464 square foot two car garage features ample vehicle and other gear storage space. Entrance into the home reveals a large living room with 10’ ceiling heights that enhance the room’s spaciousness and open feel. There is a large coat closet beyond the space and the subsequent dining room and kitchen. Ten foot ceilings continue into the dining space and the kitchen features a center island breakfast bar, double sink window views and rear access to the outdoor space.
Two bedrooms are situated off the main hallway and feature ample closet space along with window views where the second bedroom features a window seat. There are double linen closets, a laundry nook and a shared bath that line the hallway. The split bedroom plan features the master suite on the opposite side of the home for privacy. There is a spacious bedroom with double window views and an oversized master walk-in closet as well. The en suite master bath features a large vanity and a tub/shower combination. This compact home is ideally suited as a starter home for a small family, young professionals or empty nesters; however, the home could also be utilized as a wonderful vacation home.
