Craftsman Plan 4848-00086


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 960
Beds 2
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 53'
Depth 36'

Floorplan Drawings

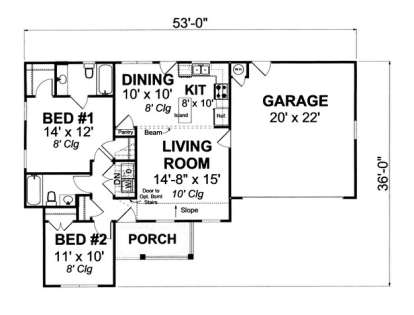

Floorplan 1
Floorplan 1 for House Plan #4848-00086

What's Included in these plans?

  • Cover Page
    This home plan features the front elevation and informative reference sections including general notes and design criteria.

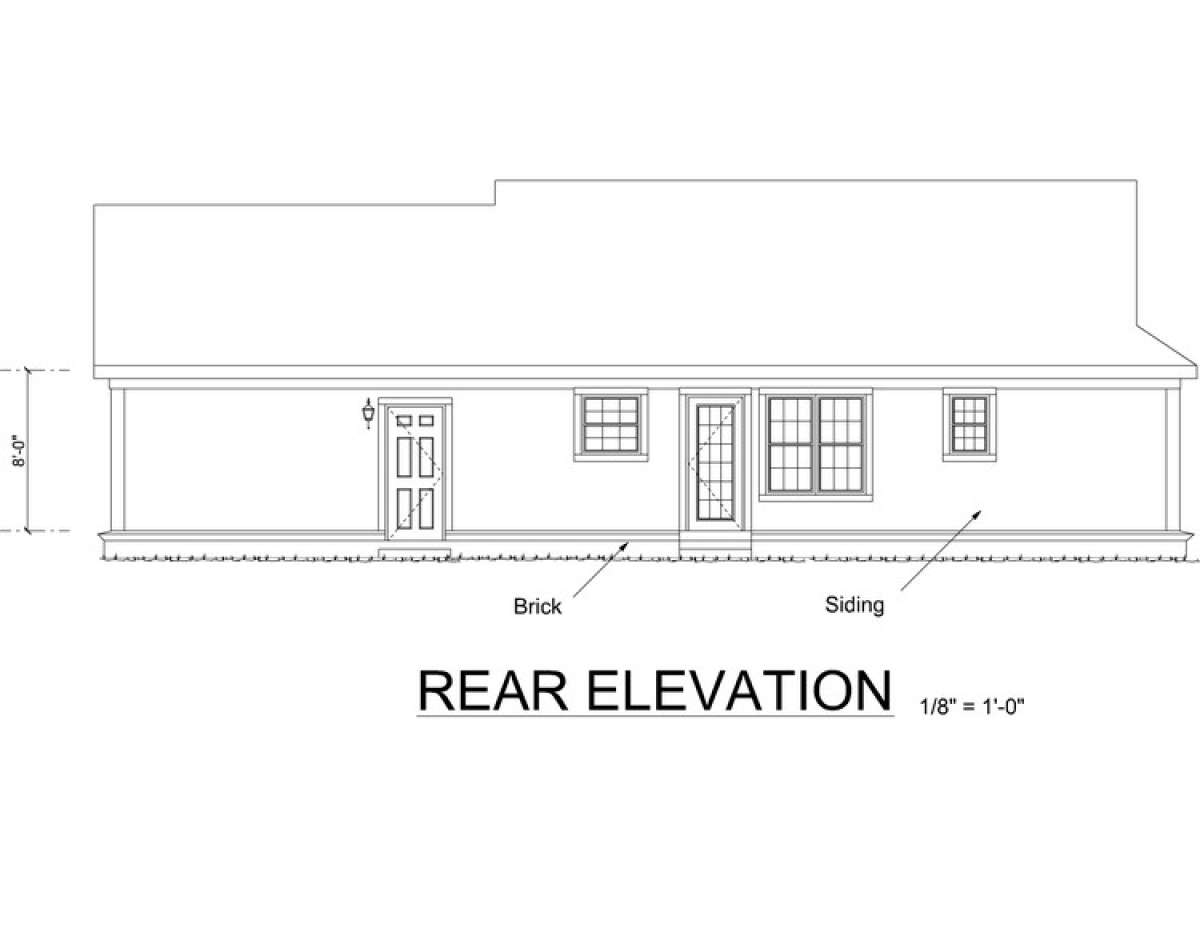

  • Elevations
    Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
  • Foundations
    Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.

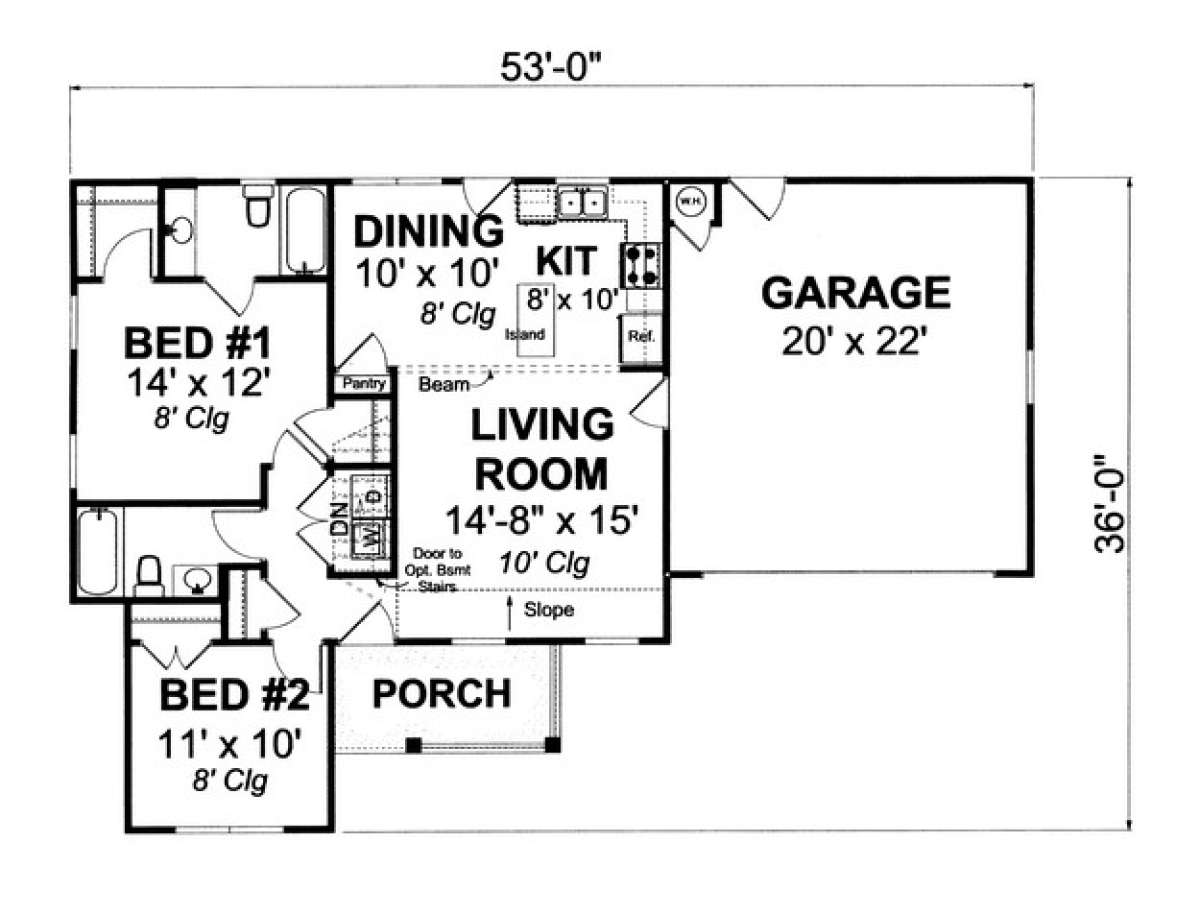

  • Main Level Floor Plan
    Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.
  • Second Level Floor Plan
    Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations
    Kitchen cabinet elevations are drawn.
  • Sections
    The plans include two pages of sections; a typical wall section, stair section and foundation details.
  • Roof Plan
    A Roof plan showing roof pitches, valleys, ridges and rafters.
  • No Re-use Fee
    As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This charming Craftsman house plan features an attractive cottage style façade with a split gable, a window gable and a front covered porch perfect for relaxing and greeting family and friends. There are 960 square feet of interior living space which include two bedrooms and two baths in the single story home. The home’s drawings include a spacious front loading two car garage with access to the rear yard for easy storage of lawn and/or sporting equipment. There is a large living room with 10’ ceiling heights which increases the spacious quality of the room. The open concept layout is highlighted with a sun lit dining room and family friendly kitchen that is highlighted with a separate pantry, a center island and outdoor access. A laundry nook and huge coat closet line the hallway where the bath and bedrooms reside. Double window views are showcased in the second bedroom along with generous closet space and there is an adjacent hall bath with a vanity space, a toilet area and a tub/shower combination. The master bedroom suite features good floor space, his and hers attached walk-in closets and an en suite bath with an extended vanity, tub/shower combination and a toilet. This home is perfectly suited for a small family, empty nesters or could equally be entertained as a lovely vacation home in a seaside or lakefront community.
