Craftsman House Plan 4848-00012

Sq Ft1,187
Beds3
Baths2
1/2 Baths0
Stories1
Cars1
Width40' 0"
Depth48' 2"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

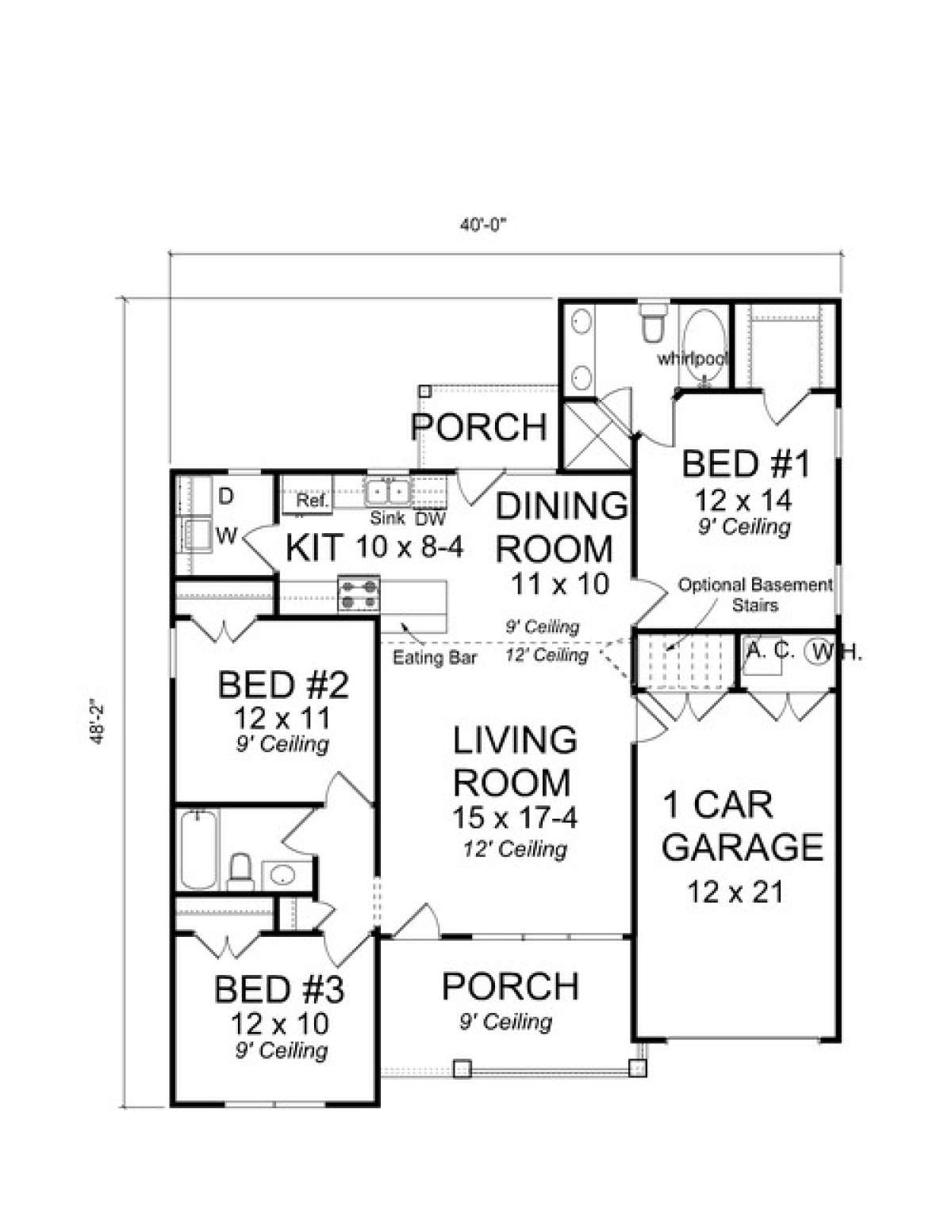

Floorplan 1 for House Plan #4848-00012
Floorplan 1
Floorplan 1 for House Plan #4848-00012


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Page
    This home plan features the front elevation and informative reference sections including general notes and design criteria.
  • Elevations
    Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
  • Foundations
    Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan
    Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.
  • Second Level Floor Plan
    Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations
    Kitchen cabinet elevations are drawn.
  • Sections
    The plans include two pages of sections; a typical wall section, stair section and foundation details.
  • Roof Plan
    A Roof plan showing roof pitches, valleys, ridges and rafters.
  • No Re-use Fee
    As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

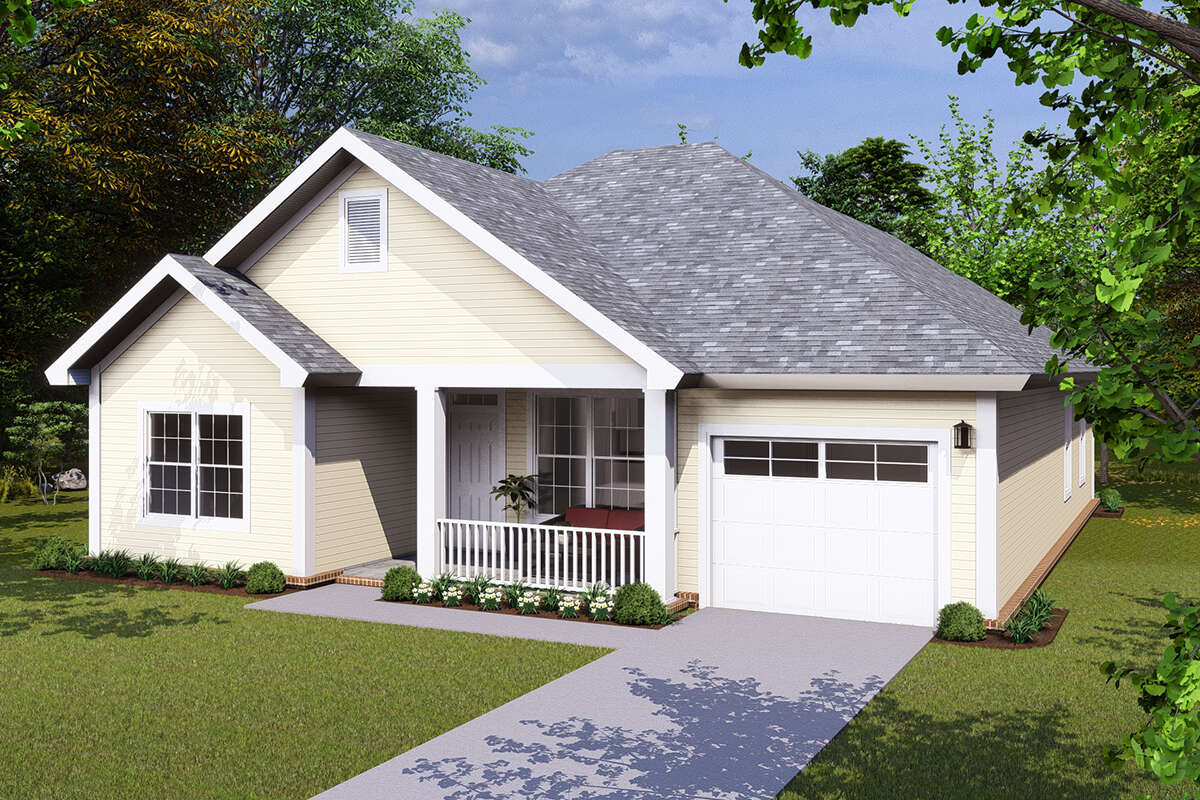

This stylish and cozy Craftsman bungalow features a delightful exterior façade trimmed in alluring curb appeal. The wide eaves, double gables and horizontal siding are charming additions and the front covered porch is highlighted with railing, tapered beams and brick trim. A great space for welcoming friends and family into the home’s interior, the porch is inviting and welcoming to visitors. The one story home design features approximately 1,187 square feet of living space with three bedrooms and two baths in an open floor concept. There is an attached one car garage that is front loading and has rear storage space along with a secondary entrance into the home. The 40’ width and 48’ plus depth make the home an ideal selection for either a narrow and/or small property lot; in-town, suburbia or tucked in the woods somewhere are all perfect locations. The 9’ ceiling porch grants access into the open concept layout where there is a large living room with 12’ ceiling heights and a triple window wall overlooking the front porch. Located beyond the living room is the dining room and kitchen; the dining room is great for family meals and the U-shaped kitchen offers a peninsula bar and good counter and cabinet space along with a double sink window view. At the rear of the space is the outdoor porch where dining al fresco or a cookout will be effortlessly enjoyed during beautiful weather. The laundry nook is located off the kitchen and is enclosed for noise control.

The three bedroom split plan features the master suite at the rear of the home for privacy. Nine foot ceiling heights, good floor space and wonderful window views are found in the master bedroom. An attached master closet with plenty of clothing space and an en suite bath highlighted with dual vanities, a whirlpool tub, a toilet area and a separate shower are found in the master suite. Bedroom two features a window view and good closet space while the third bedroom offers double window views overlooking the front porch and plentiful closet space. There is a shared hall bath that lies between the two bedrooms highlighted with a vanity space, a toilet area and a tub/shower combination. This lovely Craftsman house plan is a great home for small families, young professionals or empty nesters who still enjoy modern amenities found in much larger homes.
