Country Plan 4766-00166


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,797
Beds 4
Bath 3
1/2 Baths 0
Car 3
Stories 1
Width 69'
Depth 85' 7"

Floorplan Drawings

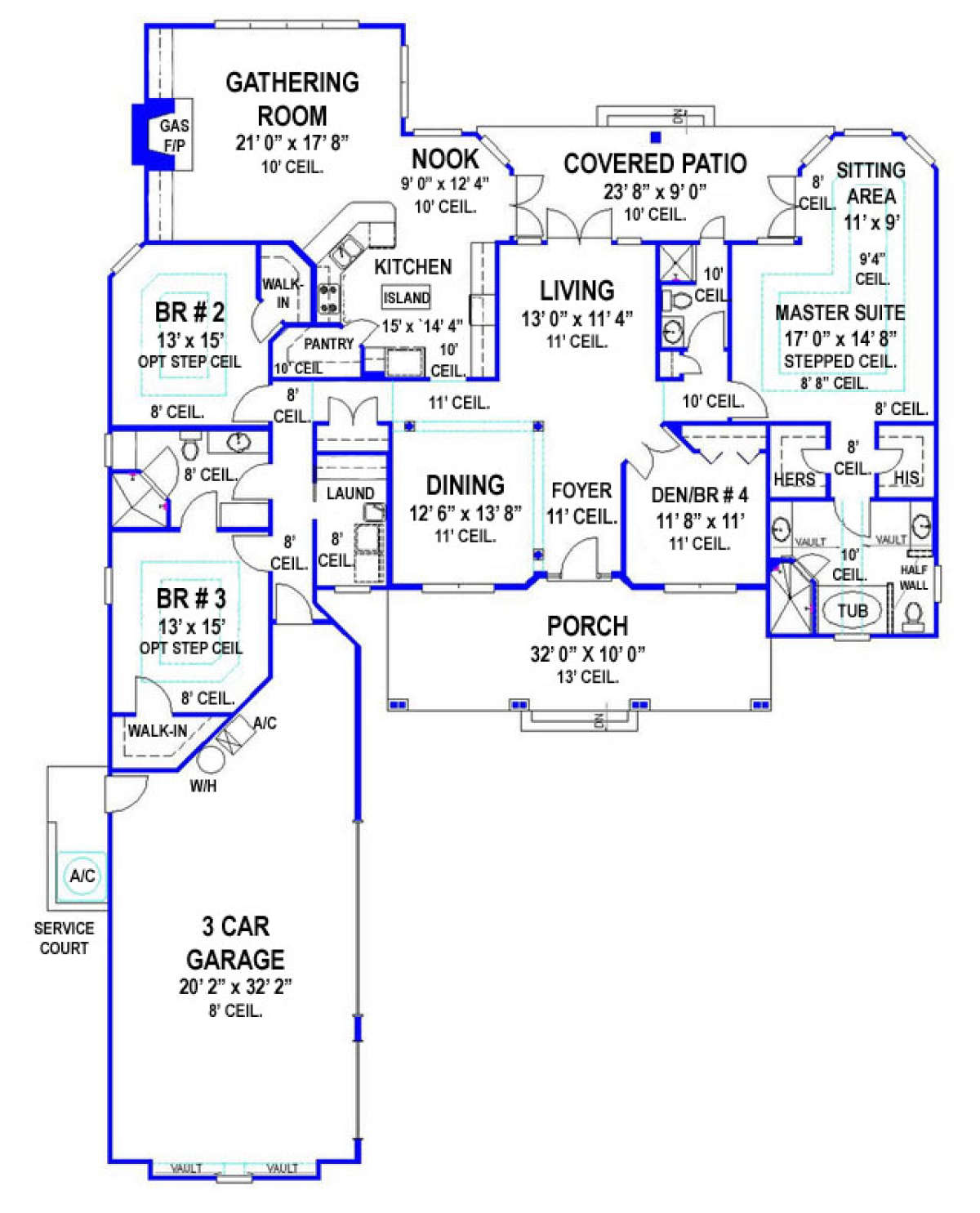

Floorplan 1
Floorplan 1 for House Plan #4766-00166

What's Included in these plans?

  • Foundation Plan at 1/4" scale.
  • Dimensioned and detailed Floor Plans at 1/4" scale.

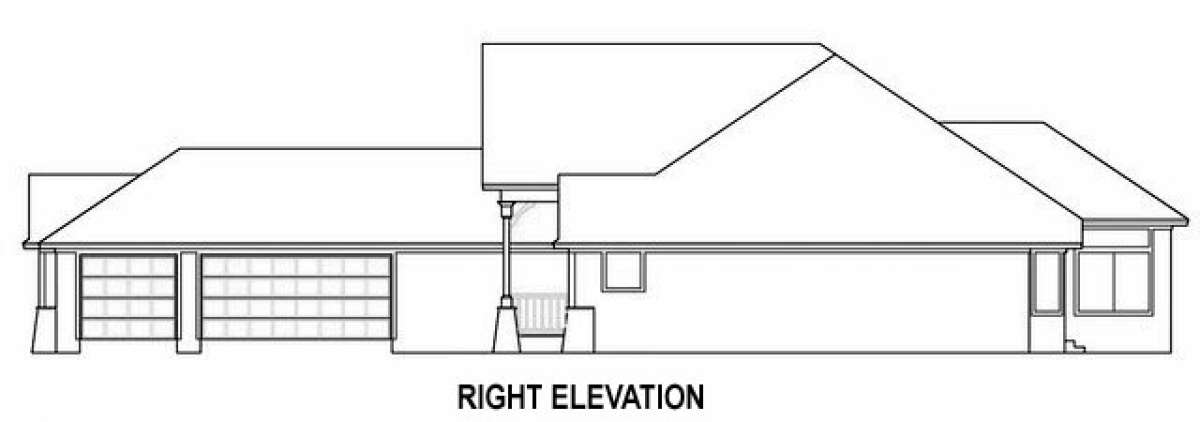

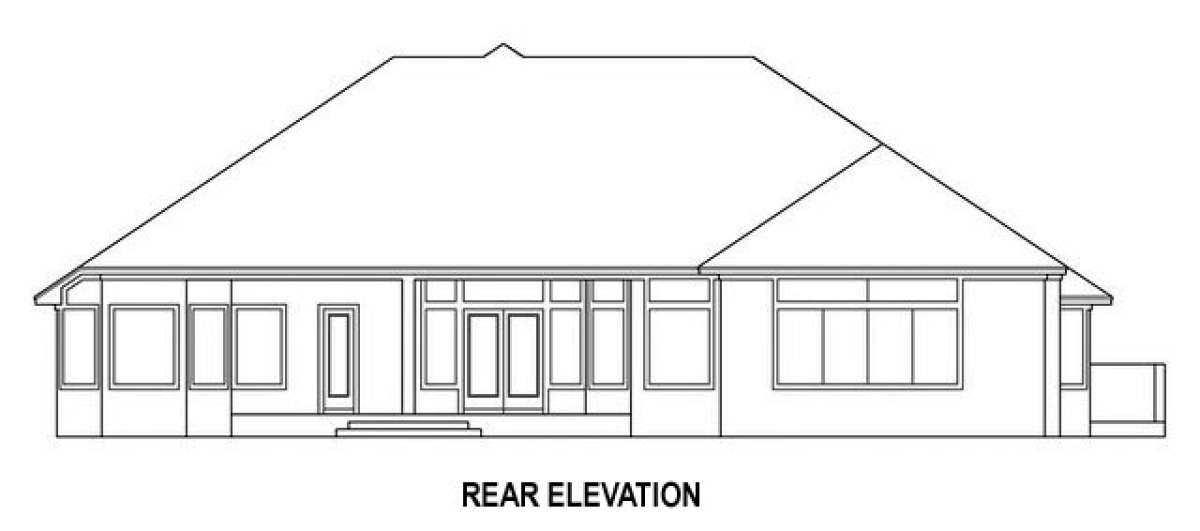

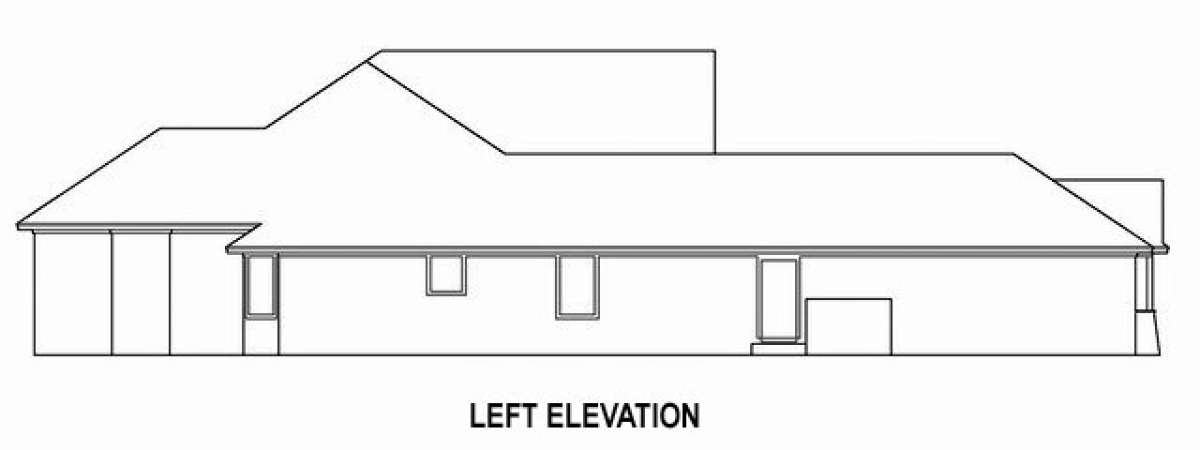

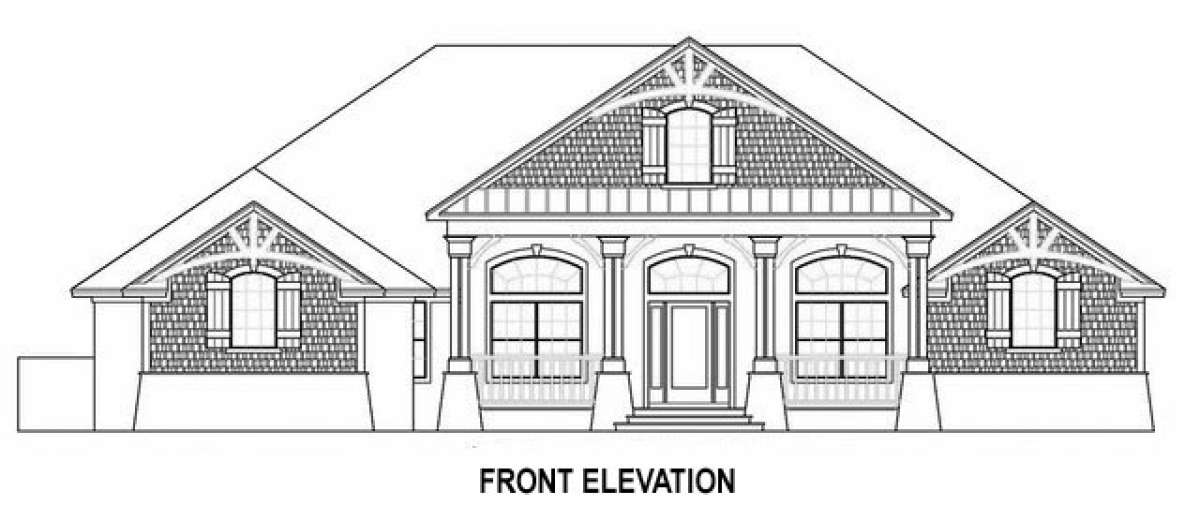

  • Complete Front, Sides and Rear Exterior Elevations at 1/4" scale.
  • Roof Plan at 1/4" scale.
  • Seperate Electrical Plans (not on Floor Plans) at 1/4" scale.
  • Typical Wall Section (exterior wall) at 3/4" scale.
  • Building Sections, Foundation Details, Trim Details, Cabinet Elevations, etc. when available or necessary for construction.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This one story Ranch house plan showcases a beautiful courtyard entrance that features cedar shakes, wide eaves atop the gables and an expansive front covered porch highlighted with open railing and double stacked columned beams. The front covered porch measures 32’x10’ and the 13’ ceiling height enhances the spacious quality of the space making it perfect for outdoor relaxing and greeting family and friends. There is a three car garage offering plenty of space for vehicle and other items to be properly stored. The interior of the home is highlighted with excellent entertaining space and plentiful private family space which includes approximately 2,797 square feet of usable living space. Soaring ceiling heights dominate the floor plan and continue off the porch into the front foyer which opens onto the formal dining room. Flanking the foyer is a private den or fourth bedroom which is accessible through French doors and there is a full bath nearby. There is a large living room with French door access onto the rear covered patio; another outstanding outdoor space for family use where French door access also leads back into the casual breakfast nook and master suite. The breakfast nook is open to the grand kitchen and a rear positioned family room. A gas log fireplace and huge wall of windows highlight the family room and the kitchen features an angled breakfast bar, an enormous walk-in pantry and large center island. The laundry room and coat closet are directly accessible from the three car garage along with two bedrooms.

The split bedroom plan encompasses two family bedrooms on one side of the home while the master lies on the opposite side for privacy. Both family bedrooms are equivalent size, measuring 13’x15’ with walk-in closets and there is a shared hall bath which bedroom three has private access to. The master suite is a lovely composition of well-appointed and spacious rooms; the master bedroom enjoys a large footprint and the adjoining sitting room is situated in a large bay window. His and her walk-in closets line the space between the bedroom and master bath. The en suite bath features vaulted ceilings, dual vanities, a separate shower and a garden tub. This Ranch home is composed of a lovely exterior, a functional floor plan and great space for outdoor living.
