Ranch Plan 4766-00160

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,938
Beds 4
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 45'
Depth 72' 6"

Floorplan Drawings

Floorplan 1

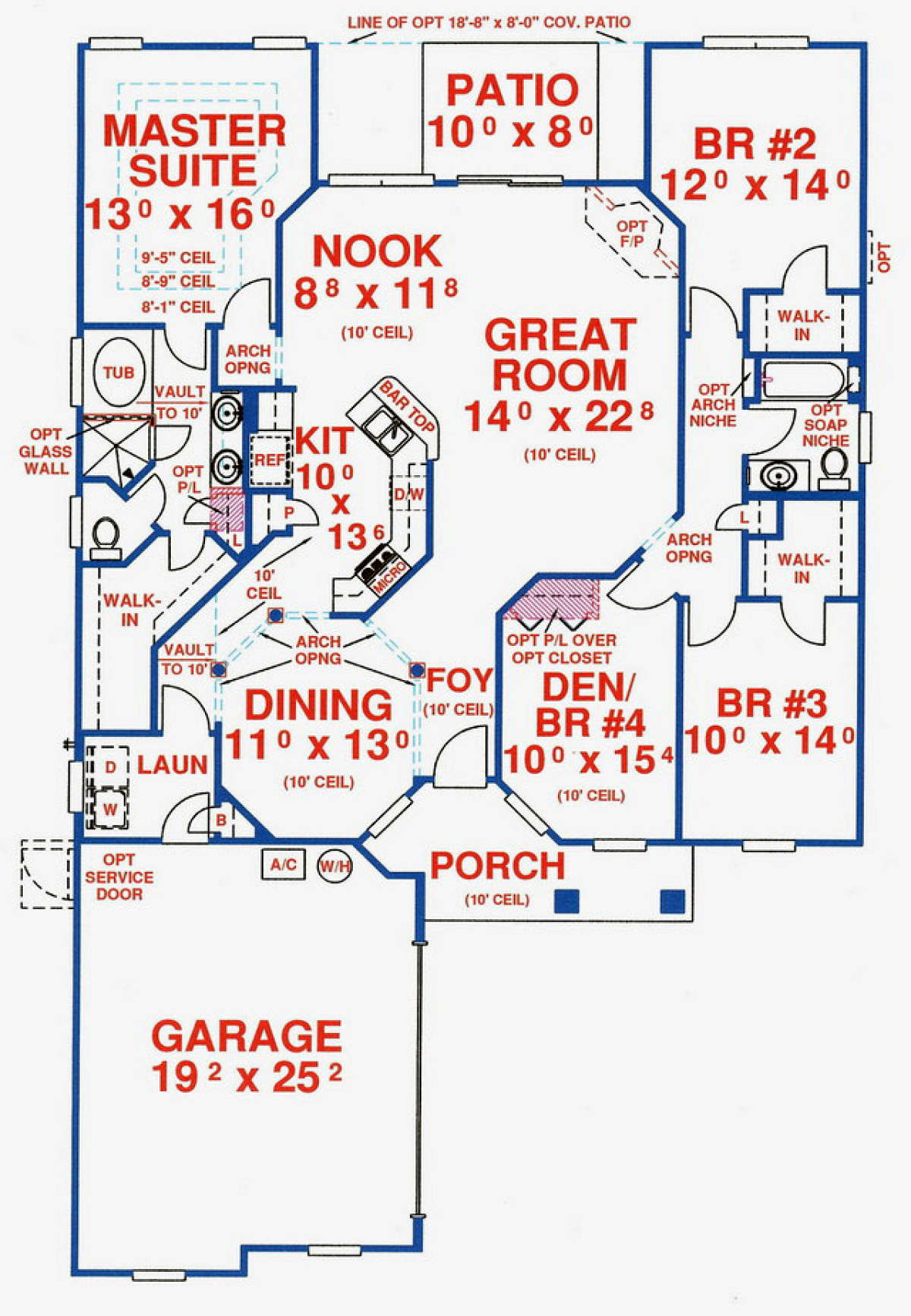

Floorplan 1 for House Plan #4766-00160


What's Included in these plans?

  • Foundation Plan at 1/4" scale.
  • Dimensioned and detailed Floor Plans at 1/4" scale.
  • Complete Front, Sides and Rear Exterior Elevations at 1/4" scale.
  • Roof Plan at 1/4" scale.
  • Seperate Electrical Plans (not on Floor Plans) at 1/4" scale.
  • Typical Wall Section (exterior wall) at 3/4" scale.
  • Building Sections, Foundation Details, Trim Details, Cabinet Elevations, etc. when available or necessary for construction.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 4 bedroom, 2 bathroom Ranch house plan features 1,938 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
