Contemporary Plan 4396-00003

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,285
Beds 3
Bath 2
1/2 Baths 0
Car 0
Stories 2
Width 25'
Depth 39' 6"

Floorplan Drawings

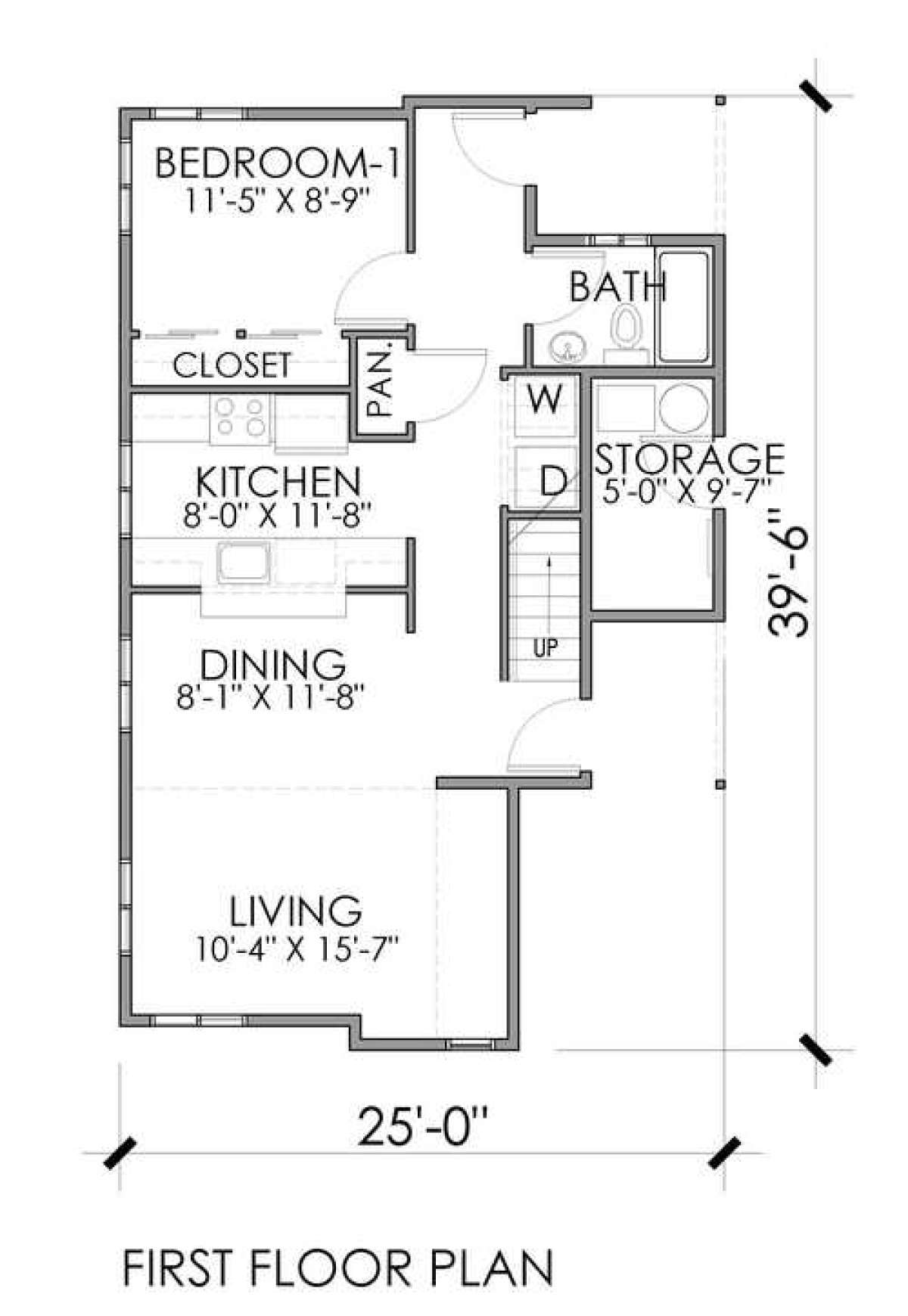

Floorplan 1
Floorplan 1 for House Plan #4396-00003

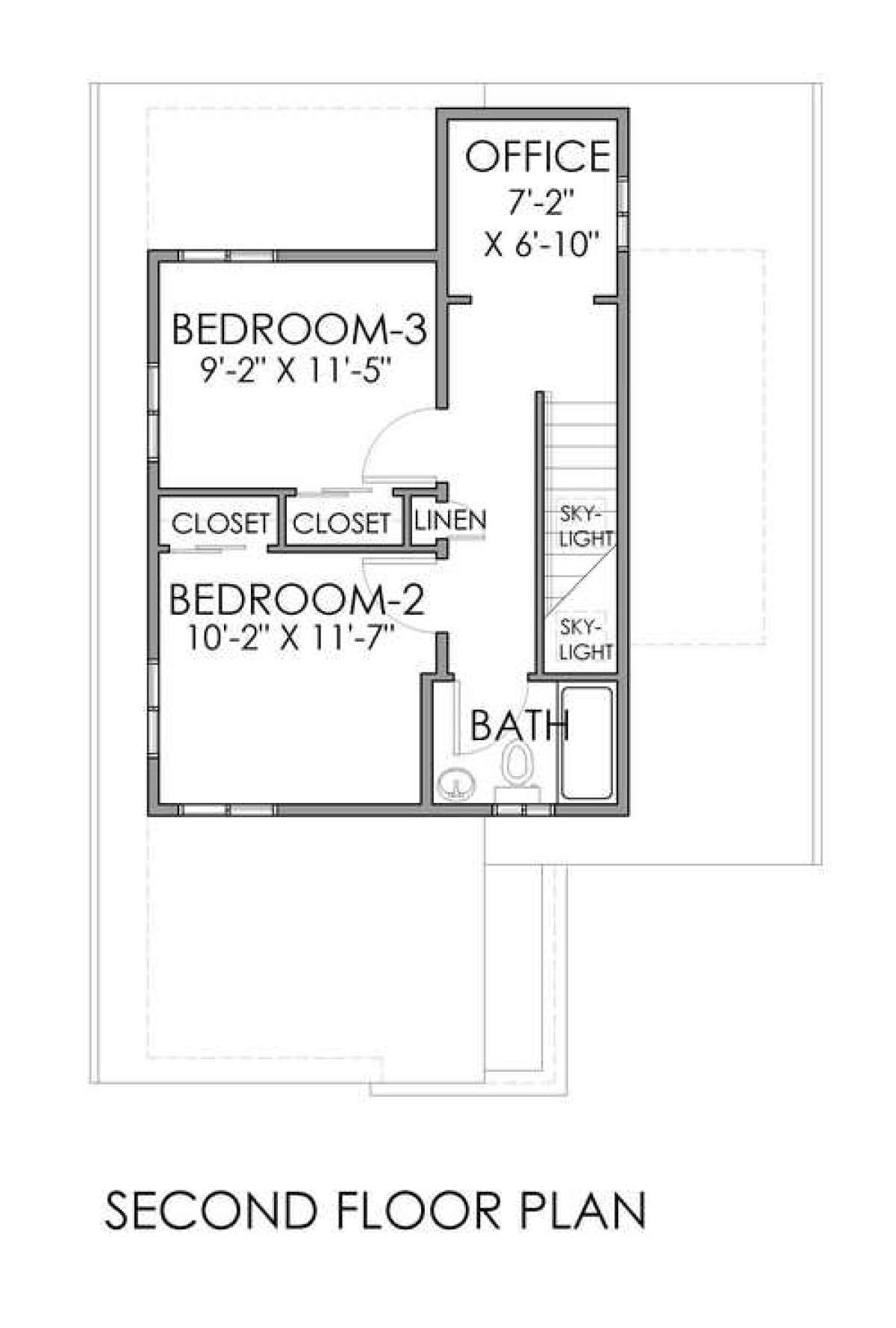

Floorplan 2

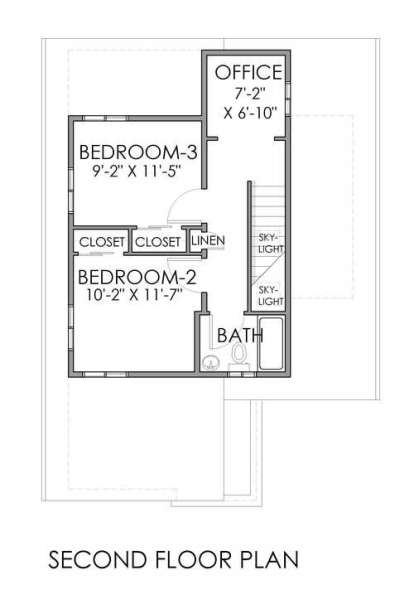

Floorplan 2 for House Plan #4396-00003


What's Included in these plans?

  • Cover
    -General notes
    -Design criteria
    -Rendering or image of residence.
  • Foundation plan
    -1/4" scale
    -Shows structural elements.
  • Floor plans
    -1/4" scale plan
    -Shows layout, door & window sizes, and structural elements.
  • Roof plan
    -1/4" scale
    -Shows structural elements and roof pitch.
  • Elevation
    -1/4" scale and shows suggested exterior cladding.
    -Includes front , back, and sides (2)
  • Building section (combines wall section)
    -1/2" scale
    -Typical assemblies
    -Structural elements
  • Electrical and Lighting plan
    -1/4" scale
    -Shows suggested locations of lights, receptacles and switches.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 bedroom, 2 bathroom Contemporary house plan features 1,285 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
