COVER SHEET
This sheet typically contains the plan information including but not limited to; square footages, height of the structure, width and depth and some general notes. Most plans also have a perspective (3D) view of the front and back of the house.
FOUNDATION PLAN
Plan view of the foundation walls, footings, and suggested locations of posts, beams, and load bearing walls as necessary, all dimensioned for precise bidding and construction. This plan typically does not note the sizes of the structural members as this MUST be done at the local level by a registered structural engineer of the purchasers choosing.
FLOOR PLANS
Plan view of the living spaces on each level of the home. The plans will be fully dimensioned and noted for interesting features of the plan that might not be obvious without notes. All opening sizes will be shown, and all equipment will be shown graphically, and most times noted as well. The plans will also include “section cut” and both interior and exterior “elevation” symbols that have numbers that relate to the exact page in the set to find those specific sections and elevations.
ROOF PLAN
This plan shows the view from above the house showing the ridge and valleys of the plan as well as locations of any roof penetrations by building elements such as dormers, chimneys or other “plan specific” architectural elements; cupolas, weathervanes, etc.
EXTERIOR ELEVATIONS
The 2D views of each side of the house and often any hidden walls will be shown and include graphic representation of the suggested building materials like, shingles, stone, brick, siding, stucco, etc. All vertical dimensions of the building elements are shown and notes calling out material types and suggested building elements such as, but not limited to, trim sizes, vent types and sizes, opening alignment, railing types and purposes, and other elements that are not obvious graphically.
LIGHTING AND ELECTRICAL PLANS
These plans show the suggested locations for lighting and switches. Often electrical outlets will be shown as well.
BUILDING CROSS SECTIONS
Each plan has at least one and typically more cross section views cut through the plan at areas that show the most relevant information, such as through stairs and raised ceilings spaces to give the purchaser and the builder a better idea of the volume of space as well as some generic and standard construction detailing. Full vertical dimensions and notes will be provided.
TYPICAL DETAILS IF NECESSARY
Many plans contain cabinet and/or room elevations of the walls and any interesting features of those spaces. Some plans also have a small amount of details that might be relevant to that specific plan and/or style of architecture, but most construction detailing is left to the purchaser’s builder to construct their home using the standard building practices of their geographic region.
What's not included: House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

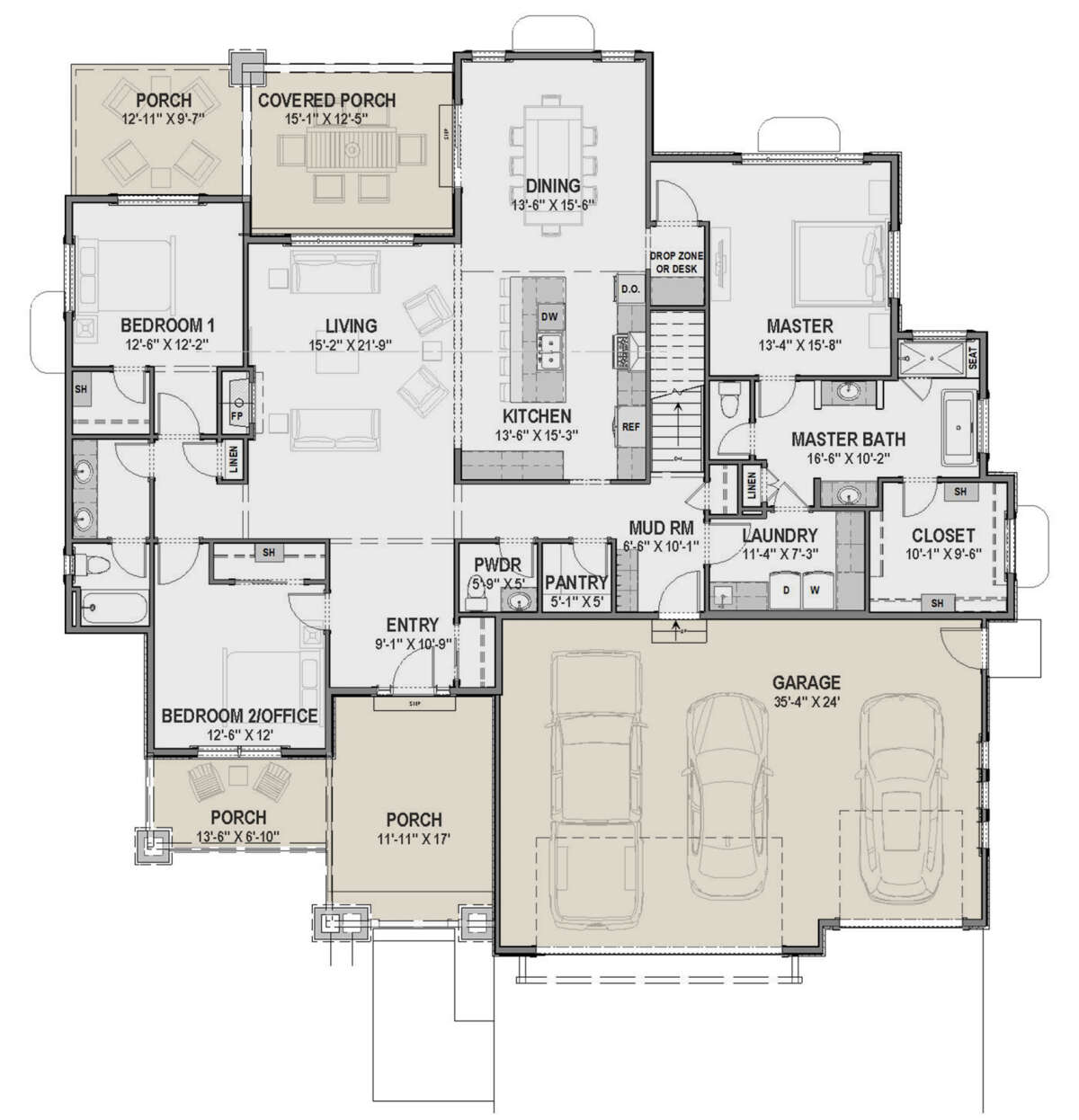

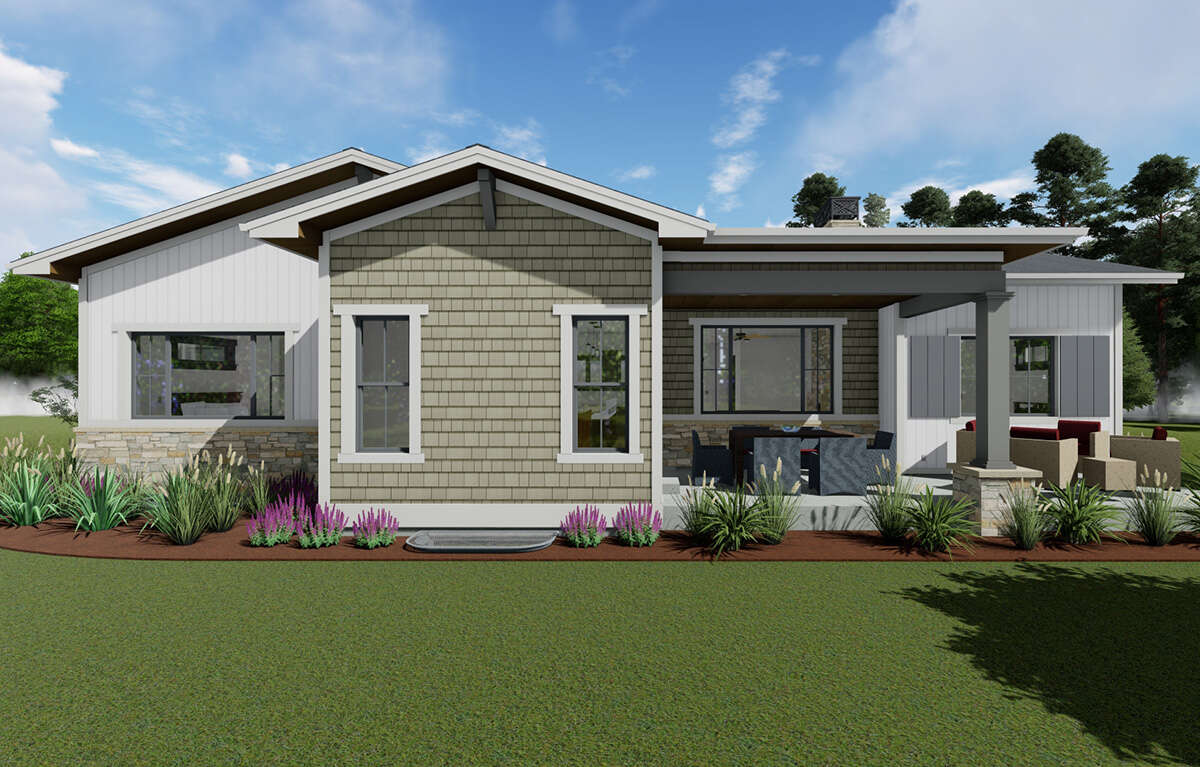

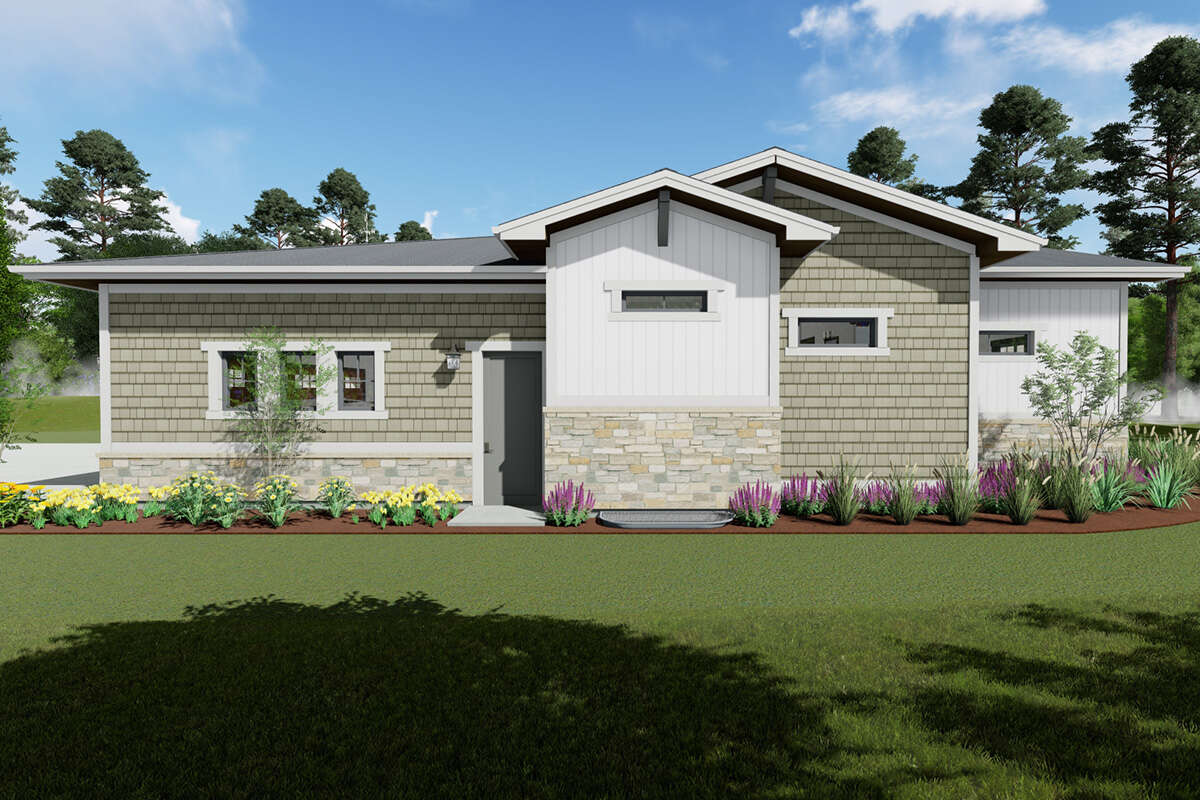

This 3 bedroom, 2 bathroom Craftsman house plan features 2,370 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
Send us a description of the changes you want to make using the form below. You can also upload marked-up drawings with your written request. Once received, we'll send you a confirmation email letting you know we are working on a quote.
One of our designers will review your request and provide a custom quote within 3 business days. The quote will include the modifications' price and the time frame needed to complete the changes.
Once you approve the quote and submit payment, your designer will get to work implementing the changes you requested on your house plan.
House plan modifications vary depending on the designer, the volume, and complexity of the changes. The timeframe to complete your plans will be specified in the quote. Once the modifications are complete, the final plans will be sent to you in the format you purchased.
Call us at 1-888-501-7526 to talk to a house plans specialist who can help you with your request. You can also review our modifications page for additional information.
We have partnered with StartBuild to eliminate the guesswork of estimating construction costs. Their state of the art estimator is based on years of experience in the industry, and is continuously updated with current costs for materials and labor.
StartBuild's estimator accounts for the house plan, location, and building materials you choose, with current market costs for labor and materials.
Receive a personal estimate in two business days or less, with 30 days to change your options.
A personal estimate costs just $29.95 per plan.
For more information, view the Sample Report
