Craftsman House Plan 4195-00059

What's Included in these plans?

• Cover Sheet
  The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
• Foundation
  These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.

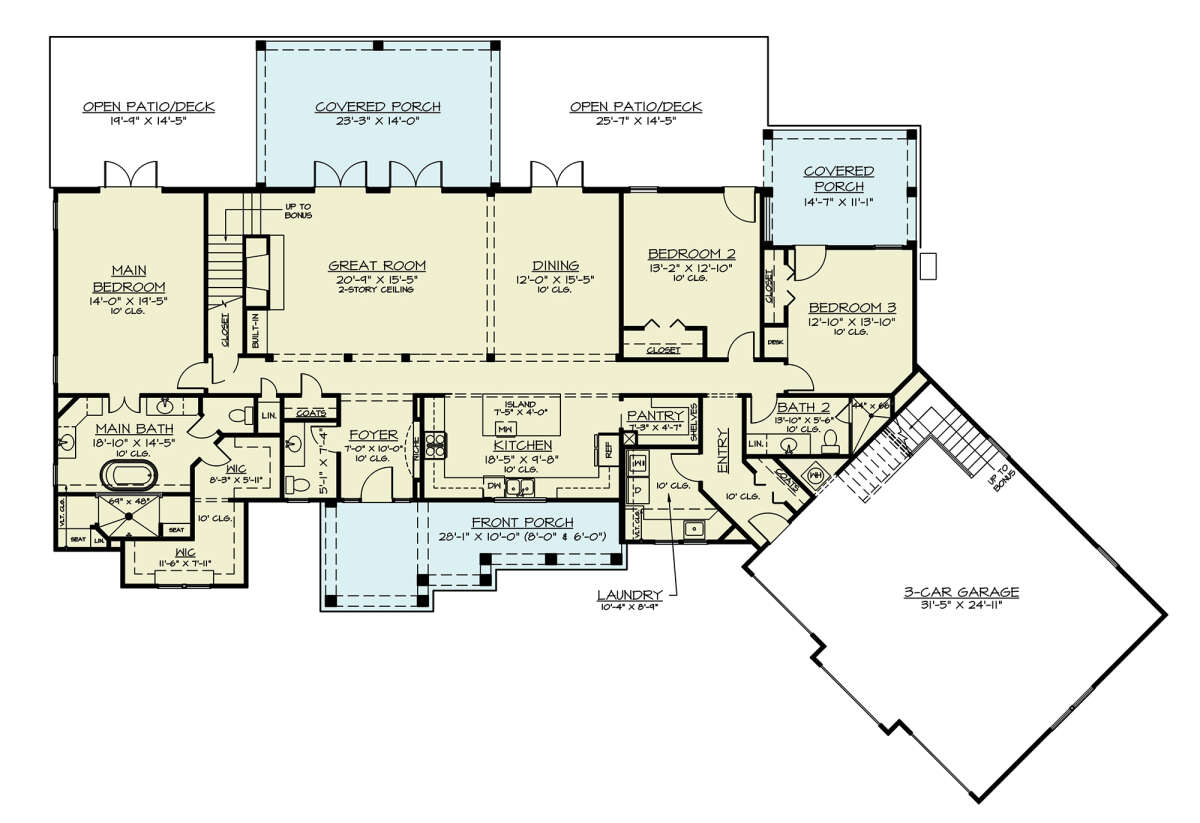

• First Floor Plan
  This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.

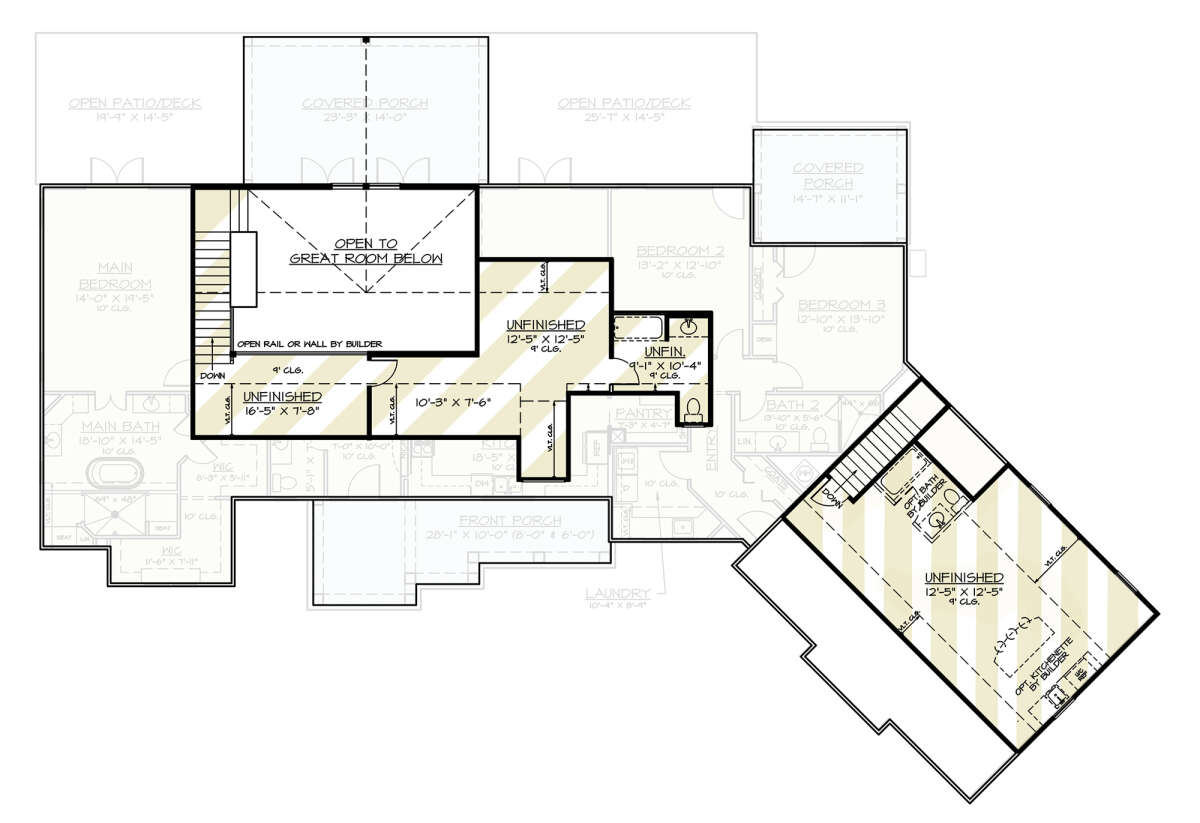

• Second Floor Plan
  The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
• Electrical
  On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors.
• Front and Rear Elevations
  The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.
• Right and Left Elevations
  The right and left elevations provide the same details as the front and rear elevations.
  Roof Plan
  This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. *Framing is not included.
• Cross-Sections
  Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
• General Notes
  Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).
