Craftsman Plan: 2,344 Square Feet, 3-4 Bedrooms, 2.5 Bathrooms - 4195-00019

America's Best House Plans - www.houseplans.net

Craftsman House Plan 4195-00019

Sq Ft2,344
Beds3-4
Baths2
1/2 Baths1
Stories1
Cars2
Width75' 0"
Depth74' 0"
  REVERSE    Images copyrighted by the designer, and may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

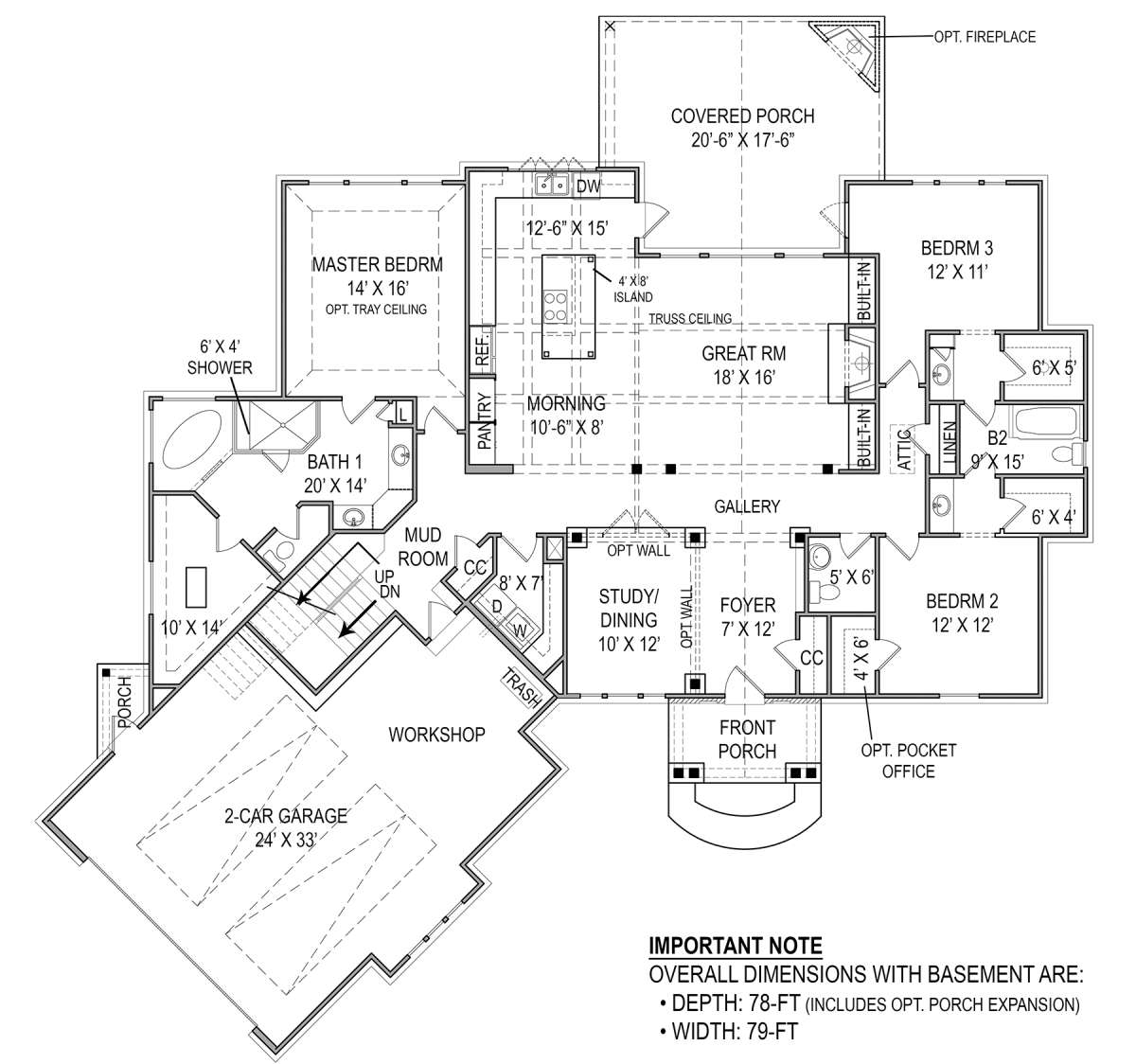

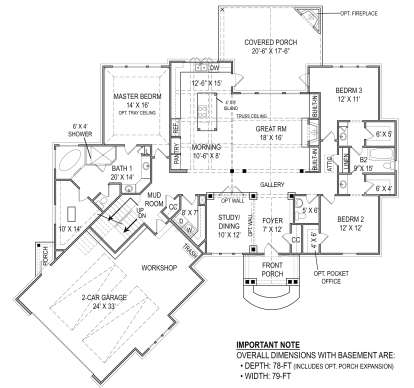

First Floor for Basement Foundation

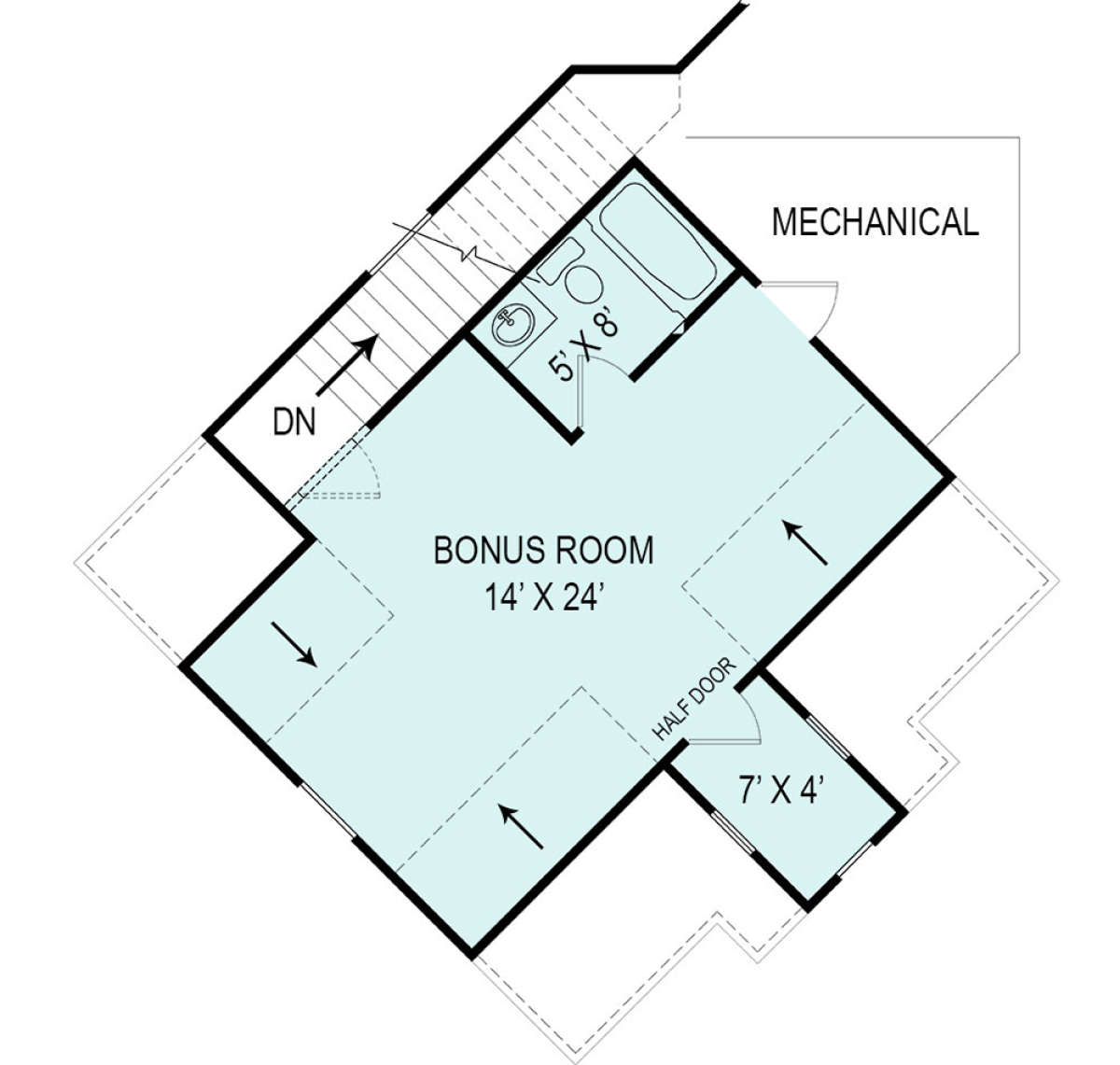

Second Floor Bonus Room

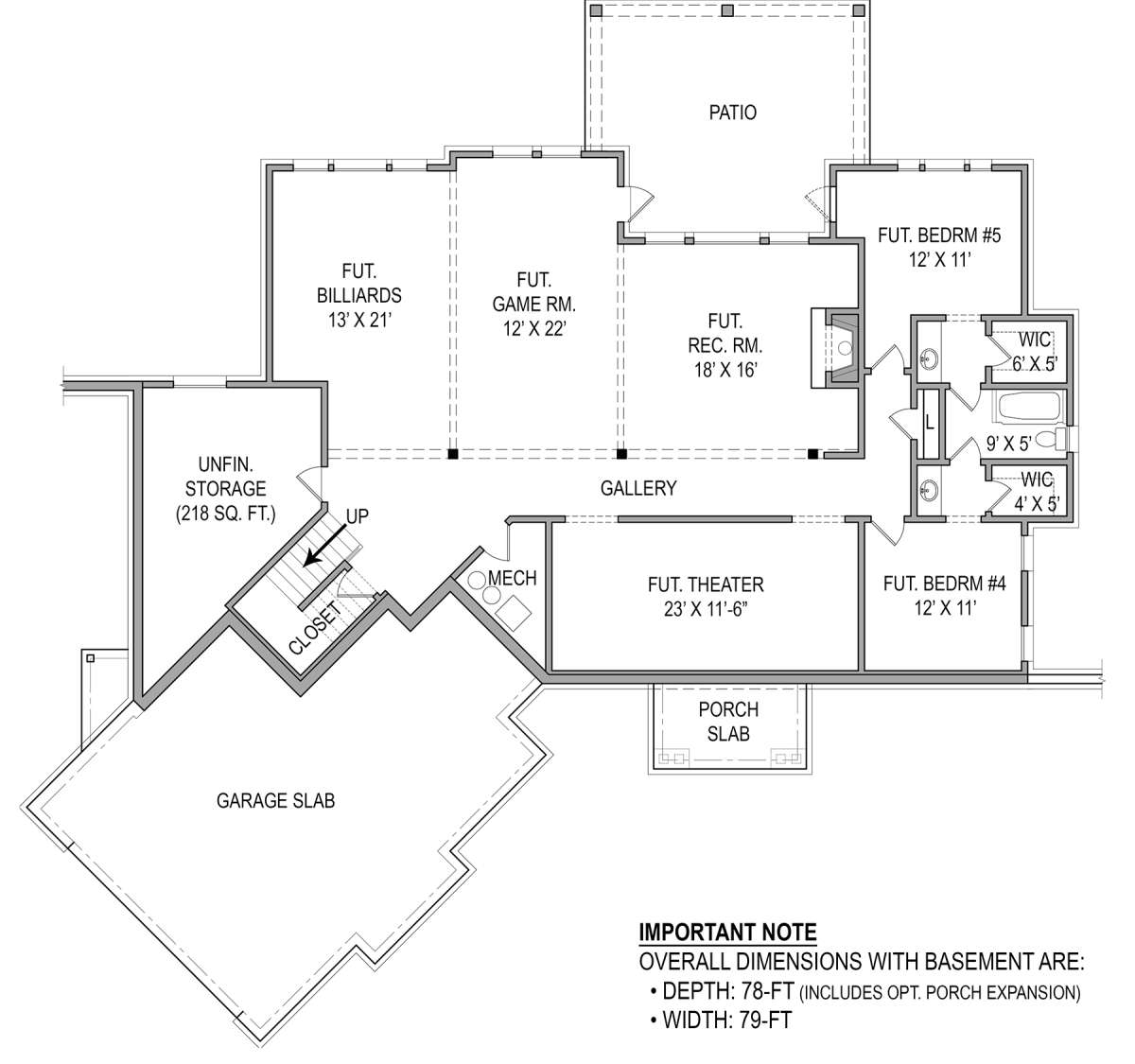

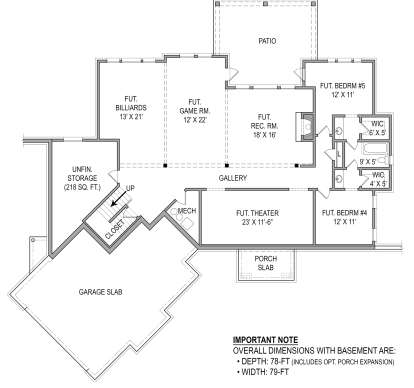

Basement Floorplan
First Floor Optional Expanded Porch


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Sheet
    The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
  • Foundation
    These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
  • First Floor Plan
    This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.
  • Second Floor Plan
    The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
  • Electrical
    On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors.
  • Front and Rear Elevations
    The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.
  • Right and Left Elevations
    The right and left elevations provide the same details as the front and rear elevations.
    Roof Plan
    This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. *Framing is not included.
  • Cross-Sections
    Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
  • General Notes
    Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 bedroom, 2 bathroom Craftsman house plan features 2,344 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are suitable for all lifestyles and are easily viewed and readily available when you begin the process of building your dream home. All our house designs are easy to read, versatile and affordable with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
