Craftsman Plan 4195-00004


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,404
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 1
Width 70'
Depth 71'

Floorplan Drawings

Floorplan 1

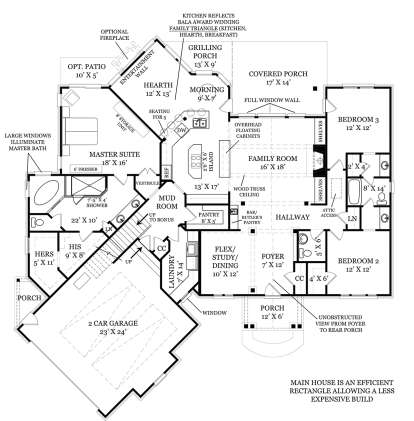

Floorplan 1 for House Plan #4195-00004

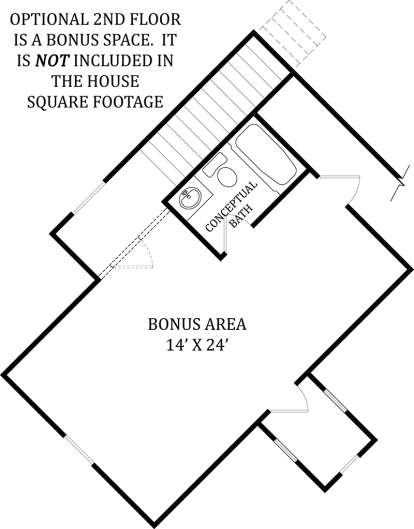

Floorplan 2
Floorplan 2 for House Plan #4195-00004

What's Included in these plans?

  • Cover Sheet
    The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
  • Foundation
    These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
  • First Floor Plan
    This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.
  • Second Floor Plan
    The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
  • Electrical
    On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors.
  • Front and Rear Elevations

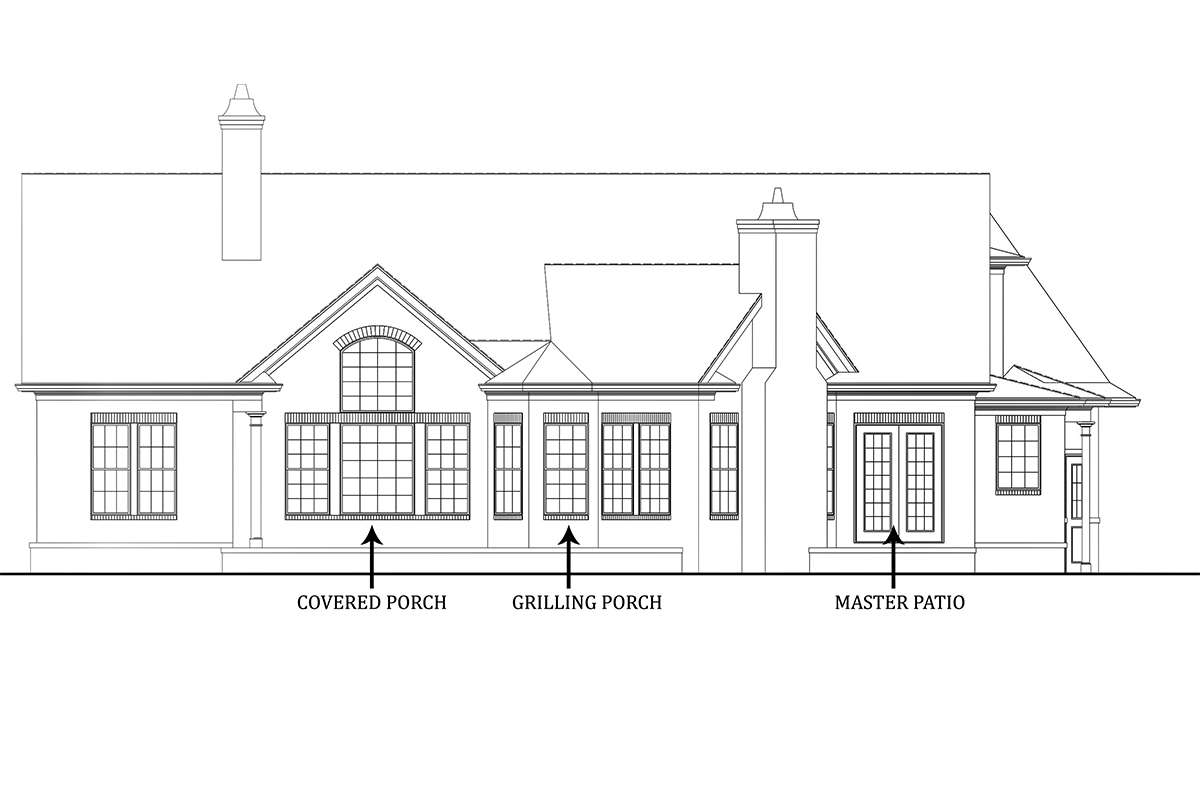

    The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.

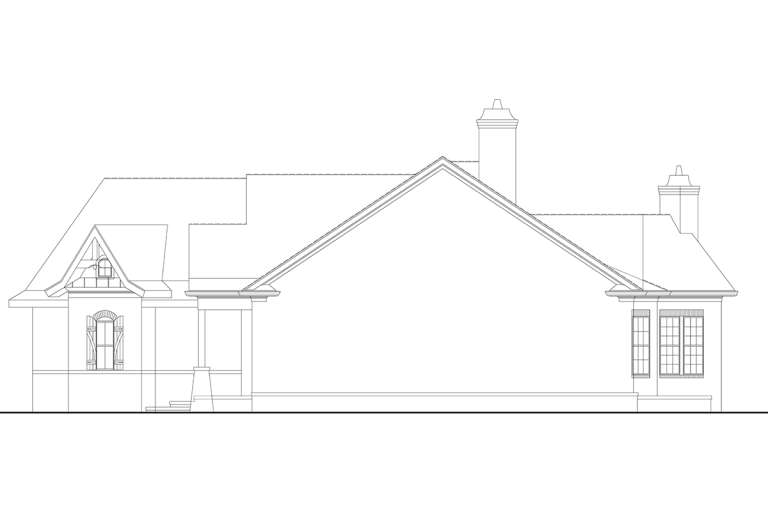

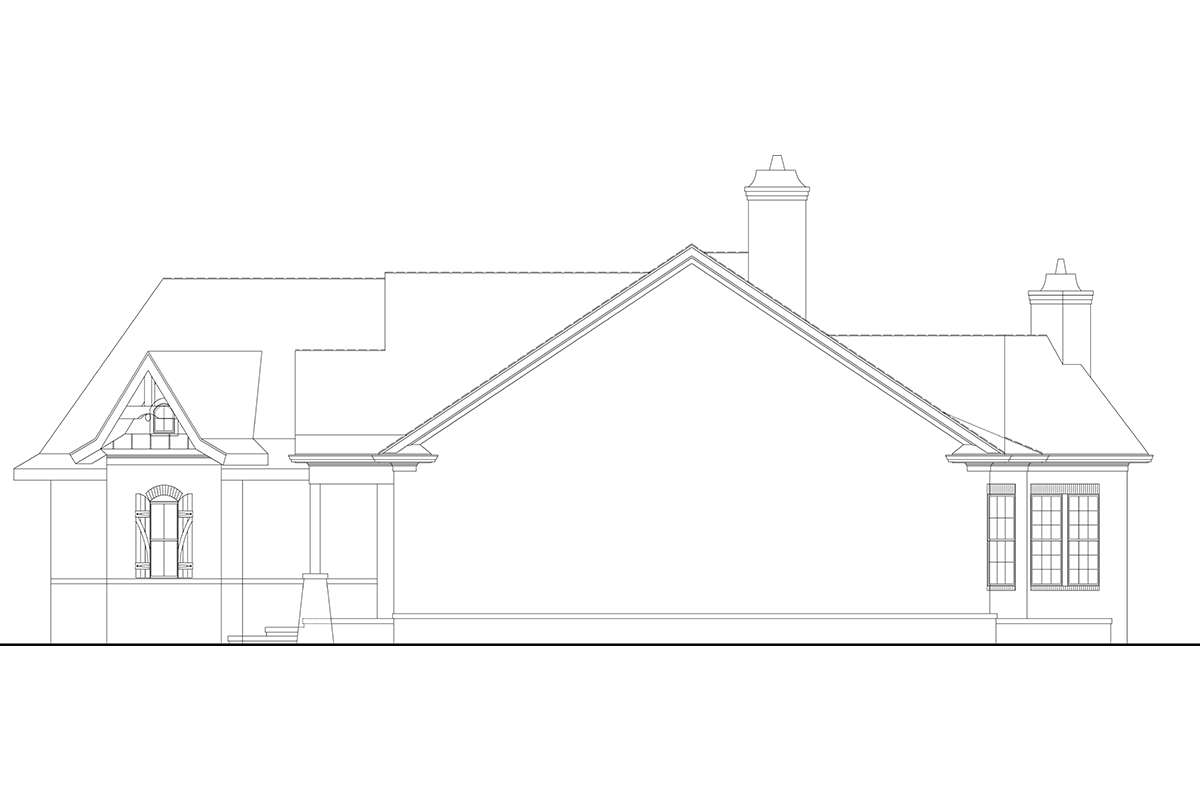

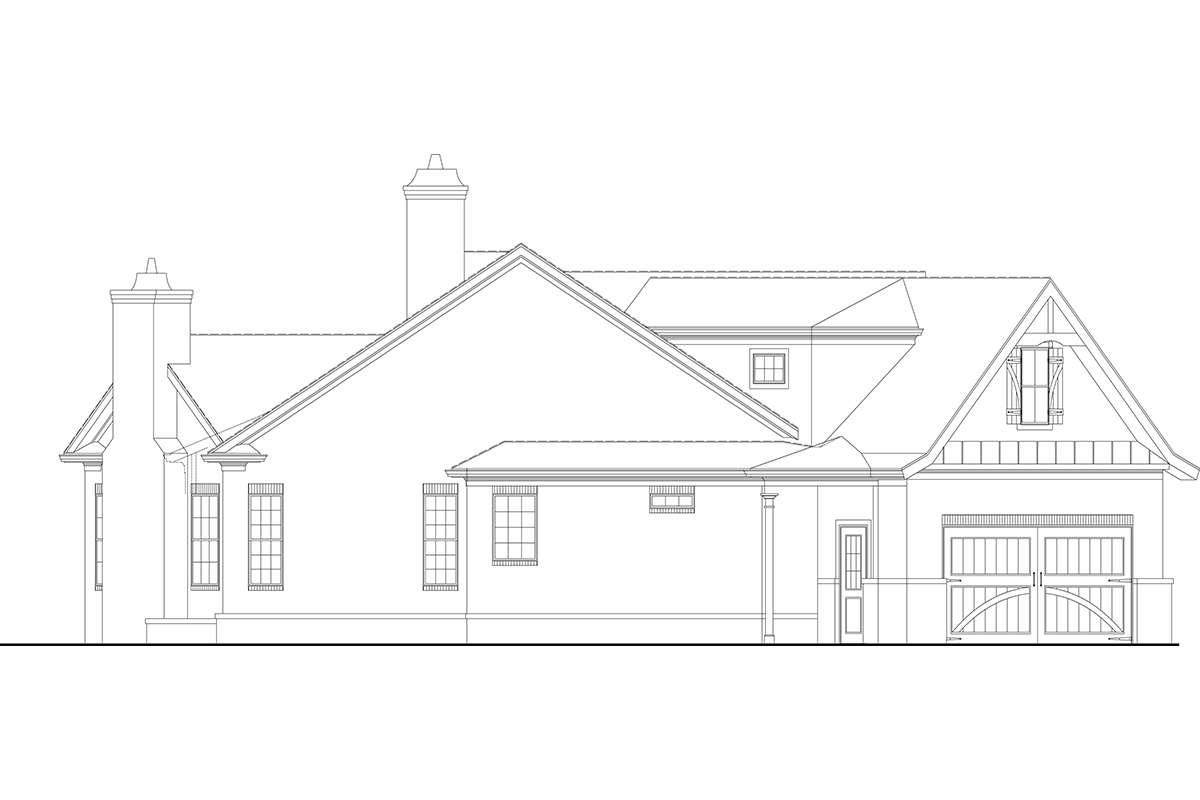

  • Right and Left Elevations
    The right and left elevations provide the same details as the front and rear elevations.
    Roof Plan
    This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. *Framing is not included.
  • Cross-Sections
    Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
  • General Notes
    Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

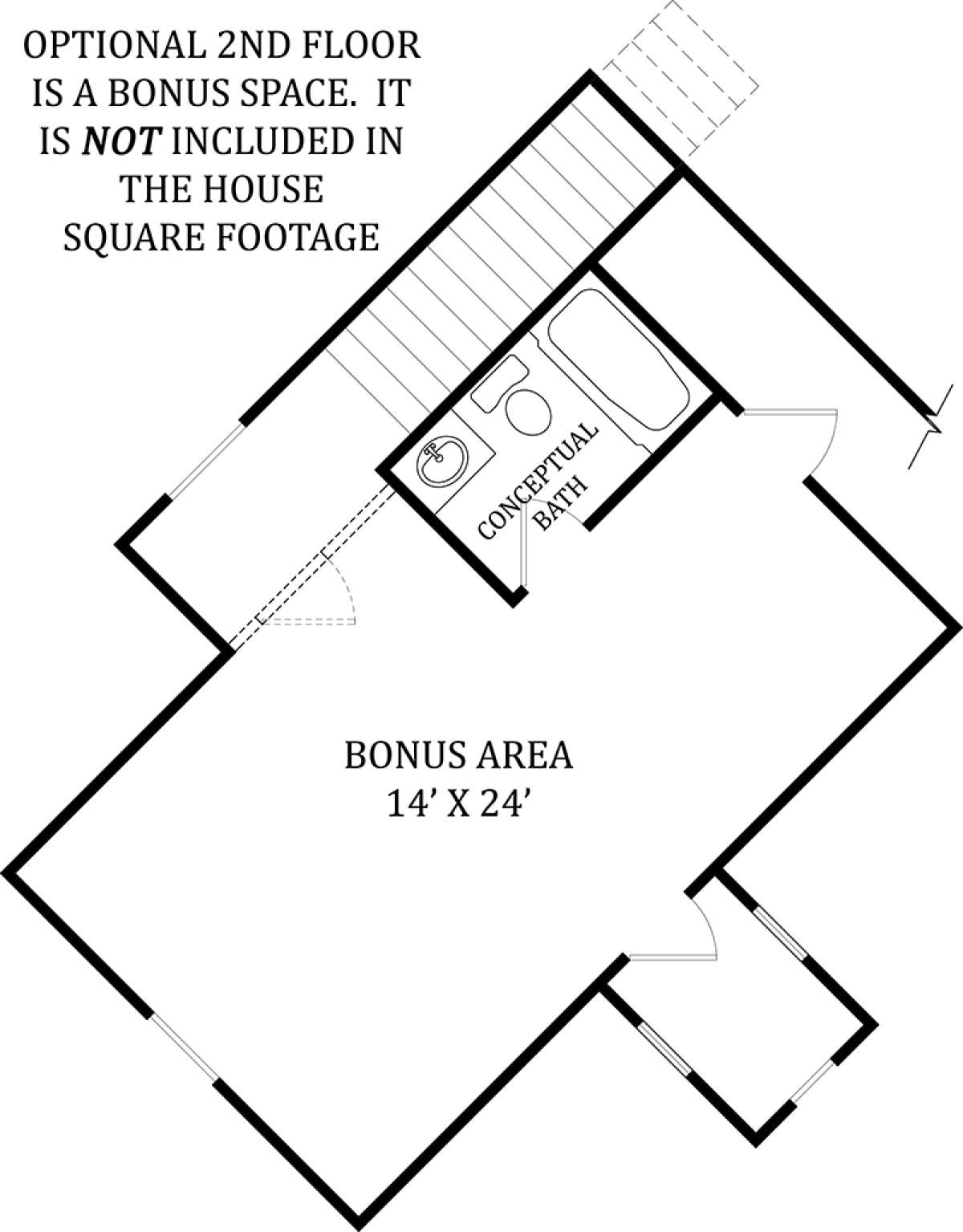

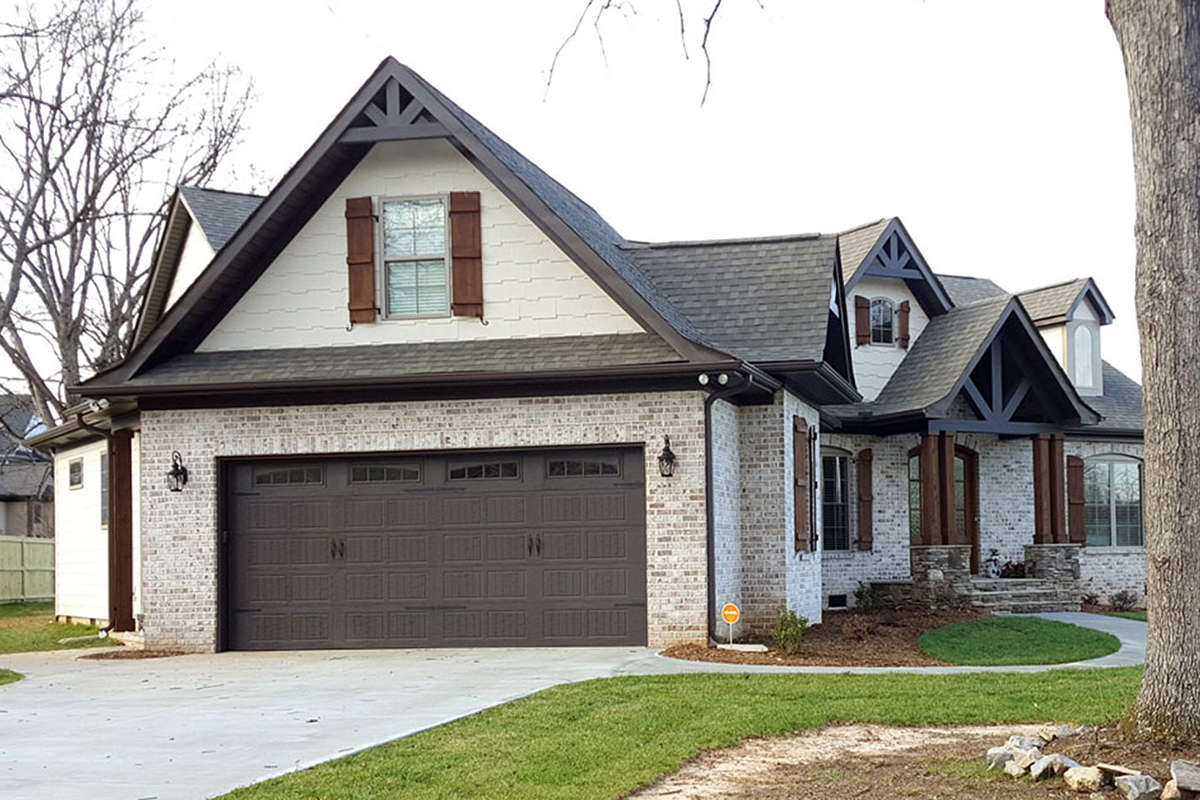

This gorgeous Craftsman house plan is a one story plan with an overhead optional bonus space and an exterior that is composed of visually pleasing architectural design elements. The façade of the home features a low maintenance brick exterior, cedar shingles, decorative gables and a beautifully enhanced front covered porch. The porch is the perfect spot to greet family and friends before they enter the home’s foyer. Unobstructed views from the foyer to the rear covered porch reveal an open floor plan designed for fabulous family living. The interior floor plan offers approximately 2,404 square feet of living space with three bedrooms and two plus baths while the overhead bonus space is equivalent to 474 additional square feet; perfect for an additional bedroom and bath, a home office or a hobby/craft room. There is a two car side entry garage with plentiful vehicle and storage space as well as a side pedestrian door leading to a small porch for easy clean-up. Located nearby is the interior mudroom with stairs leading to the upper level bonus room, a coat closet and the family laundry room with good counter space. The front foyer entrance is open to the flex space/dining room and outlined with columns and beautiful window views. There is a gallery hallway with a butler’s pantry/bar area before stepping into the home’s family room. This space is large and features a warming fireplace, built-in cabinetry, a wood truss ceiling feature and a full window wall overlooking the rear covered porch. An open kitchen adjoins the family room and is highlighted with a large center island, an angled breakfast bar and a walk-in food storage pantry lies on the back wall of the kitchen. The morning/breakfast room is a circular design which is a bright and sunny window ensconced room and the nearby hearth room features an entertainment wall and good family space for relaxing. Access to the outdoor space is off the morning/breakfast room where you will find a large covered rear porch and a side grilling porch; great space for entertaining and cook-outs.

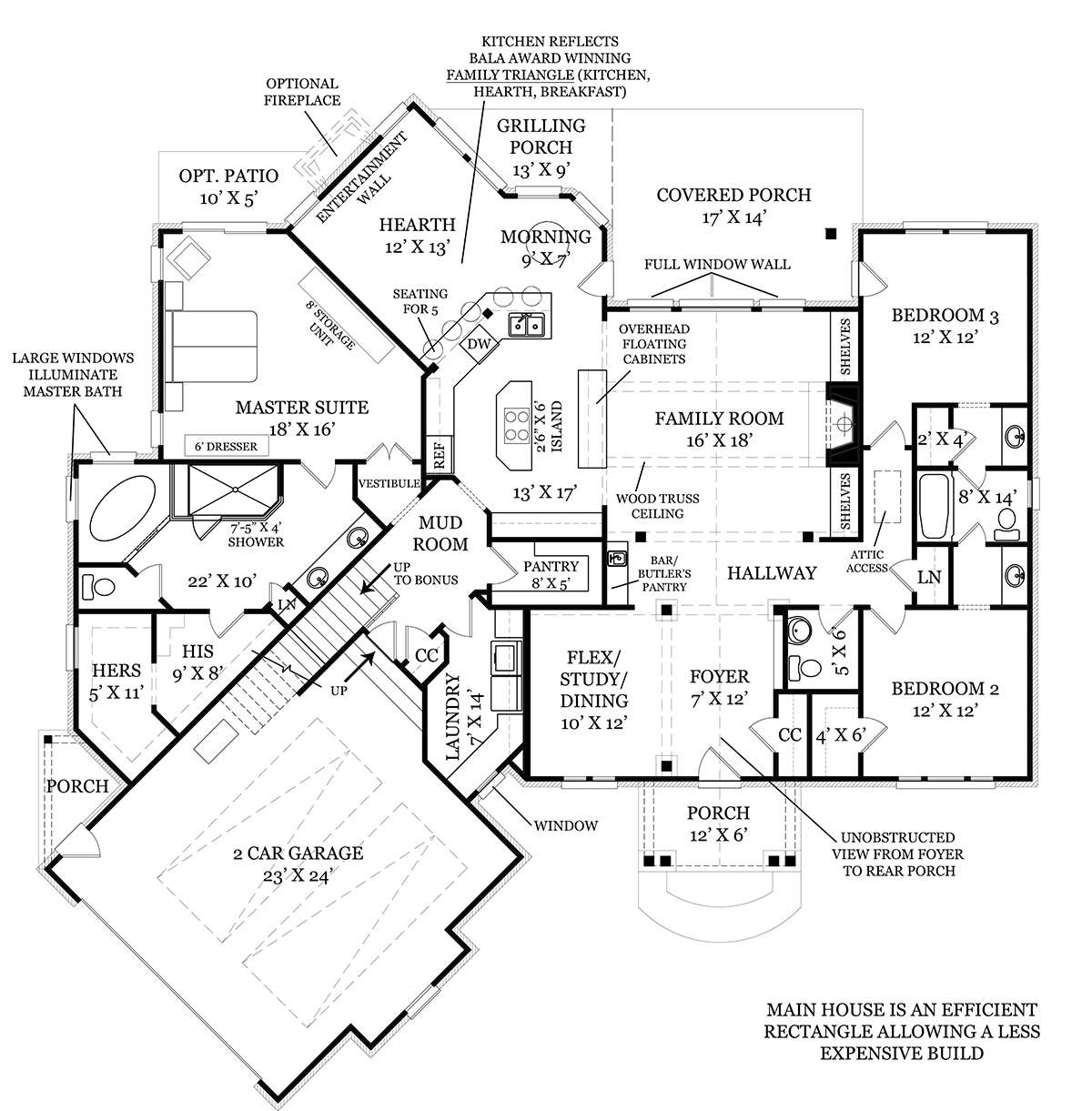

The home features a split bedroom plan with the master suite located on one wing and the secondary bedrooms across the home. The master suite features a large bedroom, measuring 18’ x 16’ with beautiful window views and a slider onto a private optional patio with outdoor fireplace. An enormous master bath is highlighted with dual vanities, a linen closet, a private water closet, corner garden tub and a large walk-in separate shower. His and hers walk-in closets are situated beyond the bath for easy access and privacy. Bedrooms two and three are equivalent in size with wonderful window views and each bedroom is highlighted with a walk-in closet. There is a hall linen closet and both bedrooms share the jack and jill bath where there are two separate vanities and a separate entrance into the toilet area and tub/shower combination. This lovely home features a Craftsman trimmed exterior, a well laid-out floor plan and great space for family living.
