Modern House Plan 402-01660

Sq Ft1,872
Beds3
Baths3
1/2 Baths0
Stories1
Cars2
Width45' 0"
Depth65' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

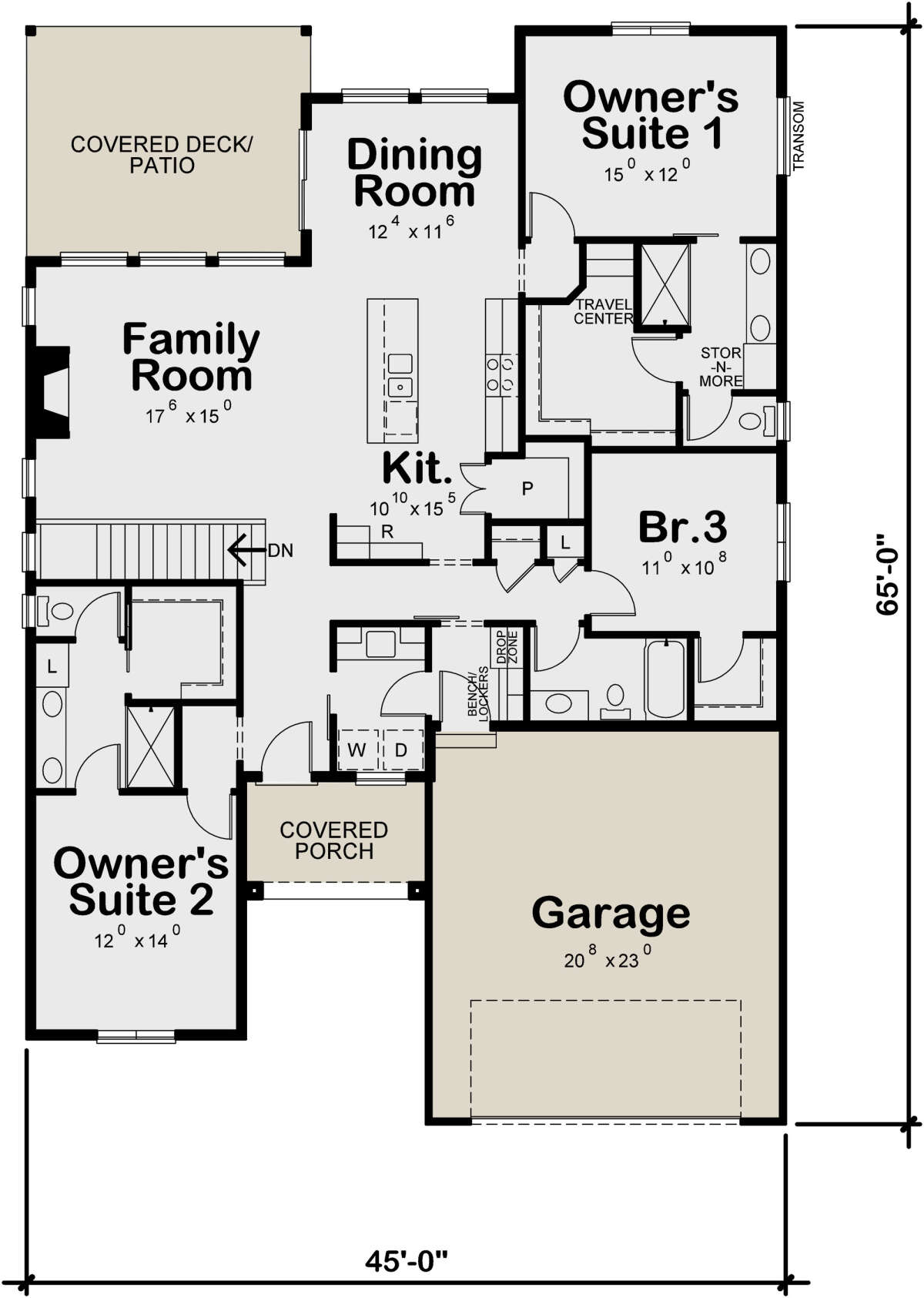

Main Floor for House Plan #402-01660

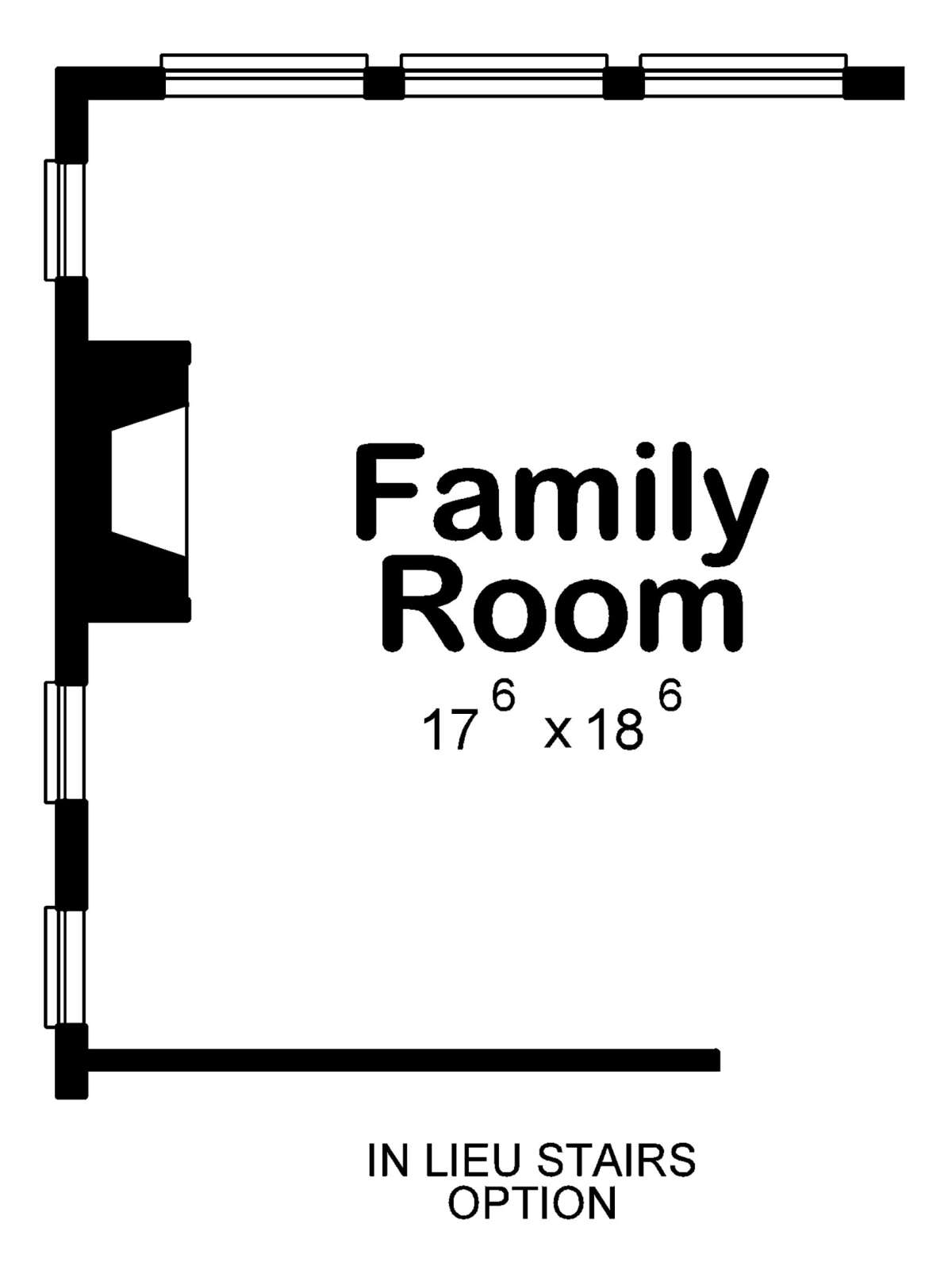

Family Room in Lieu of Basement Stairs for House Plan #402-01660
Main Floor
Main Floor for House Plan #402-01660
Family Room in Lieu of Basement Stairs
Family Room in Lieu of Basement Stairs for House Plan #402-01660


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Most plans include the following:
  • Cover Page. Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.
  • Elevations. Scaled elevations for the front, rear, and sides are provided. All elevations are detailed and an aerial view of the roof is provided.
  • Foundations. Foundations are engineered for each design, whether slab or basement, however they may not meet the requirements of your local code and may need additional engineering.
  • Main Level Floor Plan. The detailed drawings are fully dimensioned for ease of framing. Exterior wall thicknesses vary by plan. If necessary, contact Design Basics to clarify the standard exterior wall thickness for the plan(s) you are interested in.
  • Second Level Floor Plan. Dimensioned and drafted to the same degree of detail as the main level floor plan*
  • Electrical and Sections. Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
  • Full technical support is provided to purchasers of each plan to answer your plan-related questions.
  • *Plans are drafted to meet the Uniform Building Code or IRC (International Residential Code) at the time they are designed (contact us for more information). Because codes and requirements can change and may vary from jurisdiction to jurisdiction, the designers cannot warrant compliance with any specific code or regulation. All plans can be adapted to your local building codes and requirements. It is the responsibility of the purchaser and/or builder of each plan to see that the structure is built in strict compliance with all governing municipal codes (city, county, state, and federal).

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 bedroom, 3 bathroom Modern house plan features 1,872 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are suitable for all lifestyles and are easily viewed and readily available when you begin the process of building your dream home. All our house designs are easy to read, versatile and affordable with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
