Now is the time to buy your dream home! 20% off your favorite Plan!

Limited plans not eligible for discounts

Modern Farmhouse House Plan 402-01619

Sq Ft1,619
Beds3
Baths2
1/2 Baths0
Stories1
Cars2
Width45' 0"
Depth62' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor for House Plan #402-01619
Basement Stairs Location for House Plan #402-01619

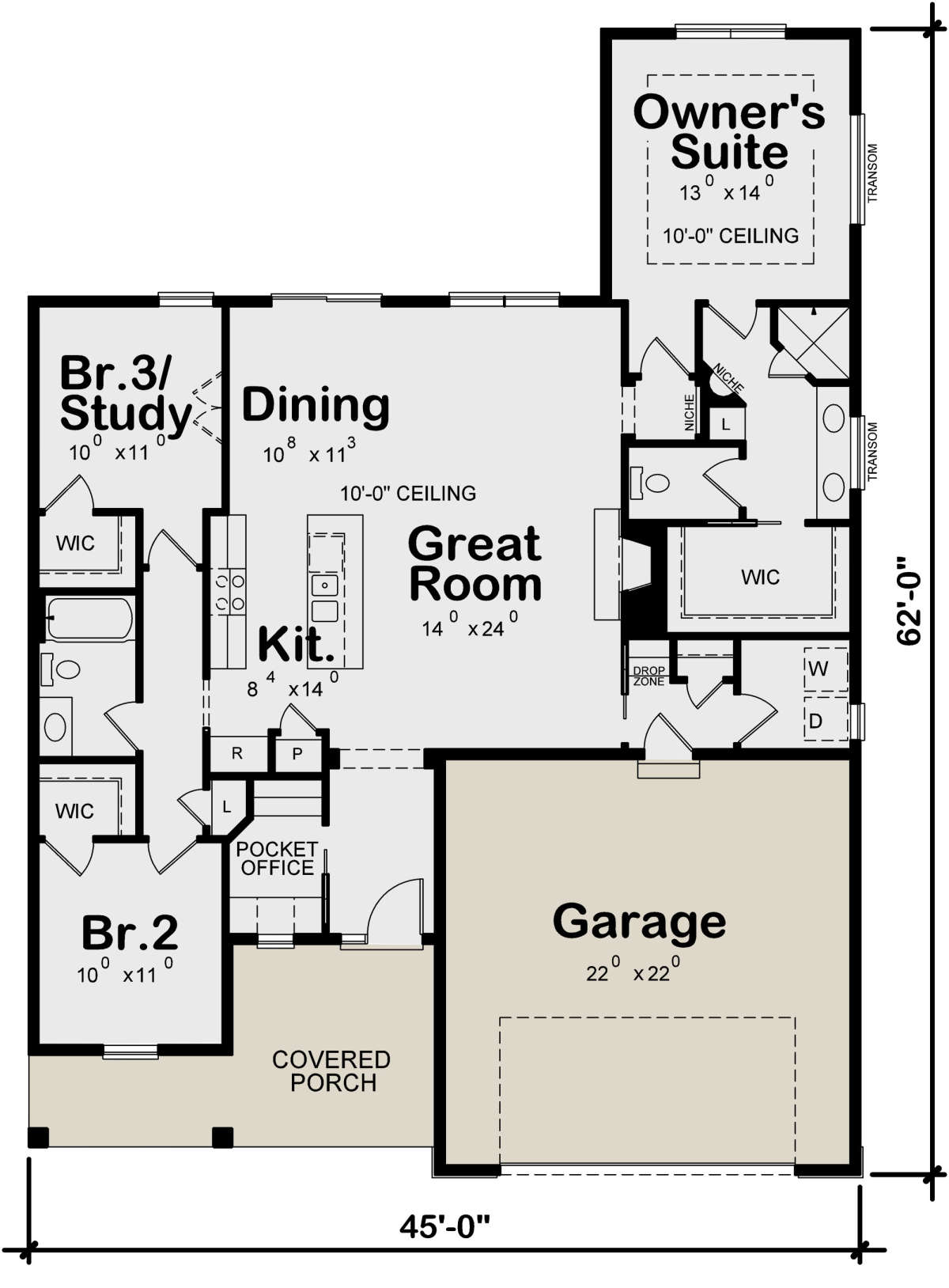

Main Floor
Main Floor for House Plan #402-01619

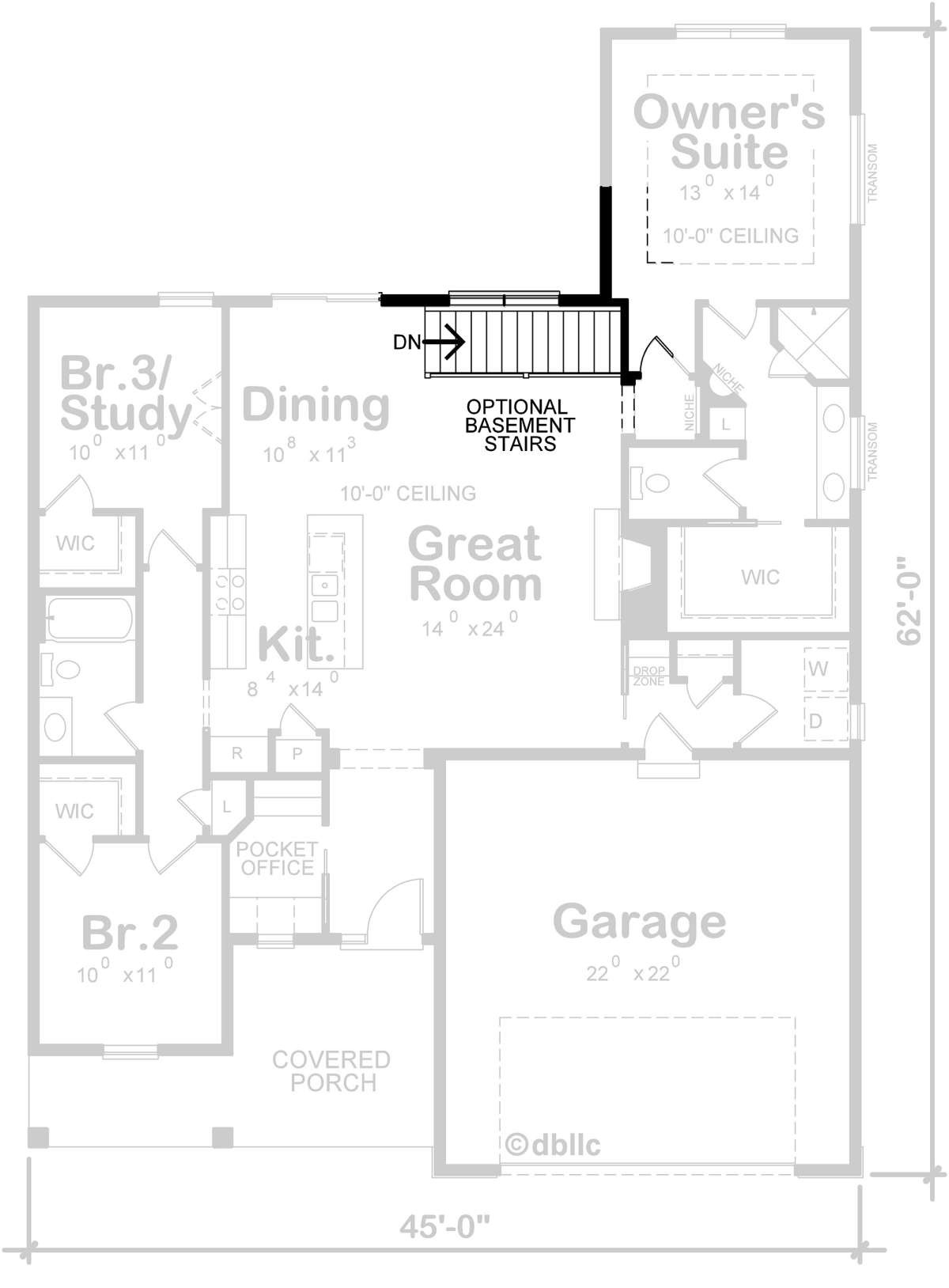

Basement Stairs Location
Basement Stairs Location for House Plan #402-01619


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Most plans include the following:
  • Cover Page. Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.

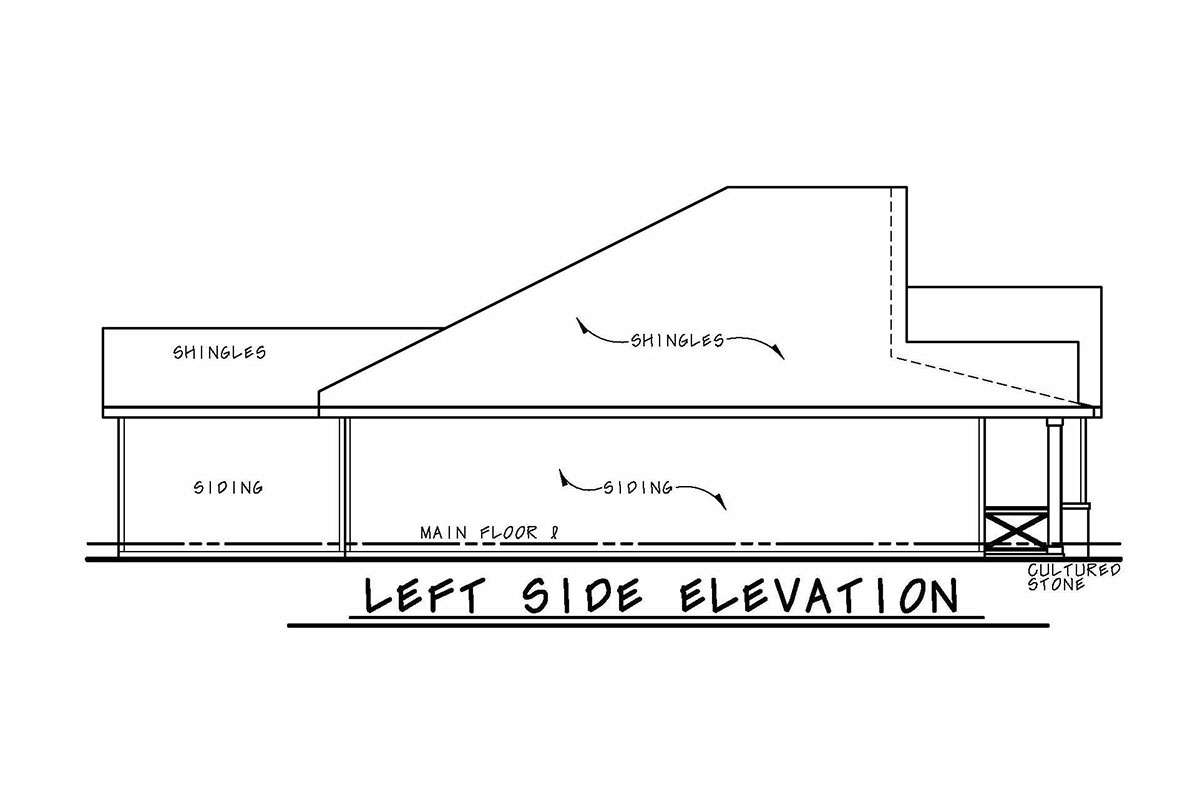

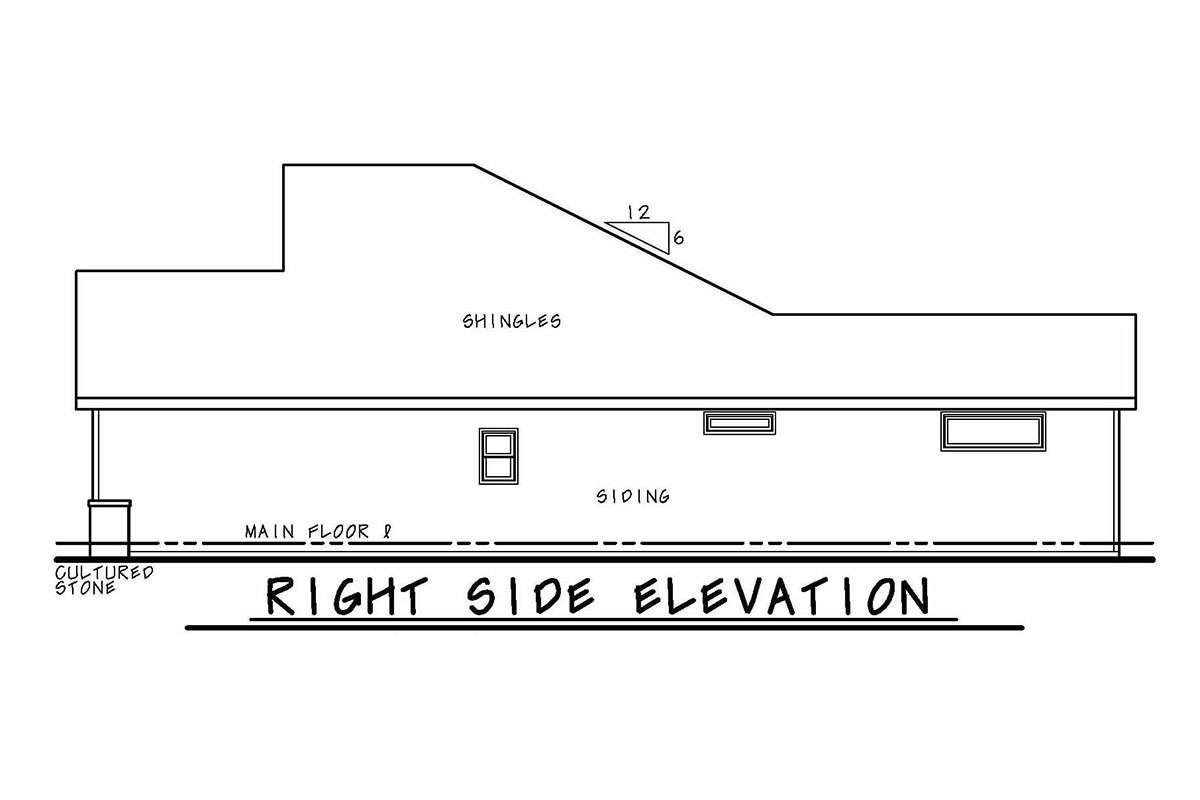

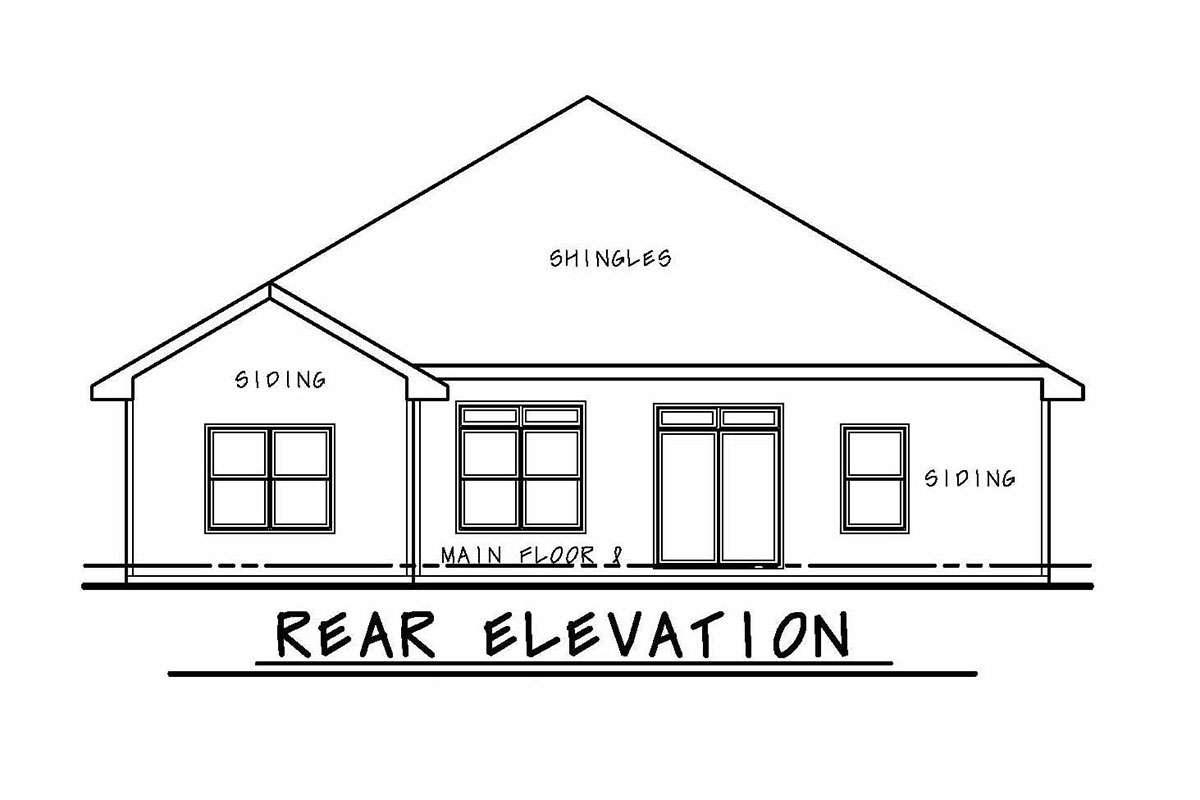

  • Elevations. Scaled elevations for the front, rear, and sides are provided. All elevations are detailed and an aerial view of the roof is provided.
  • Foundations. Foundations are engineered for each design, whether slab or basement, however they may not meet the requirements of your local code and may need additional engineering.
  • Main Level Floor Plan. The detailed drawings are fully dimensioned for ease of framing. Exterior wall thicknesses vary by plan. If necessary, contact Design Basics to clarify the standard exterior wall thickness for the plan(s) you are interested in.
  • Second Level Floor Plan. Dimensioned and drafted to the same degree of detail as the main level floor plan*
  • Electrical and Sections. Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
  • Full technical support is provided to purchasers of each plan to answer your plan-related questions.
  • *Plans are drafted to meet the Uniform Building Code or IRC (International Residential Code) at the time they are designed (contact us for more information). Because codes and requirements can change and may vary from jurisdiction to jurisdiction, the designers cannot warrant compliance with any specific code or regulation. All plans can be adapted to your local building codes and requirements. It is the responsibility of the purchaser and/or builder of each plan to see that the structure is built in strict compliance with all governing municipal codes (city, county, state, and federal).



Any problems or issues arise, contact Carl Couzzo, the lead designer for Design Basics.  ccuozzo@designbasics.com

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

A beautiful exterior and efficient interior floor plan are highlights of this family friendly Modern Farmhouse design. The front covered porch features plenty of space, substantial beams and warm eye-catching character. Beautiful board and batten along with stone accents and a series of gables outline the exterior as well. The interior features approximately 1,619 square feet of space with an open floor plan and three bedrooms and two bathrooms. There is a front entry garage which houses 2 vehicles and provides interior access into the home’s drop zone and nearby laundry room. At the front entry is a foyer and a pocket office with overlooking porch views. Beyond the foyer are the comfortable family living and dining areas. The great room is truly large with double window views, a warming fireplace and 10’ ceiling heights while the dining space features a slider to the outdoors. The kitchen offers a large island space to entertain as well as acting as a prep station.


The split bedroom plan offers a private and spacious owner’s oasis with a large bedroom, 10’ tray ceiling heights and double window views. There is an elegant en suite bath with double vanities, a linen closet, corner shower and a private toilet closet before providing entry into the oversized walk-in closet. The other two bedrooms are situated on the opposite side of the home’s layout; each has good floor space, window views and a walk-in closet while sharing a hall bath. The bathroom houses a vanity, toilet space and a tub/shower combination. This attractive and efficient house plan features good space and a gorgeous front exterior.
