Craftsman House Plan 402-01541

Sq Ft2,116
Beds4
Baths3
1/2 Baths1
Stories1.5
Cars2
Width42' 0"
Depth54' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

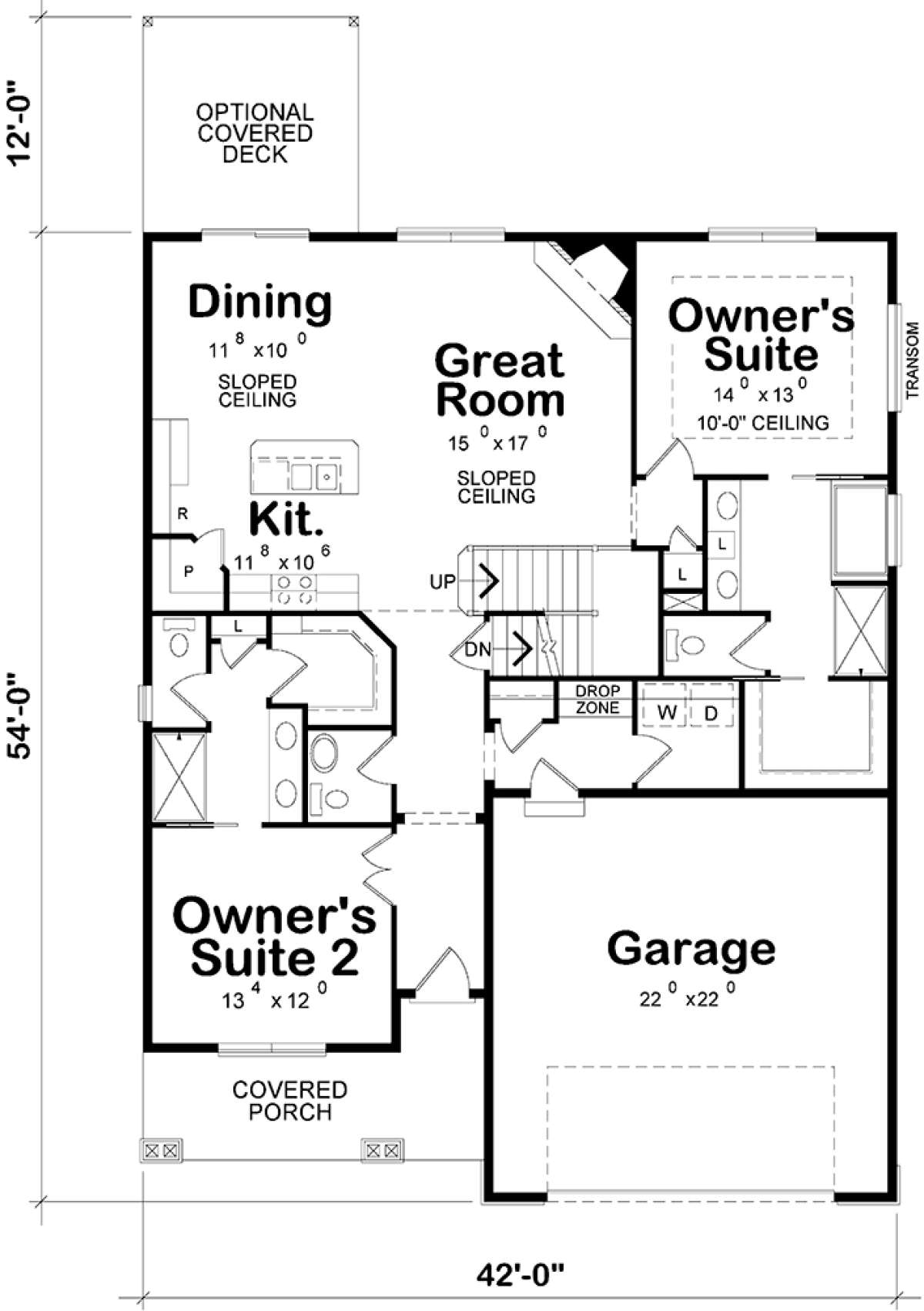

Main Floor for House Plan #402-01541

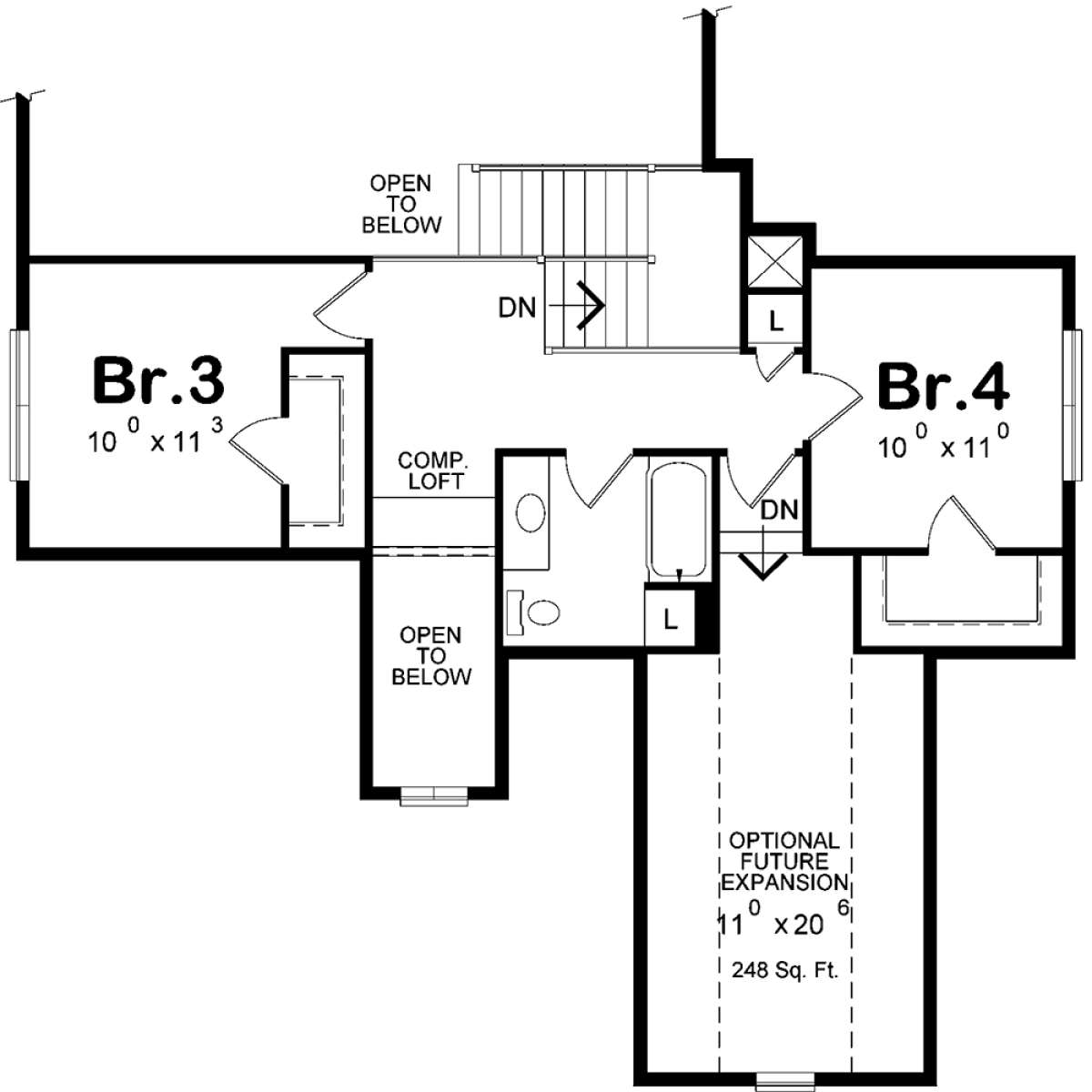

Second Floor for House Plan #402-01541
Main Floor
Main Floor for House Plan #402-01541
Second Floor
Second Floor for House Plan #402-01541


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Page - This home plan features the rendered elevation and informative reference sections including: general notes and design criteria; abbreviations; and symbols for your plan.
  • Foundation - Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Optional basement, slab and crawl space foundations are available.
  • Main Level Floor Plan - 1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2"x4" walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
  • Second Level Floor Plan - 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
  • Electrical and Sections - Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.
  • Roof Framing Plan - Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Beautiful neutrals highlight the exterior of this Craftsman house plan along with soothing material elements designed to please the senses. A window dormer and double cedar lined gables are found overhead while the front covered porch offers respite and refuge to family and friends as they are welcomed into the home’s interior. The porch features wide stone pillars, wood railing and accompanying double beams and the stonework continues alongside the double garage bay for an overall aesthetically pleasing façade. The interior layout is open, providing great entertaining space, and includes approximately 2,116 square feet of living space. There are four bedrooms and three plus baths in the 1.5 storied home and the basement foundation offers a great amount of expansion space as family needs arise. The home is ideal for a narrow and/or small property lot with its respective width and depth dimensions of 42’ and 54’. The two car front loading garage features good vehicle space and a second entry into the home’s interior where there is a coat closet, a drop-off zone and the family laundry room. The main entrance into the home is located off the front covered porch and leads to the elongated foyer and hallway. The family’s common rooms are situated at the rear of the home and feature a completely open layout. The great room is spacious with a corner warming fireplace and window views onto the outdoor area while the dining space features sliders onto the rear covered deck. The kitchen offers a center island with casual seating arrangements, a corner walk-in pantry and good counter and cabinet space. Double owner’s suites are diametrically opposed, one to the other, on the floor plan; one is situated at the front of the home and would make a perfect self-contained guest suite. There is a large bedroom with window views overlooking the front porch and the master bath offers dual sinks, a shower, linen closet and a private toilet room before accessing the large walk-in closet. The second master suite is located at the rear of the home for privacy and features a 10’ trey ceiling, beautiful window views overlooking the rear yard as well as transom windows for abundant natural sunlight. The en suite bath features dual vanities, a separate shower, a tub and a private water closet. The large walk-in master closet lies beyond the master bath.

Upstairs, balcony overlook views are found as well as two secondary bedrooms and a bath. Bedrooms three and four are similarly sized with fantastic closet space and double side window views. There is a computer loft area once you access the landing; great for a homework station or playroom for the children. The shared hall bath offers an oversized vanity, a toilet area and a tub/shower combination. Additionally, there is a bonus room nearby featuring 248 square feet of expansion space which could be utilized as a fifth bedroom, an office/study or a multi-purpose family room. A great family layout, double master suites and plenty of expansion space makes this lovely house plan perfect for today’s family.
