Craftsman House Plan 402-01537

Sq Ft2,196
1/2 Baths1
Width54' 4"
Depth47' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

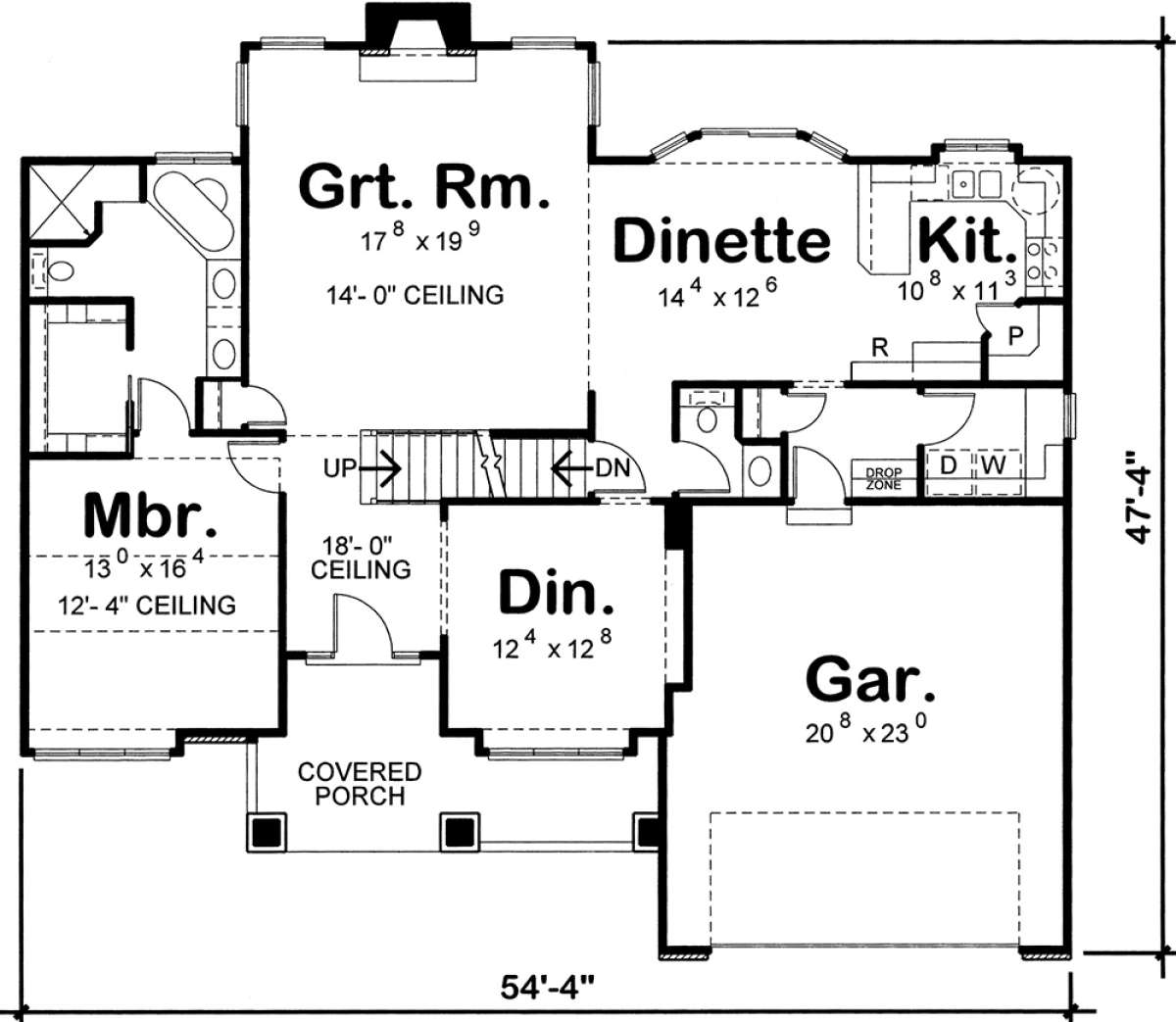

Main Floor for House Plan #402-01537

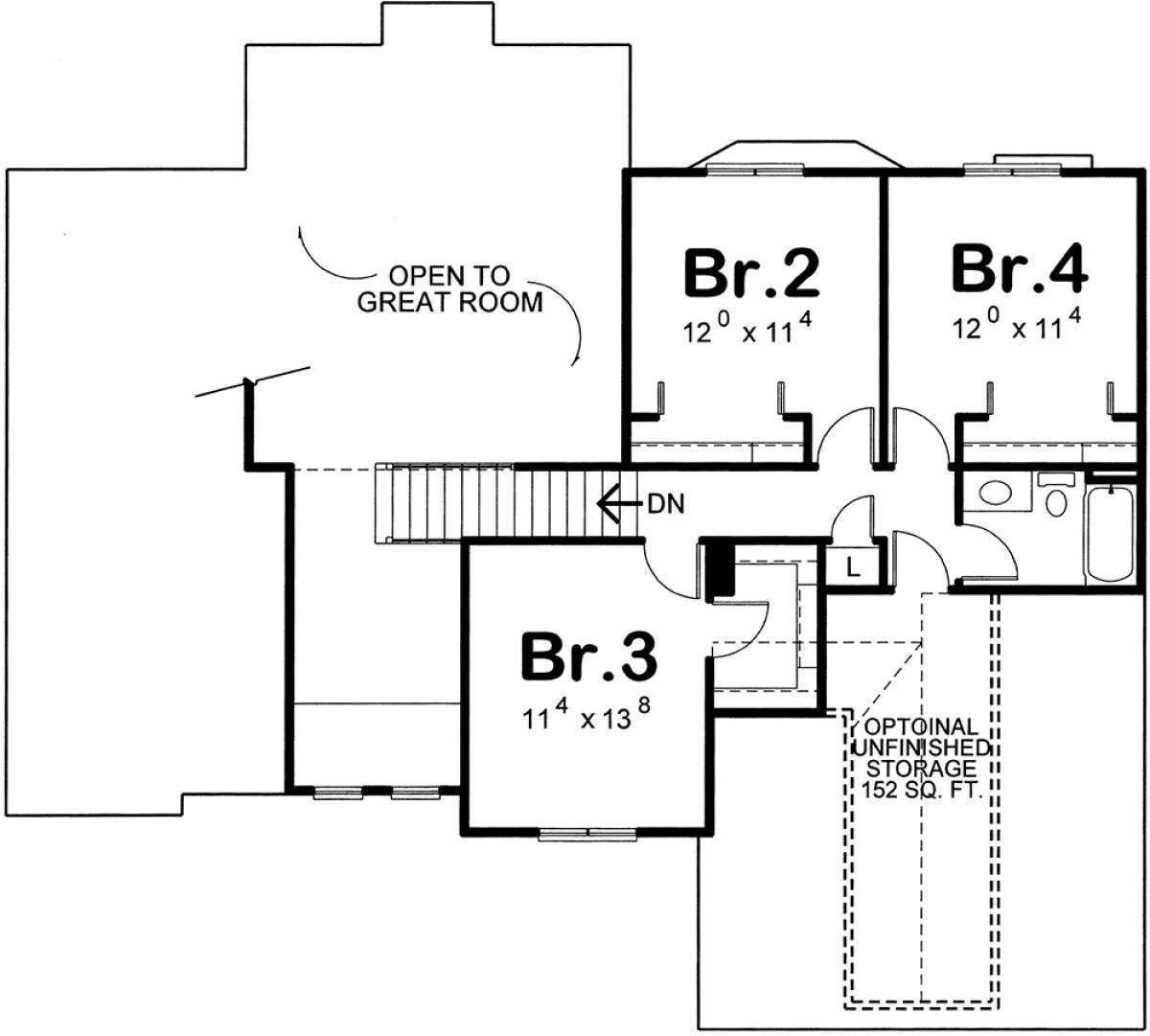

Second Floor for House Plan #402-01537
Main Floor
Main Floor for House Plan #402-01537
Second Floor
Second Floor for House Plan #402-01537

Frequently Asked Questions


What's Included in these plans?

  • Cover Page - This home plan features the rendered elevation and informative reference sections including: general notes and design criteria; abbreviations; and symbols for your plan.
  • Foundation - Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Optional basement, slab and crawl space foundations are available.
  • Main Level Floor Plan - 1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2"x4" walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
  • Second Level Floor Plan - 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
  • Electrical and Sections - Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.
  • Roof Framing Plan - Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.


E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This lovely Craftsman house plans offers exciting exterior design elements which highlight the façade of the home beautifully. There are board and batten detailed gables, wide eaves, stonework and a generously proportioned front covered porch perfect for greeting family and friends. The front porch is highlighted with stone pillars, tapered columns and open railing adding charm and character to the home’s exterior. The attractive façade houses approximately 2,196 square feet of interior space which includes four bedrooms and two plus baths. Nine foot ceiling heights dominate the first floor and 8’ ceiling heights are found on the second floor. A two car front loading garage is similarly designed on the exterior and houses good vehicle space before entering the home’s interior where there is a drop-off zone for backpacks and outer gear as well as a coat closet and a nearby laundry room. Around the corner is a guest powder room as well as the second story staircase and the lower level staircase if the basement foundation is chosen. The main foyer entrance features soaring ceiling heights and is open to the formal dining room where there is good space and a triple window wall overlooking the front covered porch. On the other side of the double staircase, is the great room which is quite spacious with 14’ ceiling heights, beautiful flanking window views on either side of the handsome fireplace and open access to the casual dining space and kitchen. The breakfast room is large with bay window views and a peninsula bar off the kitchen. The kitchen is highlighted with double window sink views, a corner walk-in pantry and plenty of counter and cabinet space. The master suite is located on the main floor for privacy and convenience and features generous floor space, soaring ceiling heights, a triple window view and access into the attached closet and bath. The master walk-in closet features good clothing and accessory space while the master bath offers dual vanities, a corner garden tub, a separate shower and a toilet area.

The second floor is great for the children and guests with three bedrooms and a bathroom. Each bedroom features good floor space and double window views; two of the bedrooms are highlighted with wall-to-wall closet space while the third bedroom features an oversized walk-in closet. There is a hall linen closet and the shared bath features vanity space, a toilet area and a tub/shower combination. There are beautiful overviews, from the second story hallway, onto the lower level great room and an optional unfinished storage space with 152 square feet of space is at the opposite end of the hallway; this space could be utilized as storage or it could be finished to accommodate a fifth bedroom, a playroom for small children or a lounge for older children. A great floor plan with optional basement foundation, a functional family layout and plenty of storage space is found in this Craftsman house plan.
