Craftsman House Plan 402-01534

Sq Ft2,452
1/2 Baths1
Width59' 0"
Depth44' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

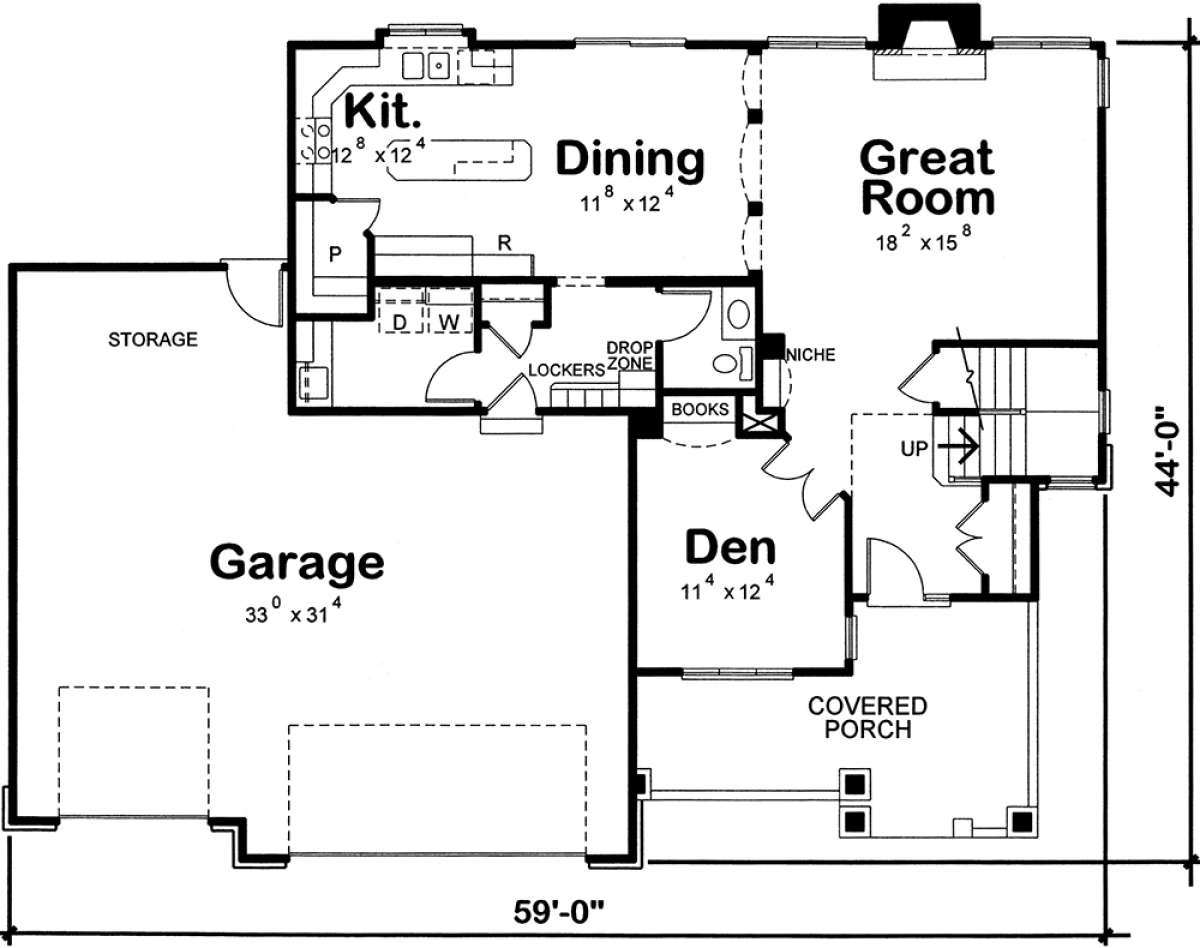

Main Floor for House Plan #402-01534

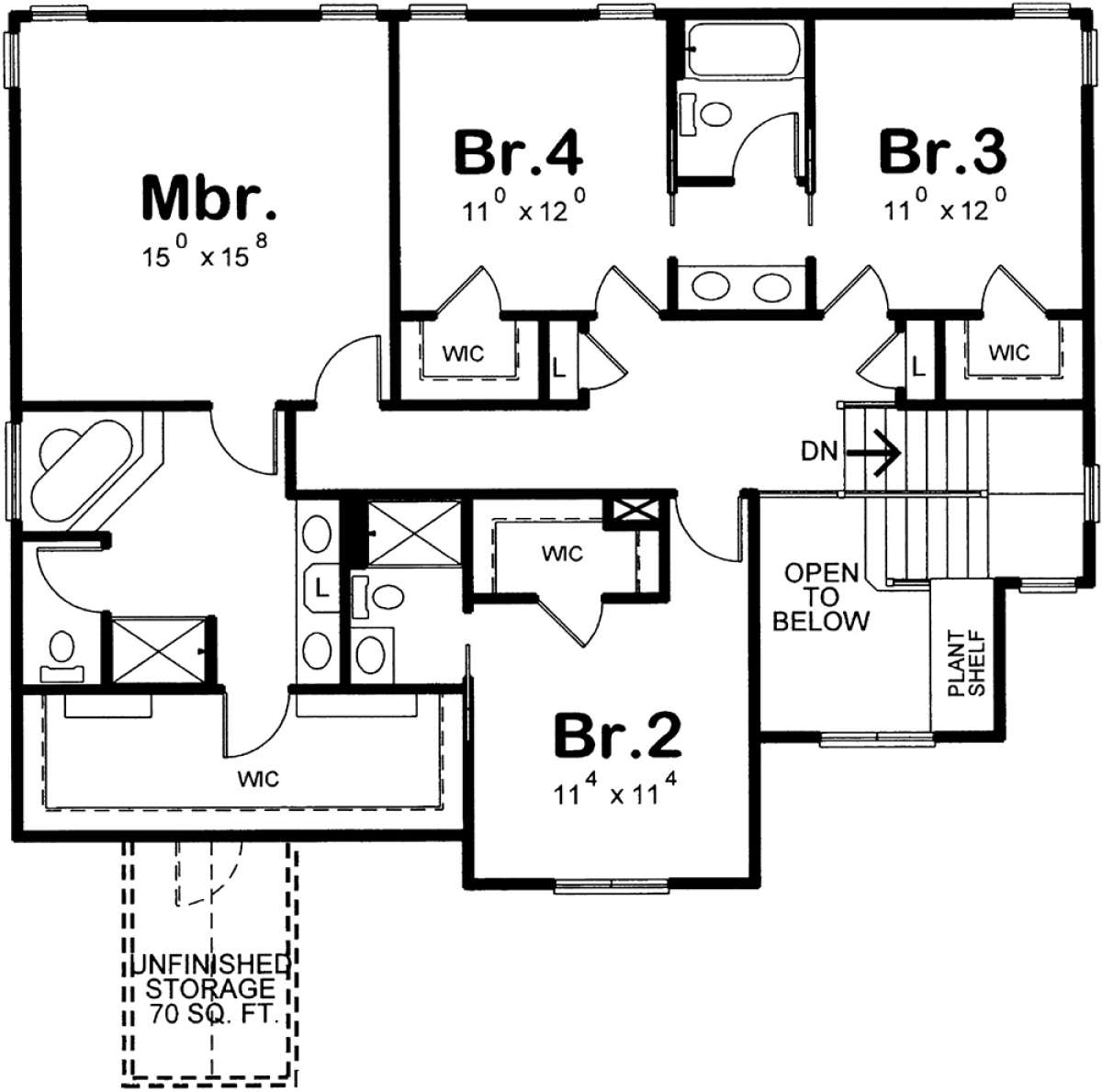

Second Floor for House Plan #402-01534
Main Floor
Main Floor for House Plan #402-01534
Second Floor
Second Floor for House Plan #402-01534

Frequently Asked Questions


What's Included in these plans?

  • Most plans include the following:
  • Cover Page. Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.
  • Elevations. Scaled elevations for the front, rear, and sides are provided. All elevations are detailed and an aerial view of the roof is provided.
  • Foundations. Foundations are engineered for each design, whether slab or basement, however they may not meet the requirements of your local code and may need additional engineering.
  • Main Level Floor Plan. The detailed drawings are fully dimensioned for ease of framing. Exterior wall thicknesses vary by plan. If necessary, contact Design Basics to clarify the standard exterior wall thickness for the plan(s) you are interested in.
  • Second Level Floor Plan. Dimensioned and drafted to the same degree of detail as the main level floor plan*
  • Electrical and Sections. Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
  • Full technical support is provided to purchasers of each plan to answer your plan-related questions.
  • *Plans are drafted to meet the Uniform Building Code or IRC (International Residential Code) at the time they are designed (contact us for more information). Because codes and requirements can change and may vary from jurisdiction to jurisdiction, the designers cannot warrant compliance with any specific code or regulation. All plans can be adapted to your local building codes and requirements. It is the responsibility of the purchaser and/or builder of each plan to see that the structure is built in strict compliance with all governing municipal codes (city, county, state, and federal).


Any problems or issues arise, contact Carl Couzzo, the lead designer for Design Basics.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Amazing exterior elements highlight the façade of this Craftsman home; a combination of board and batten, multiple decorative gables and stone work are featured on the home’s exterior. Stone work is incorporated all along the exterior including the pillars supporting the large columned beams on the home’s front covered porch. Open railing, great space to greet family and friends and a lovely front entrance add charm and character to the home’s L-shaped front porch. The front loading three car garage is great vehicle space for a large family and there is rear storage space as well as a pedestrian door for the loading and unloading of lawn and sporting equipment. On the interior is approximately 2,452 square feet of living space which features an open layout, four bedrooms and three plus baths. The main porch entrance opens onto the spacious foyer where there is a large coat closet, the second story staircase and a smaller closet area. There are French doors leading into the comfortable den along with built-in shelving and a triple window wall overlooking the porch. The rear of the home features an open family layout that includes living and dining space as well as a gourmet kitchen. The great room is quite spacious with a rear centered fireplace and flanking window views. An arched opening leads to the dining space and there are sliders onto the rear yard. The kitchen is highlighted with a center island, double sink window views, plenty of additional counter and cabinet space along with an oversized, corner, walk-in pantry. Located between the garage and open layout is the large laundry room, a coat closet, a drop-off zone and lockers for the storage of outer gear, backpacks, etc. and a half bath which completes the lower level of the home.

The second level of the home is dedicated to the family’s privacy and contains four bedrooms and three baths along with unfinished storage space and overviews onto the first level. The hallway houses double linen closets and entrance into the bedrooms. Bedroom two features good floor space, a large walk-in closet and front double window views. The third and fourth bedrooms are equivalent sized with matching walk-in closets and each have window views. A jack and jill bath is situated between them and features double sinks and a separate room with a toilet area and a tub/shower combination. The master suite is located at one end of the hallway and is highlighted with generous floor space, window views and a master bath. The master bath features modern amenities that today’s homeowners seek that include a corner garden tub, a separate shower, dual vanities and a private toilet room. The master walk-in closet is enormous and there is unfinished storage space beyond it for expansion, to hold household items or for storing seasonal clothing and/or decorations. This lovely Craftsman house design features a great family layout, good storage and vehicle space and an exterior that is welcoming and inviting.
