Craftsman House Plan 402-01523

Sq Ft1,886
Beds3
Baths2
1/2 Baths1
Stories1
Cars2
Width40' 0"
Depth70' 8"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

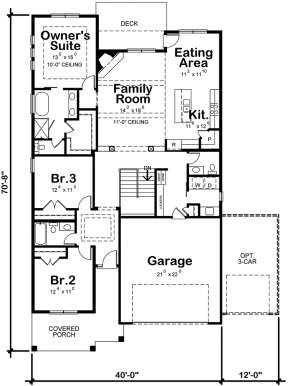

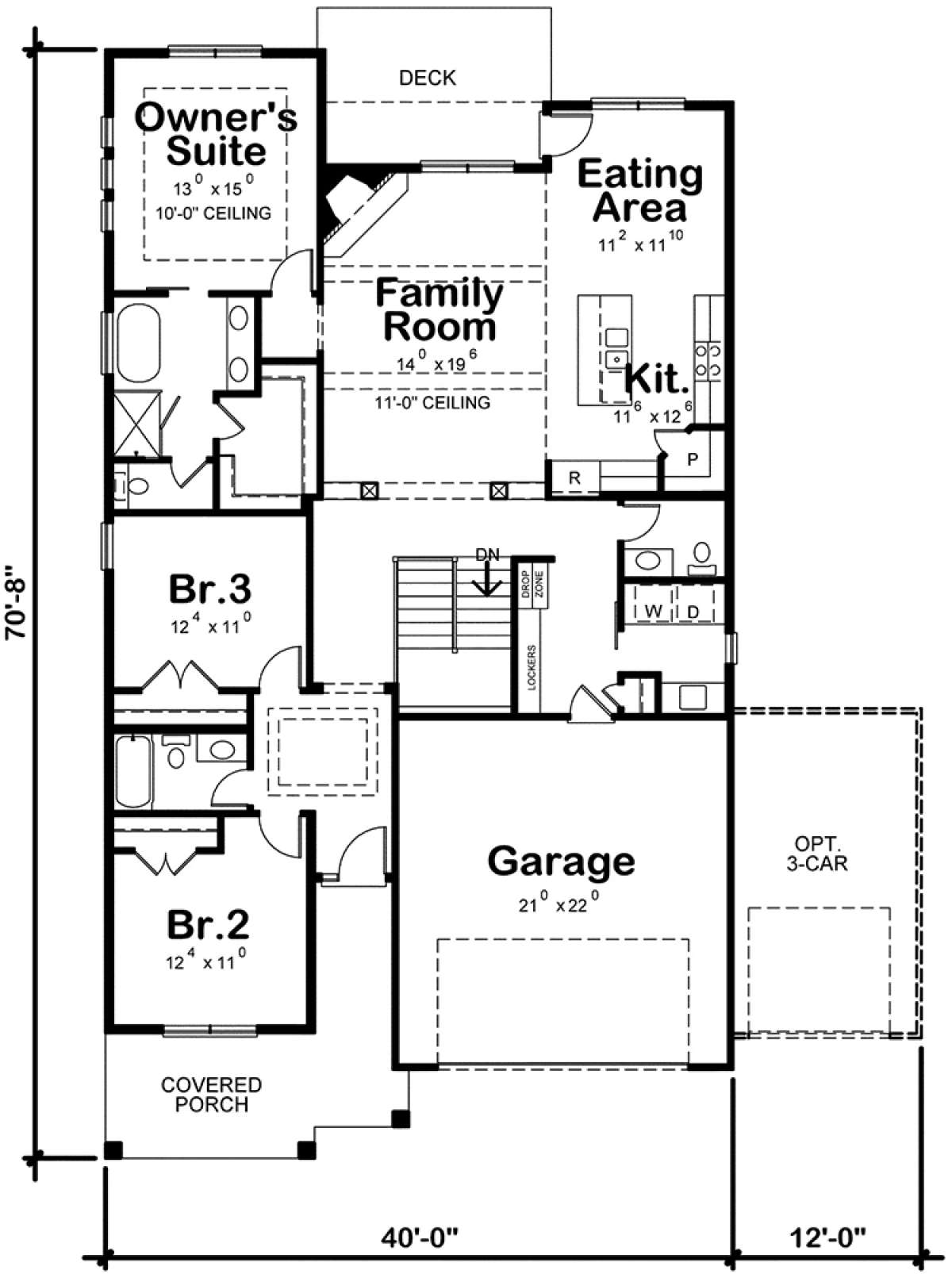

Main Floor for House Plan #402-01523

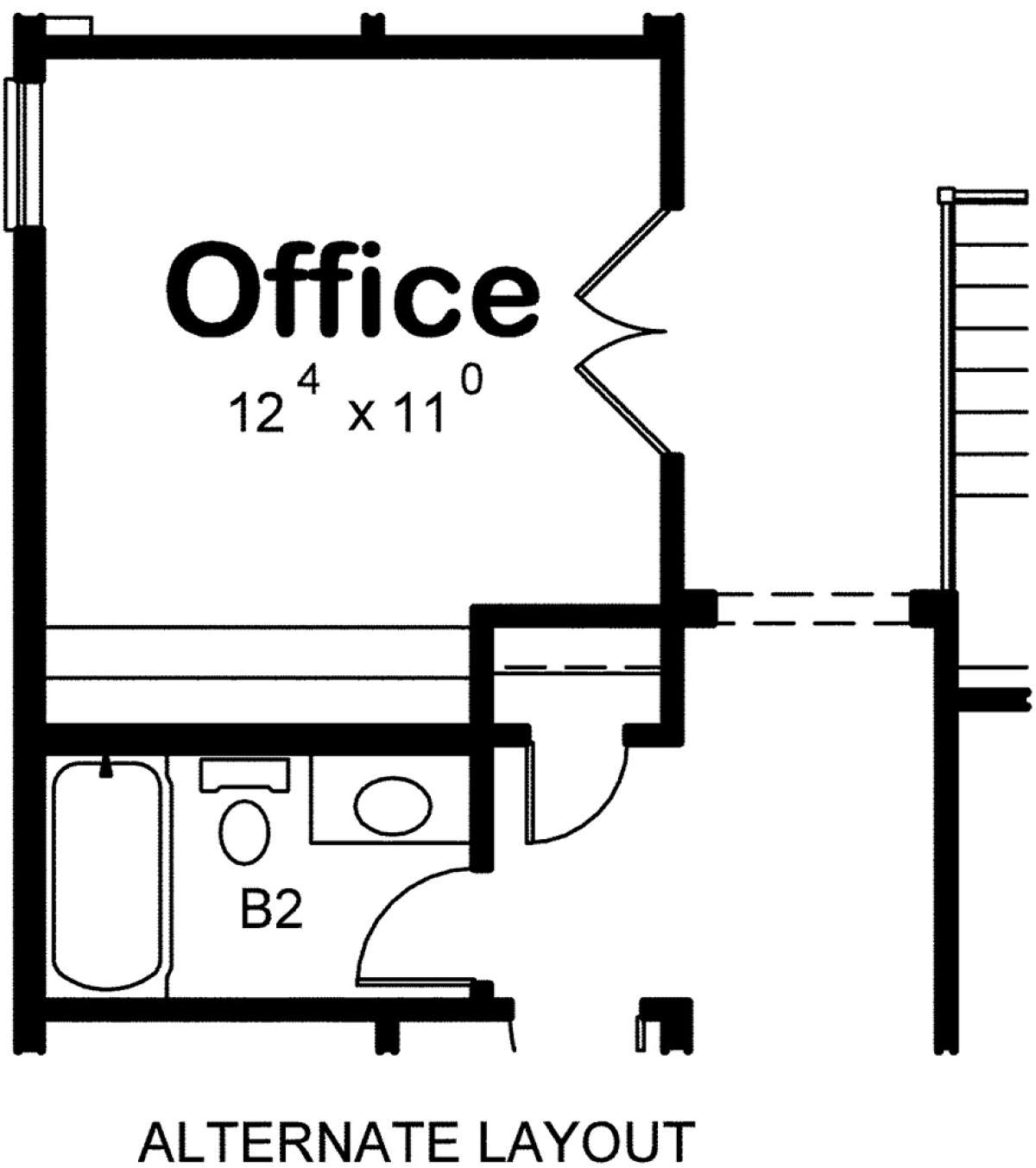

Home Office  for House Plan #402-01523
Main Floor
Main Floor for House Plan #402-01523
Home Office

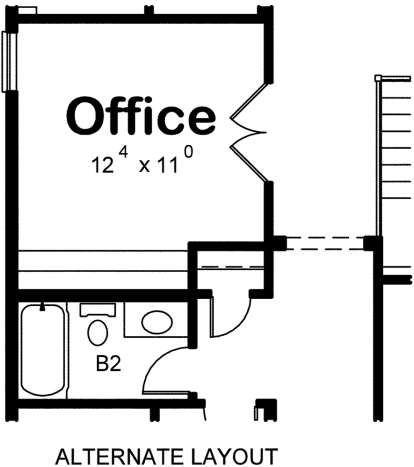

Home Office  for House Plan #402-01523


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Most plans include the following:
  • Cover Page. Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.
  • Elevations. Scaled elevations for the front, rear, and sides are provided. All elevations are detailed and an aerial view of the roof is provided.
  • Foundations. Foundations are engineered for each design, whether slab or basement, however they may not meet the requirements of your local code and may need additional engineering.
  • Main Level Floor Plan. The detailed drawings are fully dimensioned for ease of framing. Exterior wall thicknesses vary by plan. If necessary, contact Design Basics to clarify the standard exterior wall thickness for the plan(s) you are interested in.
  • Second Level Floor Plan. Dimensioned and drafted to the same degree of detail as the main level floor plan*
  • Electrical and Sections. Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
  • Full technical support is provided to purchasers of each plan to answer your plan-related questions.
  • *Plans are drafted to meet the Uniform Building Code or IRC (International Residential Code) at the time they are designed (contact us for more information). Because codes and requirements can change and may vary from jurisdiction to jurisdiction, the designers cannot warrant compliance with any specific code or regulation. All plans can be adapted to your local building codes and requirements. It is the responsibility of the purchaser and/or builder of each plan to see that the structure is built in strict compliance with all governing municipal codes (city, county, state, and federal).



Any problems or issues arise, contact Carl Couzzo, the lead designer for Design Basics.  ccuozzo@designbasics.com

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This incredibly charming Craftsman bungalow features lovely exterior features highlighting a welcoming and inviting façade. There are a set of triple decorative gables with rafters, cedar shakes and wide eaves overhead and the front covered porch grounds the space nicely with it’s complementary design elements. A great space in which to greet family and friends, the front covered porch, features a small walk-up staircase, substantial wooden beams and a set of centrally located window views. The accompanying alcove entrance leads to the front door and the garage bay showcases transom windows and contrasting hardware. The front loading two car garage features good vehicle space and there is a third bay option as well. The home’s interior is highlighted with approximately 1,886 square feet of living space and includes three bedrooms and two plus baths. There is an alternate floor plan which highlights an office space with French door access into the room. The home is situated on a basement foundation for expansion possibilities and the 40’ width makes for an ideal home on a narrow property lot. The home’s main entrance is through the front foyer with features a double trey ceiling before accessing the secondary bedrooms and the subsequent family living spaces. The family room is highlighted with columns, eleven foot ceiling heights, a corner warming fireplace and double window views overlooking the rear outdoor space. The gourmet kitchen is open to the family room and features a center island with casual dining space, a walk-in pantry and plenty of cabinet and counter space. Adjoining the kitchen and family room is the dining space; it is a lovely spot to dine with double window views and there is access onto the rear deck from this area making it perfect to casually dine outdoors. The garage entry into the home’s interior provides great space for shedding the day’s necessities while keeping the home tidy; there is space for lockers, a drop-off zone for backpacks and outer gear as well as a closet. Nearby is the family laundry room as well as a powder room for family and guests.

The family bedrooms and baths are located on one side of the home for easy access and convenience. Bedrooms two and three are equivalent size, both have window views; one of which overlooks the front porch and each bedroom features plentiful closet space. There is a shared hall bath which is situated between the two bedrooms and offers vanity space, a toilet area and a tub/shower combination. At the rear of the home is the master suite where a spacious bedroom with a trey ceiling and gorgeous window views is found. The en suite bath features dual sinks, a private water closet, separate shower and a large soaking tub along with the attached master walk-in closet. This Craftsman house plan showcases a fabulous exterior with beautiful outdoor space, expansion space in the basement foundation and a functional family floor plan.
