Colonial House Plan 402-01469

Sq Ft5,722
Beds5
Baths5
1/2 Baths2
Stories2
Cars3
Width82' 0"
Depth54' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

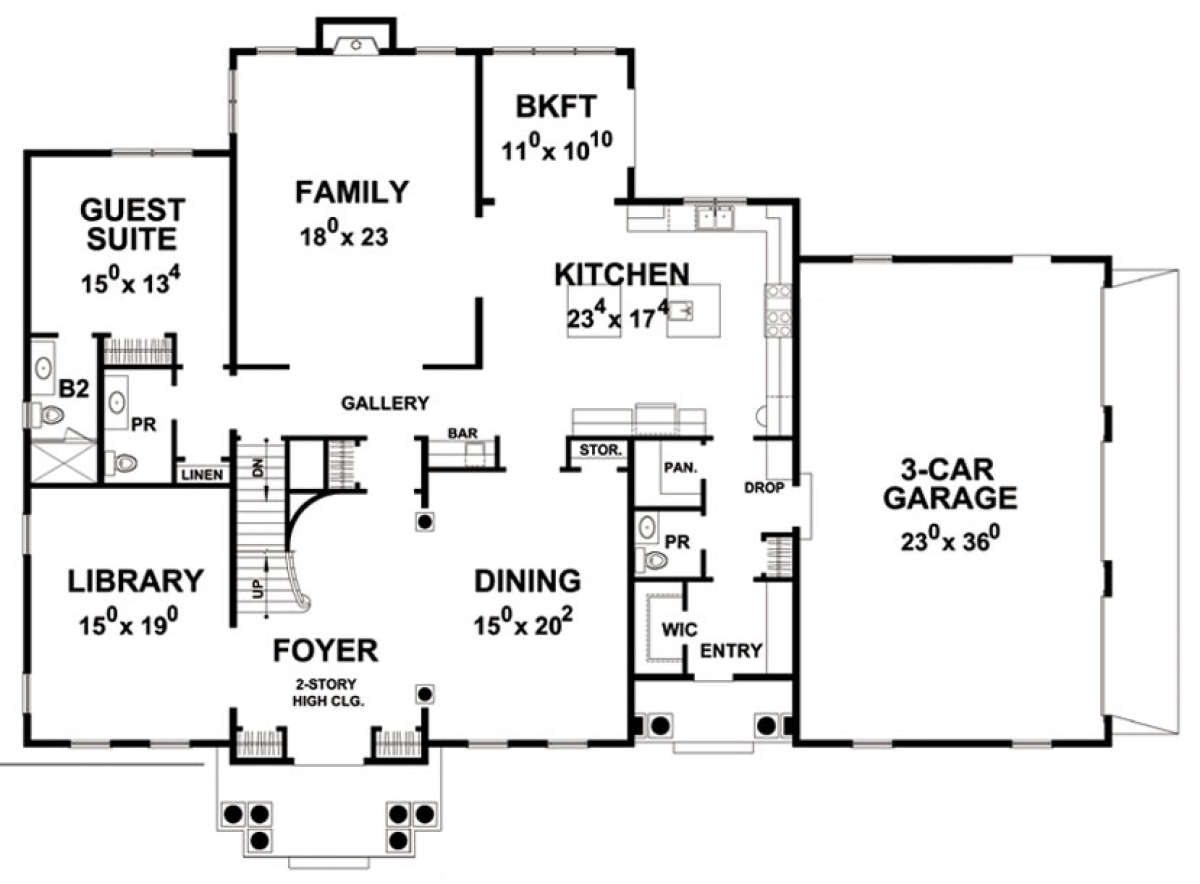

Main for House Plan #402-01469

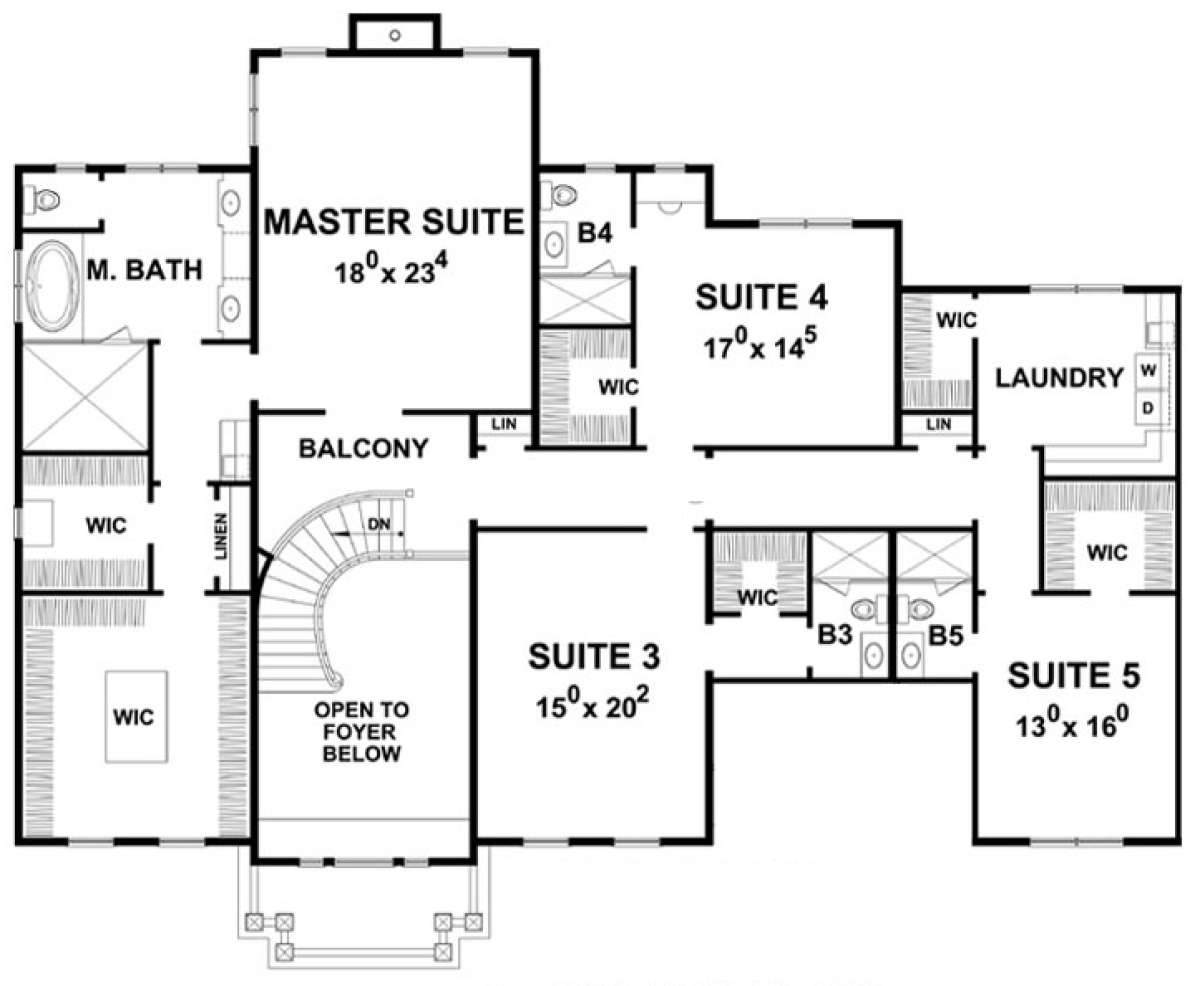

Upper for House Plan #402-01469
Main
Main for House Plan #402-01469
Upper
Upper for House Plan #402-01469


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Page - This home plan features the rendered elevation and informative reference sections including: general notes and design criteria; abbreviations; and symbols for your plan.
  • Foundation - Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Optional basement, slab and crawl space foundations are available.
  • Main Level Floor Plan - 1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2"x4" walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
  • Second Level Floor Plan - 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
  • Electrical and Sections - Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.
  • Roof Framing Plan - Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.
