Colonial Plan 402-01093

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 9,360
Beds 6
Bath 6
1/2 Baths 2
Car 4
Stories 2
Width 117' 4"
Depth 155' 6"

Floorplan Drawings

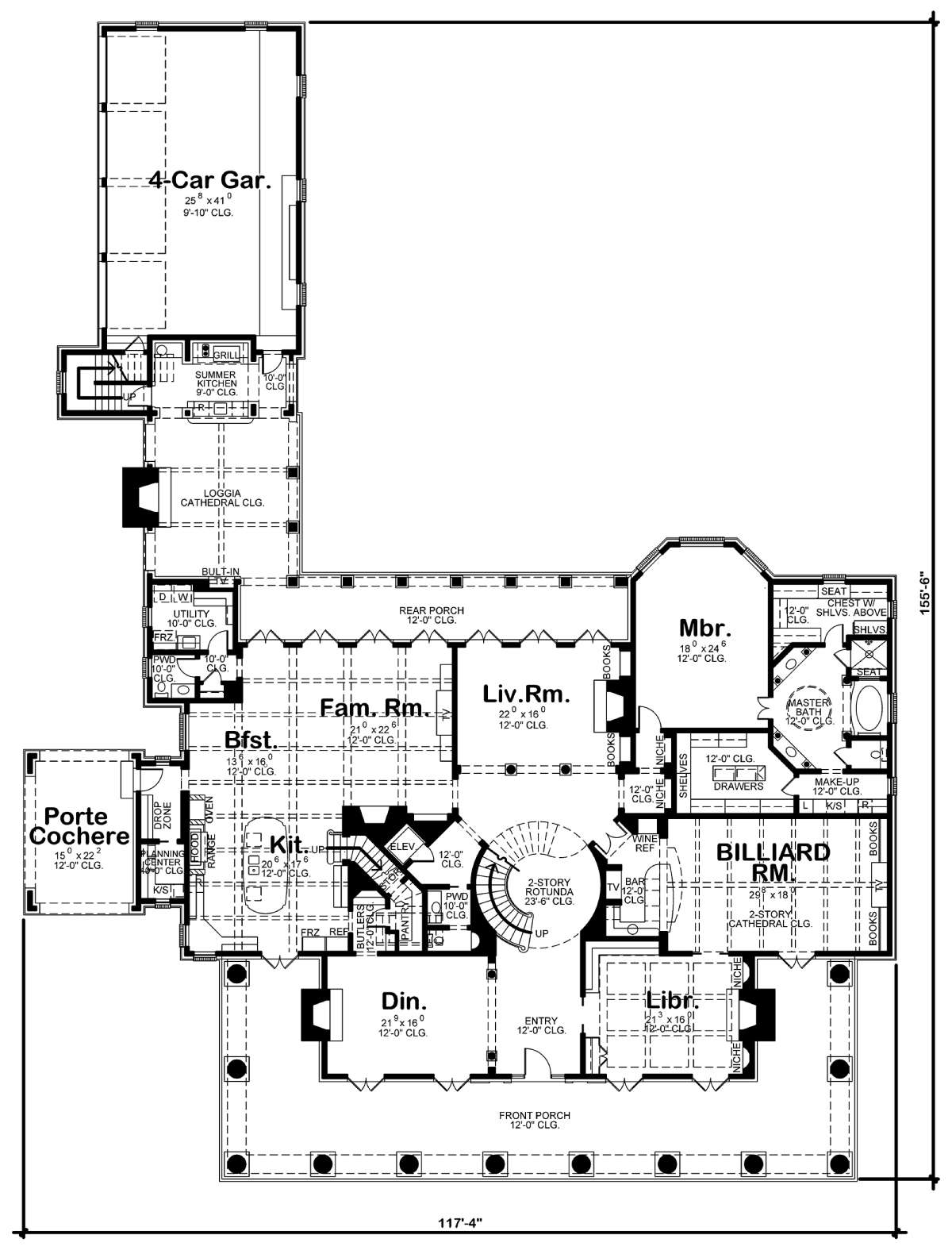

Main Floor
Main Floor for House Plan #402-01093

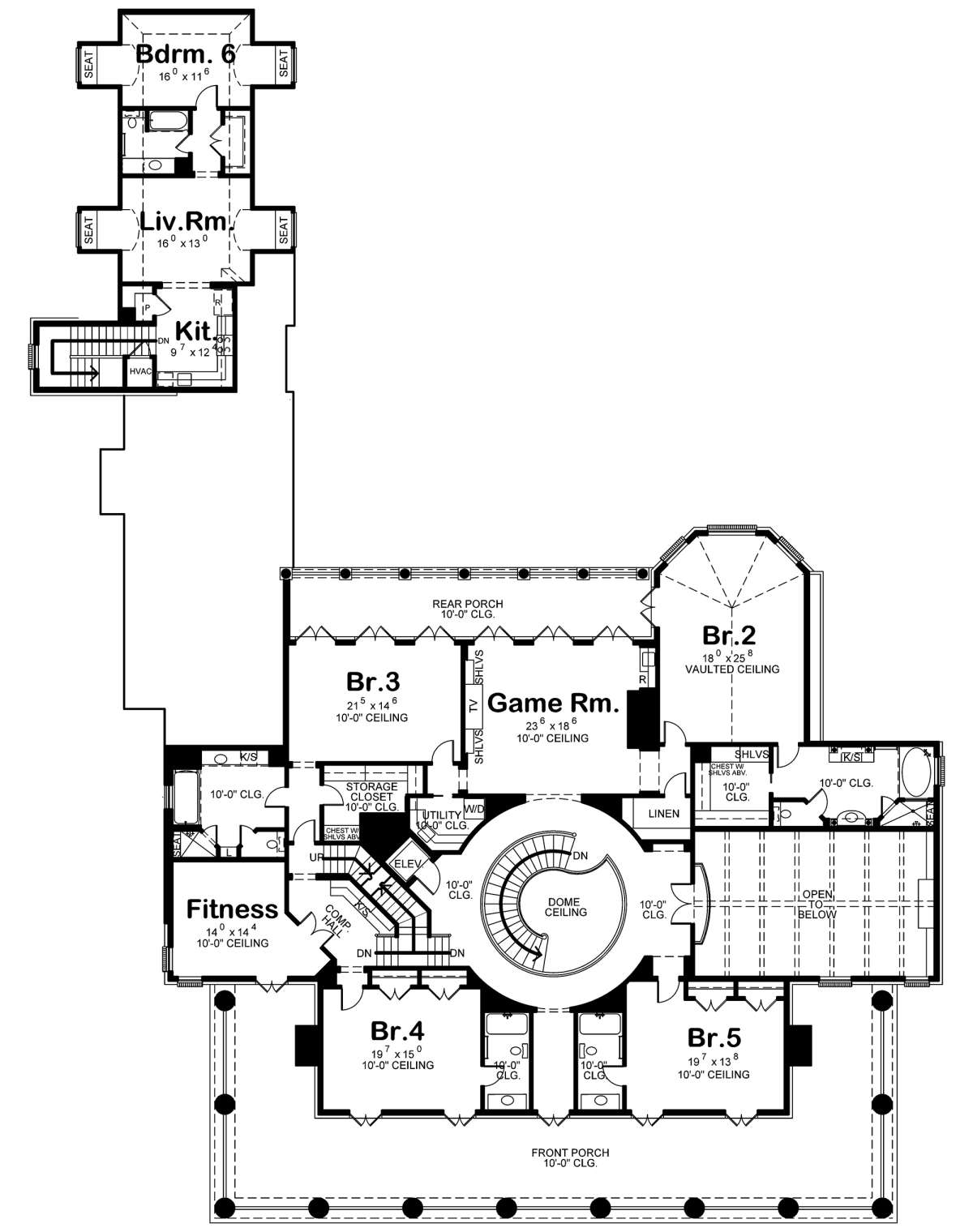

Second Floor
Second Floor for House Plan #402-01093

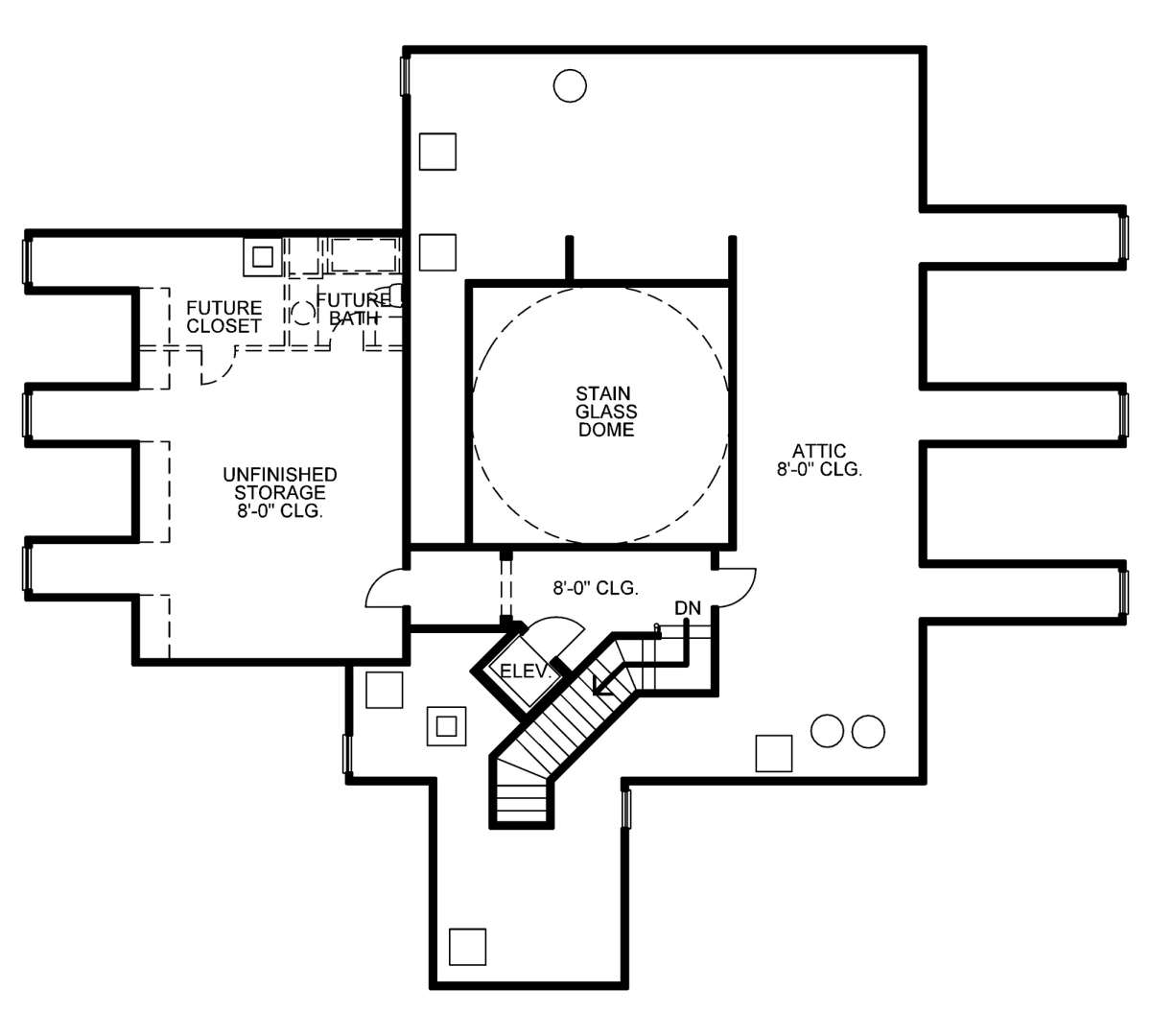

Unfinished Storage
Unfinished Storage for House Plan #402-01093


What's Included in these plans?

  • Most plans include the following:
  • Cover Page. Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.

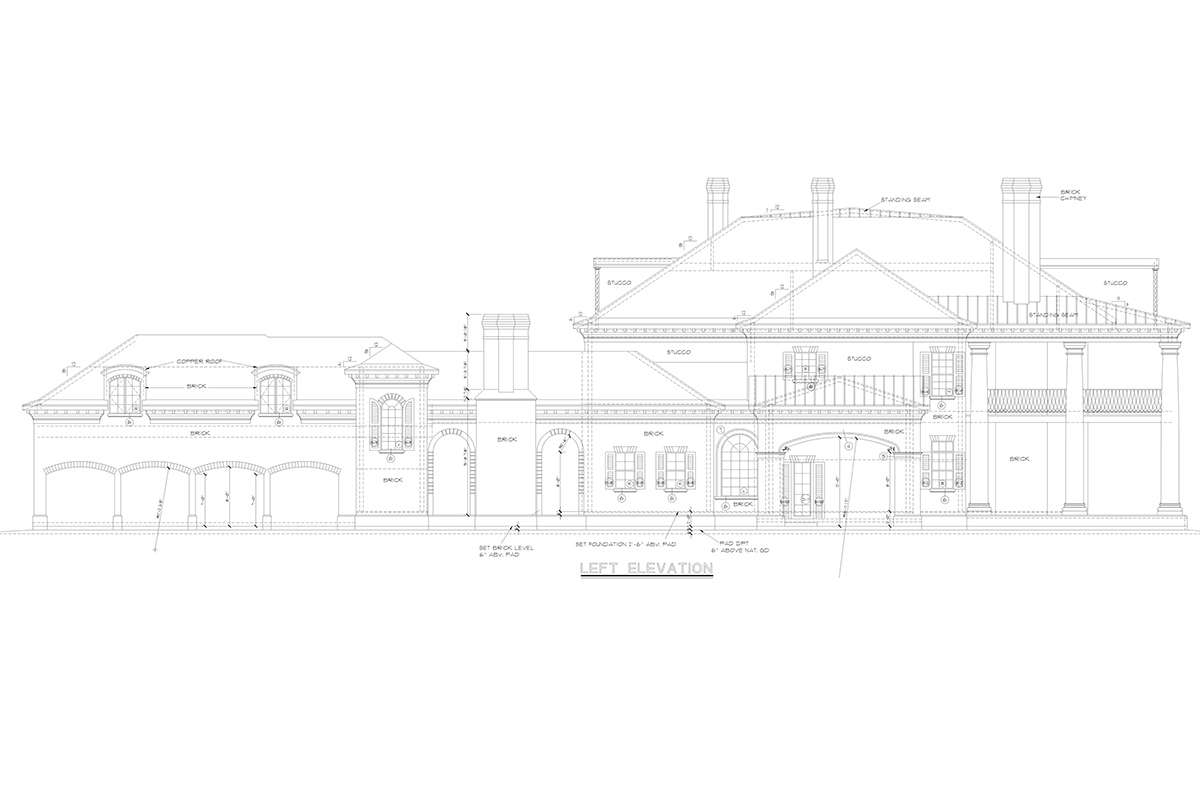

  • Elevations. Scaled elevations for the front, rear, and sides are provided. All elevations are detailed and an aerial view of the roof is provided.
  • Foundations. Foundations are engineered for each design, whether slab or basement, however they may not meet the requirements of your local code and may need additional engineering.
  • Main Level Floor Plan. The detailed drawings are fully dimensioned for ease of framing. Exterior wall thicknesses vary by plan. If necessary, contact Design Basics to clarify the standard exterior wall thickness for the plan(s) you are interested in.
  • Second Level Floor Plan. Dimensioned and drafted to the same degree of detail as the main level floor plan*
  • Electrical and Sections. Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
  • Full technical support is provided to purchasers of each plan to answer your plan-related questions.
  • *Plans are drafted to meet the Uniform Building Code or IRC (International Residential Code) at the time they are designed (contact us for more information). Because codes and requirements can change and may vary from jurisdiction to jurisdiction, the designers cannot warrant compliance with any specific code or regulation. All plans can be adapted to your local building codes and requirements. It is the responsibility of the purchaser and/or builder of each plan to see that the structure is built in strict compliance with all governing municipal codes (city, county, state, and federal).



What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This palatial Colonial house plan features a stunning exterior façade and an interior floor plan with approximately 9,360 square feet of living space. The extravagant exterior is composed of brick, a series of outstanding window views and grand columns lining the wraparound front covered porch and overhead second story porch. Exterior chimneys, window dormers and the side porte-cochere ground and add balance to the exterior’s luxuriant façade. At every turn, there is outdoor space for relaxing, entertaining and accommodating family fun; the front double porches very nearly run the entire width of the home and there are double rear covered porches as well. In addition to the main living spaces situated on two floors, there is a third floor with a bonus space measuring 1,723 square feet, plenty of attic/storage space and a stained glass dome for beauty and panoramic allowance of natural overhead sunlight. There is a four car side loading garage at the rear of the home for unobstructed views of the front exterior with plenty of vehicle space. The main living floor features an abundance of grand rooms for entertaining and private space. The formal dining room and library flank the foyer; both have fireplaces and double sets of French doors leading onto the front covered porch. Beyond the foyer is the two story rotunda with a sweeping staircase up to the second floor. The billiard room is a magnificent space and highlighted with French door access, two story cathedral ceilings, built-in cabinetry, a wine fridge and open bar, perfect for entertaining business associates and intimate friends. At the rear of the rotunda is a formal living room with a triple set of French doors onto the covered porch. The gourmet kitchen, breakfast room and family room are all open to one another for casual family space and once again, there are a series of French doors leading to the outdoor space. The rear porch wraps around to the loggia with cathedral ceiling heights, a warming fireplace and the subsequent outdoor kitchen area. There is a main level opulent master suite with a huge master bedroom, enormous his and her walk-in closets and an elegant en suite master bath that defines luxury.

The second floor landing provides beautiful overlooks onto the main living floor and a series of bedroom suites. Additionally, there is a fitness room and a game room; both are large spaces and provide access to the outdoor living space. Bedrooms two through five all provide private access onto either the front or rear outdoor space as well. Bedroom two is self-contained with a lovely bedroom highlighted with vaulted ceilings, excellent floor space, a walk-in closet and an oversized private bathroom. The third bedroom is quite large with nearby storage and clothing space as well as a full bath. Bedrooms four and five offer private full baths and plenty of closet space. There is an in-law suite located above the garage; it features a kitchen, living space and a large bedroom with a full bath and walk-in closet. This lavish Colonial house plan is an executive style home with an abundance of private entertaining space, plenty of casual family space and an exterior façade that is bold and appealing.
