European Plan 402-00989


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,715
Beds 4
Bath 3
1/2 Baths 1
Car 3
Stories 2
Width 75' 2"
Depth 38'

Floorplan Drawings

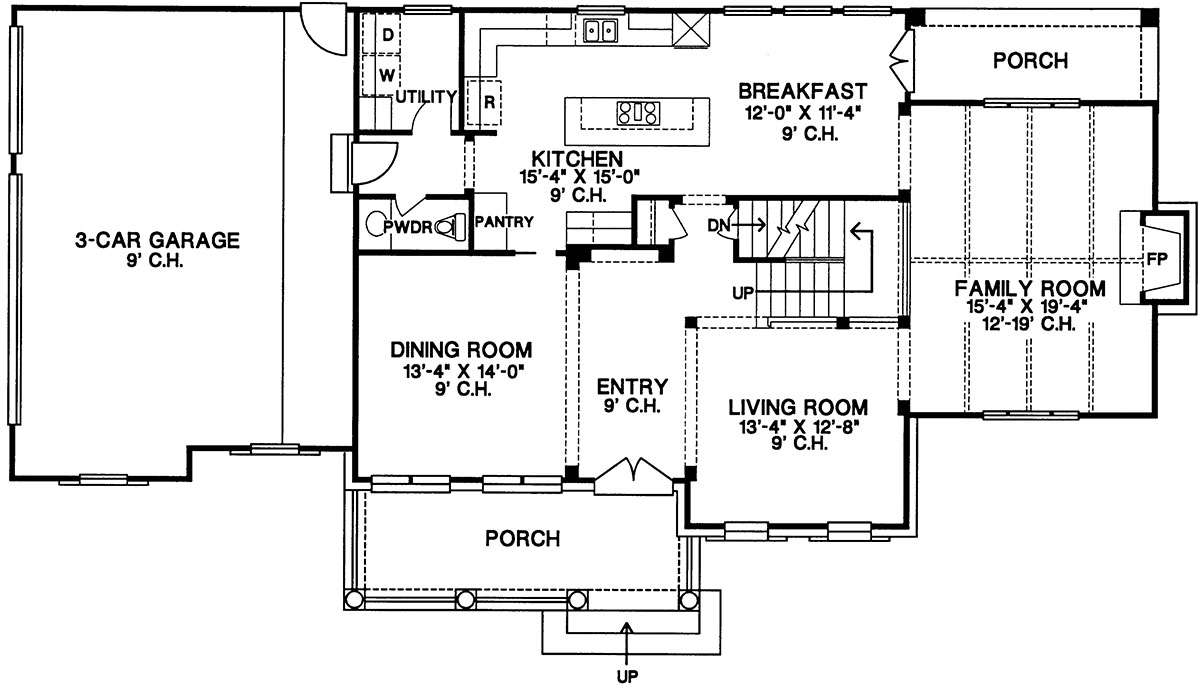

Main Floor
Main Floor for House Plan #402-00989

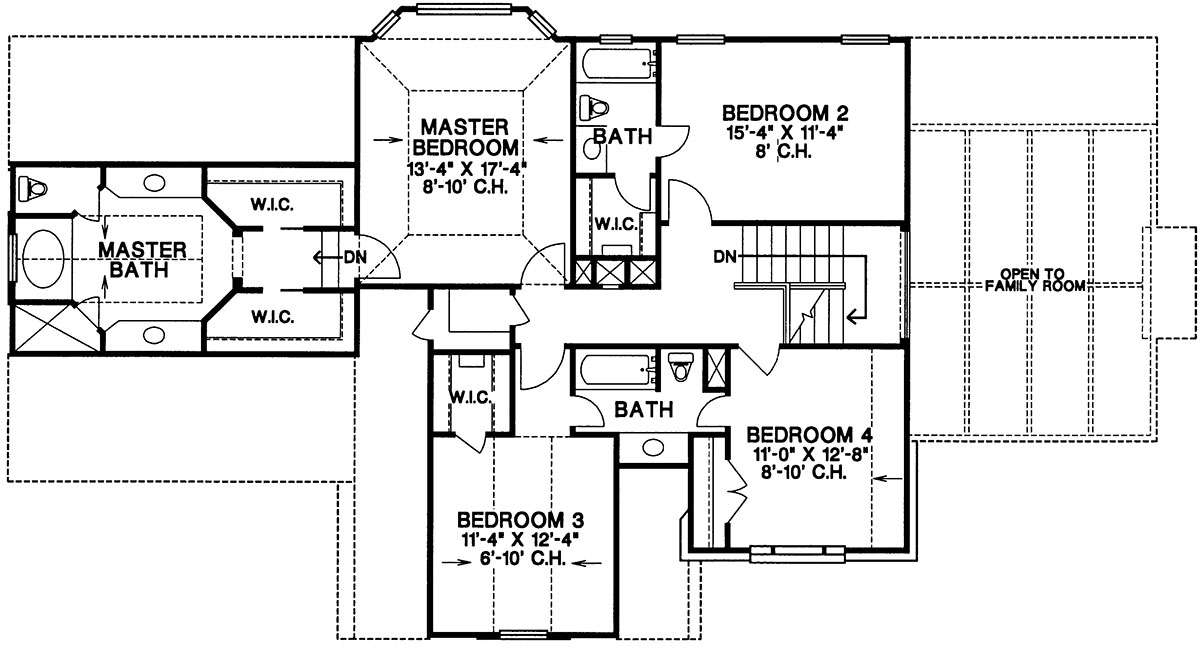

Second Floor
Second Floor for House Plan #402-00989

What's Included in these plans?

  • Most plans include the following:
  • Cover Page. Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.
  • Elevations. Scaled elevations for the front, rear, and sides are provided. All elevations are detailed and an aerial view of the roof is provided.
  • Foundations. Foundations are engineered for each design, whether slab or basement, however they may not meet the requirements of your local code and may need additional engineering.
  • Main Level Floor Plan. The detailed drawings are fully dimensioned for ease of framing. Exterior wall thicknesses vary by plan. If necessary, contact Design Basics to clarify the standard exterior wall thickness for the plan(s) you are interested in.
  • Second Level Floor Plan. Dimensioned and drafted to the same degree of detail as the main level floor plan*
  • Electrical and Sections. Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
  • Full technical support is provided to purchasers of each plan to answer your plan-related questions.
  • *Plans are drafted to meet the Uniform Building Code or IRC (International Residential Code) at the time they are designed (contact us for more information). Because codes and requirements can change and may vary from jurisdiction to jurisdiction, the designers cannot warrant compliance with any specific code or regulation. All plans can be adapted to your local building codes and requirements. It is the responsibility of the purchaser and/or builder of each plan to see that the structure is built in strict compliance with all governing municipal codes (city, county, state, and federal).


Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Enormous curb appeal and classic European styling give this home a spectacular presence that features an exterior composed of a brick feature wall, horizontal siding, beautiful window accents and a lovely front covered porch supported with widely proportioned column beams. The interior floor plan is equally stunning offering approximately 2,715 square feet of living space in the two storied home that includes four bedrooms and three plus baths. The first floor of the home features 9’ ceiling heights throughout including the expansive three car side loading garage that houses additional storage space and outdoor access for easy storage of lawn and/or sporting equipment. Double door entry leads to the extended foyer which is flanked on either side by the formal dining room and living room. The rear of the home holds the common family rooms that include a grand kitchen, large sun drenched breakfast room and the family room. The kitchen is enormous and showcases a large center cook top island with loads of prep/work space, a separate pantry and plenty of counter and cabinet space. The casual breakfast room is perfect for family dining and features French door access to the rear porch. The family room is quite large with a warming fireplace and timber trusses overhead for a warm, character filled space to enjoy family time. There is a large utility room and powder room conveniently located off the garage.
The second story staircase features a balcony overlook into the family room below and the family’s sleeping and bathing quarters. There are three large family style bedrooms; two offer walk-in closets and the fourth features plentiful closet space. Bedroom two features a private en suite bath while bedrooms three and four offer a jack and jill bath. The master suite is elegantly appointed with spacious and plentiful rooms featuring a master bedroom with a lovely trey ceiling accent and a large bayed window. His and her walk-in closets line the hallway as you step-up to continue to the master bath. The bath boasts of a large footprint containing dual vanities, a separate shower and garden tub. This traditional home features a striking exterior and an interior floor plan that is comfortable and offers valuable entertaining space.
