Craftsman House Plan 402-00881

Sq Ft1,473
Beds3
Baths2
1/2 Baths1
Stories2
Cars2
Width40' 0"
Depth44' 4"
SALE
Craftsman House Plan #402-00881 Elevation Photo
Craftsman House Plan #402-00881 Elevation Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

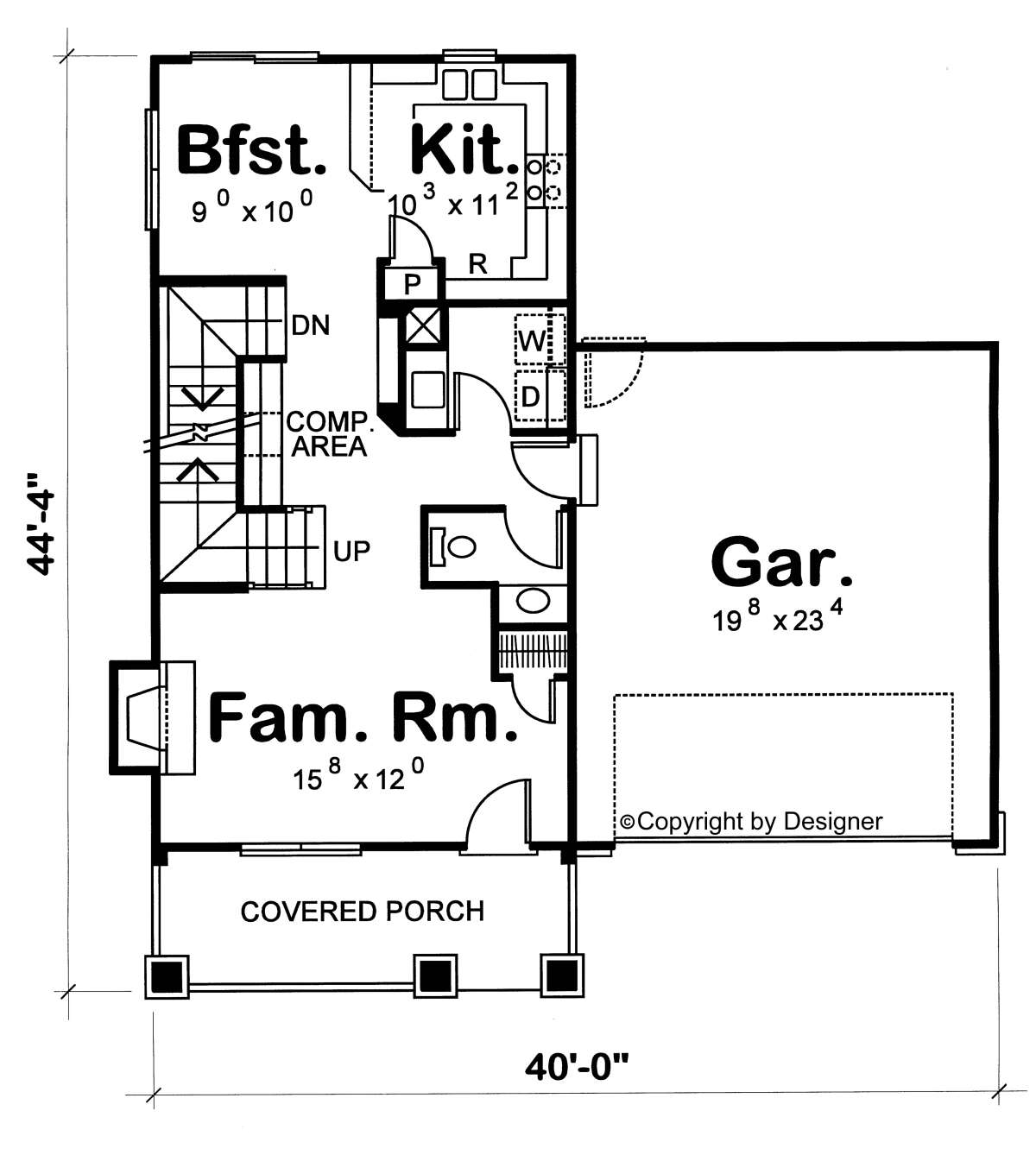

Floorplan 1 for House Plan #402-00881

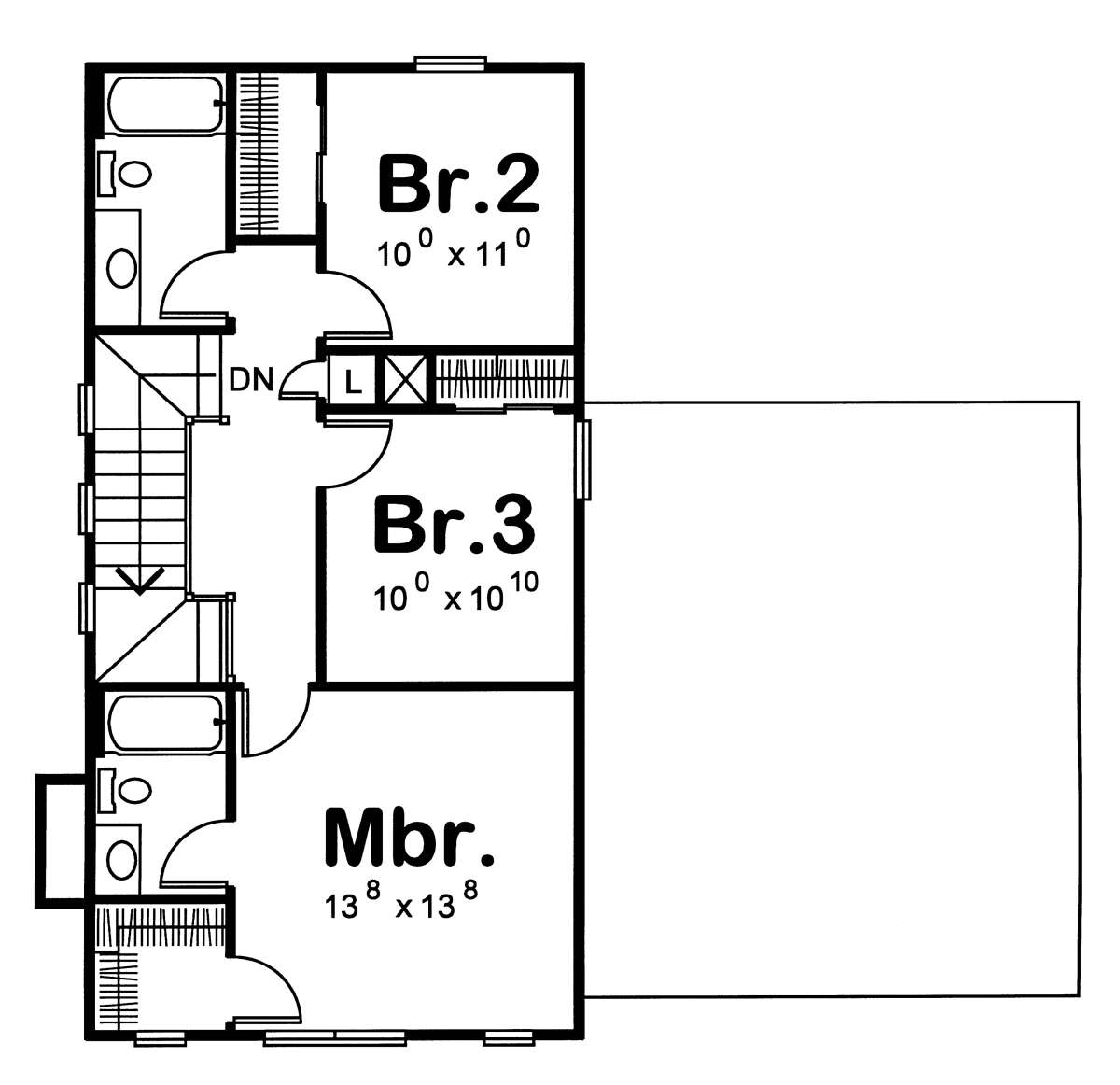

Floorplan 2 for House Plan #402-00881
Floorplan 1
Floorplan 1 for House Plan #402-00881
Floorplan 2
Floorplan 2 for House Plan #402-00881


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Page - This home plan features the rendered elevation and informative reference sections including: general notes and design criteria; abbreviations; and symbols for your plan.
  • Foundation - Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Optional basement, slab and crawl space foundations are available.
  • Main Level Floor Plan - 1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2"x4" walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
  • Second Level Floor Plan - 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
  • Electrical and Sections - Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.
  • Roof Framing Plan - Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 bedroom, 2 bathroom Craftsman house plan features 1,473 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are suitable for all lifestyles and are easily viewed and readily available when you begin the process of building your dream home. All our house designs are easy to read, versatile and affordable with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
