Craftsman House Plan 402-00856

Sq Ft1,818
1/2 Baths1
Width50' 0"
Depth48' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

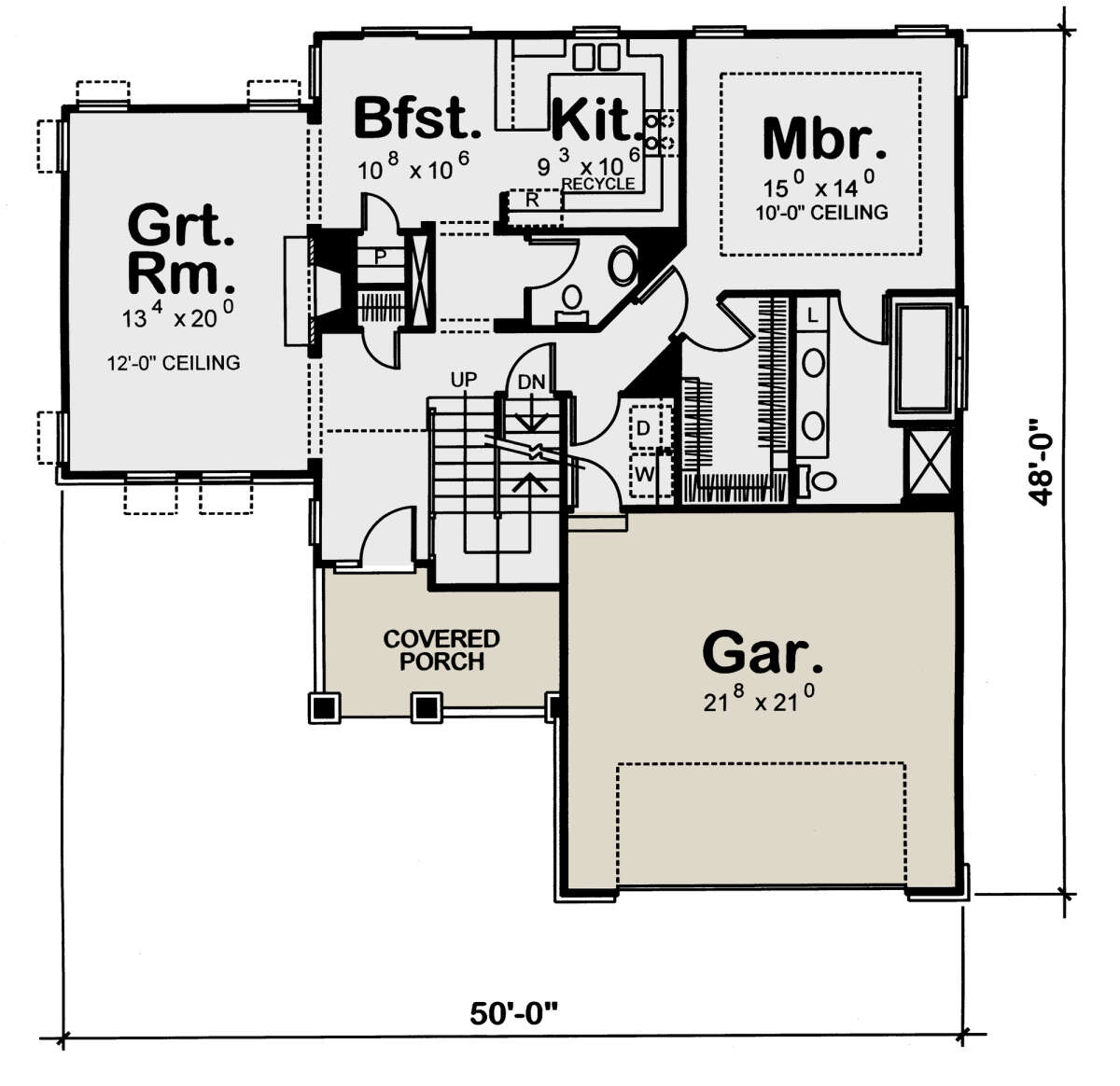

Main Floor for House Plan #402-00856

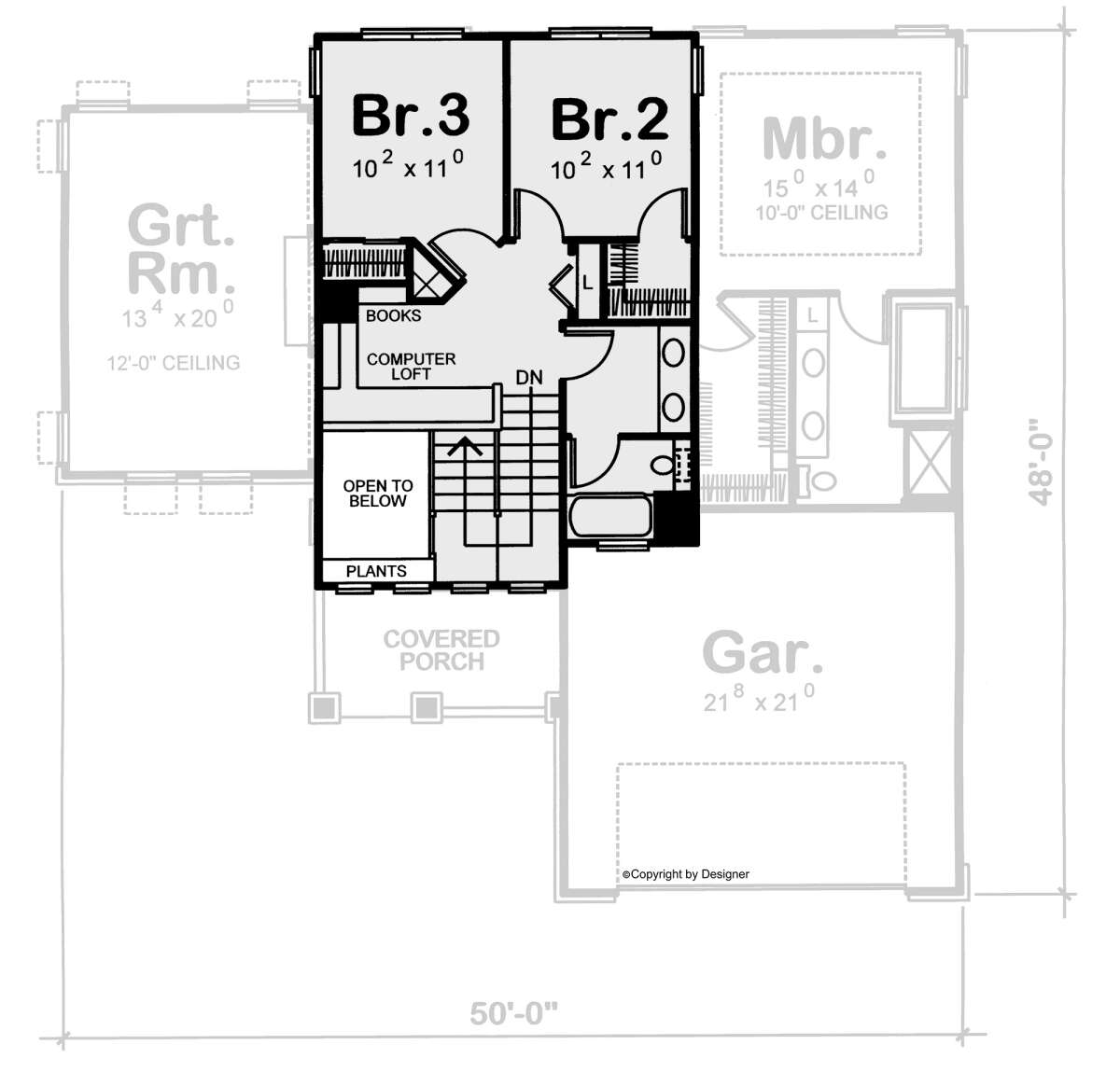

Second Floor for House Plan #402-00856
Main Floor
Main Floor for House Plan #402-00856
Second Floor
Second Floor for House Plan #402-00856

Frequently Asked Questions


What's Included in these plans?

  • Cover Page - This home plan features the rendered elevation and informative reference sections including: general notes and design criteria; abbreviations; and symbols for your plan.
  • Foundation - Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Optional basement, slab and crawl space foundations are available.
  • Main Level Floor Plan - 1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2"x4" walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
  • Second Level Floor Plan - 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
  • Electrical and Sections - Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.
  • Roof Framing Plan - Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.


E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This inviting and welcoming Craftsman house plan features an array of attractive exterior architectural design features and an interior floor plan that is open and made for family living. Multi-sets of window views, a stone perimeter skirt, detailed gables and a gorgeous front covered porch paint a beautiful portrait of a gracious home exterior. The interior floor plan is highlighted with approximately 1,818 square feet of living space which includes three bedrooms and two plus baths in the 1.5 storied home. There is an unfinished basement foundation which could substantially increase the square footage of the home and offer unlimited potential for conversion space such as casual living and entertaining space, additional bedrooms and a series of multi-purpose rooms. There is a front loading two car garage with good vehicle and storage space. Off the garage is an entrance into the laundry room and the subsequent interior floor plan. The main entrance into the home, off the front covered porch, opens onto the spacious foyer and double staircase leading to the basement and second floor. There is a nearby large coat closet and a guest powder room. The open floor plan is comprised of a large great room, dining space and the U-shaped kitchen. The great room features spacious family and entertaining space, vaulted ceilings, a warming fireplace and plenty of window views. The kitchen is highlighted with a peninsula bar, double sink window views and is open to the breakfast nook which is bright and sunny with sliders onto the outdoor space. The main level master suite enjoys a series of private spaces that includes a spacious bedroom with a trey ceiling, multiple window views and there is an attached oversized walk-in master closet. The master bath is highlighted with modern amenities that include dual vanities, a toilet area, an enclosed linen closet, a separate shower and garden tub. The second floor of the home is highlighted with a computer loft at the top of the second story landing that is conveniently accessible to both bedrooms. The second and third bedroom are of equivalent size with matching double window views. Bedroom two features a walk-in closet while the third bedroom offers plenty of closet space. There is a hall linen closet and shared bath; the bath is quite large with double sinks to alleviate morning chaos and there is a separate toilet and tub/shower combination room. This beautiful Craftsman house plan features an attractive exterior and a versatile and expandable floor plan.
