Farmhouse House Plan 402-00650

Sq Ft1,297
Beds3
Baths2
1/2 Baths1
Stories2
Cars2
Width42' 0"
Depth43' 0"

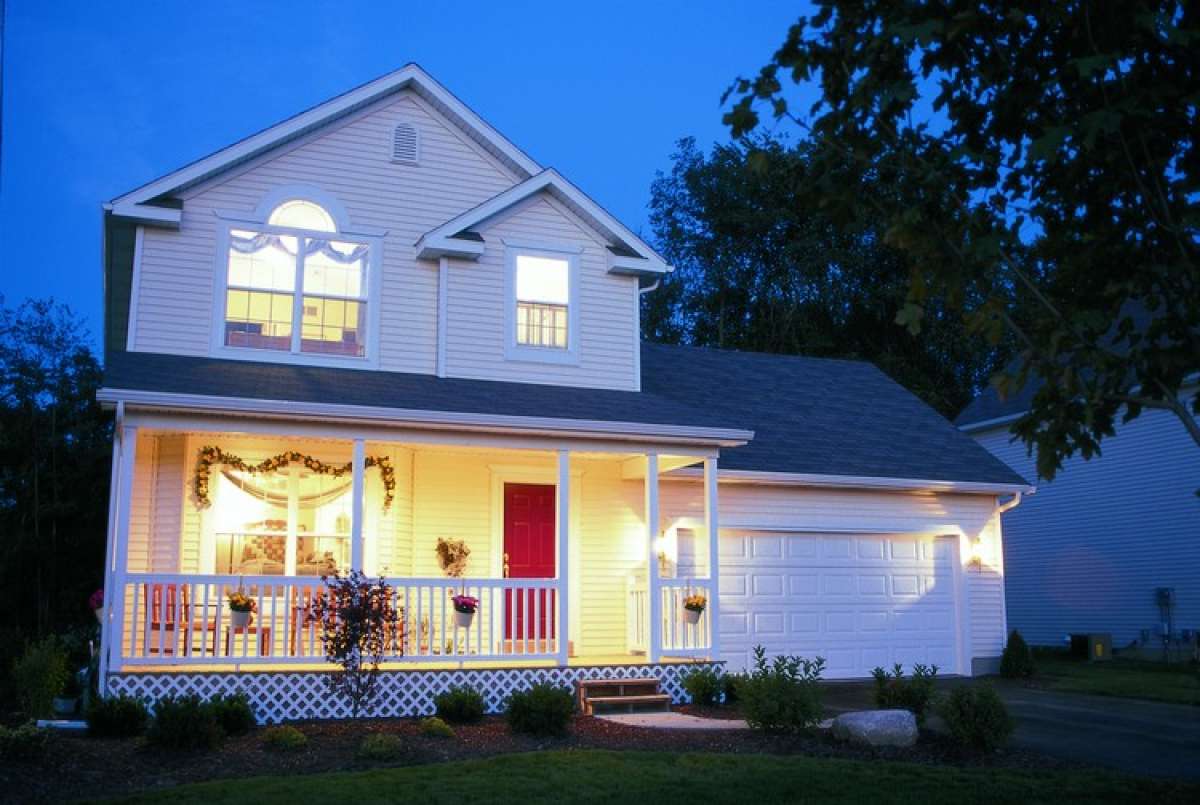

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

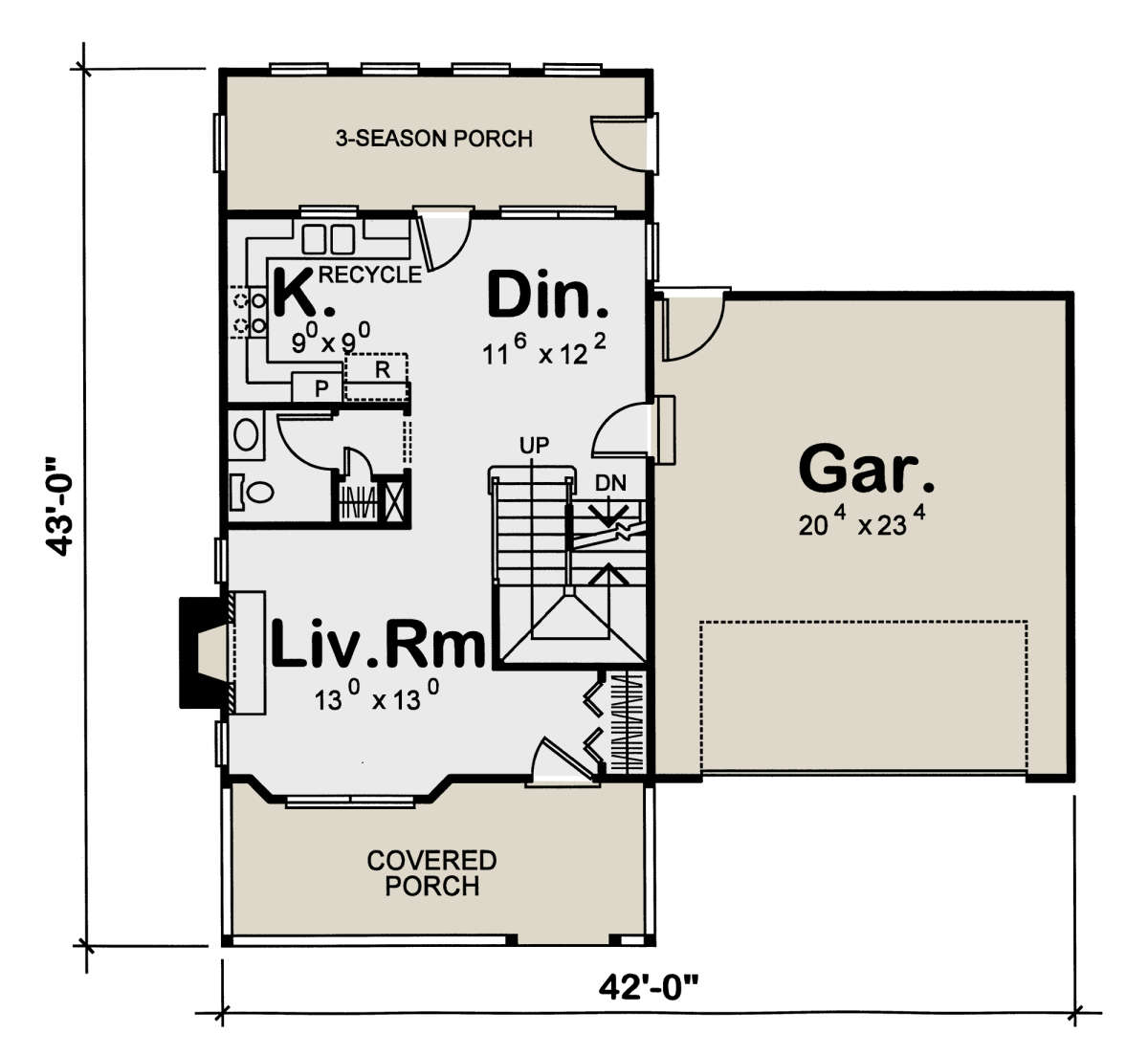

Floorplan 1 for House Plan #402-00650
Floorplan 2 for House Plan #402-00650
Floorplan 1
Floorplan 1 for House Plan #402-00650

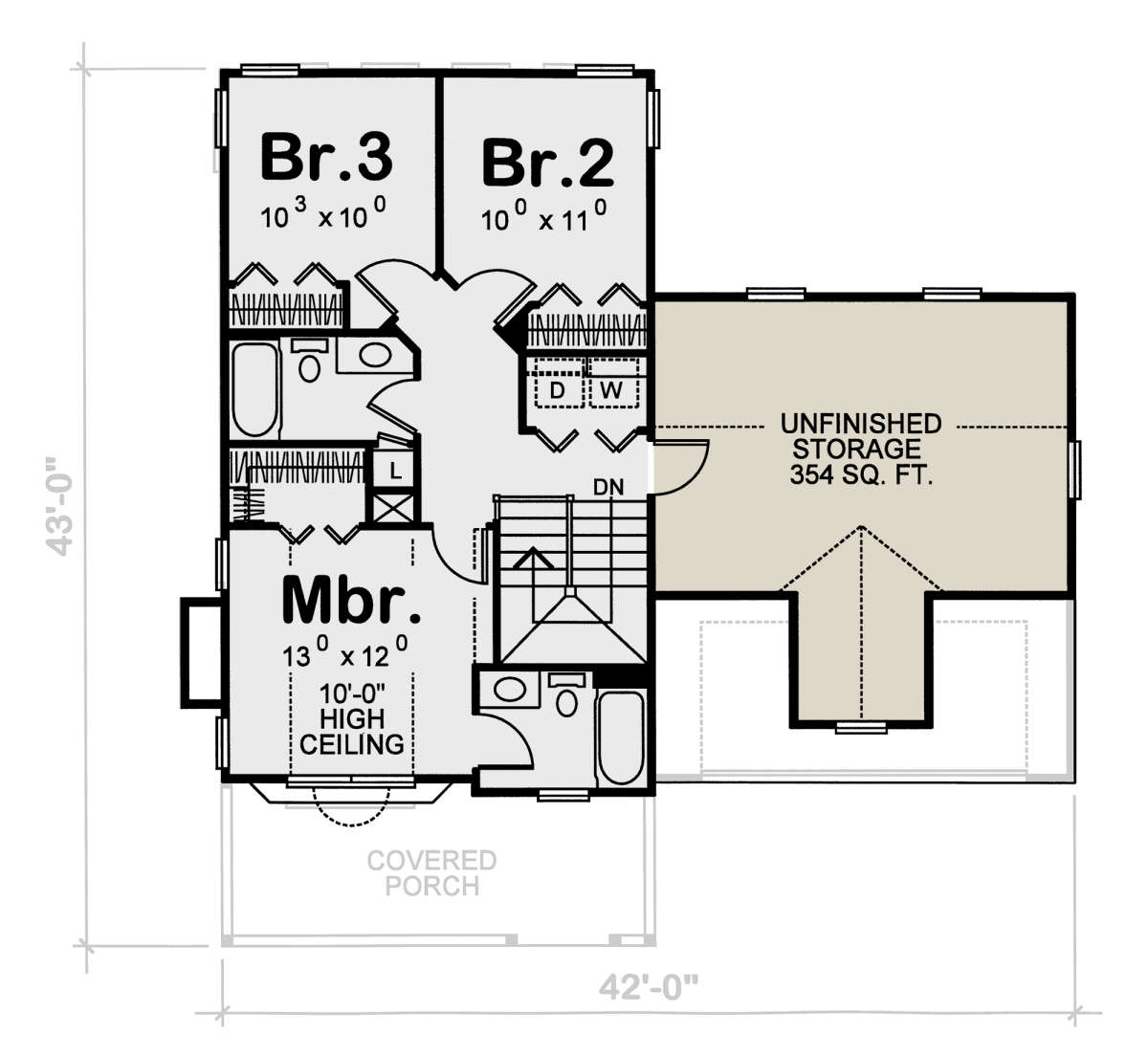

Floorplan 2
Floorplan 2 for House Plan #402-00650


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Page - This home plan features the rendered elevation and informative reference sections including: general notes and design criteria; abbreviations; and symbols for your plan.
  • Foundation - Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Optional basement, slab and crawl space foundations are available.
  • Main Level Floor Plan - 1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2"x4" walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
  • Second Level Floor Plan - 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
  • Electrical and Sections - Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.
  • Roof Framing Plan - Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This charming Farmhouse design features an exterior that is welcoming and inviting and an interior floor plan that offers main floor living, dining and kitchen spaces and a second level for the family’s sleeping quarters and baths. The exterior of the home is a delightful mixture of horizontal siding, double gables with wide eaves and a lovely front covered porch that features open railing and columned beams. There is a front loading two car garage entrance as well; perfect space for vehicles with an interior entry and a rear pedestrian door for ease of removing lawn and sporting equipment. The home’s width and depth footprint is ideal for a narrow and/or small property lot; respectively, they are 42’ width and 43’ depth. Nine foot first floor ceiling heights and an unfinished basement foundation add to the spaciousness and expansion possibilities of the home’s interior. Approximately 1,297 square feet of living space is found on the main two floors of the home and there is, in addition to the basement foundation, an overhead bonus space consisting of 354 additional square feet; great room for a fourth bedroom and bath, a home office/studio or an artist’s studio. Entrance into the home off the front porch reveals a foyer entry and coat closet before accessing the living room where there is good entertaining space, a warming fireplace and beautiful window views. Beyond the living room is a second closet and the guest powder room along with the double up and down staircase. The back side of the main floor features the U-shaped kitchen and dining space. The dining room is spacious with double window views for a bright and sunny area while the kitchen is highlighted with a separate pantry, counter and cabinet space and double sink window views overlooking the three season rear porch. The covered porch is surrounded with window views and features great space for enjoying the outdoors nearly all year long depending on the weather we you live.

The second floor features three bedrooms, potential expansion space in the bonus room and two full baths. Additionally, the laundry nook is located upstairs for family convenience. The master suite is highlighted with a spacious bedroom, great window views and an attached walk-in closet. A private master bath completes the suite and features vanity space, a toilet area and a tub/shower combination. There is a shared hall bath for the secondary bedrooms which offers vanity space, a toilet area and a tub/shower combination. Bedroom two is highlighted with good floor space, a desk area, window views and plenty of closet space; the third bedroom offers almost equivalent floor space and the same amenities. Expansion space, a lovely exterior and excellent outdoor space are highlighted in this Farmhouse design.
