Ranch House Plan #3978-00233 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,993

Beds 3

Bath 2

1/2 Baths 0

Car 2

Stories 1

Width 60'

Depth 51' 4"

See What's Included

Select Package

PDF (Single Build)

$2,300.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

5 Sets (Single Build)

$1,900.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

CAD Files (Single Build)

$2,300.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Monolithic Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $300.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

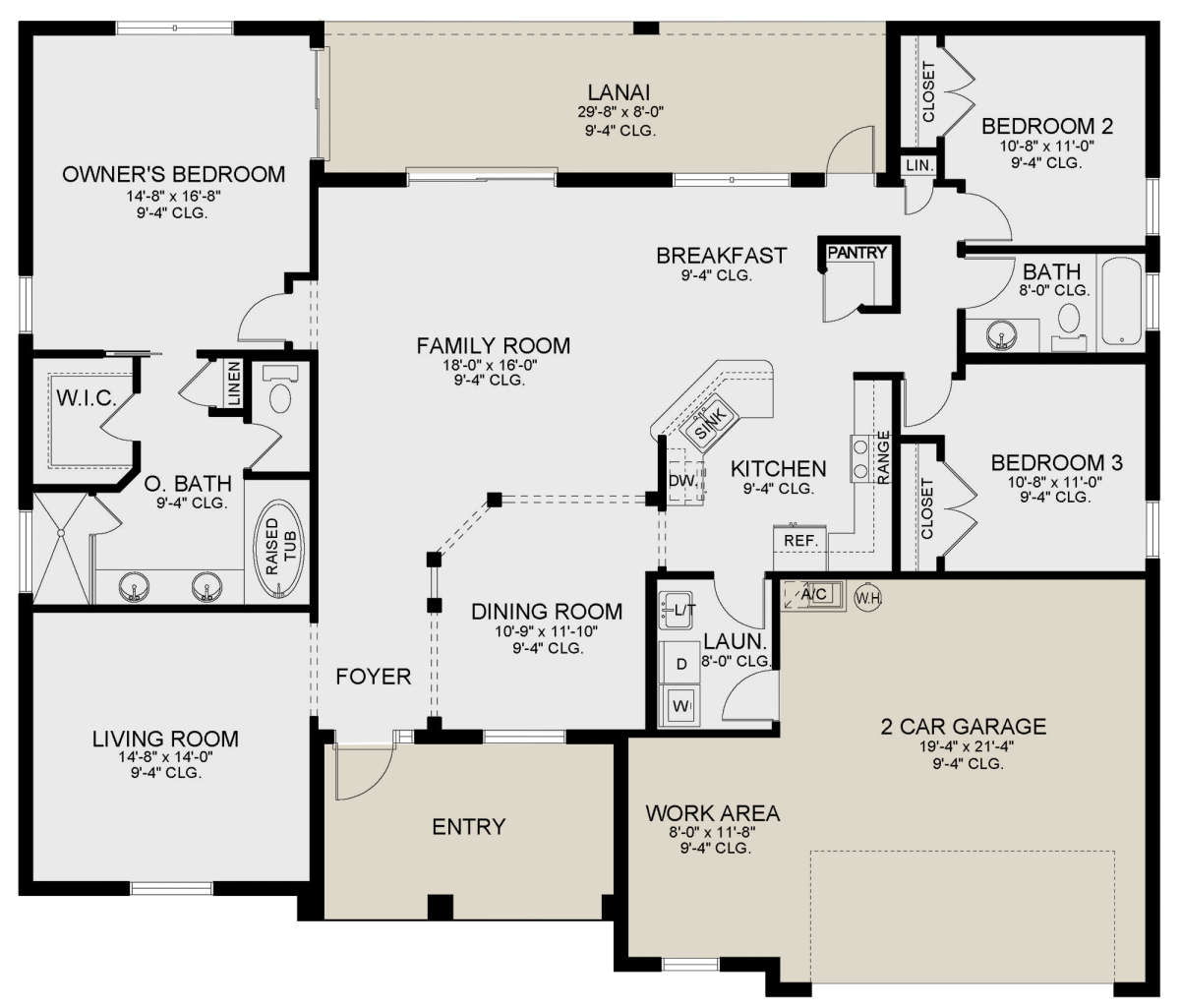

Floorplan Drawings

REVERSE PRINT DOWNLOAD

Main Floor

Images copyrighted by the designer.

What's Included in these plans?

Cover Sheet with rendering and index of plans
Foundation Plan
Elevations
Floor Plans
Roof Plan
Building Sections where applicable
Details
Interior Elevations including kitchen and bathrooms
Roof Framing Plan
Floor Framing Plan
Electrical Plan

Ask Us A Question

About This Plan

This exceptional Ranch house plan’s layout is designed for close family bonding and entertaining with its complete open floor plan right off the foyer. Its approximate 1,993 square feet details three sizeable bedrooms, two bathrooms, an island kitchen with a walk-in pantry, a formal living room, a family room with sliding door access to the lanai, and a breakfast eating area. As if that weren’t enough space, the lanai offers plenty of room for outdoor entertaining. To top it off, the two car garage includes a great work area in addition to vehicle storage.
