Ranch Plan 3978-00220

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,481
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 50'
Depth 53'

Floorplan Drawings

Main Floor

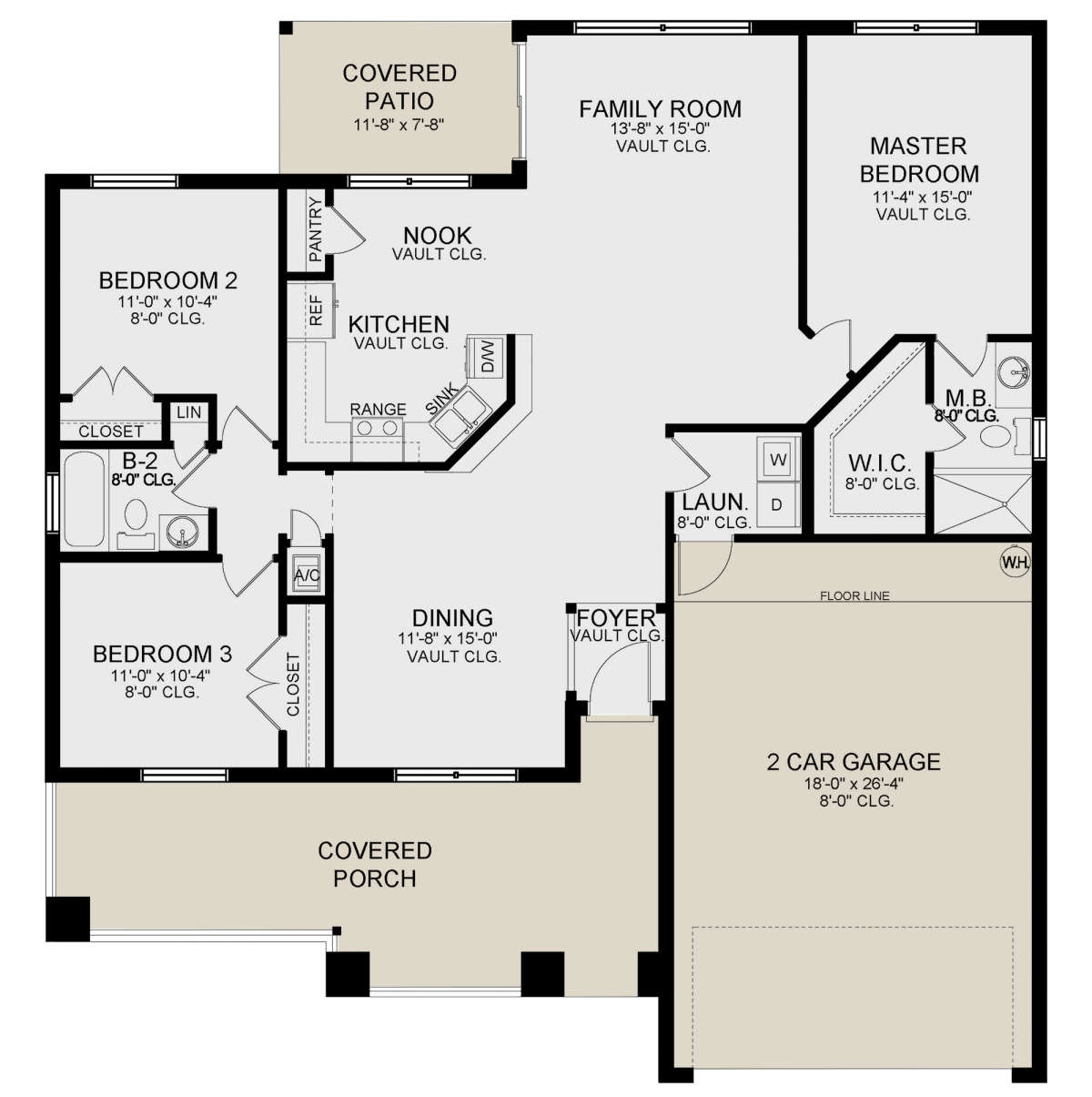

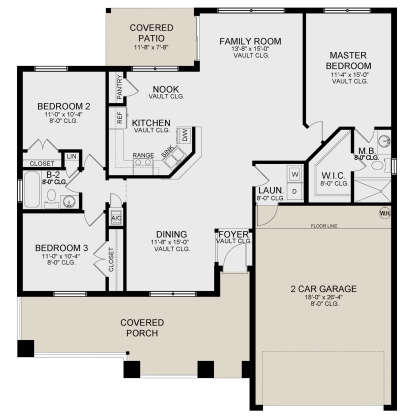

Main Floor for House Plan #3978-00220


What's Included in these plans?

  • Cover Sheet with rendering and index of plans
  • Foundation Plan
  • Elevations
  • Floor Plans
  • Roof Plan
  • Building Sections where applicable
  • Details
  • Interior Elevations including kitchen and bathrooms
  • Roof Framing Plan
  • Floor Framing Plan
  • Electrical Plan



What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

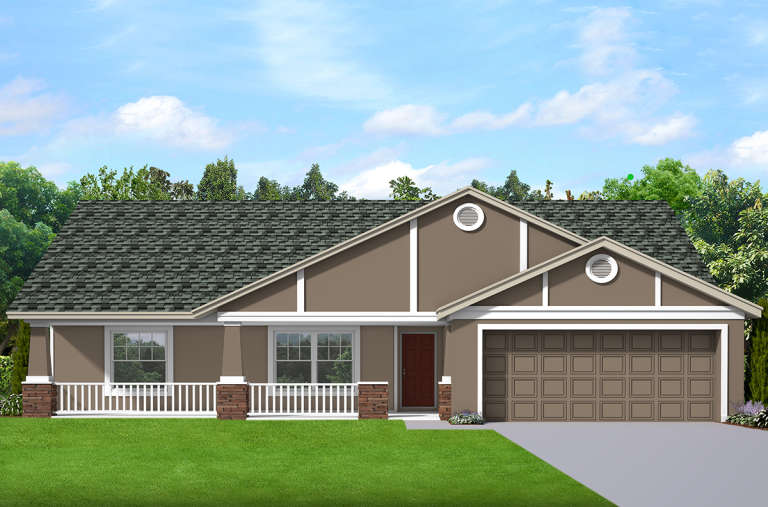

A welcoming covered front porch with white railing and a front entry two-car garage outline the exterior of this wonderful Ranch house plan. With 1,481 square feet and an open floor plan, there are three bedrooms and two bathrooms in the one-story interior. From the foyer, you’ll get an immediate sense of the open space. The vaulted ceilings throughout the family room, dining room, kitchen, nook, and master bedroom add more room volume to add to the wide, open spaces.

The split bedroom floorplan has the two secondary bedrooms on the left-wing, equally sized and sharing a hall bathroom with a shower/tub combination. The master bedroom is off to the right-wing and it features an angled walk-in closet and en suite with a shower.

Browse Similar PlansVIEW MORE PLANS
