Barn Plan 348-00311

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,000
Beds 4
Bath 3
1/2 Baths 0
Car 0
Stories 1
Width 40'
Depth 68'

Floorplan Drawings

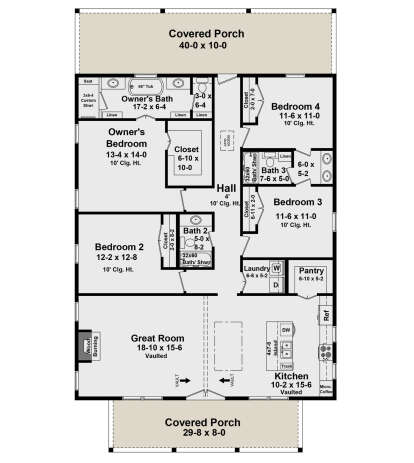

Main Floor
Main Floor  for House Plan #348-00311


What's Included in these plans?

  • Cover Sheet
    Showing architectural rendering of residence.
  • Floor Plan(s)
    In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.
  • Foundation Plan and Details
    Each house plan set includes one foundation type.
    Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.
  • Foundation types typically offered: (each type may or may not be available for a given design)
    -Slab: Most of our plans reflect a "raised slab" which consists of a chainwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
    -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • Electrical Plan with electrical symbols legend
    In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan
    In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • Exterior Elevations
    In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations
    Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • License to Build
    Each set of construction plans include ONE license to build.
  • If you would like to build multiple houses from one set of plans, please contact us to obtain pricing for a multi-use license.
    Plans include relevant building sections and details.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Barndominium inspired home is beautifully simplistic and fully functional for today’s modern family. The lovely exterior features small details that offer a big impact from the overhead gable, the board and batten siding, warm porch beams and colorful design elements. The expanded front covered porch runs almost the entire width of the home while the rear covered porch does just that. These are wonderful outdoor spaces for all types of entertaining and special occasion events. Framed within the two porches is approximately 2,000 square feet of living space containing four bedrooms and three baths. This plan is also perfect for a narrow lot with its 40’ width; great for a suburban, mountain or lake lot. The front entry into the home consists of the living, dining, and kitchen spaces. All are vaulted and there is a wood burning fireplace in the great room and plenty of counter and cabinet space along with a walk-in pantry in the kitchen.


Accessing the main hallway are the bedrooms and bathrooms for ease of comfort and function. The three secondary bedrooms all feature good floor space and 10’ ceiling heights along with window views and plenty of closet space. Bedroom two has a bathroom nearby that includes a vanity space, toilet area and a tub/shower combination. The third and fourth bedroom share access to the jack and jill bathroom which features dual vanities, a linen area, a toilet space, and a tub/shower combination as well. The primary suite is located at the rear of the home and features window views and 10 ceiling heights. There is a large walk-in closet for clothing and other accessories. The luxurious ensuite bath is spacious with a custom shower, a freestanding tub, separate vanities, a private water closet and three linen spaces. This beautiful Barn plan is ideal for the family who values their time together whether indoors or outdoors.
