Craftsman Plan 348-00219


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,233
Beds 4
Bath 2
1/2 Baths 1
Car 2
Stories 1
Width 70' 6"
Depth 66'

Floorplan Drawings

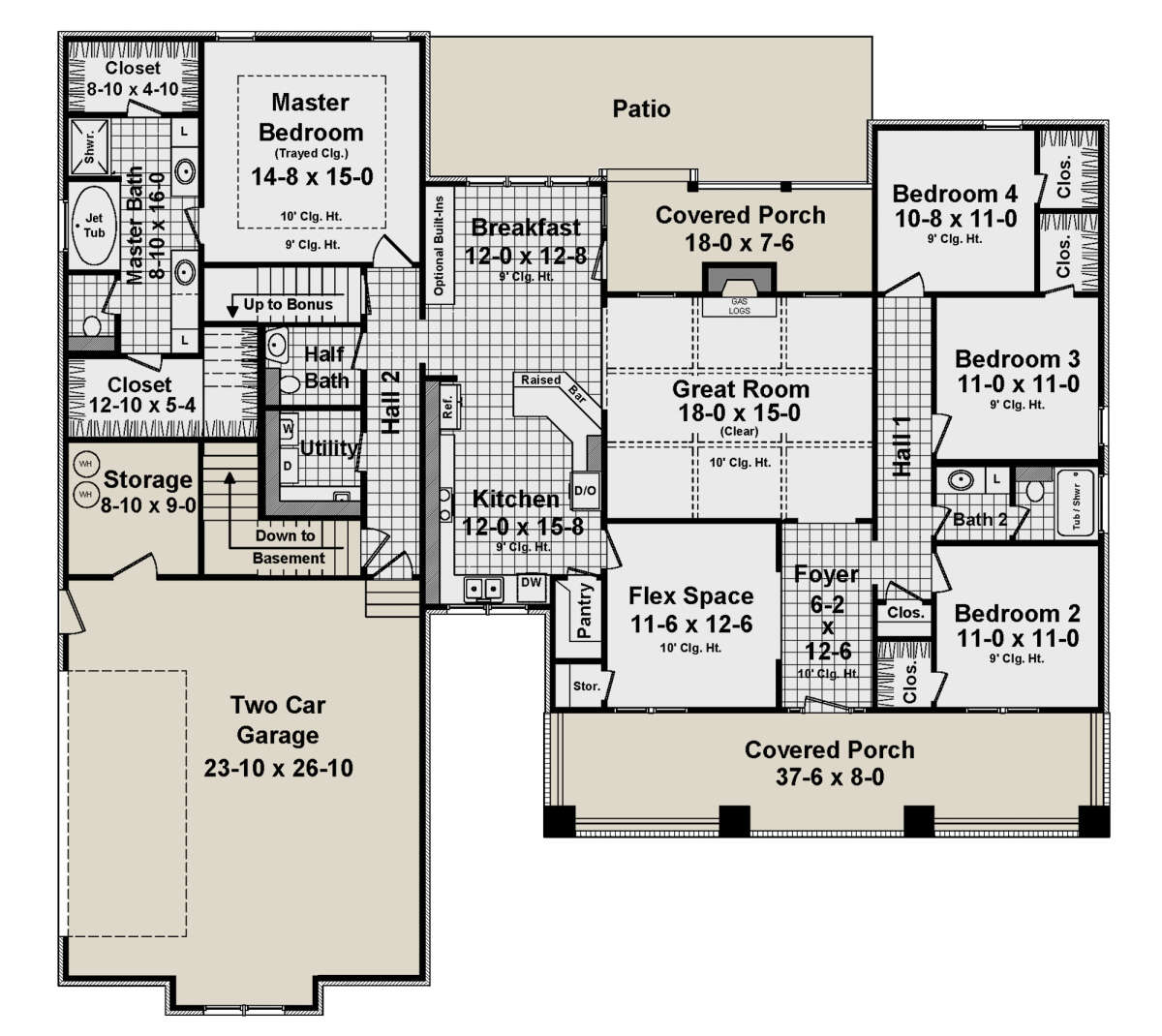

Main Floor
Main Floor  for House Plan #348-00219

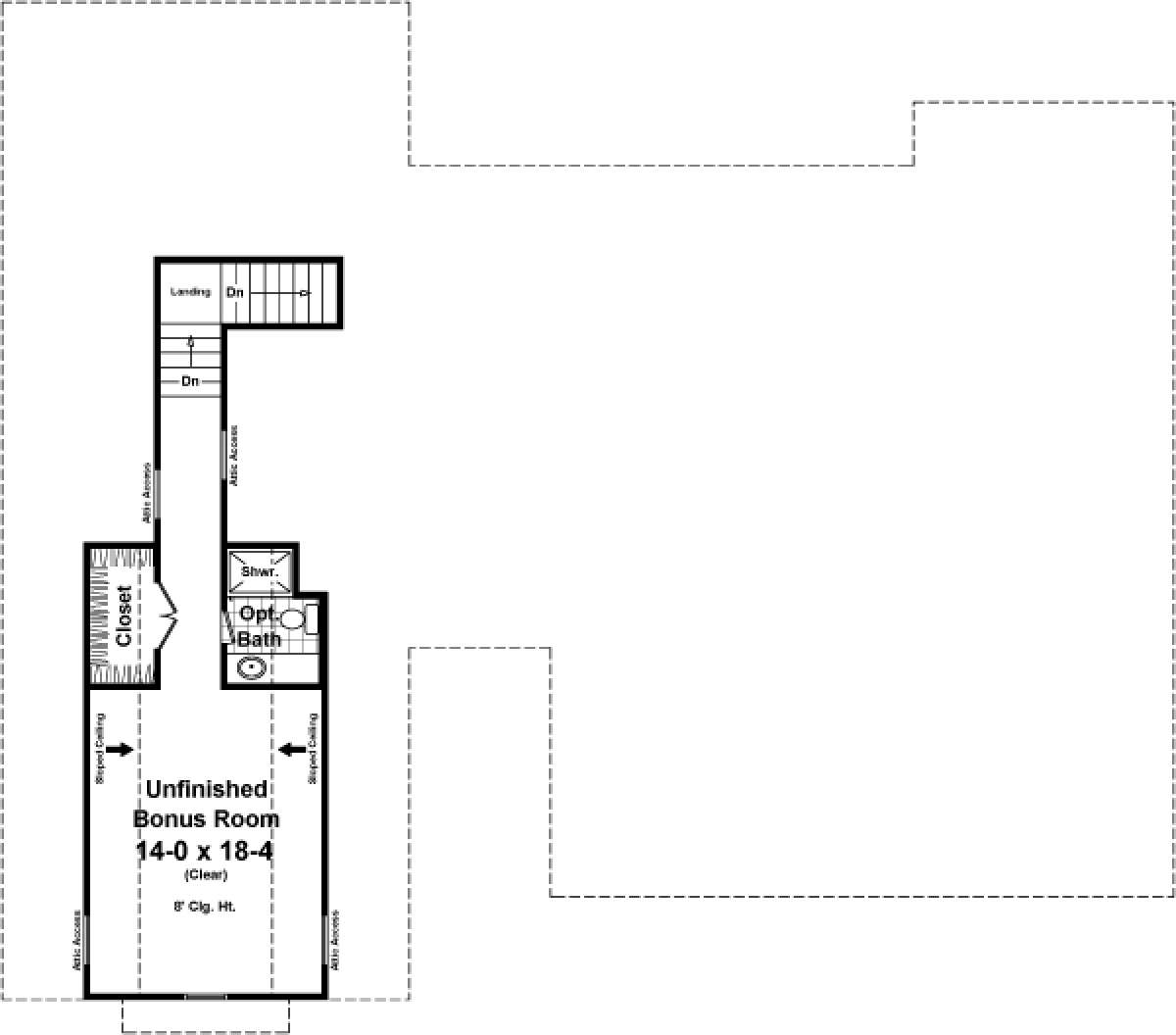

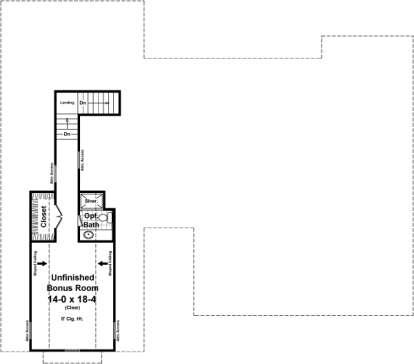

Bonus Room
Bonus Room for House Plan #348-00219

What's Included in these plans?

  • Cover Sheet
    Showing architectural rendering of residence.
  • Floor Plan(s)
    In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.
  • Foundation Plan and Details
    Each house plan set includes one foundation type.
    Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.
  • Foundation types typically offered: (each type may or may not be available for a given design)
    -Slab: Most of our plans reflect a "raised slab" which consists of a chainwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
    -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • Electrical Plan with electrical symbols legend
    In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan
    In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

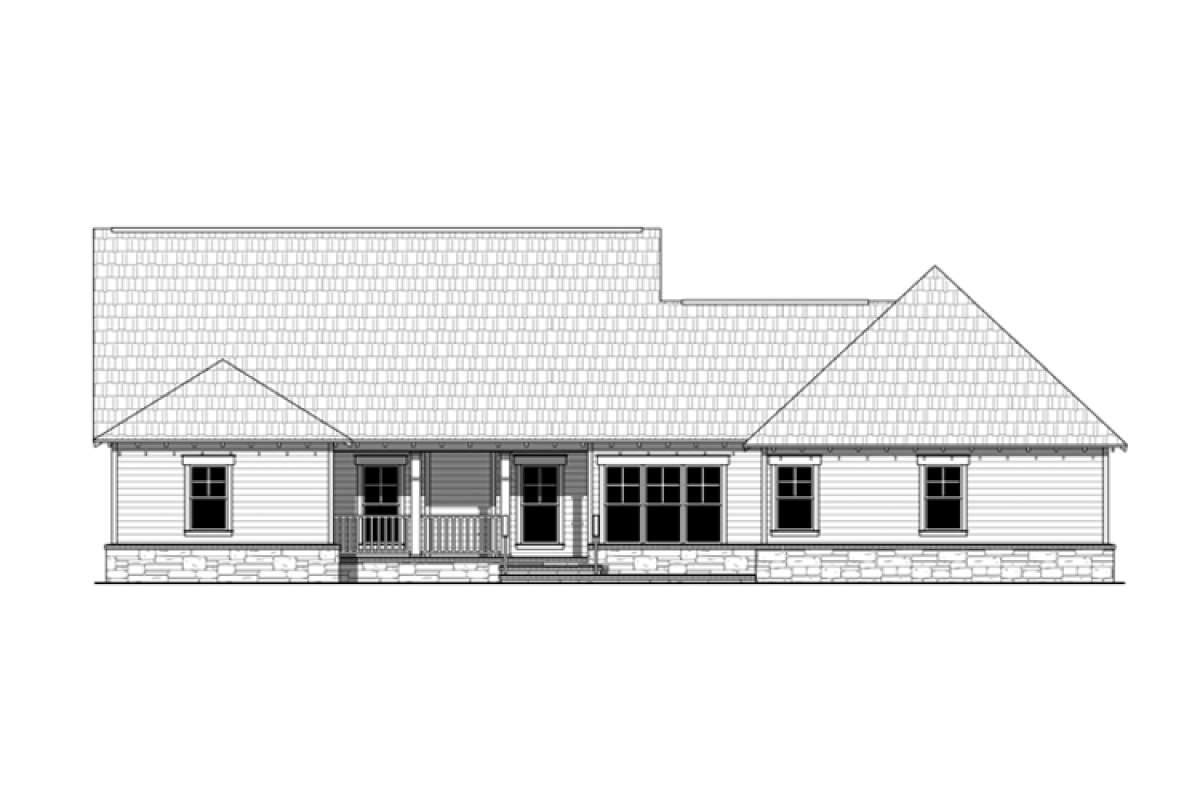

  • Exterior Elevations
    In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations
    Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • License to Build
    Each set of construction plans include ONE license to build.
  • If you would like to build multiple houses from one set of plans, please contact us to obtain pricing for a multi-use license.
    Plans include relevant building sections and details.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This massively popular and widely viewed Craftsman style home has amazing curb appeal and an equally stunning interior floor plan. The classically styled Craftsman exterior is oozing with character and charm and includes an extensive front covered porch with substantial tapered columned beams, brickwork, open railing and a split entrance. Double window gables, exposed rafters, traditional horizontal siding and wide window casements outline the exterior and enhance the continued beauty of the façade. The interior floor plan features approximately 2,233 square feet of living space containing four bedrooms, two plus baths and an open layout. The dramatic foyer with its soaring ceiling heights leads into a large, front flex space ideally suited for a home office or study and, the subsequent great room. The great room features amazing space, 10’ ceiling heights outlined with timber trusses, a warming fireplace with gas logs and overviews onto the rear covered porch. The grand kitchen features a separate pantry, loads of counter and cabinet space and the raised breakfast bar is open to the great room and adjoining breakfast room. The sun drenched breakfast room features a triple window wall, optional built-ins and rear porch access. The two car side loading garage features great vehicle space and a large storage area that directly leads to the family laundry room for ease of clean up.
The split bedroom plan features three spacious bedrooms with walk-in closets on one side of the floor plan. There is a hall storage closet and a shared hall bath with a large vanity, an enclosed linen closet and a tub/shower combination. The master suite is situated on the opposite side of the home for privacy and is highlighted with an amazing array of modern design elements and a large footprint. The master bedroom features a beautiful trey ceiling and double window views before slipping into the elegantly designed en suite bath. The master bath includes separate double vanities, a jetted tub, separate shower, double linen closets and his and her walk-in closets sit on each end cap of the bath for privacy. There are rear stairs to the unfinished bonus room that is highlighted with a large closet and the option for a full bath; along with a basement foundation, this home features a versatile floor plan and is ideal for a large and active family.
