Ranch Plan 348-00212

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,637
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 64'
Depth 56' 2"

Floorplan Drawings

Main Floor

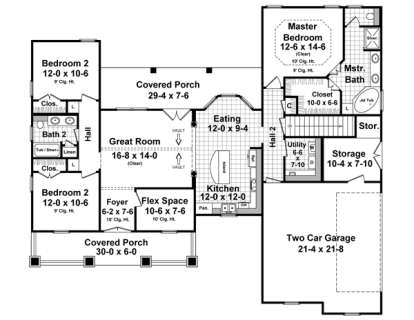

Main Floor for House Plan #348-00212


What's Included in these plans?

  • Cover Sheet
    Showing architectural rendering of residence.
  • Floor Plan(s)
    In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.
  • Foundation Plan and Details
    Each house plan set includes one foundation type.
    Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.
  • Foundation types typically offered: (each type may or may not be available for a given design)
    -Slab: Most of our plans reflect a "raised slab" which consists of a chainwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
    -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • Electrical Plan with electrical symbols legend
    In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan
    In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

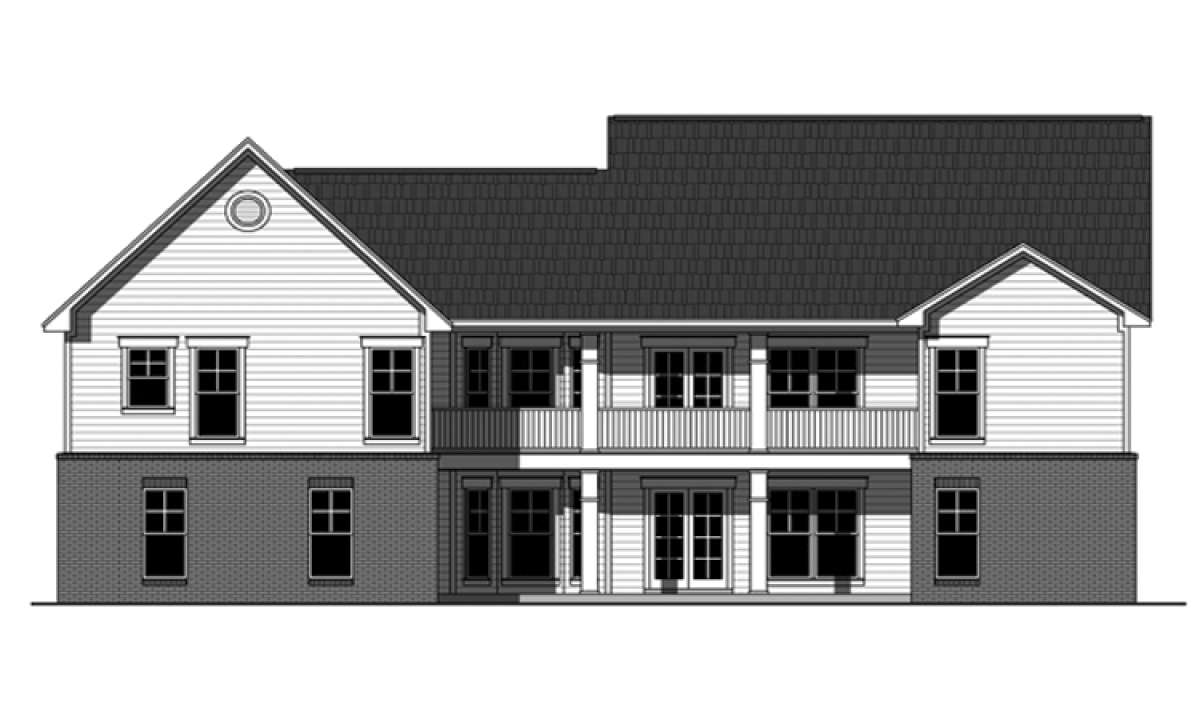

  • Exterior Elevations
    In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations
    Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • License to Build
    Each set of construction plans include ONE license to build.
  • If you would like to build multiple houses from one set of plans, please contact us to obtain pricing for a multi-use license.
    Plans include relevant building sections and details.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

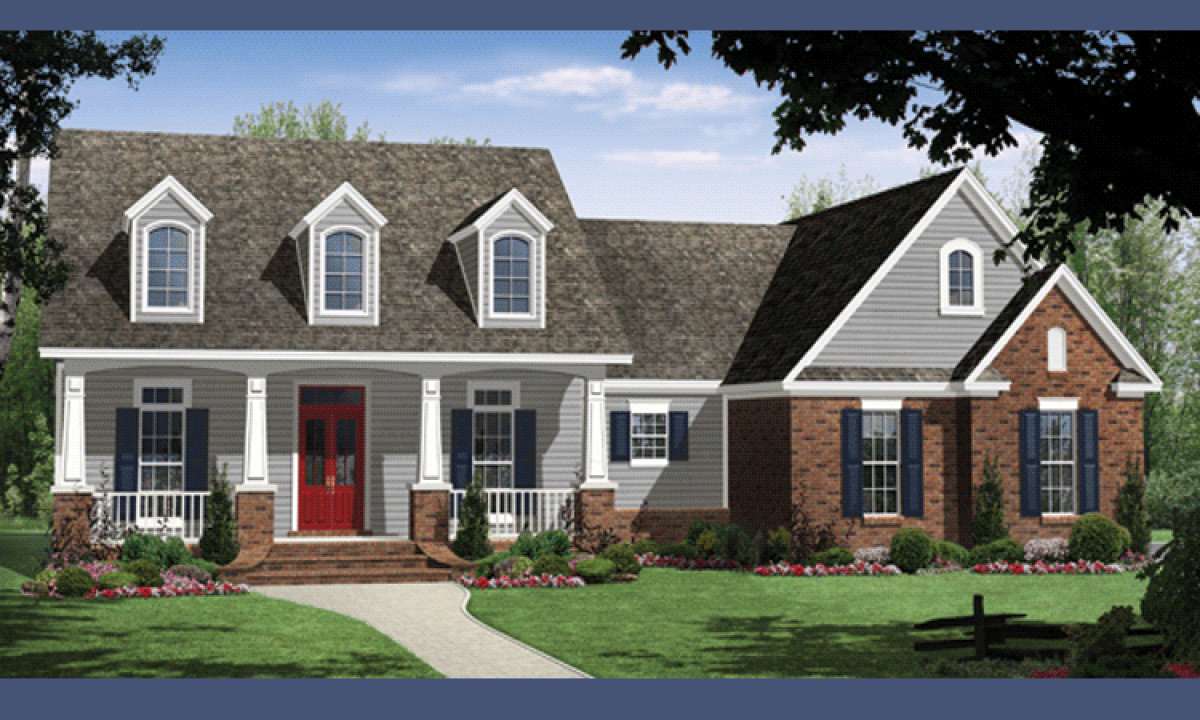

This gorgeous Ranch house design with Craftsman undertones is an enduringly popular and loved house plan with a classically styled exterior and plenty of interior space. Three window dormers, horizontal siding and brick highlights along with the split center front covered porch lend character and charm to the façade. The interior floor plan features in excess of 1,635 square feet of living space that incorporates an open layout and split bedroom plan into the single story home. Additionally, there is a basement foundation included in the home’s drawings for future expansion possibilities. There are front and rear covered porches both of which are quite extensive and deeply set, perfect for entertaining and relaxing with family and friends.


The dramatic foyer boasts of 10’ ceilings and opens onto the flex space which would function nicely as a home office/study, playroom for the children and/or a craft room. The centrally located vaulted great room features wonderful window views and French door access onto the rear covered porch. A large center island, separate pantry and loads of additional counter and cabinet space dominate the gourmet kitchen and there is a sun drenched rear breakfast nook for casual dining. The two car side loading garage boasts of a large storage space and conveniently leads into the home’s interior laundry room. The split bedroom plan is highlighted with two spacious family bedrooms; each of which enjoys good floor space and plentiful closet space. There is a hall linen closet and shared hall bath containing a second linen closet and double sinks. The owner's suite location offers privacy and features a large bedroom with trey ceiling, an extended en suite bath with hugely popular modern amenities that include dual vanities, a corner jetted tub and a separate shower. French door access leads to the oversized walk-in closet which nearly rivals some bedroom’s size. This family home offers a design friendly interior, a classically modern Craftsman exterior and wonderful outdoor space.
