Craftsman House Plan 348-00204

Sq Ft1,604
Beds3
Baths2
1/2 Baths0
Stories1
Cars2
Width66' 10"
Depth50' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

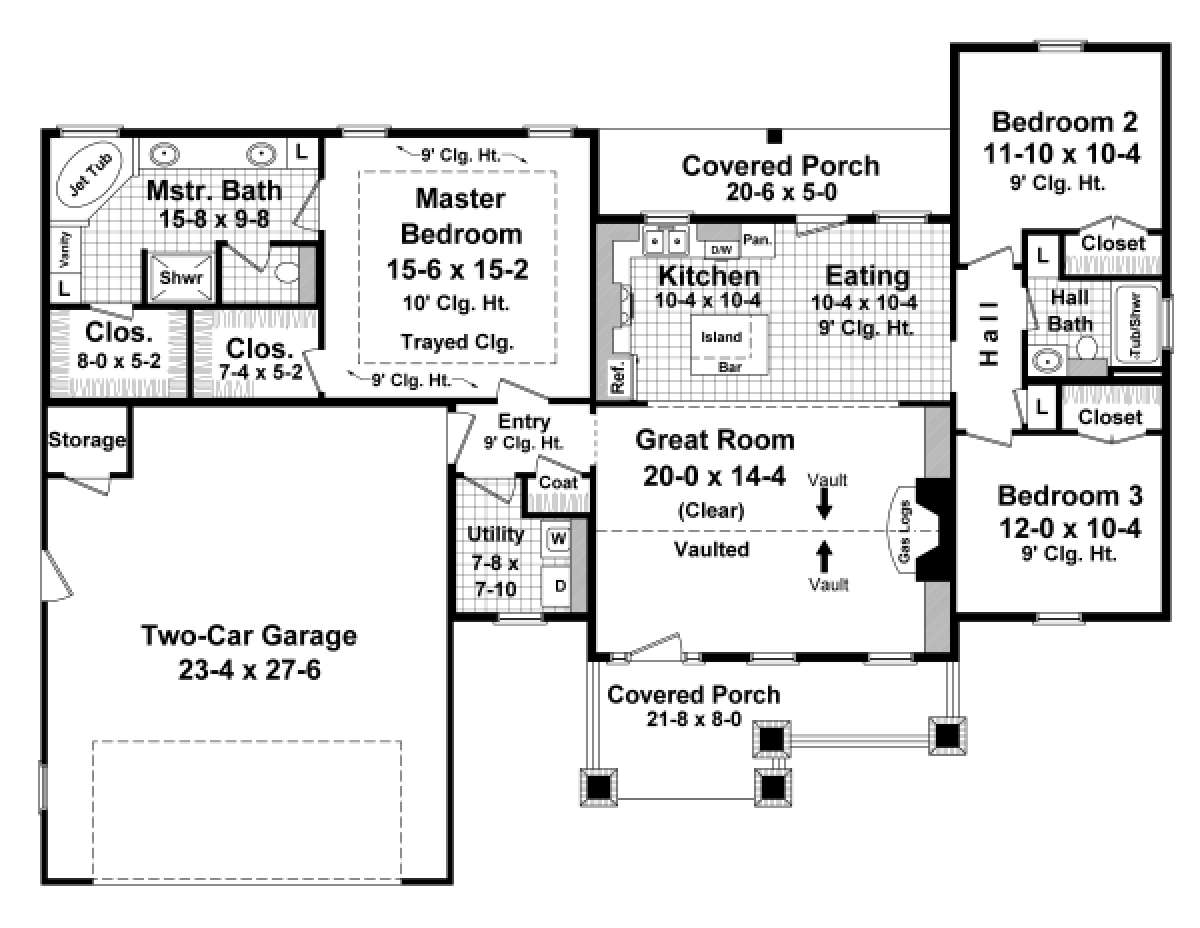

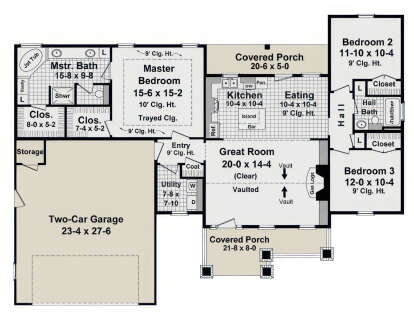

Main Floor for House Plan #348-00204
Main Floor
Main Floor for House Plan #348-00204


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Sheet
    Showing architectural rendering of residence.
  • Floor Plan(s)
    In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.
  • Foundation Plan and Details
    Each house plan set includes one foundation type.
    Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.
  • Foundation types typically offered: (each type may or may not be available for a given design)
    -Slab: Most of our plans reflect a "raised slab" which consists of a chainwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
    -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • Electrical Plan with electrical symbols legend
    In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan
    In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

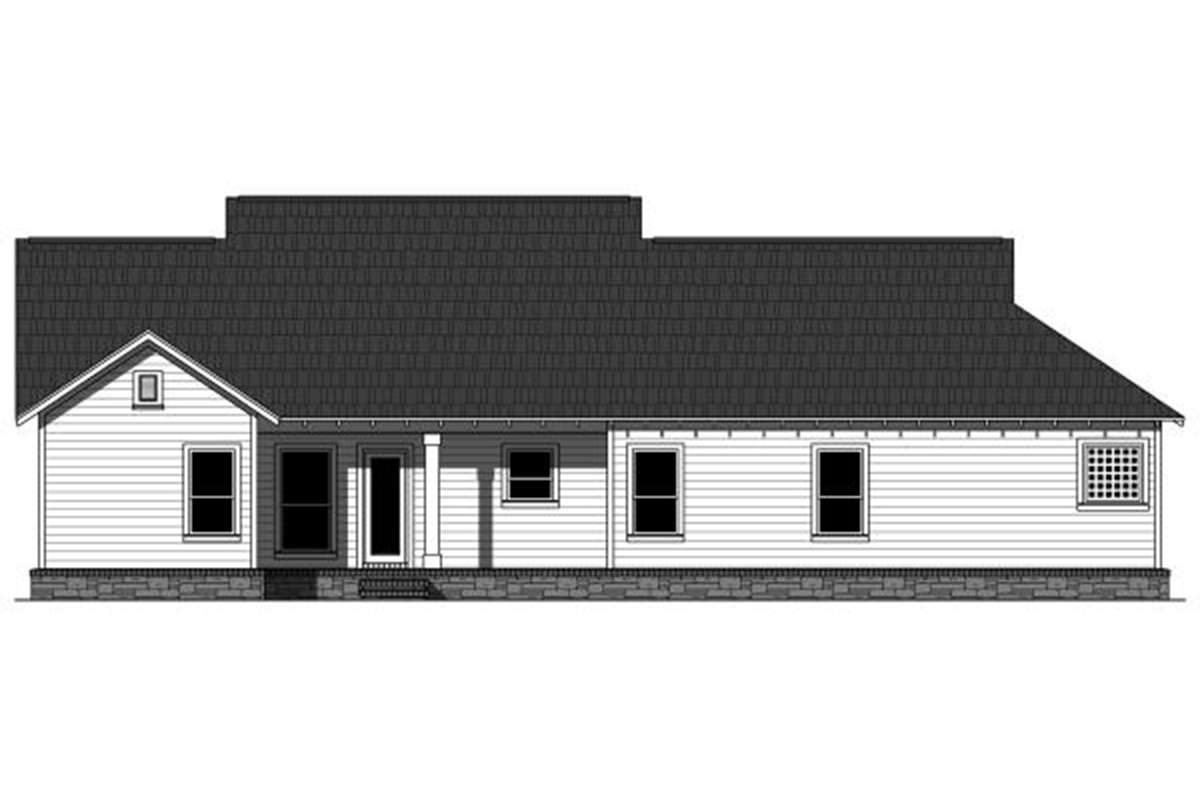

  • Exterior Elevations
    In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations
    Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • License to Build
    Each set of construction plans include ONE license to build.
  • If you would like to build multiple houses from one set of plans, please contact us to obtain pricing for a multi-use license.
    Plans include relevant building sections and details.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Craftsman house plan features a functional split bedroom floor plan and an iconic exterior façade. Classic craftsman features include multiple gables with board and batten, large tapered columns atop stone pillars and an extensive front covered porch. The porch measures in excess of 21’ x 8’, great space to greet family and friends or superior relaxing space. The interior floor plan is an open layout, split bedroom plan with approximately 1,604 square feet of living space containing three bedrooms and two baths. Nine foot ceiling heights add to the luxurious quality of the home and the front entrance leads directly into the massive great room where dramatic vaulted ceiling heights and a gas log fireplace are revealed. Beyond the great room are the kitchen and dining area as well as access onto the rear covered porch. The open kitchen layout is highlighted with a center island and eat-in bar, a separate pantry and loads of counter and cabinet space. The dining area is light and airy and leads out to the covered porch where dining al fresco will be effortless and enjoyable. There is a large utility room and coat closet located directly off the two car front loading garage; great design for maintaining a clean and tidy home.

The split bedroom plan offers privacy and convenience for the master suite. The rear positioned master suite features a large master bedroom with trey ceiling accent and wonderful window views overlooking the rear yard. There are his and her walk-in closets; one of which is located off the master bedroom, the other, sits at the rear of the master bath. The en suite bath is quite spacious and offers dual vanities, a corner jetted tub, separate shower, linen closets and loads of counter space as well as a compartmentalized toilet area. The two remaining bedrooms are spacious with generous closet space and there is a shared hall bath with a tub/shower combination. Double linen closets are situated on either side of the bath for convenience. This home is highlighted with innovative design features, a functional interior layout and double porches frame the exterior beautifully.
