Craftsman Plan 348-00190


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,400
Beds 4
Bath 2
1/2 Baths 1
Car 2
Stories 1
Width 73' 6"
Depth 62'

Floorplan Drawings

Main Floor

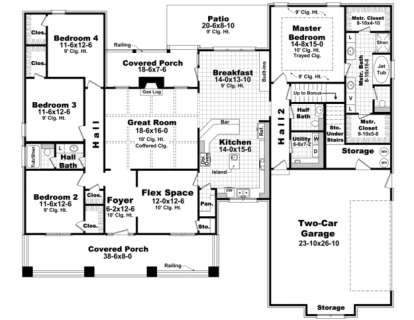

Main Floor for House Plan #348-00190
Bonus Room

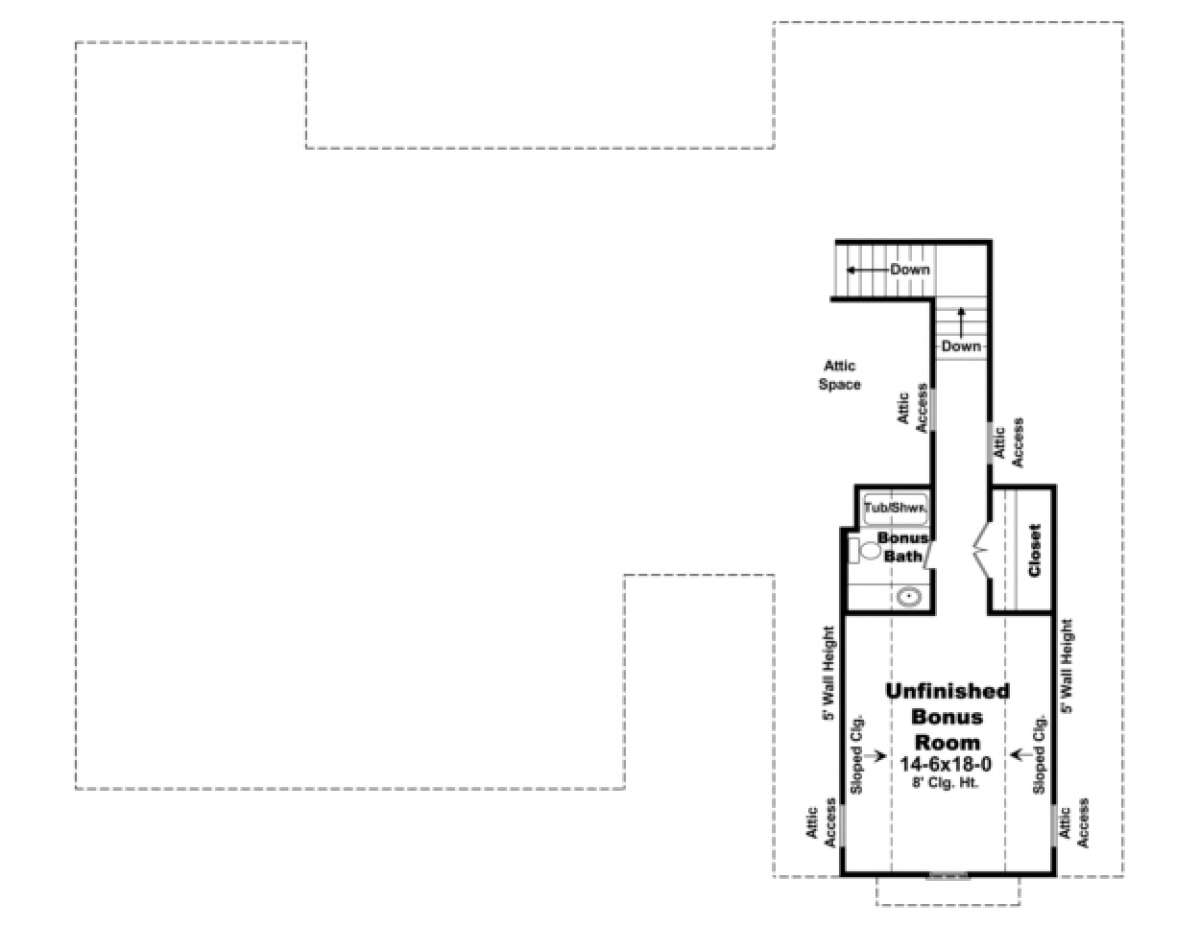

Bonus Room for House Plan #348-00190

What's Included in these plans?

  • Cover Sheet

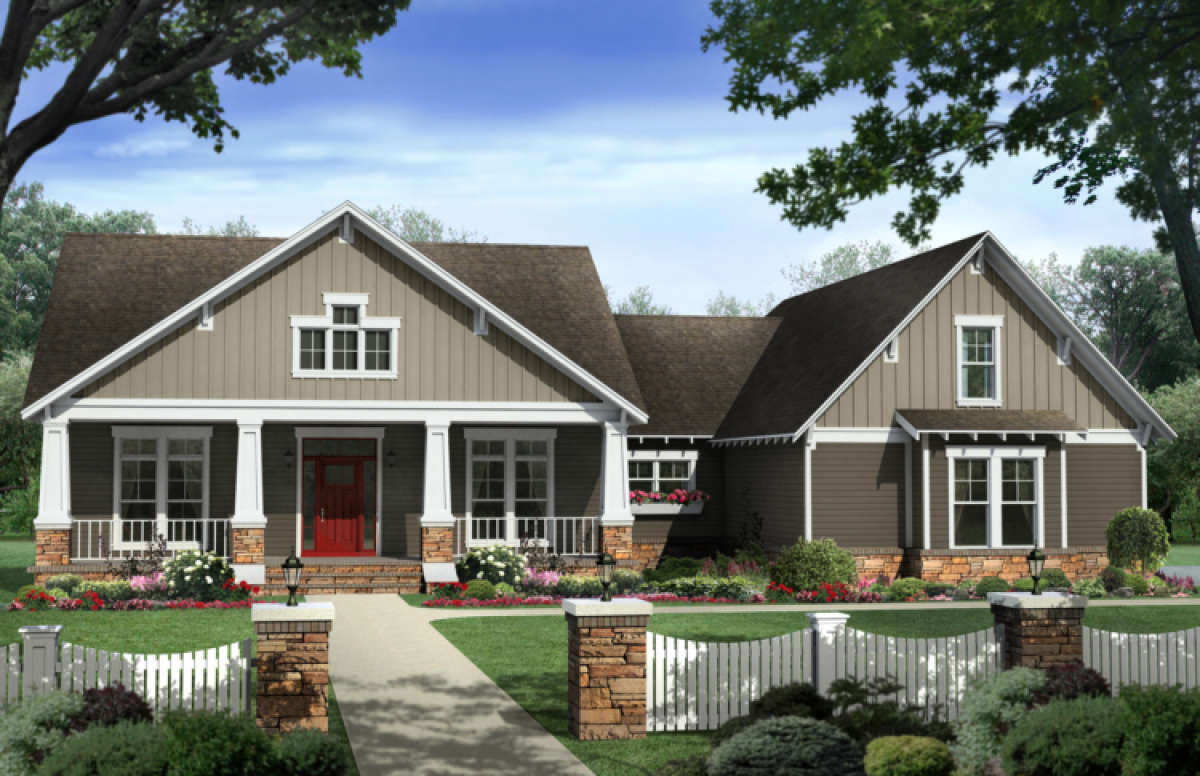

    Showing architectural rendering of residence.
  • Floor Plan(s)
    In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.
  • Foundation Plan and Details
    Each house plan set includes one foundation type.
    Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.
  • Foundation types typically offered: (each type may or may not be available for a given design)
    -Slab: Most of our plans reflect a "raised slab" which consists of a chainwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
    -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • Electrical Plan with electrical symbols legend
    In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan
    In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

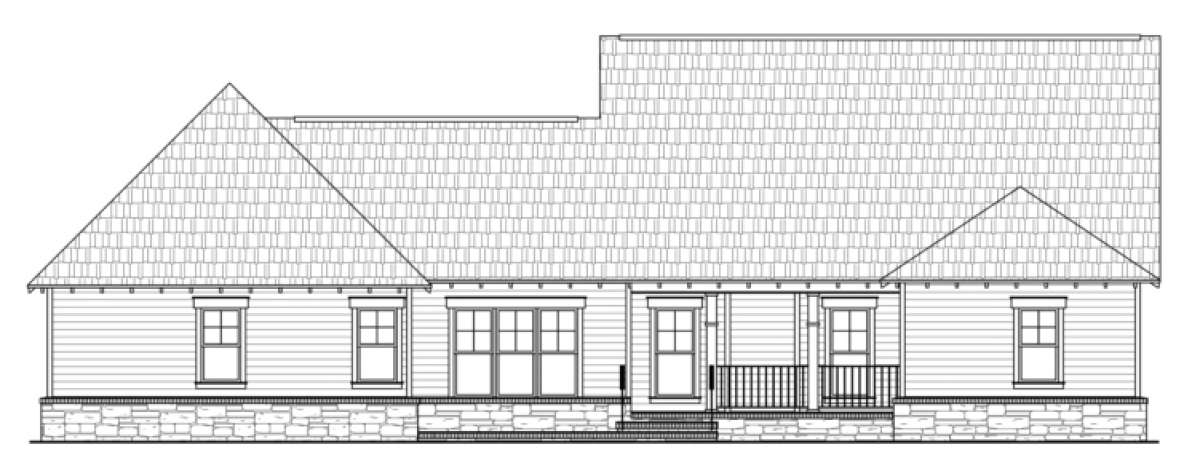

  • Exterior Elevations
    In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations
    Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • License to Build
    Each set of construction plans include ONE license to build.
  • If you would like to build multiple houses from one set of plans, please contact us to obtain pricing for a multi-use license.
    Plans include relevant building sections and details.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This traditional Craftsman home has many design features found in homes of greater value and square footage. The front covered porch runs the width of the home and is both inviting and relaxing for family and guests. The front foyer leads into either the large flex space or great room which is expansive and includes coffered ceilings, gas log fireplace and window views to the rear porch and additional patio areas. The kitchen and breakfast area is large and the breakfast area includes built-ins and provides rear porch access while the kitchen includes a center island, an additional raised bar area and a walk-in pantry. There are three bedrooms, each with their own walk-in closet and a shared hall bath on one side of the home while the opposite side of the home contains a half bath for guests, large utility room and the master suite. The master suite includes a large bedroom with trey ceiling, two large walk-in closets and a master bath which measures almost 9’ x 16’ and includes separate, dual vanities, jetted tub, separate shower and a compartmentalized toilet. The two car, side entry garage contains two separate storage areas, one of which is oversized and a separate side yard entry into the garage. Additionally, there is an upstairs, unfinished bonus room, full bath and closets making this a potential five bedroom, three and ½ bath home.
