Craftsman Plan 348-00169

What's Included in these plans?

• Cover Sheet
  Showing architectural rendering of residence.

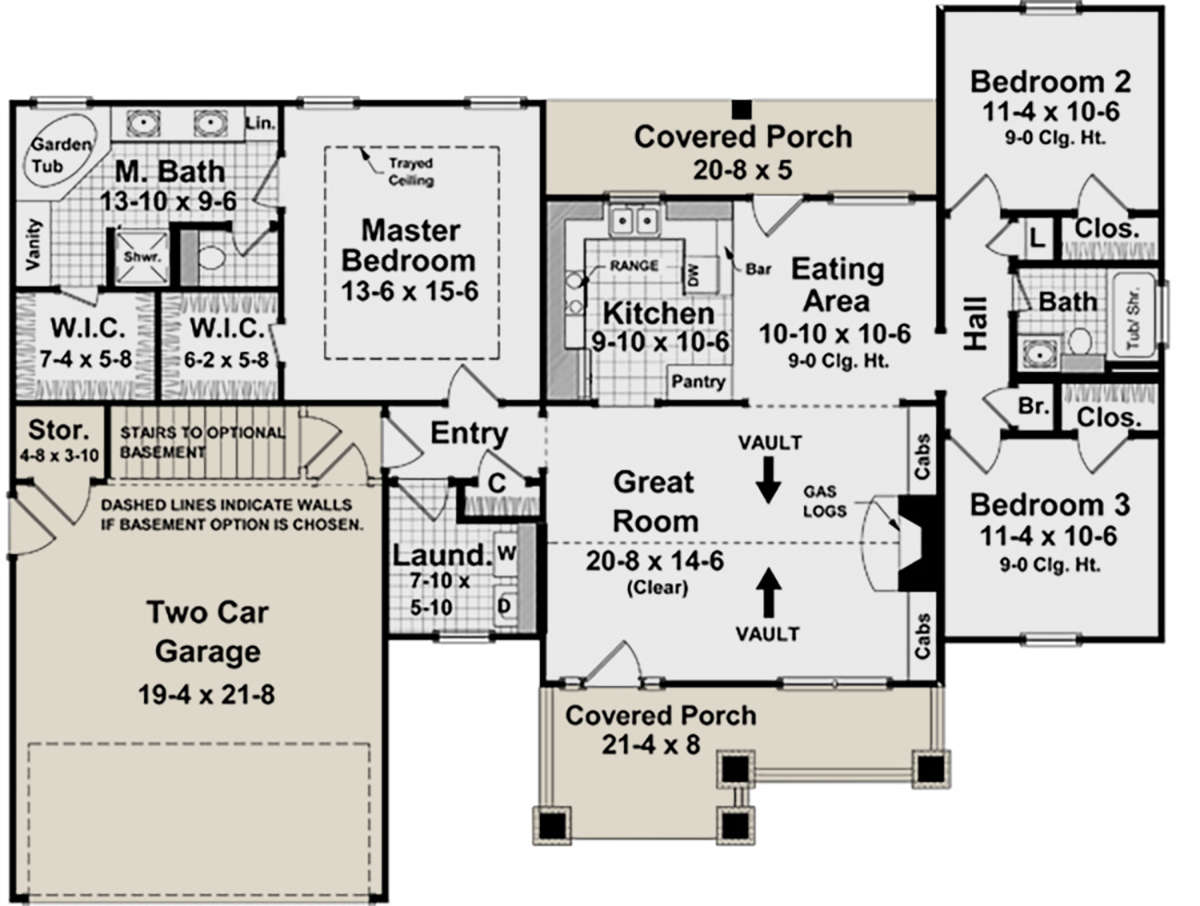

• Floor Plan(s)
  In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.
• Foundation Plan and Details
  Each house plan set includes one foundation type.
  Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.
• Foundation types typically offered: (each type may or may not be available for a given design)
  -Slab: Most of our plans reflect a "raised slab" which consists of a chainwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
  -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
  -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
• Electrical Plan with electrical symbols legend
  In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
• Roof Drainage Plan
  In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
• Exterior Elevations
  In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
• Interior Elevations
  Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
• License to Build
  Each set of construction plans include ONE license to build.
• If you would like to build multiple houses from one set of plans, please contact us to obtain pricing for a multi-use license.
  Plans include relevant building sections and details.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.
