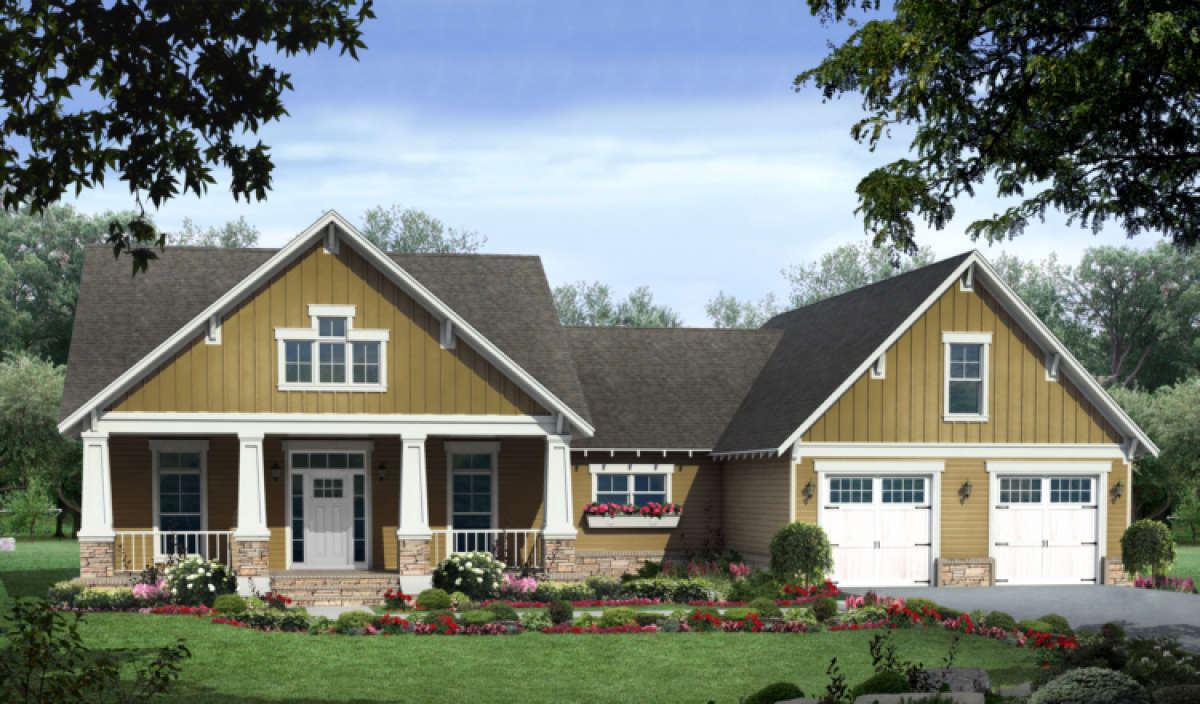

Cottage House Plan #348-00126 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 2,108

Beds 3

Bath 2

1/2 Baths 1

Car 2

Stories 1

Width 70'

Depth 60'

See What's Included

Select Package

PDF (Single Build)

$1,645.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

5 Sets (Single Build)

$1,530.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build)

$1,725.00

One Complete set of working drawings emailed to you in PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

Reproducible (Single Build)

$1,900.00

PHYSICAL FORMAT
One printed set of house plans mailed to you that comes with the copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

CAD Files (Single Build)

$2,230.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Unfinished Basement $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $60.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $150.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

2x6 Conversion $200.00

Convert the exterior framing to 2x6 walls.

Material List $150.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

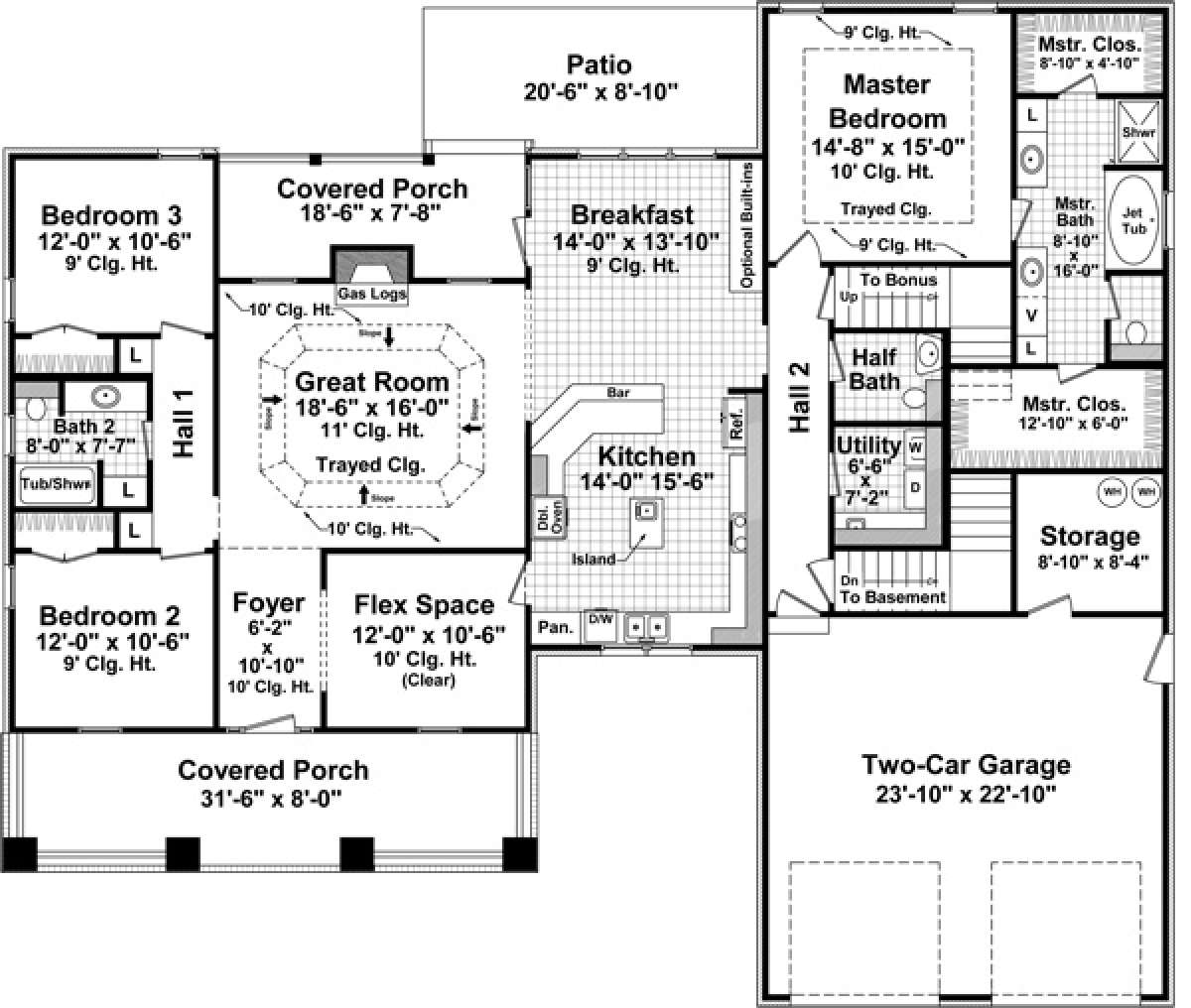

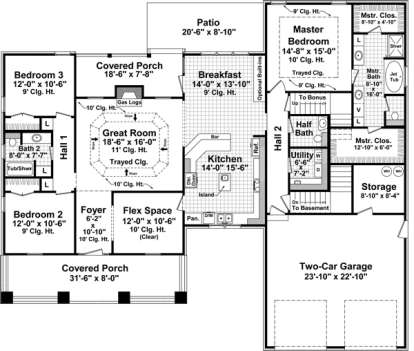

Main Floor

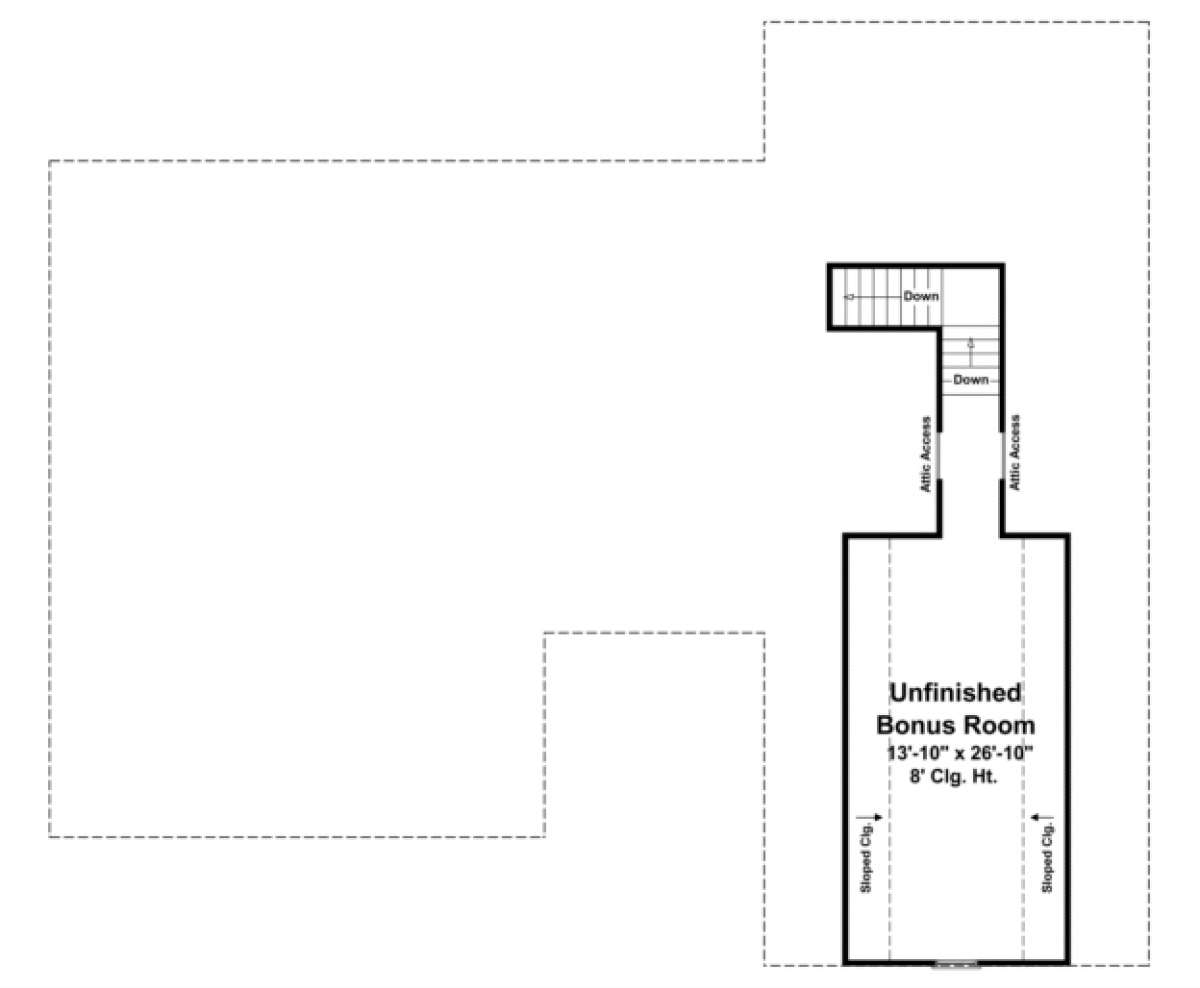

Bonus Room

Images copyrighted by the designer.

What's Included in these plans?

Cover Sheet
Showing architectural rendering of residence.
Floor Plan(s)
In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.
Foundation Plan and Details
Each house plan set includes one foundation type.
Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.
Foundation types typically offered: (each type may or may not be available for a given design)
-Slab: Most of our plans reflect a "raised slab" which consists of a chainwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
-Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
-Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
Electrical Plan with electrical symbols legend
In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
Roof Drainage Plan
In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

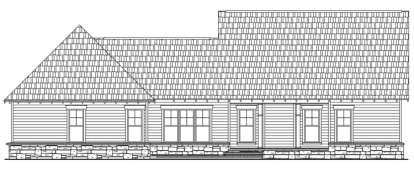

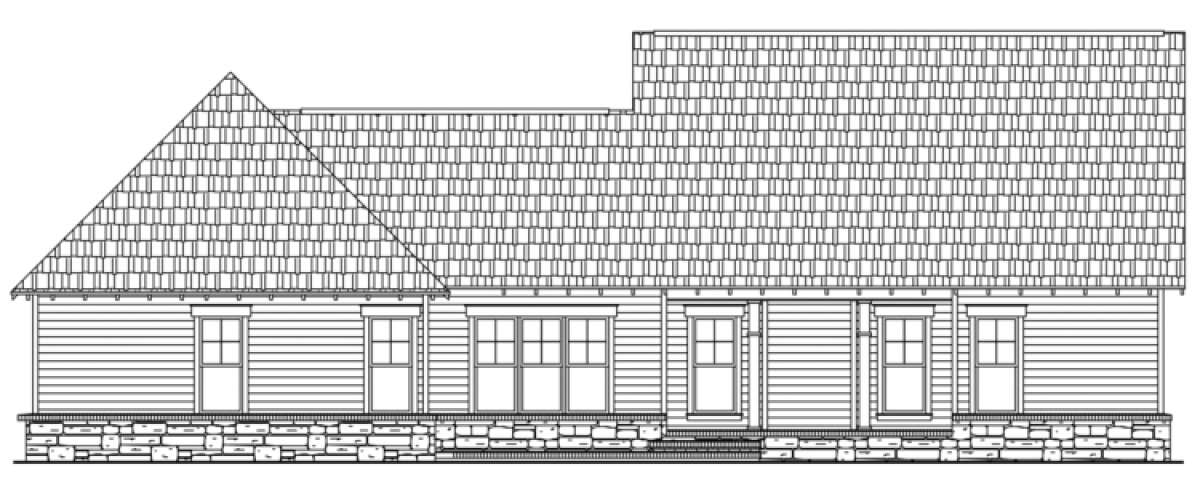

Exterior Elevations
In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
Interior Elevations
Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
License to Build
Each set of construction plans include ONE license to build.
If you would like to build multiple houses from one set of plans, please contact us to obtain pricing for a multi-use license.
Plans include relevant building sections and details.

Ask Us A Question

About This Plan

This lovely Cottage house plan features rich detail and inspired Craftsman design elements for a welcoming and inviting home presence. Wide tapered beams, stone pillars, exposed rafters and overhead window gables frame a beautiful exterior and the spacious floor plan features approximately 2,108 square feet of living space which incorporates three bedrooms and two plus baths into the space. The large front covered porch features interior access into the homes foyer and adjacent flex space which could function as a formal dining room, home office or reading library. Beyond the foyer is a large great room with a beautiful trey ceiling, a gas log fireplace and rear covered porch and subsequent patio access. This outdoor space is quite comprehensive and allows for quality entertaining and family relaxing whether hosting a weekend bar-b-que or special occasion event. The breakfast room is bright and airy with a three window wall and optional built-ins while the adjoining kitchen is highlighted with a large angled breakfast bar, a separate pantry and loads of wraparound counter and cabinet space.
The split bedroom plan features two identical sized bedrooms with 9’ ceiling heights where each provides generous closet space. Double linen closets line the hallway and the shared hall bath features an extended vanity and tub/shower combination. The two car garage features additional storage space and access into the homes nearby laundry room and guest powder room. There is a rear staircase to the second floor bonus room which measures in excess of 13’x26’ and could be configured as a fourth bedroom or guest suite. The master retreat is situated at the far rear of the home for convenience and privacy; there is a large master bedroom with trey ceiling accents and two oversized his and her walk-in closets that are located on either side of the en suite bath. The master bath enjoys a large footprint with dual extended vanities, a separate shower and a jetted tub. This is a family friendly home with a lovely exterior and interior space that is flexible, valuable and spacious.
