Ranch Plan 348-00102


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,000
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 1
Width 50'
Depth 80'

Floorplan Drawings

Main Floor

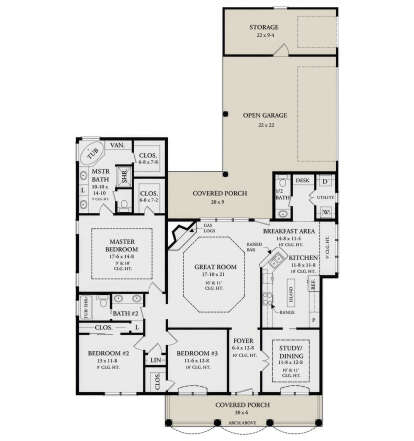

Main Floor for House Plan #348-00102

What's Included in these plans?

  • Cover Sheet
    Showing architectural rendering of residence.
  • Floor Plan(s)
    In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.
  • Foundation Plan and Details
    Each house plan set includes one foundation type.
    Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.
  • Foundation types typically offered: (each type may or may not be available for a given design)
    -Slab: Most of our plans reflect a "raised slab" which consists of a chainwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
    -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • Electrical Plan with electrical symbols legend
    In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan
    In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

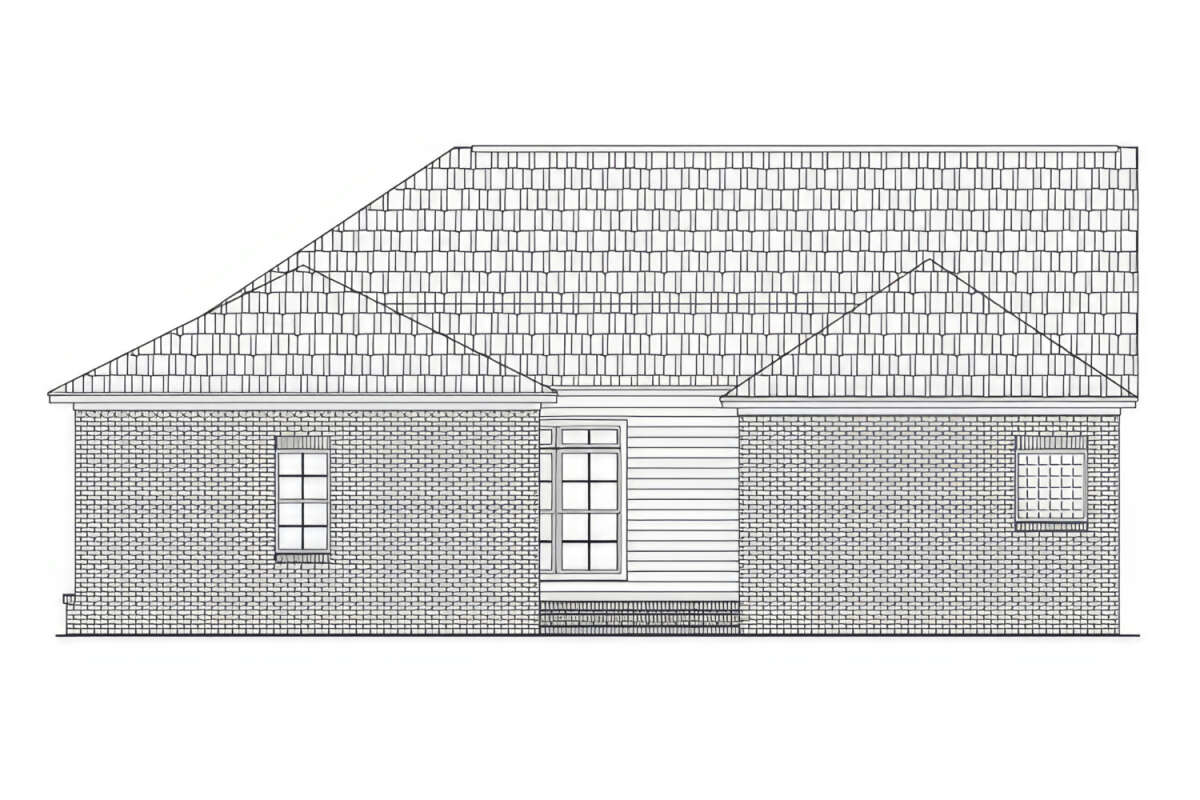

  • Exterior Elevations
    In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations
    Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • License to Build
    Each set of construction plans include ONE license to build.
  • If you would like to build multiple houses from one set of plans, please contact us to obtain pricing for a multi-use license.
    Plans include relevant building sections and details.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

The architectural details on this home are beautiful; the front brick pavers leading to the front door emphasize the top arches and columns on the covered porch. Upon stepping into the home through the large foyer, you enter into the great room which is large and includes a trey ceiling, corner gas log fireplace and access to the rear covered porch. Adjacent to the foyer is the dining room with front window views or can be used as an office or study for more casual living. The kitchen and eat-in area provide you with plenty of space in which to entertain with a large island and corner raised bar. The back of the home includes a utility room, separate space for a desk and a half bath. Three bedrooms are located on the opposite side of the home with two bedrooms sharing a hall bath which includes dual vanities. The master suite is large and includes a trey ceiling bedroom, two walk-in closets and a bath that includes a corner jetted tub, separate shower, dual vanities and a compartmentalized toilet. There is a large additional storage space off the garage making this home a value in design and function.
