Traditional Plan 348-00084


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,900
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 1
Width 69'
Depth 59'

Floorplan Drawings

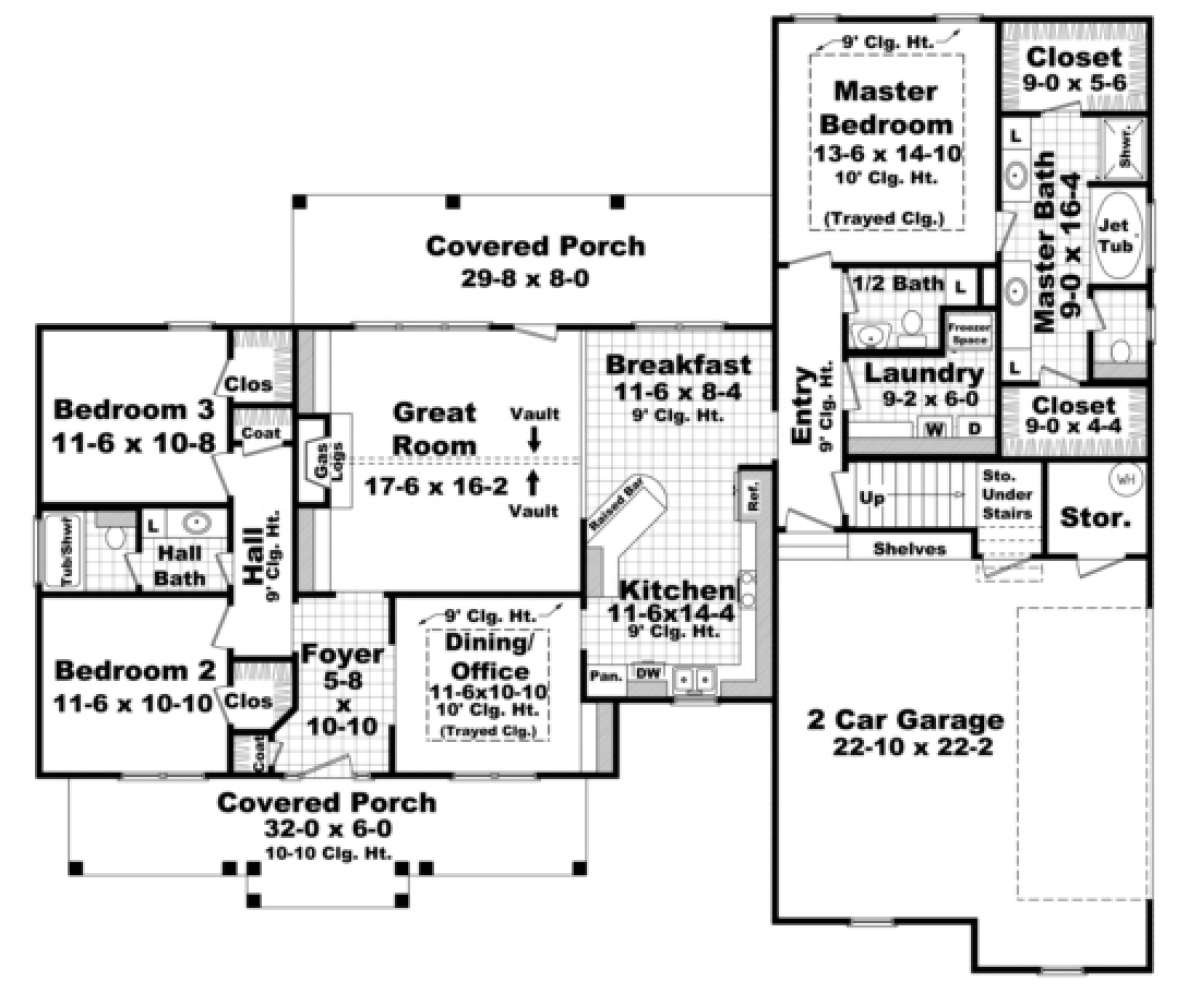

Main Floor
Main Floor for House Plan #348-00084

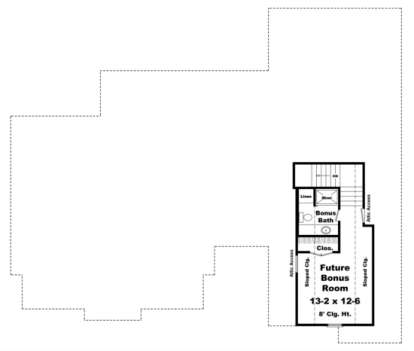

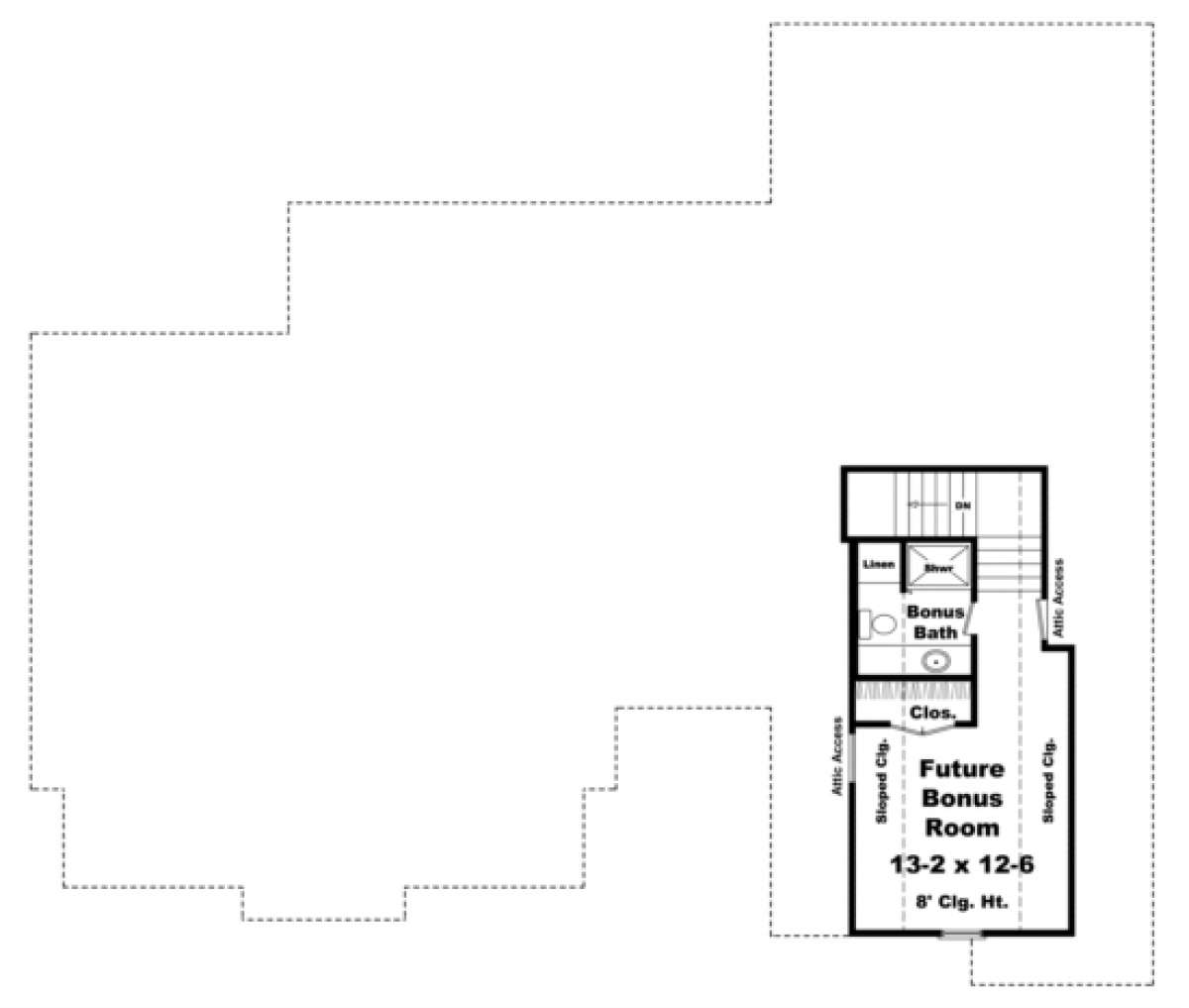

Bonus Room
Bonus Room for House Plan #348-00084

What's Included in these plans?

  • Cover Sheet
    Showing architectural rendering of residence.
  • Floor Plan(s)
    In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.
  • Foundation Plan and Details
    Each house plan set includes one foundation type.
    Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.
  • Foundation types typically offered: (each type may or may not be available for a given design)
    -Slab: Most of our plans reflect a "raised slab" which consists of a chainwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
    -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • Electrical Plan with electrical symbols legend
    In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan
    In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • Exterior Elevations
    In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations
    Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • License to Build
    Each set of construction plans include ONE license to build.
  • If you would like to build multiple houses from one set of plans, please contact us to obtain pricing for a multi-use license.
    Plans include relevant building sections and details.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

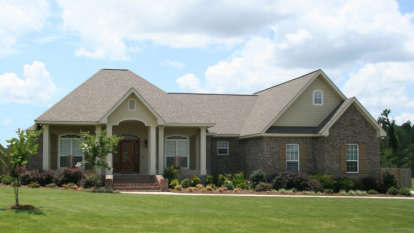

Family memories and wonderful shared adventures will be enjoyed in this spectacular Traditional styled brick ranch house design. The compelling exterior façade consists of low maintenance brick work, multiple gables and a grand two story entrance atop the covered front porch. A plethora of soaring columned beams and great greeting space for family and friends highlight the front covered porch that measures 32’x6’, beautifully. The open concept floor plan along with a split bedroom plan are desirable features homeowner’s are consistently searching for in today’s housing design market and this home exceeds industry standards in fulfilling those requirements. A three bedroom and two plus bath layout are featured in approximately 1,900 square feet of usable living space and there is a future bonus space with bath atop the garage which represents great expansion space, perfect for a playroom, media room or a hobby/craft room. A spacious foyer features 10’ plus ceiling heights, a coat closet and subsequent entrance into the formal dining room and casual great room. The vaulted great room features a gas log fireplace, built-in cabinetry, rear covered porch access and is open to the gourmet kitchen. The kitchen boasts of an attractive space lined with modern amenities and outstanding floor space; there is a raised breakfast bar, a separate pantry and an adjoining light filled breakfast room. A convenient pass-thru from the formal dining room into the kitchen makes meal preparation and serving a breeze when hosting special family events and/or entertaining intimate friends or business associates. The two car side loading garage features additional storage space and shelving before stepping into the home’s laundry room and half bath.
The split bedroom plan is highlighted with two spacious bedrooms and a bath on one side of the home. Both bedrooms are nearly equivalent sized and feature walk-in closets and there is a hall storage closet as well. The shared hall bath features an enclosed linen closet, private vanity space and a toilet and tub/shower combination room. The master suite enjoys private and luxurious accommodations offering a large trey ceiling bedroom and an attached en suite bath. The master bath features a jetted tub, separate shower, dual vanities, double linen closets and a compartmentalized toilet area. His and her walk-in master closets flank the master bath for privacy and convenience. This brick traditional Ranch home features a captivating exterior and an interior floor plan brimming with efficient and functional floor space along with expansion space.
