Cottage Plan 348-00064

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,800
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 38' 6"
Depth 83' 8"

Floorplan Drawings

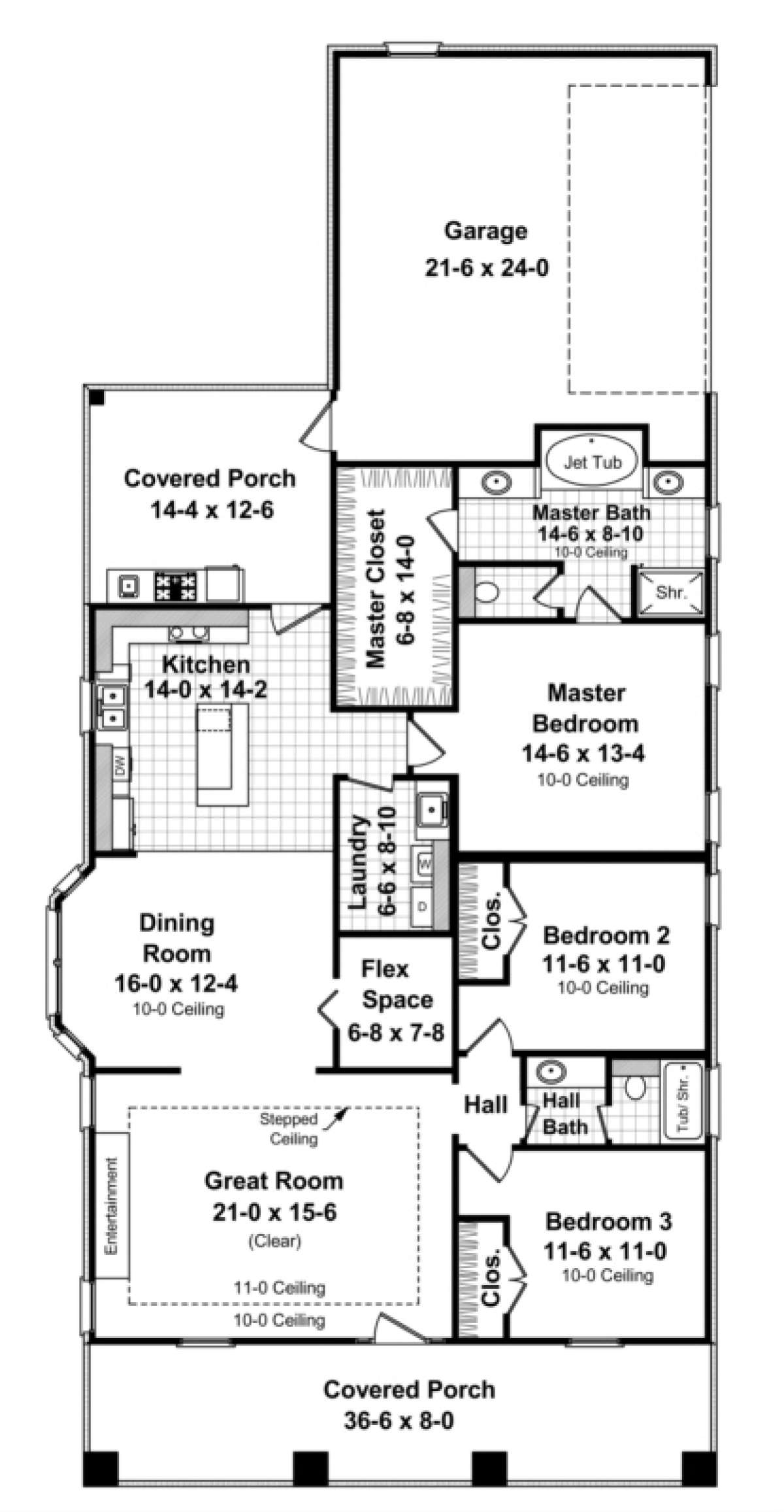

Main Floor
Main Floor for House Plan #348-00064


What's Included in these plans?

  • Cover Sheet
    Showing architectural rendering of residence.
  • Floor Plan(s)
    In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.
  • Foundation Plan and Details
    Each house plan set includes one foundation type.
    Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.
  • Foundation types typically offered: (each type may or may not be available for a given design)
    -Slab: Most of our plans reflect a "raised slab" which consists of a chainwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
    -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • Electrical Plan with electrical symbols legend
    In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan
    In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

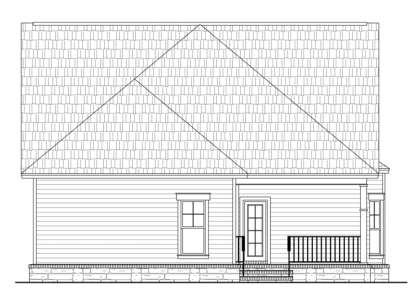

  • Exterior Elevations
    In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations
    Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • License to Build
    Each set of construction plans include ONE license to build.
  • If you would like to build multiple houses from one set of plans, please contact us to obtain pricing for a multi-use license.
    Plans include relevant building sections and details.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

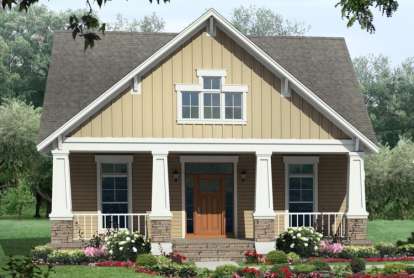

This home is designed to maximize space and design features while creating an inviting space in which to live and entertain. The front covered porch expands the length of the home and from there, you enter into the great room which includes an 11’ trey ceiling and built-in entertainment center and is open to the dining room. Off the dining room, there is a flex space which could be used for an office, study or hobby room. The large kitchen continues the open floor plan and includes a large island with a raised bar area, an abundance of cabinets and counter space and leads out onto the large covered rear porch. The open floor plan is ideal for entertaining and offers views of the home and outdoors from entry to exit. There are two bedrooms with walk-in closets and shared bath in addition to the master suite. The master suite is large and includes an oversized walk-in closet and bath with jetted tub, separate showers, compartmentalized toilet and separate dual vanities. The home comes with a side entry garage on the back of the home with access to the rear porch and kitchen. This home design is ideal for a family who desires the finer home features while maximizing their space and budget.
