Ranch Plan 348-00062


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,800
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 1
Width 78'
Depth 46'

Floorplan Drawings

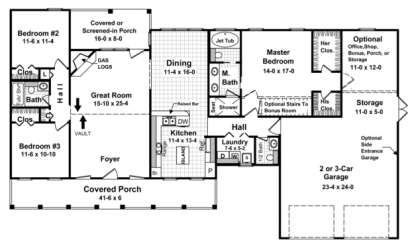

Main Floor
Main Floor for House Plan #348-00062

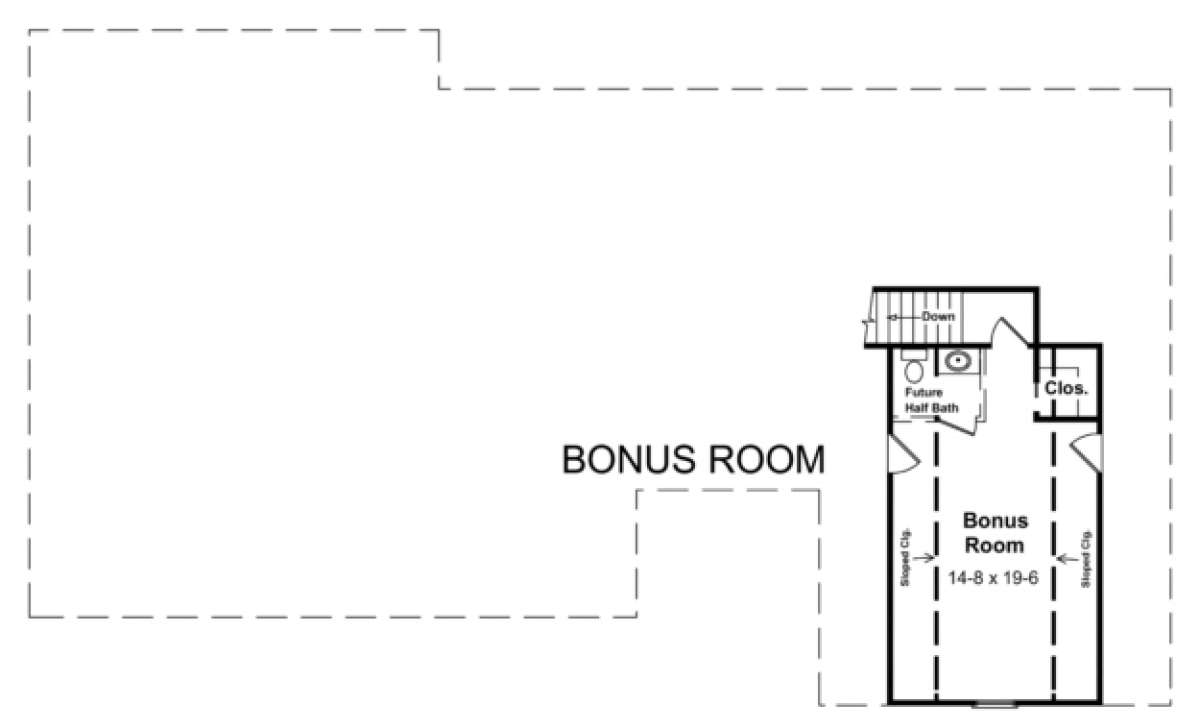

Bonus Room
Bonus Room for House Plan #348-00062

What's Included in these plans?

  • Cover Sheet
    Showing architectural rendering of residence.
  • Floor Plan(s)
    In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.
  • Foundation Plan and Details
    Each house plan set includes one foundation type.
    Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.
  • Foundation types typically offered: (each type may or may not be available for a given design)
    -Slab: Most of our plans reflect a "raised slab" which consists of a chainwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
    -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • Electrical Plan with electrical symbols legend
    In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan
    In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • Exterior Elevations
    In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations
    Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • License to Build
    Each set of construction plans include ONE license to build.
  • If you would like to build multiple houses from one set of plans, please contact us to obtain pricing for a multi-use license.
    Plans include relevant building sections and details.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This home features a beautiful traditional styled home with a large covered front porch; rear covered or screen porch and a two or three car garage. The vaulted great room is massive and features a corner gas log fireplace and access to the rear covered/screen porch. The dining room and kitchen are centrally located and ideal for entertaining large groups of family and/or friends with an island and raised bar area. There are two bedrooms with walk-in closets, a hall bath and linen closet on one side of the home while the master is located on the opposite side. The master suite is large with his and her walk-in closets and an optional bonus room adjacent to the master which could be used as an office, study or nursery. The master bath includes a jetted tub, separate shower and dual vanities. The garage is available as either a two or three car space with additional storage and side access to the yard. Additionally, there is an option for a bonus room, closet and bath upstairs. This home has a plethora of design options to meet your family’s needs.
