European Plan 348-00048

What's Included in these plans?

• Cover Sheet

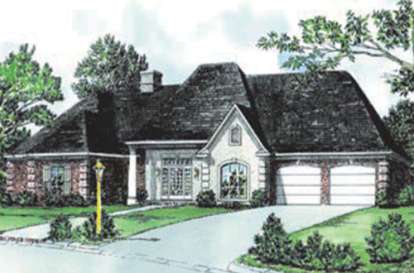

  Showing architectural rendering of residence.

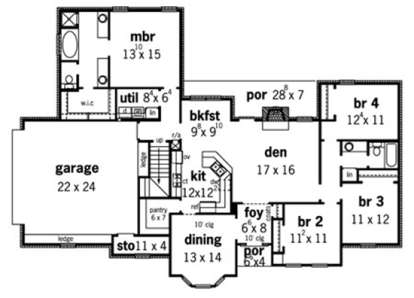

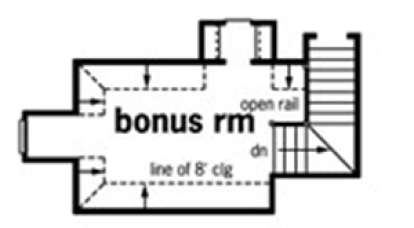

• Floor Plan(s)
  In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.
• Foundation Plan and Details
  Each house plan set includes one foundation type.
  Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.
• Foundation types typically offered: (each type may or may not be available for a given design)
  -Slab: Most of our plans reflect a "raised slab" which consists of a chainwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
  -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
  -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
• Electrical Plan with electrical symbols legend
  In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
• Roof Drainage Plan
  In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
• Exterior Elevations
  In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
• Interior Elevations
  Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
• License to Build
  Each set of construction plans include ONE license to build.
• If you would like to build multiple houses from one set of plans, please contact us to obtain pricing for a multi-use license.
  Plans include relevant building sections and details.
