Ranch House Plan #348-00046 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,700

Beds 3

Bath 2

1/2 Baths 0

Car 2

Stories 1

Width 62' 2"

Depth 45' 8"

See What's Included

Select Package

PDF (Single Build)

$1,595.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

5 Sets (Single Build)

$1,485.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build)

$1,680.00

One Complete set of working drawings emailed to you in PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

Reproducible (Single Build)

$1,850.00

PHYSICAL FORMAT
One printed set of house plans mailed to you that comes with the copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

CAD Files (Single Build)

$2,075.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Slab Foundation $0.00

Crawlspace Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $60.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $150.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

Material List $150.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

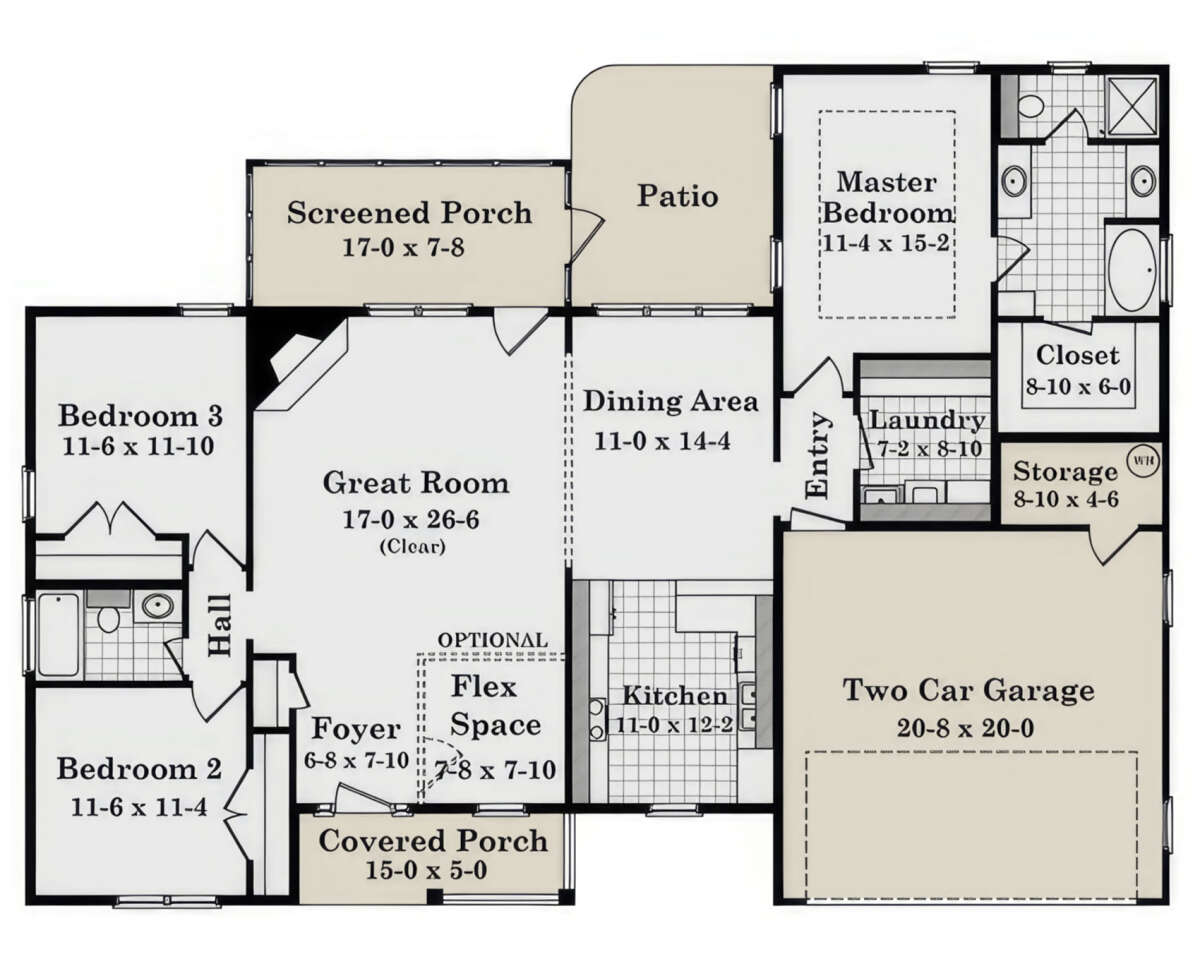

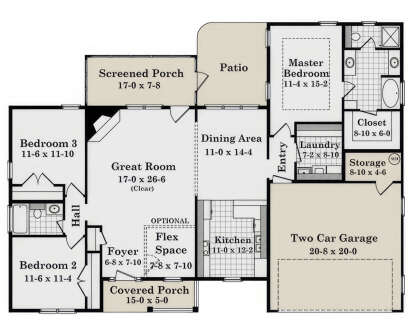

Main Floor

Images copyrighted by the designer.

What's Included in these plans?

Cover Sheet
Showing architectural rendering of residence.
Floor Plan(s)
In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.
Foundation Plan and Details
Each house plan set includes one foundation type.
Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.
Foundation types typically offered: (each type may or may not be available for a given design)
-Slab: Most of our plans reflect a "raised slab" which consists of a chainwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
-Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
-Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
Electrical Plan with electrical symbols legend
In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
Roof Drainage Plan
In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
Exterior Elevations
In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
Interior Elevations
Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
License to Build
Each set of construction plans include ONE license to build.
If you would like to build multiple houses from one set of plans, please contact us to obtain pricing for a multi-use license.
Plans include relevant building sections and details.

Ask Us A Question

About This Plan

This home's unique floor plan is refreshing and functional. The great room is certainly the focal point of the home and is ideal for entertaining; it offers a corner fireplace with access to the rear screen porch and patio area. The front entry to the home is cozy and includes an additional flex space in which you could have an office, study or playroom. The great room leads directly into the dining room with a rear view of the patio and kitchen access. The kitchen is large with an abundance of cabinets and counter space making it functional and efficient. The split bedroom plan boasts of two bedrooms with walk-in closets and hall bath and the master is ideally situated on the opposite side of the home. The master suite is large and conveniently offers a large walk-in closet and bath that includes dual vanities, large tub and compartmentalized toilet and separate shower. The laundry room is accessed from the home and two car garage with additional storage space in the garage as well. This home offers your family an ideal home in which to grow.
