Cottage House Plan #348-00043 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,655

Beds 3

Bath 2

1/2 Baths 0

Car 2

Stories 1

Width 51' 8"

Depth 60'

See What's Included

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

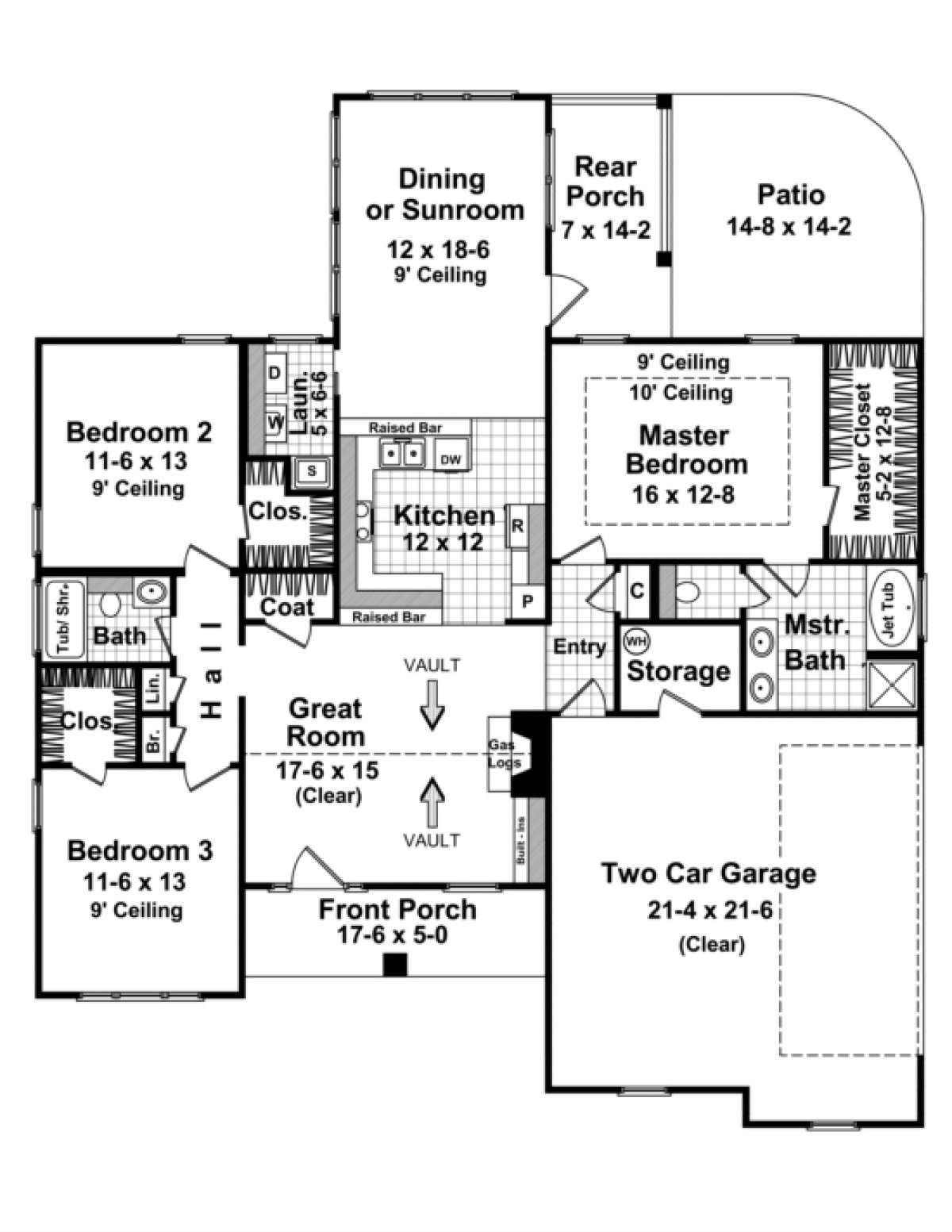

Main Floor

Images copyrighted by the designer.

What's Included in these plans?

Cover Sheet
Showing architectural rendering of residence.
Floor Plan(s)
In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.
Foundation Plan and Details
Each house plan set includes one foundation type.
Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.
Foundation types typically offered: (each type may or may not be available for a given design)
-Slab: Most of our plans reflect a "raised slab" which consists of a chainwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
-Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
-Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
Electrical Plan with electrical symbols legend
In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
Roof Drainage Plan
In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
Exterior Elevations

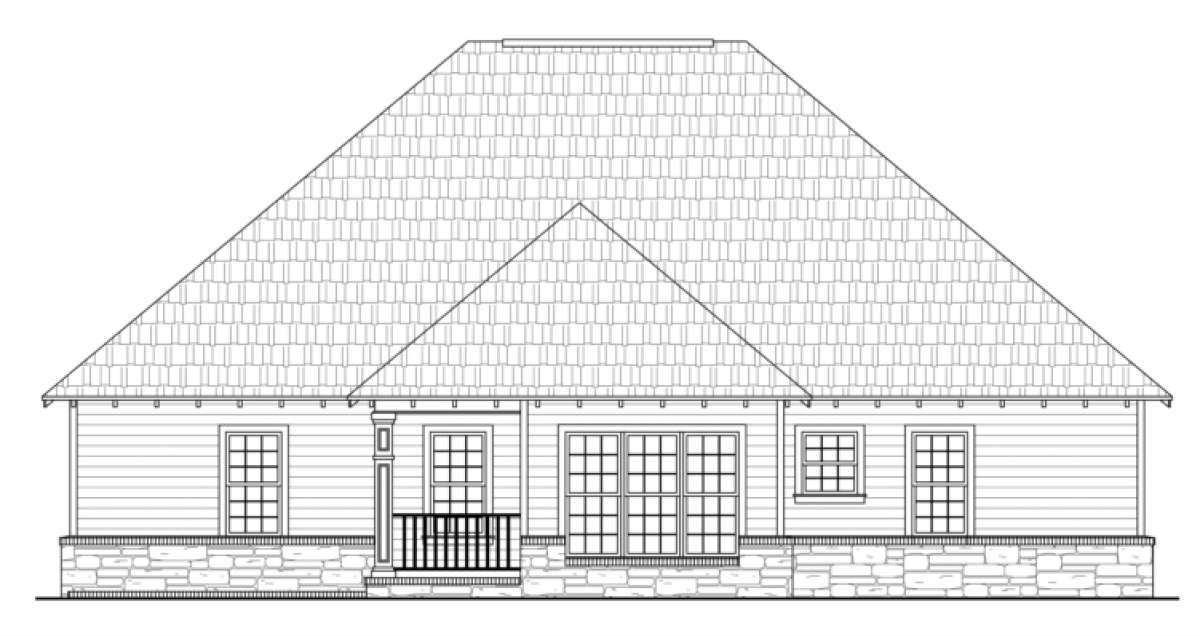

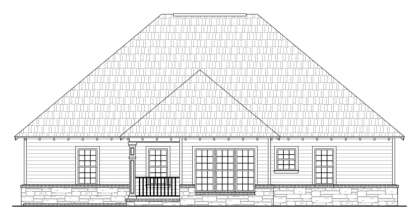

In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
Interior Elevations
Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
License to Build
Each set of construction plans include ONE license to build.
If you would like to build multiple houses from one set of plans, please contact us to obtain pricing for a multi-use license.
Plans include relevant building sections and details.

Ask Us A Question

About This Plan

The shared living spaces in this home are outstanding and functional with many different options for the outdoor living as well. From the covered front porch, you enter a large great room with a vaulted ceiling, gas log fireplace and built-in cabinetry. The great room provides access and views to the back of the home and includes open entry to the kitchen, which is large and offers two raised bar areas to accompany family and friends. The kitchen has an abundance of cabinets and counter space and leads directly into the dining room/sunroom area. It is large and can function as a multi-functional room with direct access to the covered rear porch and separate patio area; this home is ideal for entertaining and relaxing with all the shared spaces it offers. Additionally, the home boasts of the split bedroom plan with two bedrooms, large walk-in closets and a bath on one side of the home while the master is located on the opposite side for privacy. The master suite is large and well appointed with views of the rear porch and patio area. The master suite includes a massive walk-in closet and bath with jet tub, separate shower and dual vanities. The two car garage provides additional storage and side entry access.
