Traditional Plan 348-00035


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,610
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 51' 8"
Depth 59'

Floorplan Drawings

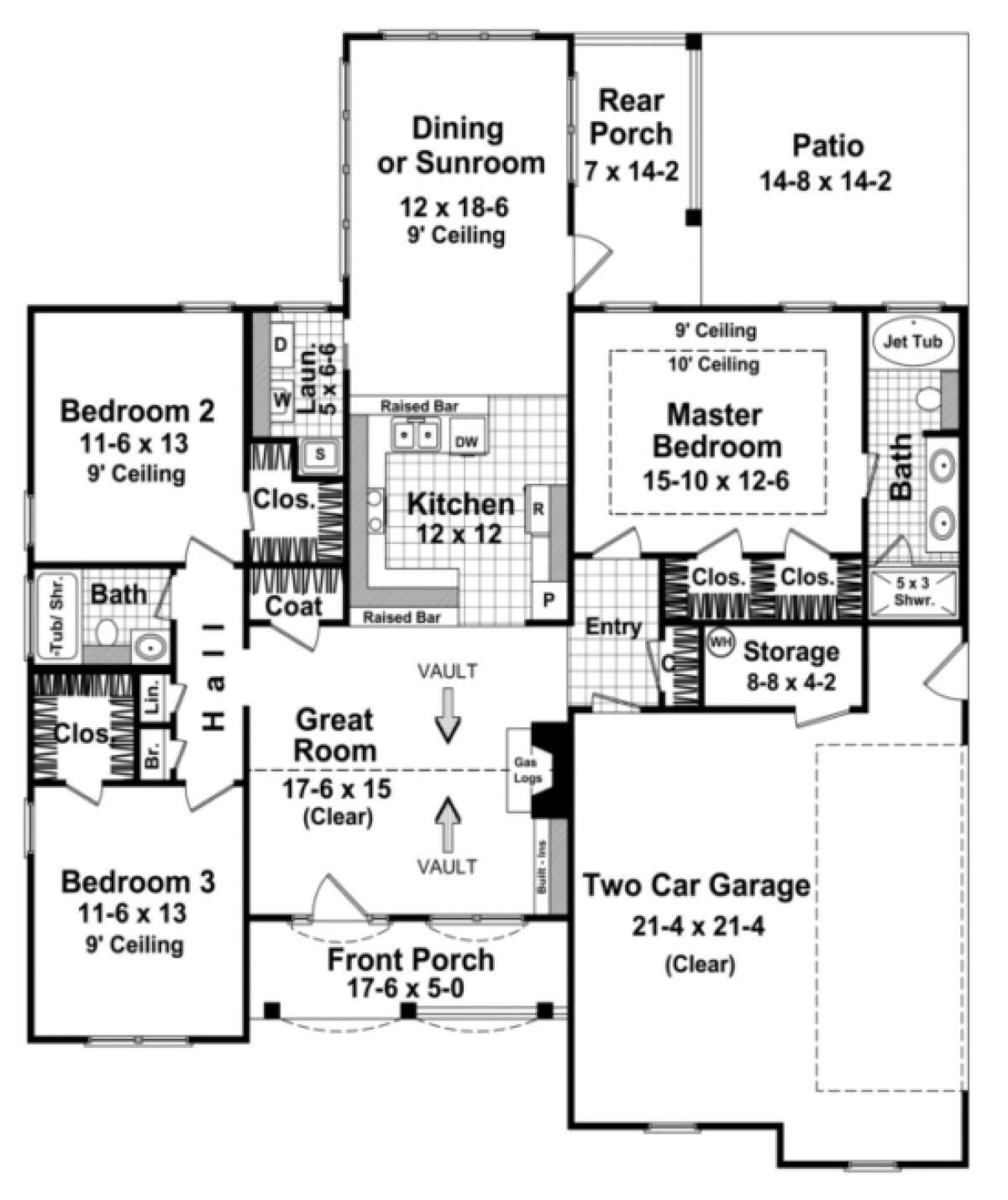

Main Floor
Main Floor for House Plan #348-00035

What's Included in these plans?

  • Cover Sheet
    Showing architectural rendering of residence.
  • Floor Plan(s)
    In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.
  • Foundation Plan and Details
    Each house plan set includes one foundation type.
    Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.
  • Foundation types typically offered: (each type may or may not be available for a given design)
    -Slab: Most of our plans reflect a "raised slab" which consists of a chainwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
    -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • Electrical Plan with electrical symbols legend
    In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan
    In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

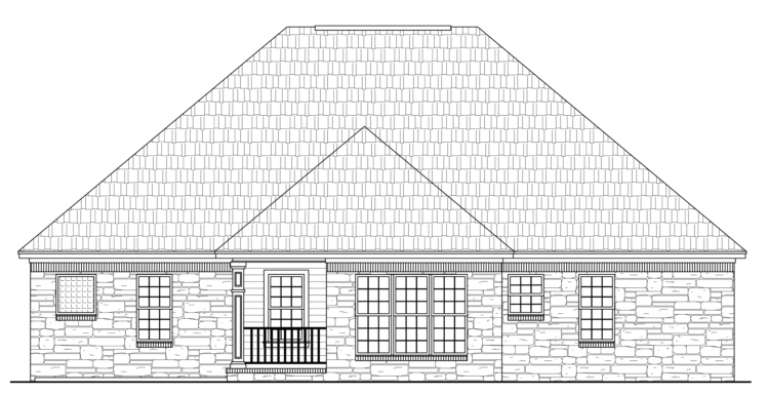

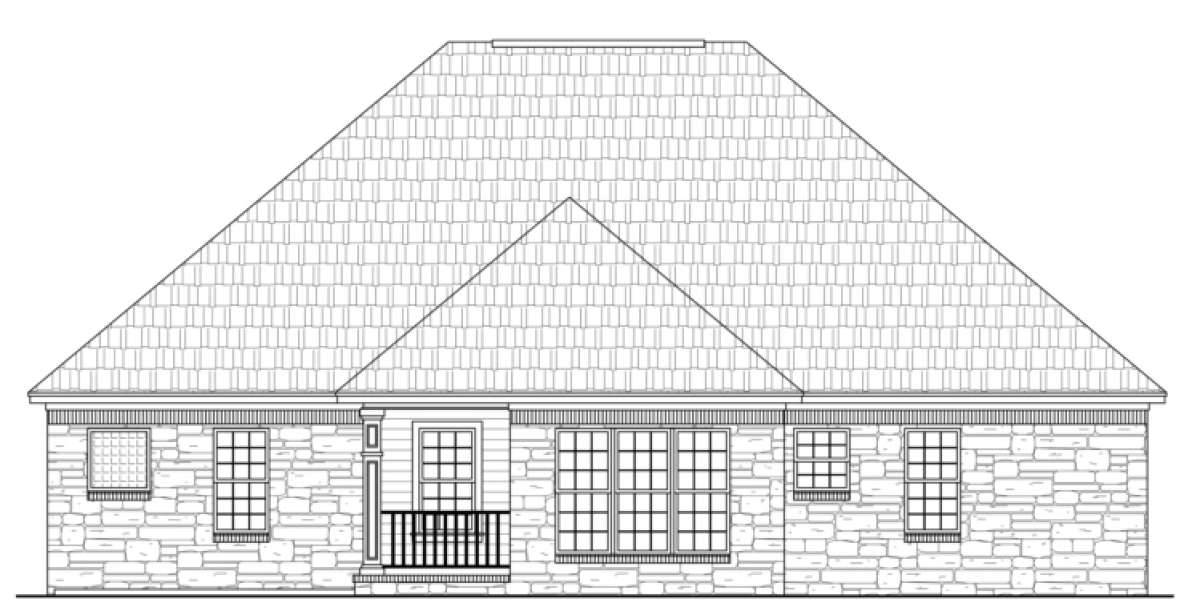

  • Exterior Elevations
    In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations
    Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • License to Build
    Each set of construction plans include ONE license to build.
  • If you would like to build multiple houses from one set of plans, please contact us to obtain pricing for a multi-use license.
    Plans include relevant building sections and details.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This home is a beautiful home for entertaining with a variety of indoor and outdoor spaces in which to gather with family and friends. From the covered front porch, you enter into the vaulted great room complete with gas log fireplace and built-ins. The great room is open to the kitchen which includes two raised bar areas for easy access to your family and guests. The space at the back of the home is large and can be used as a multi -purpose room; either a dining room or sunroom. It’s surrounded on three sides by windows and opens onto the rear porch which, itself, opens onto the rear patio. This home is made for casual living and has many living spaces in which to entertain and spend time with your family and friends. The split bedroom plan offers two bedrooms with walk-in closets, a hall bath, and a linen and broom closet on one side of the home while the master suite is situated on the opposite of the home. The master suite is large with two walk-in closets and the bath is luxurious with a jet tub, separate shower and double sink vanities. The home comes complete with a two car garage including extra storage space. This home will provide enjoyment for family and friends for years to come.
