Farmhouse Plan 341-00302

Sq Ft 10,275
Beds 5
Bath 7
1/2 Baths 1
Car 5
Stories 2
Width 96'
Depth 129'

Floorplan Drawings

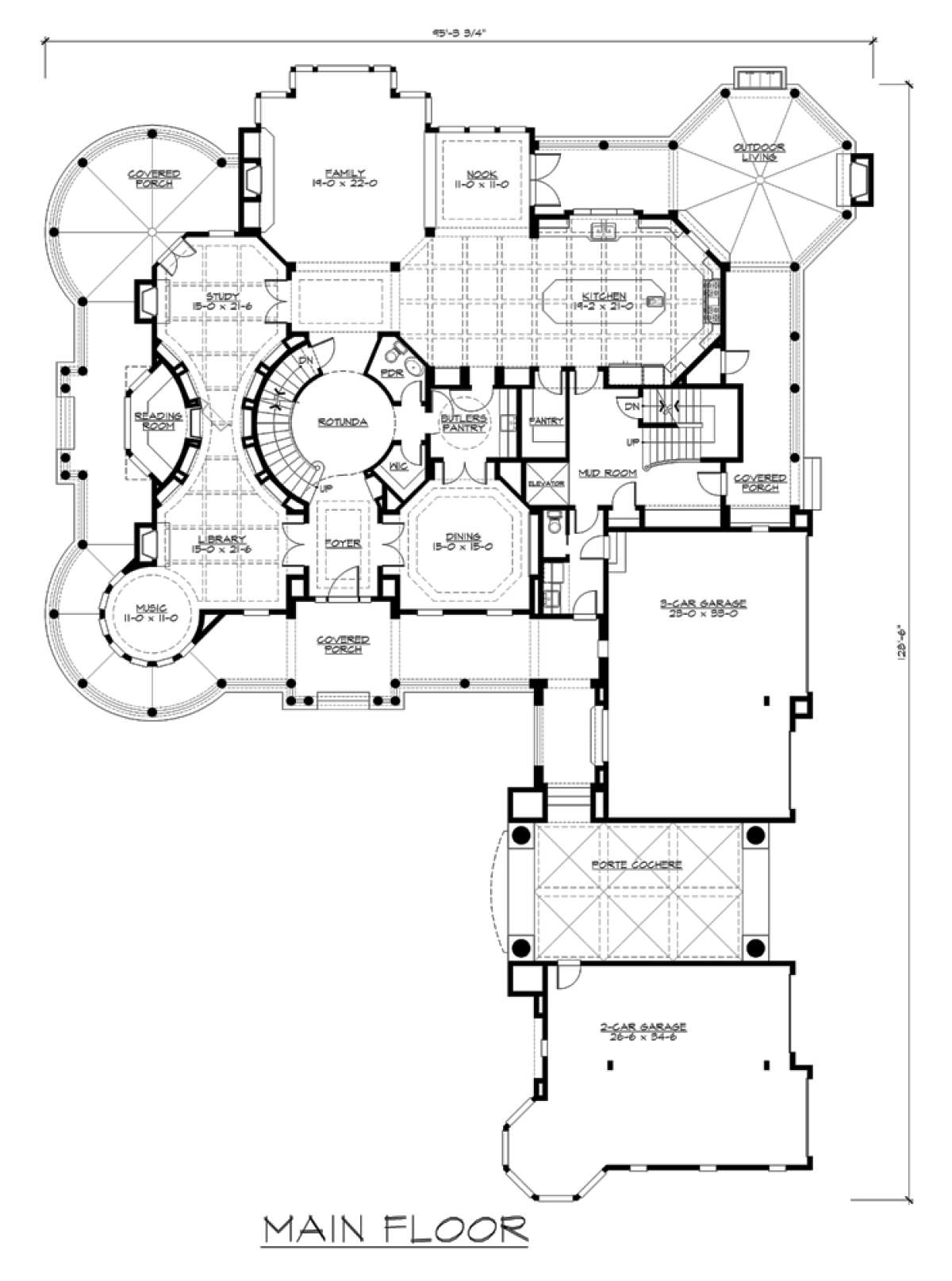

Floorplan 1
Floorplan 1 for House Plan #341-00302

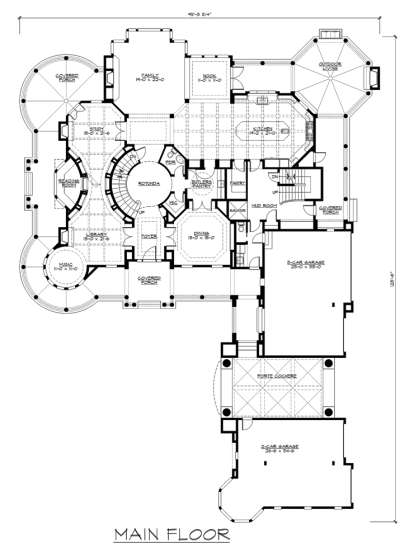

Floorplan 2
Floorplan 2 for House Plan #341-00302
Floorplan 3
Floorplan 3 for House Plan #341-00302

What's Included in these plans?

  • Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation specs, and Washington State Energy Code compliance information.
  • Detail Sheet: The detail sheet shows building components at large scale as required to explain construction, including footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Roof and Foundation Plan Sheet: The roof plan shows the location of all hips, ridges, valleys, dormers, overhangs, gutters, downspouts, roof pitches, structural members, vents, skylights, and all other roof features.  The foundation plan shows the layout and location of the crawl space, walk-out basement or slab foundation, along with all necessary notes, dimensions, and structural information.
  • Floor Plan Sheet: Floor plans are horizontal sections through each floor level of the home, usually at five feet above the floor, showing the location of interior and exterior walls, floors, stairs, doors, closets, cabinets, flooring, appliances, plumbing fixtures, posts and beams.

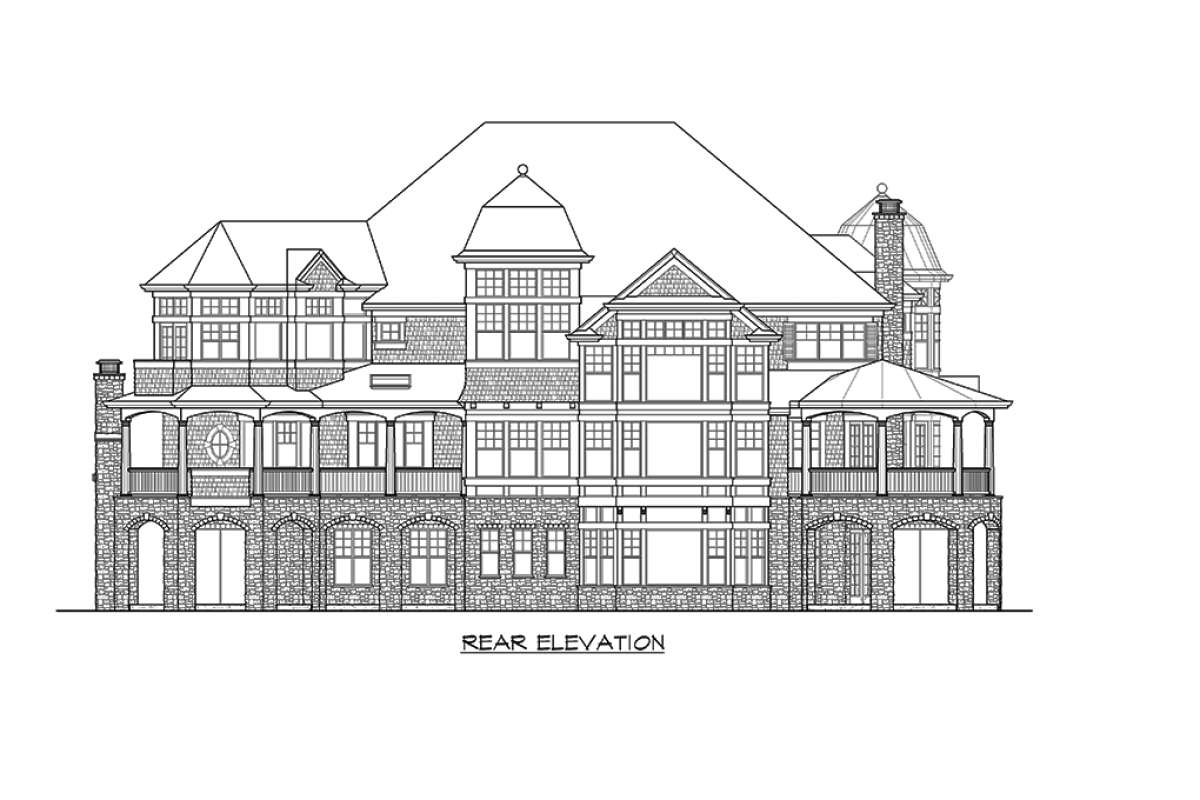

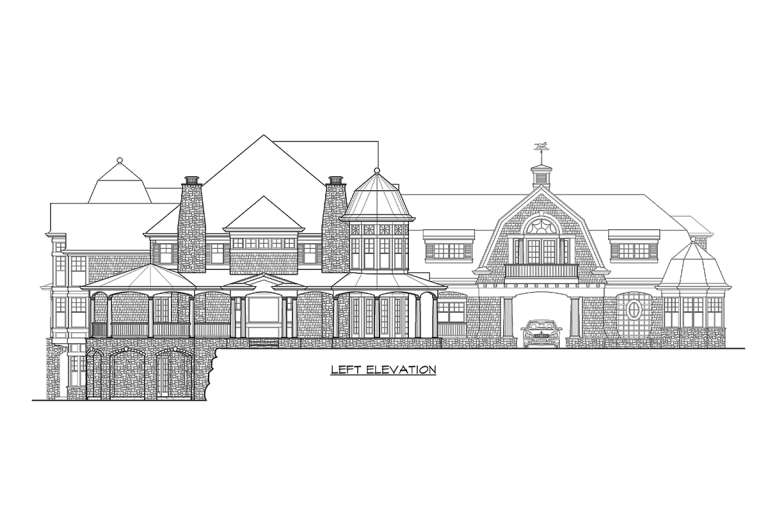

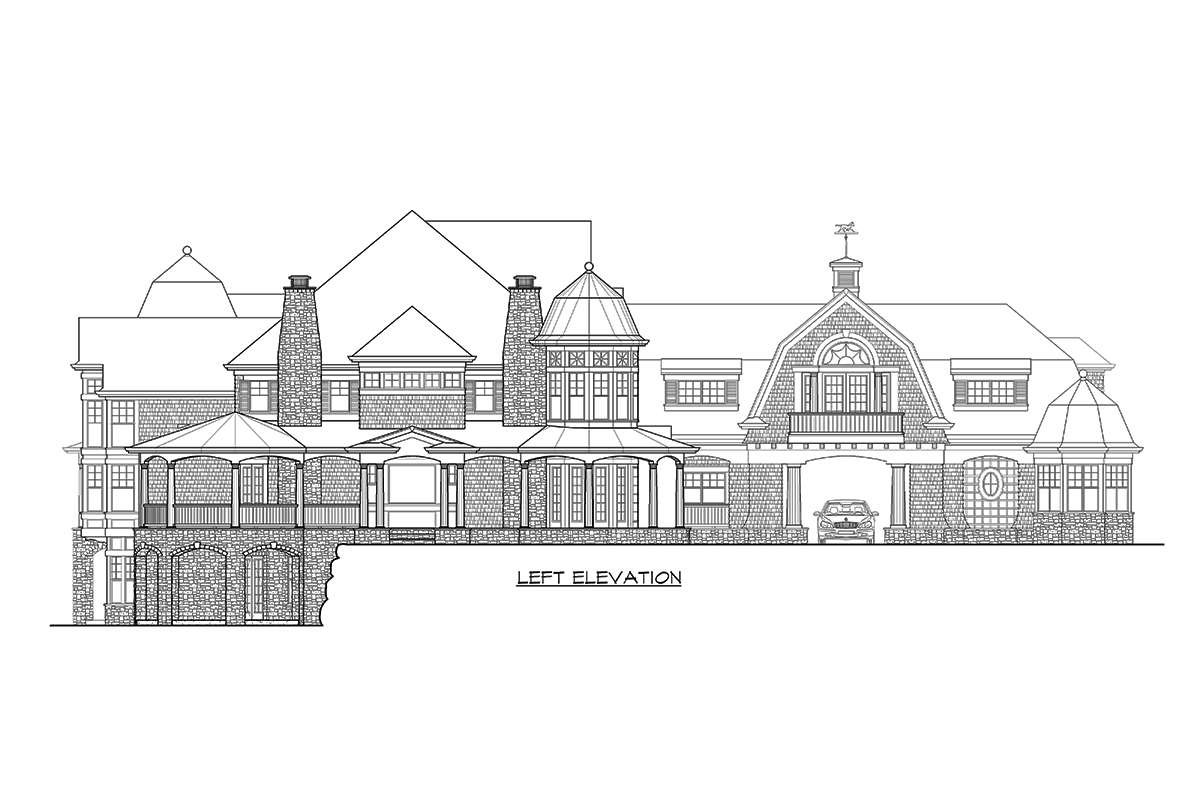

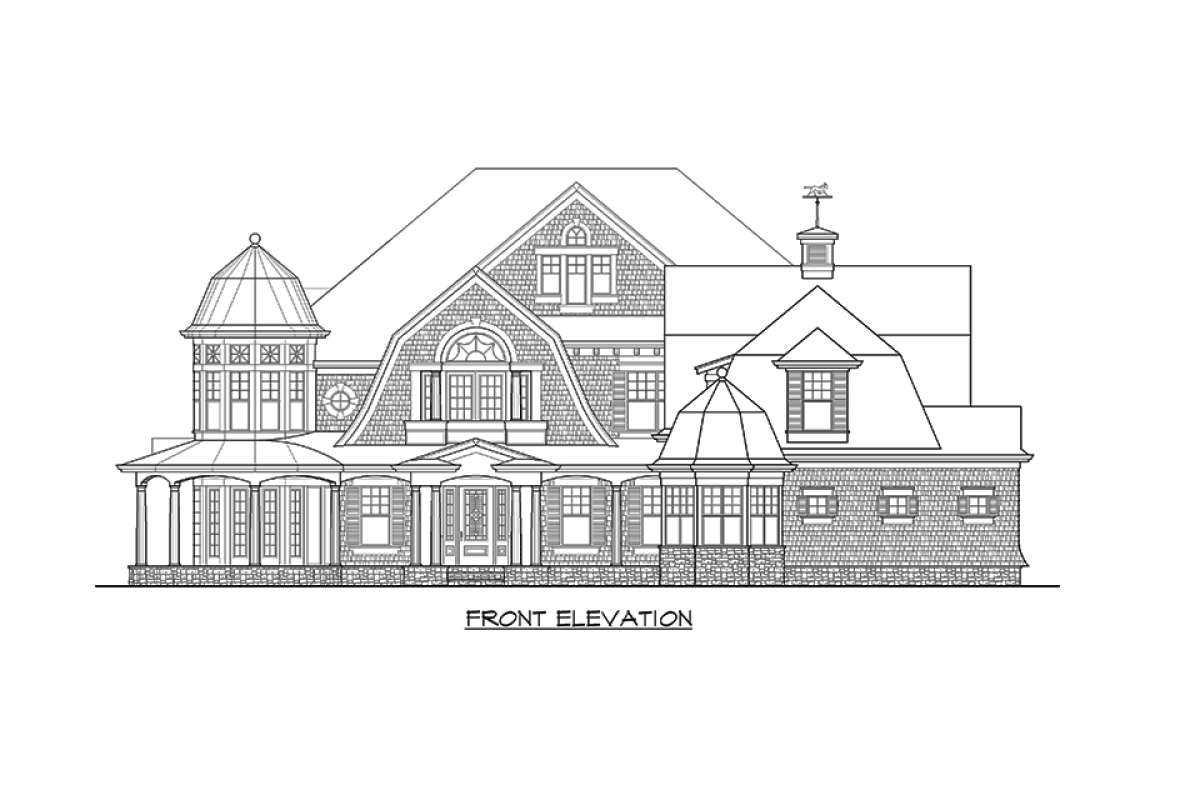

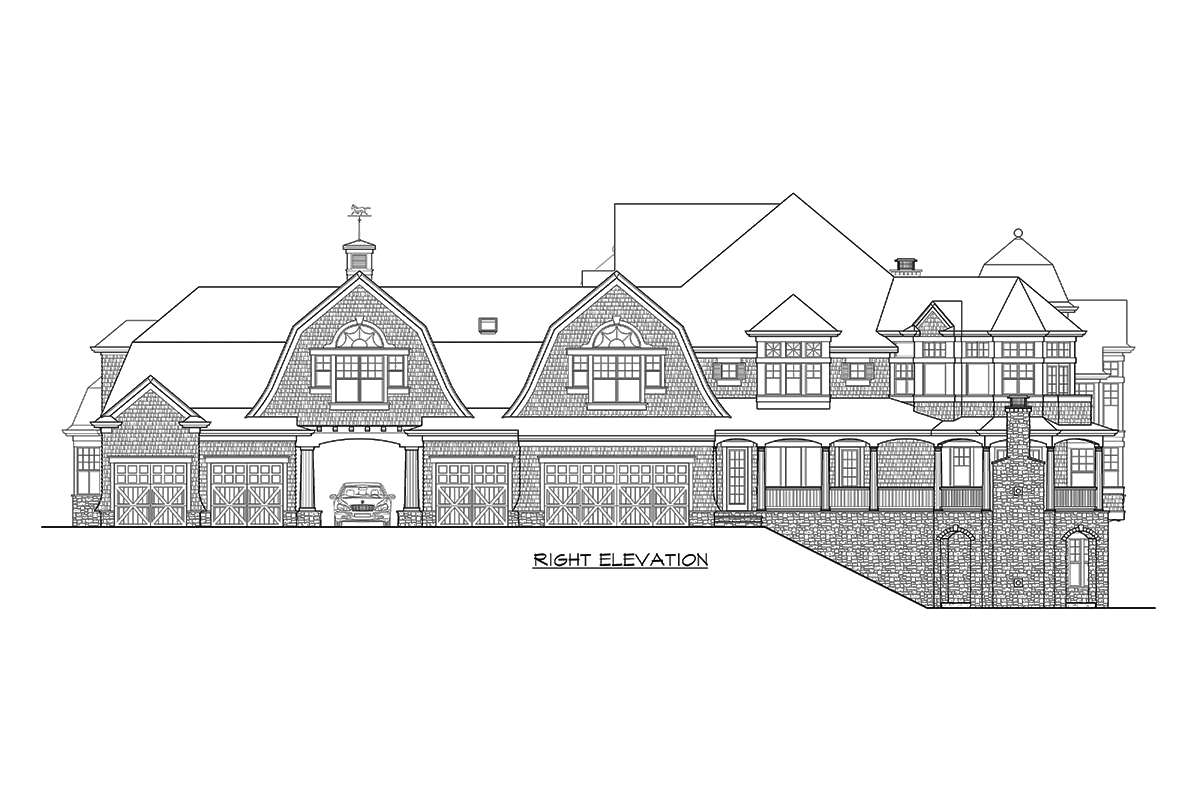

  • Exterior Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet: Building sections are vertical cuts through the home from the roof to the foundation.  The sections illustrate the construction sequence from bottom to top, starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, roof framing, stair construction, windows, doors, venting, exterior and interior finisheds.

Plan FAQs

Important Note--Why can't this plan be sold in the State of Washington?

Not for Sale for Construction in the State of Washington. If you live in the State of Washington and would like to purchase these plans, please contact us for more information. WA State law requires that all plans produced by an architect licensed in the state of WA for construction be stamped by the the architect; consequently, plans not stamped by this designer cannot be built in WA State.  The architect who designed this plan must provide in-state pricing with pricing for any revisions and the required structural engineering. WA State plans must comply with the WA State Energy Code, and the architect guarantees permit approval for the plans, site issues excepted. If you want to build this plan in WA State, please contact us for custom pricing.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

IMPORTANT NOTE: Not for Sale for Construction in the State of Washington. If you live in the State of Washington and would like to purchase these plans, please contact us for more information.

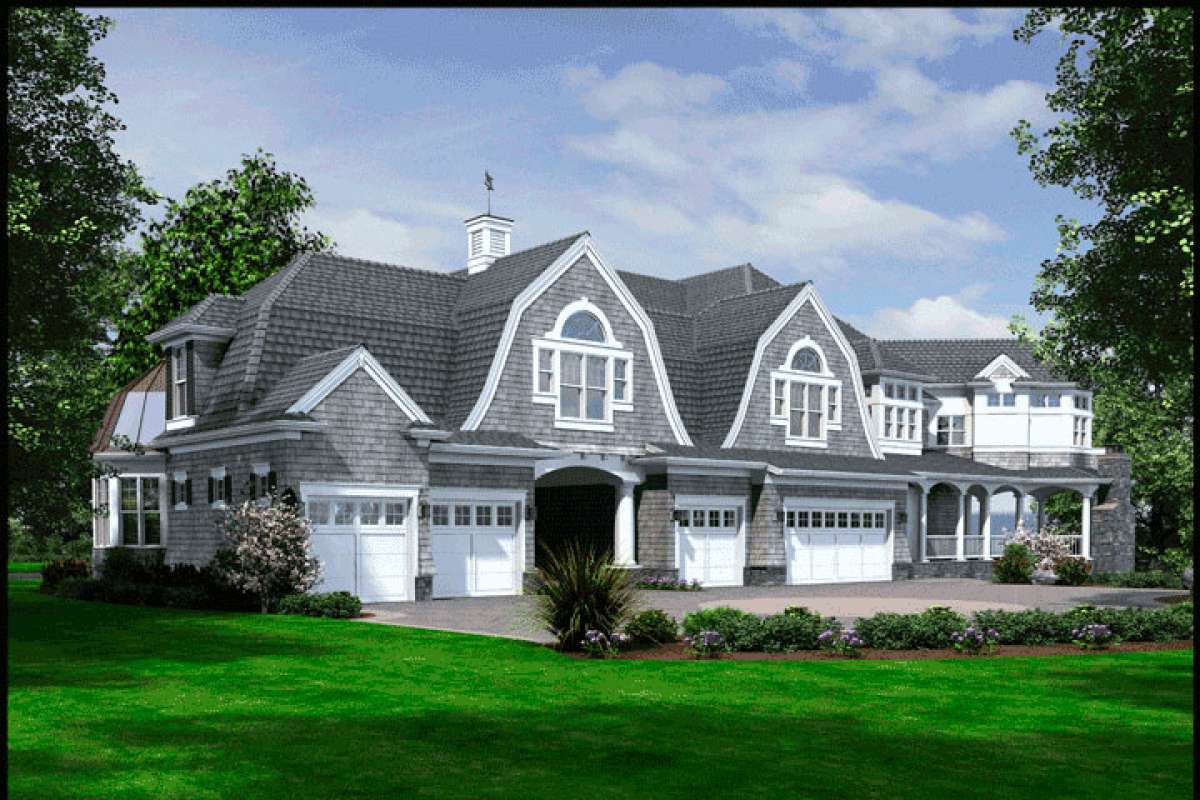

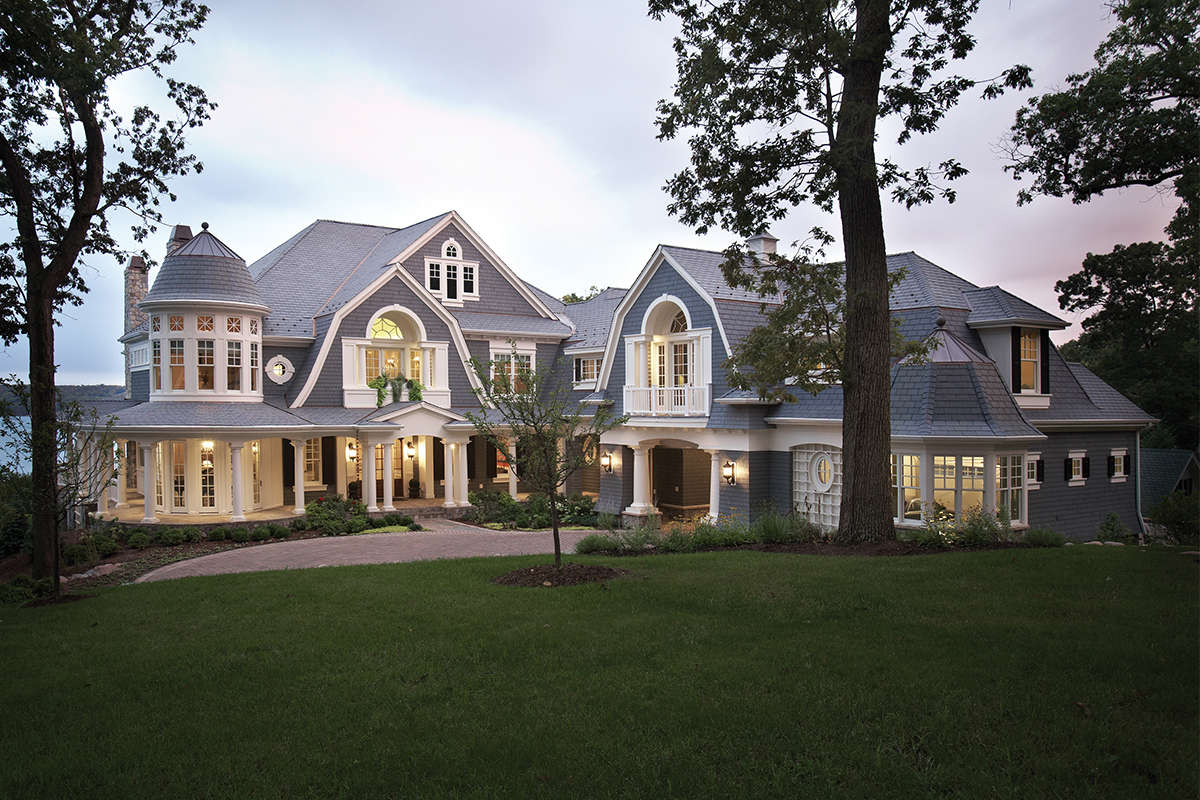

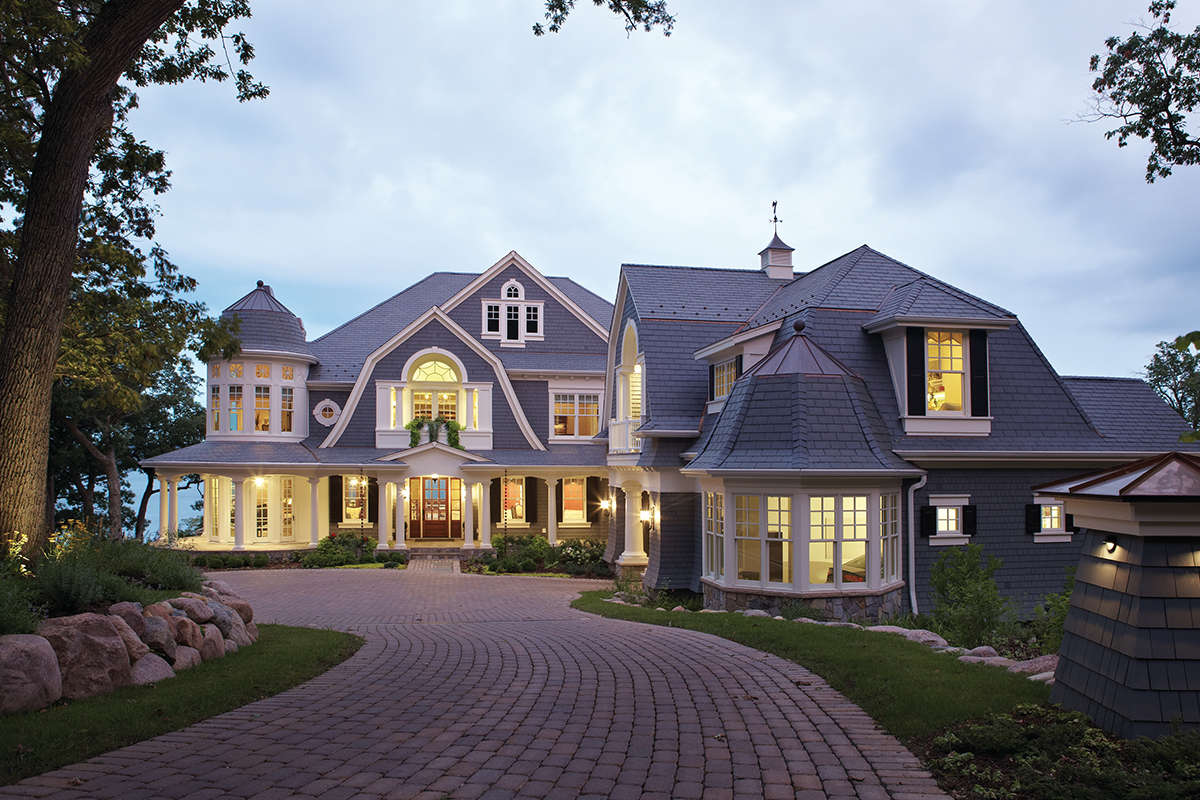

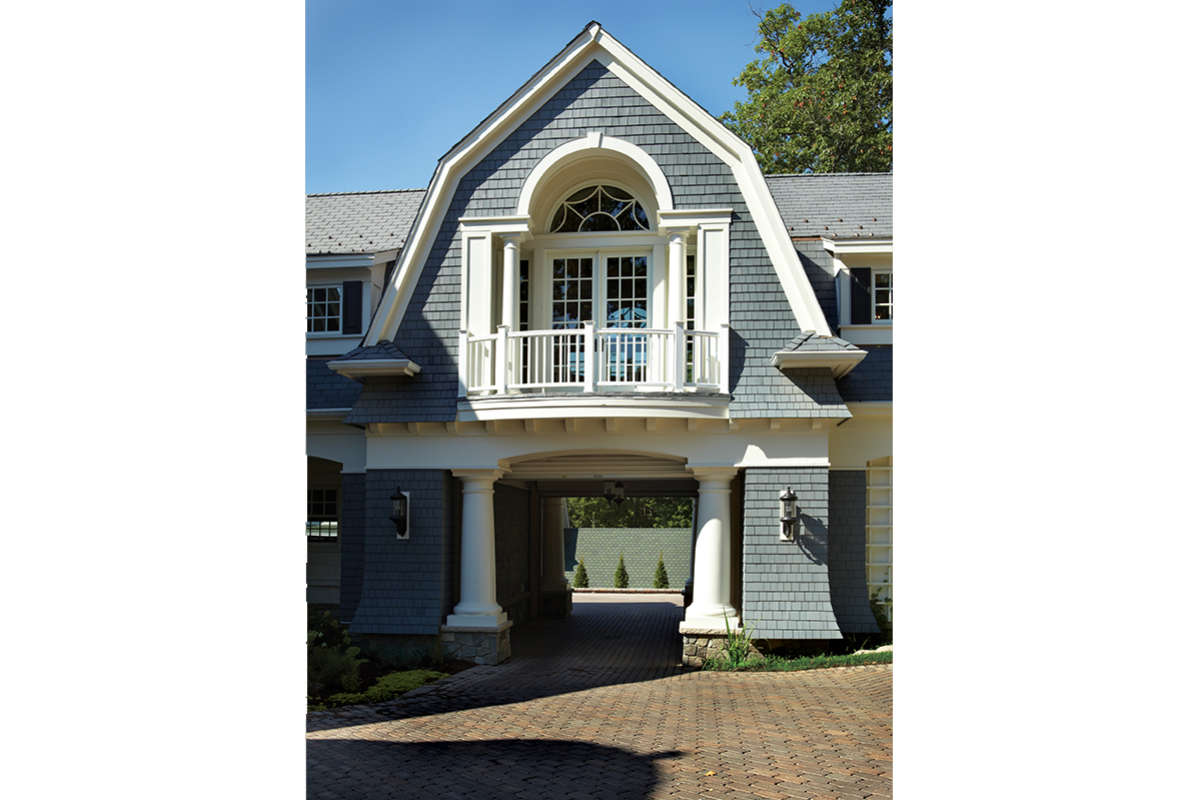

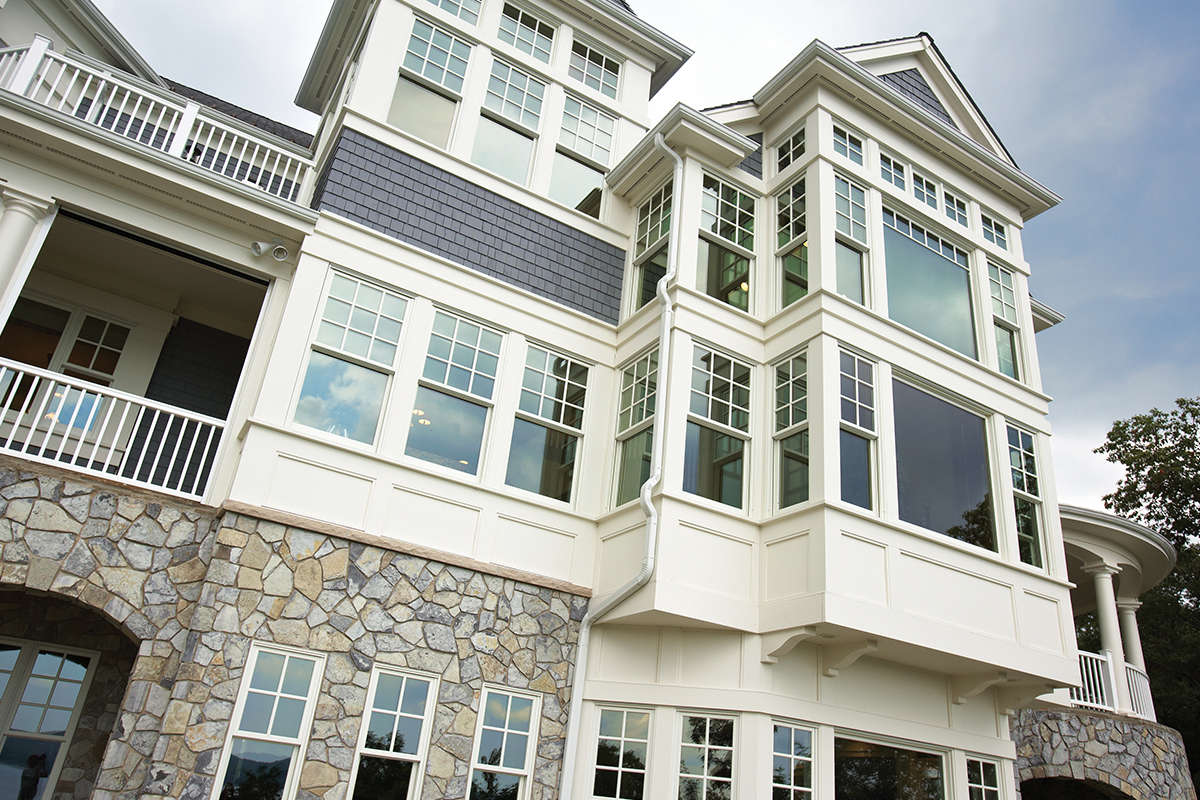

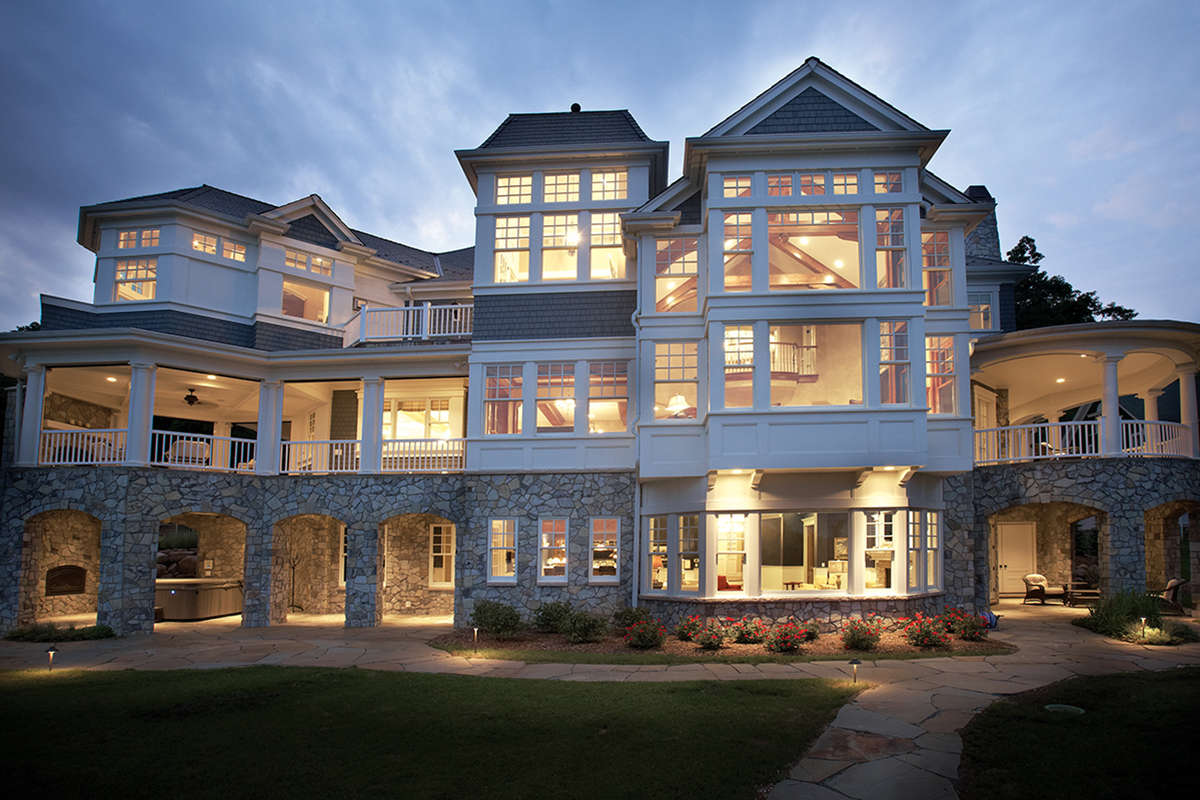

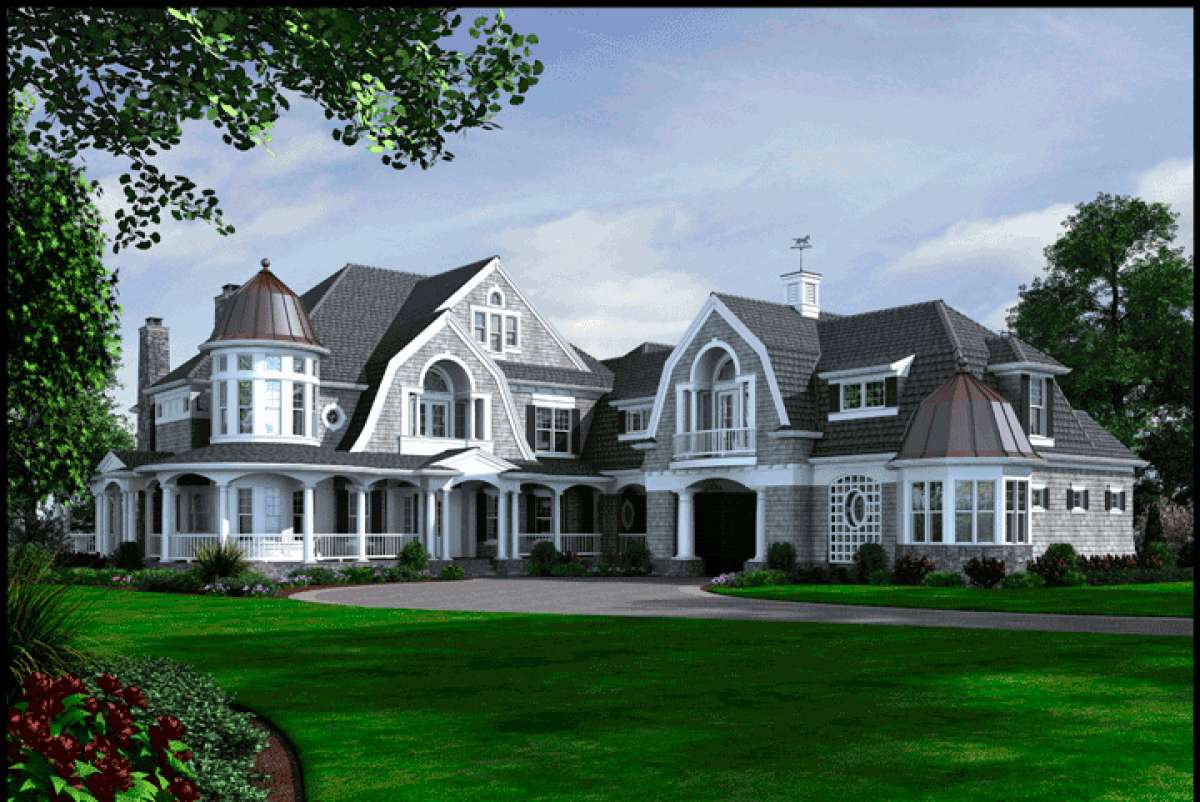

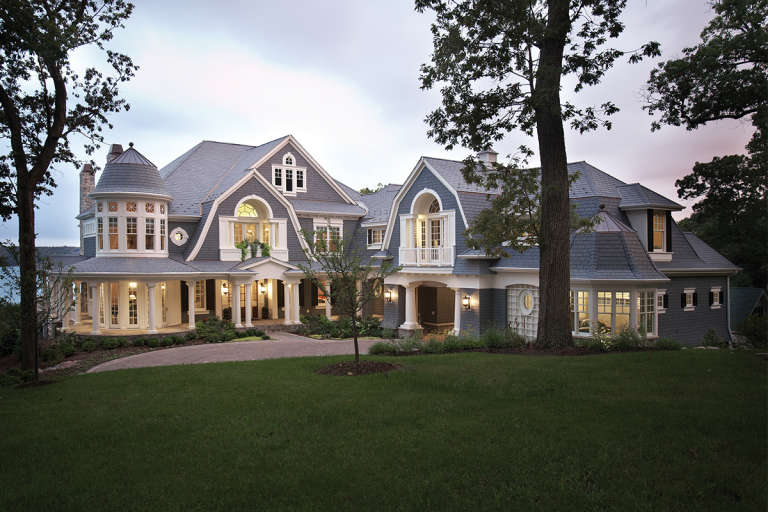

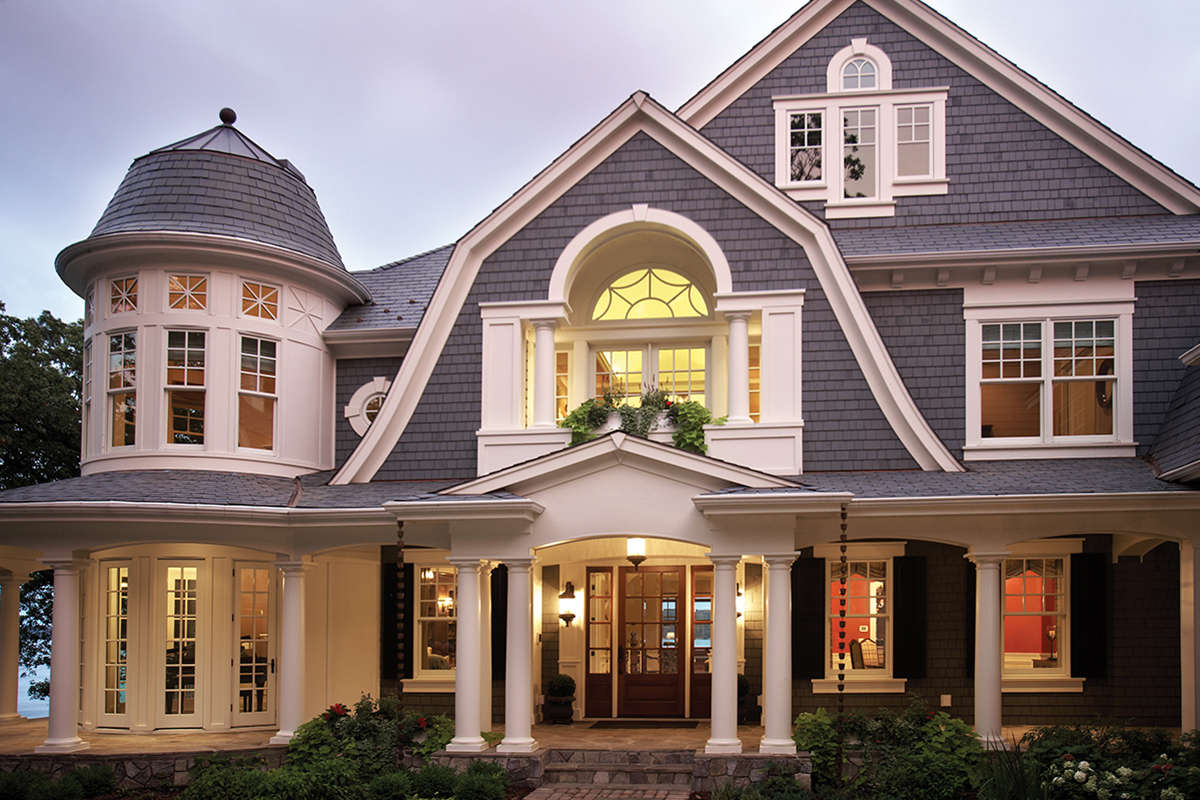

This amazing Farmhouse plan is the stuff dreams are made of and plenty of wonderful memories can be made in this beautiful house design. An unbelievably gorgeous exterior façade is featured where coming home and/or entertaining family and friends will provide years of enjoyment. Reminiscent of homes that dot the New England shoreline, this home will be comfortable no matter its setting, but imagine looking out upon the water’s edge from the home’s multitude of window views and outstanding outdoor space. This magnificent manor features in excess of 10,200 square feet of living space and contains a plethora of entertaining and private family spaces in which to enjoy time spent with family and friends. There are five bedrooms and seven-plus baths and a five-car garage with approximately 1,575 additional square feet of vehicle space. Cedar shakes, stonework, amazing window views and column beams forming arched openings along the outdoor areas are commanding architectural design elements on the exterior. There is a porte-cochere between the two garages for family or guests arriving in inclement weather and a covered path to the front covered porch.

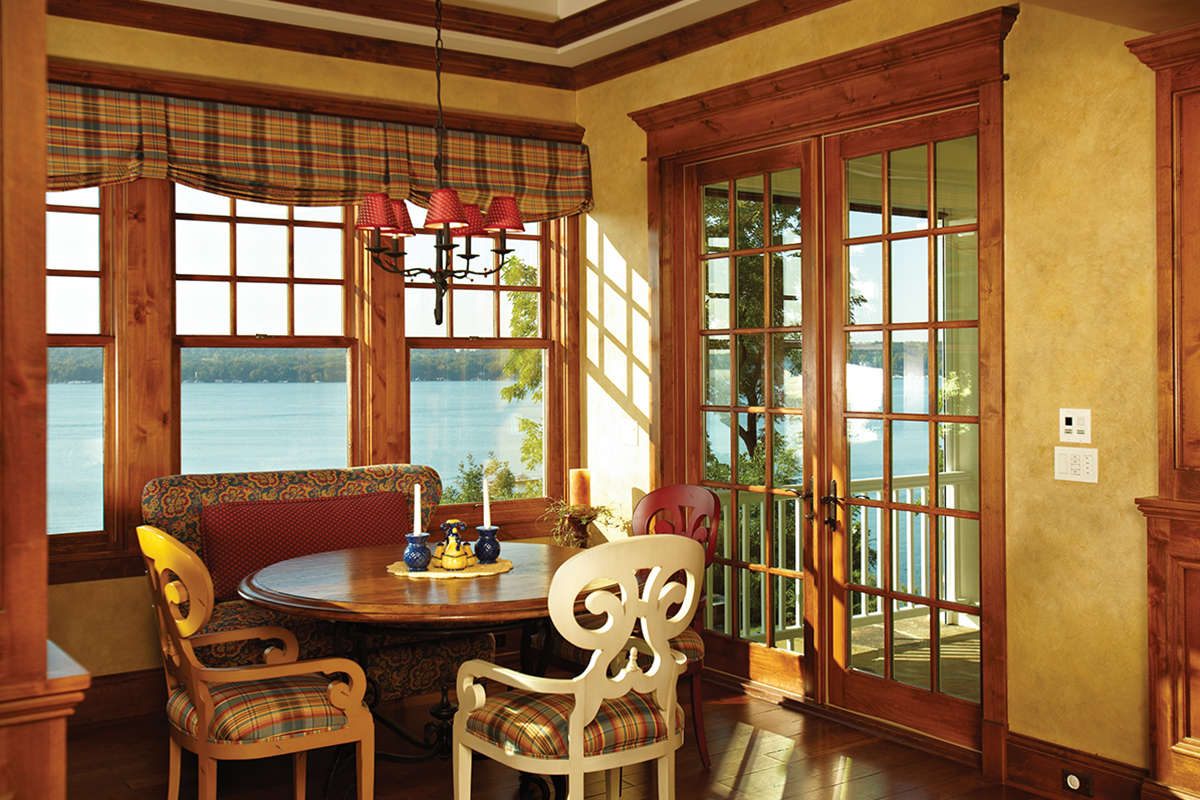

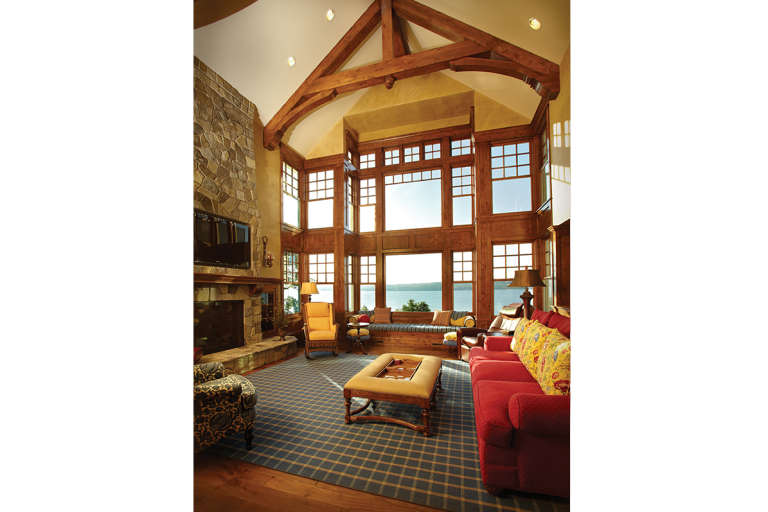

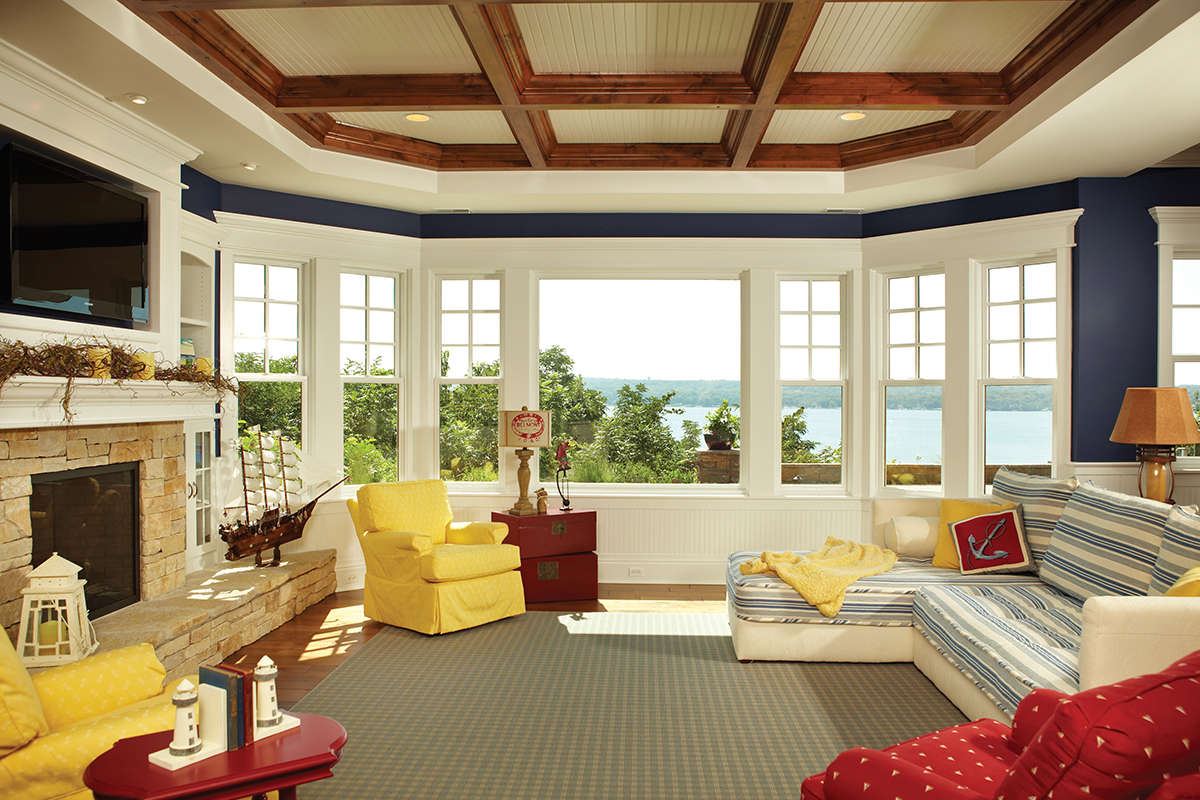

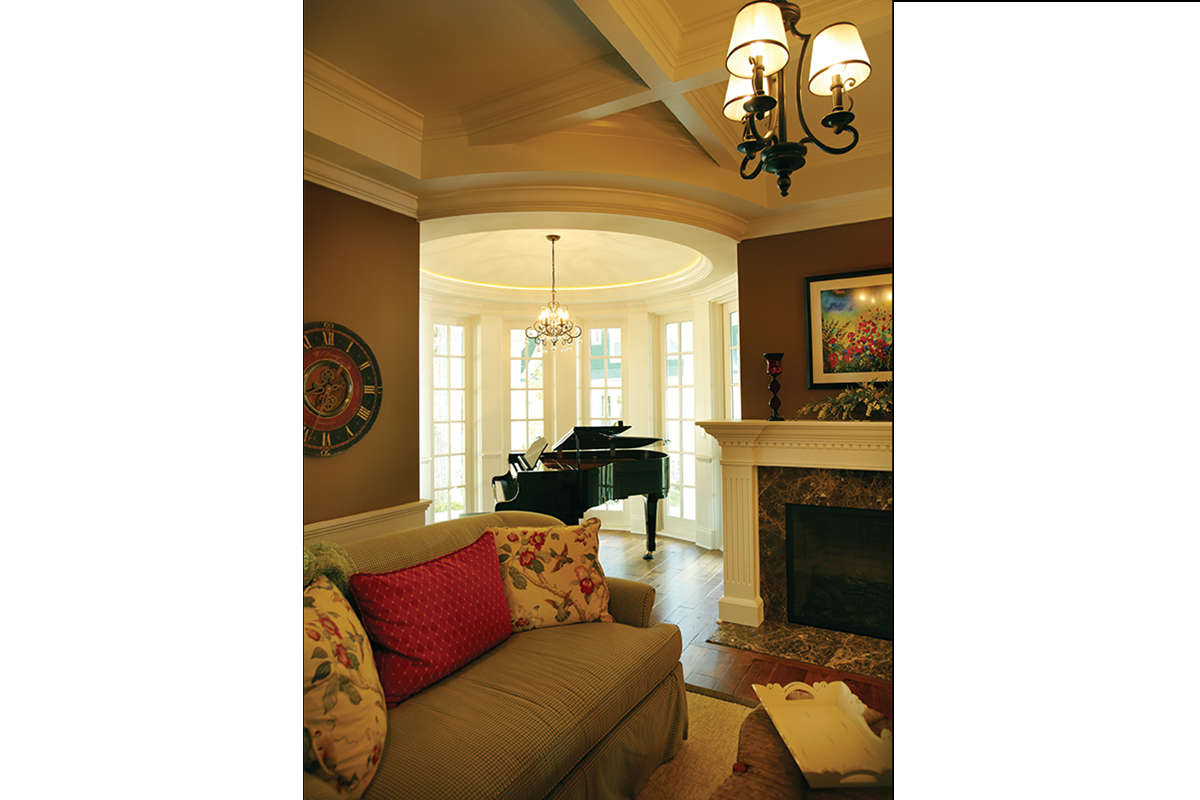

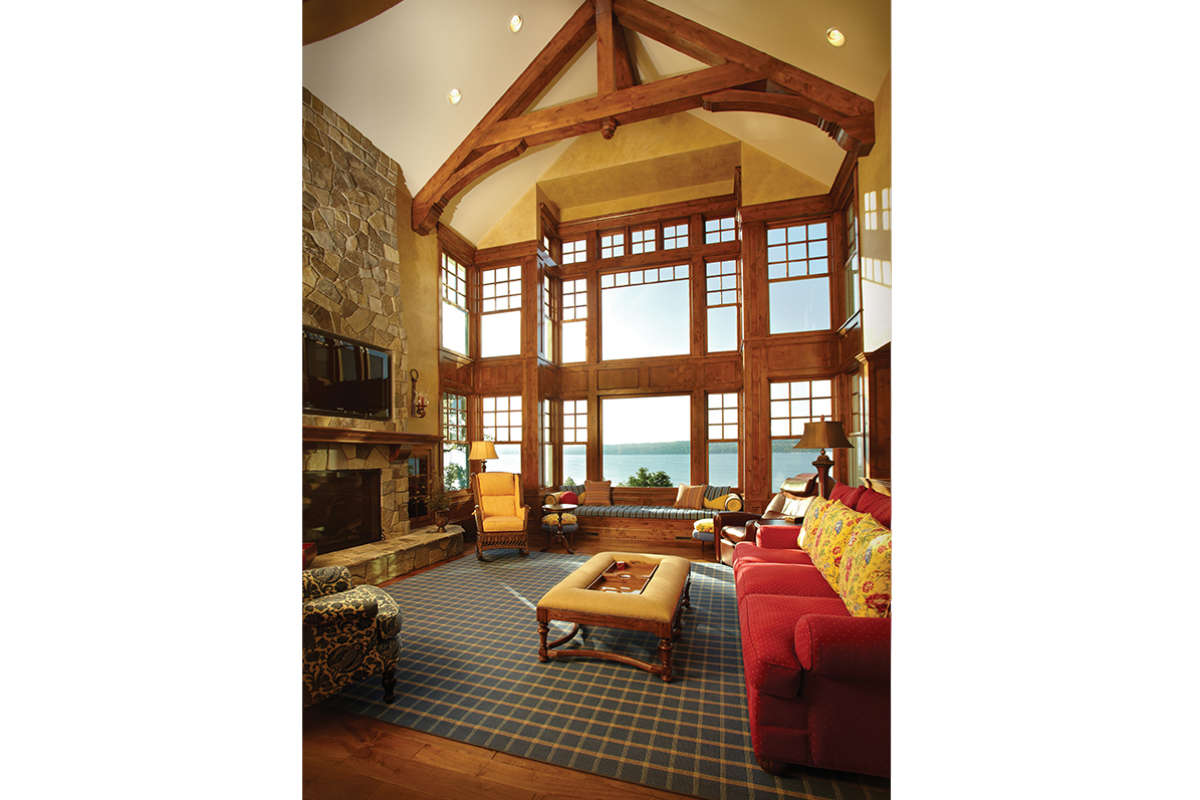

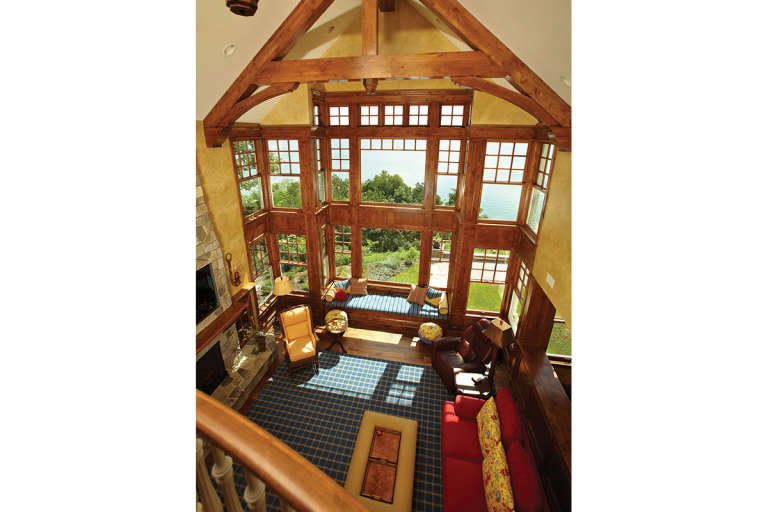

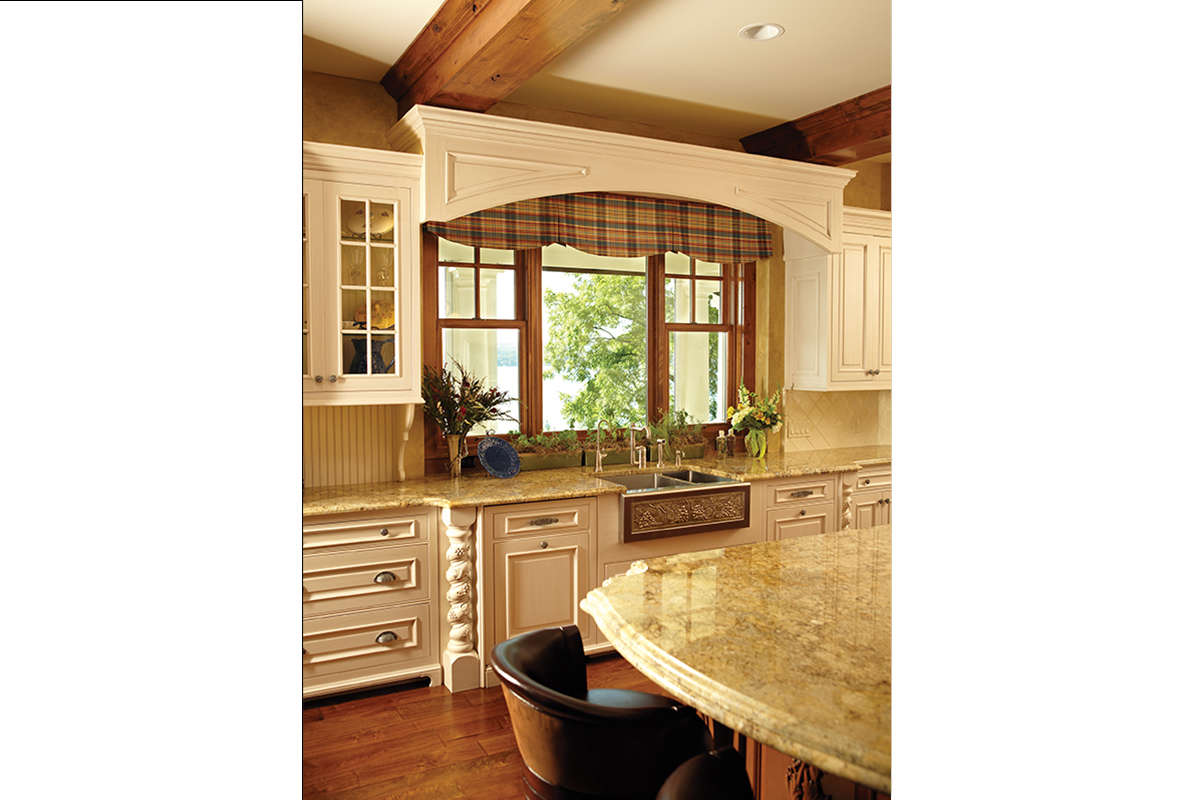

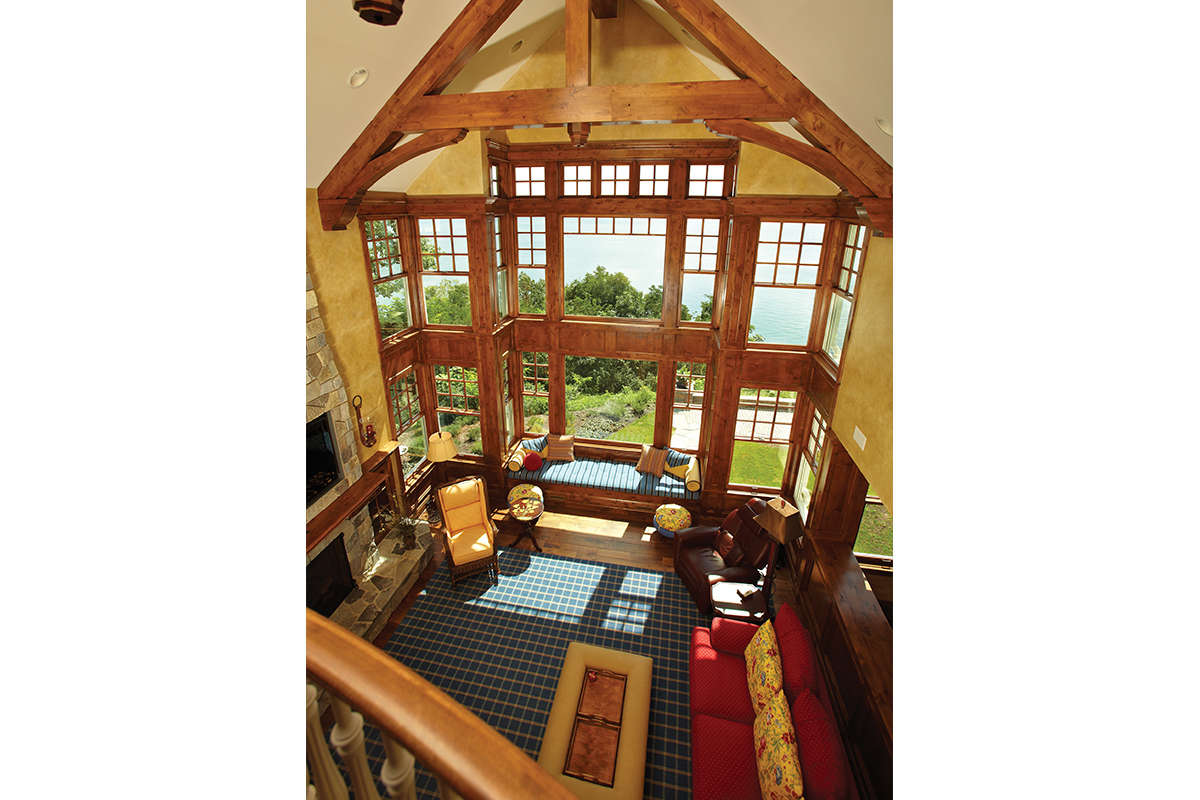

In classic form, the front foyer leads to the centrally located vestibule while simultaneously opening onto the luxurious formal dining room and adjacent library. The library is simply stunning with coffered ceilings spanning the length of the room and fanning out in multiple directions to encompass a music room, reading room, and the subsequent study. All along the exterior of the rooms, is the continuation of the covered porch with overlooking window views and entry/exit points of access. The formal dining room features a butler’s pantry and pass-thru to the grand kitchen where coffered ceilings are once again on display. Enormous space is captured in the kitchen and every modern convenience is on display; there is a main center island, a separate walk-in pantry, and an adjoining breakfast nook. The nook has French door access to the continuing outdoor space which houses an outdoor living room with a warming fireplace that extends around the side of the home. The rear family room is encapsulated in window views along with a handsome fireplace and built-in cabinetry. Powder rooms for guests, a mudroom for gear storage, a rear staircase and a residential elevator all provide creature comforts for guests and family alike.

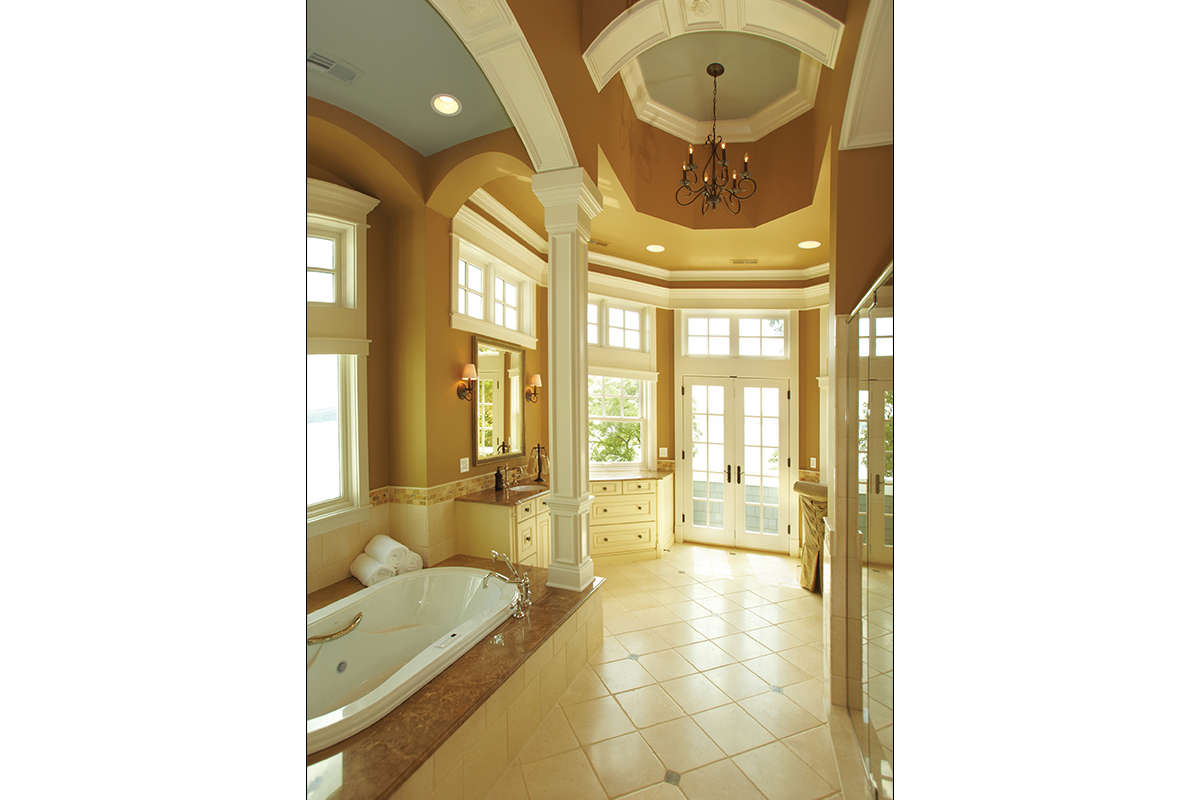

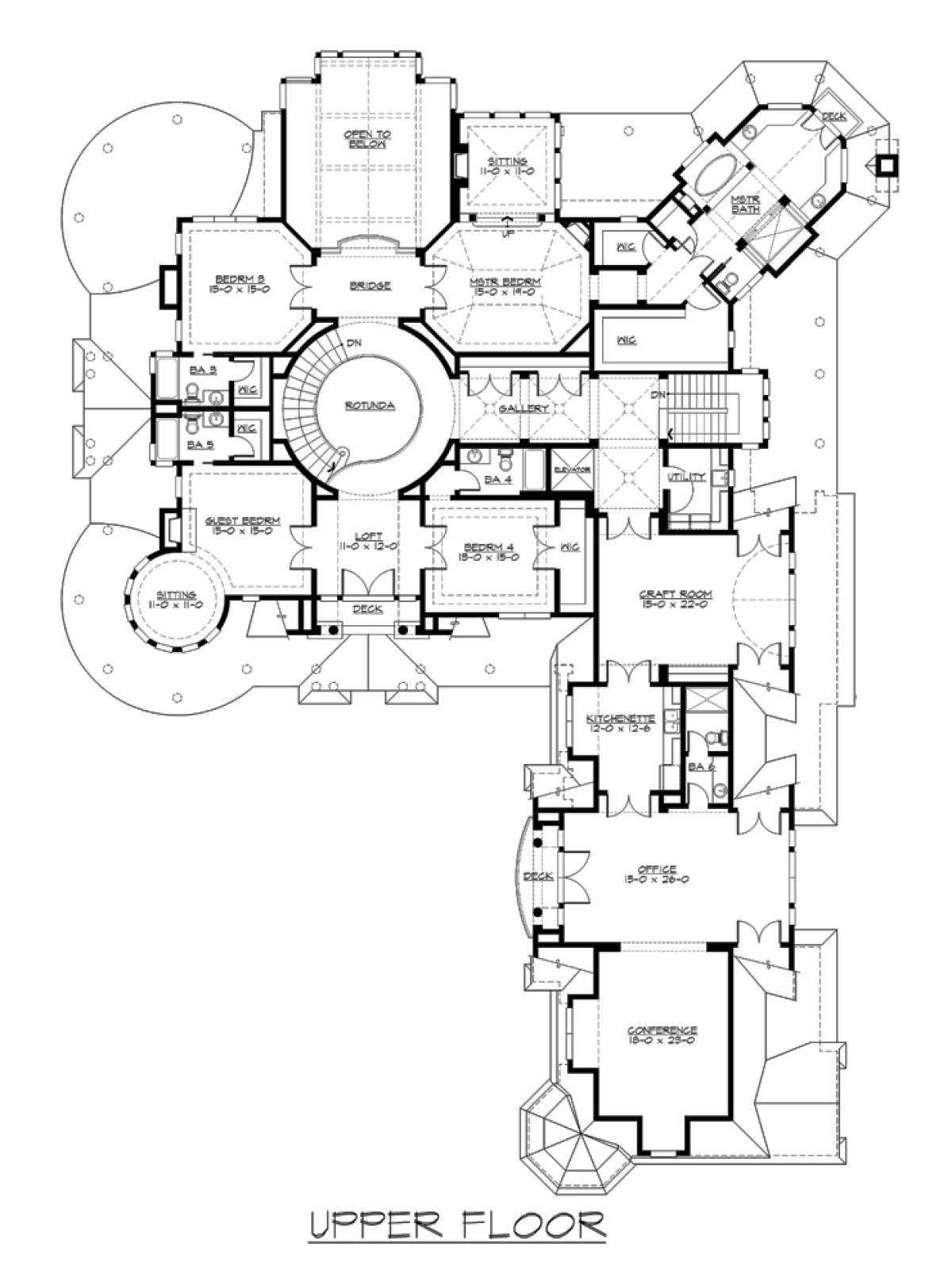

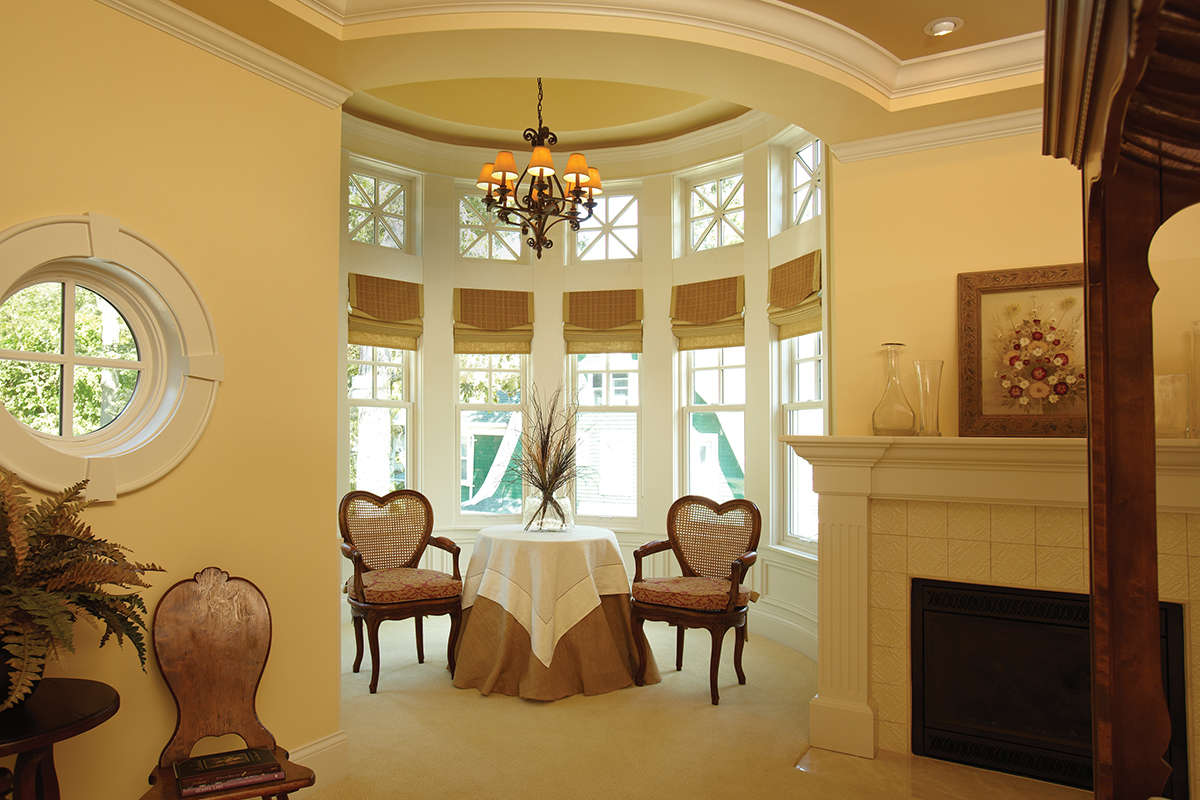

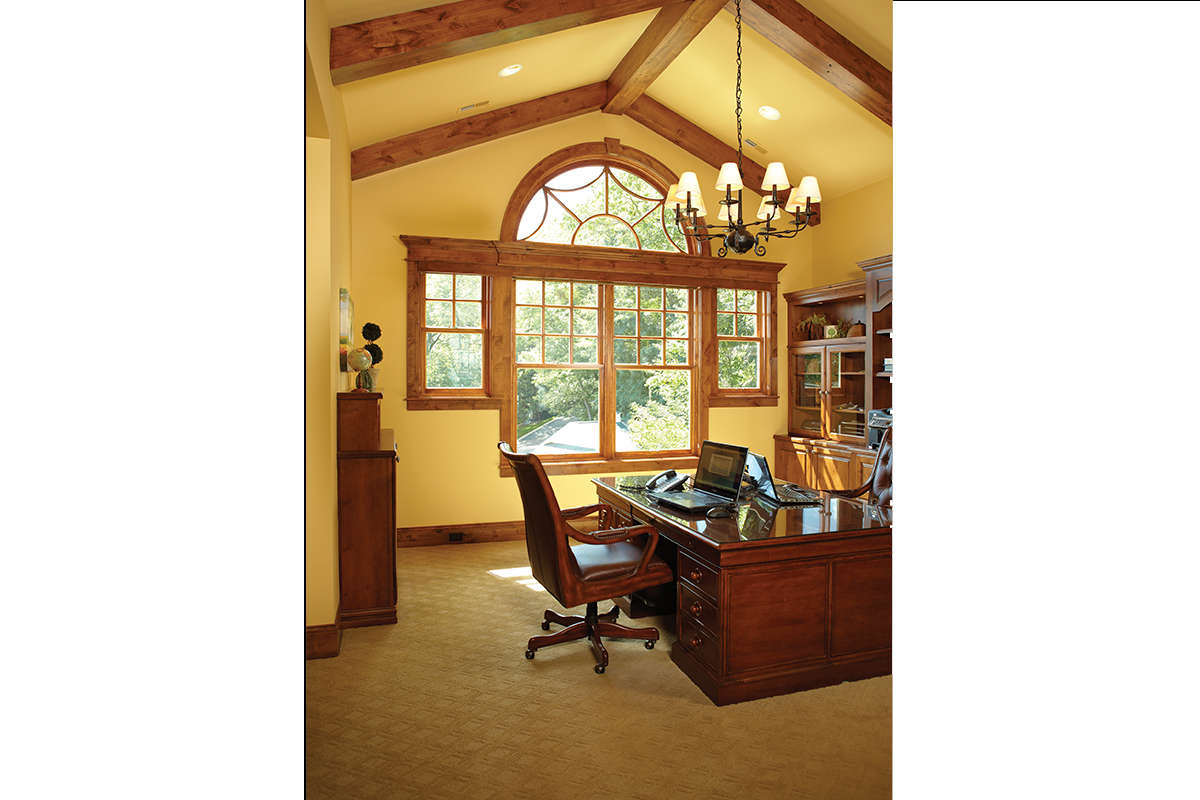

Traveling the winding staircase to the second story is an abundance of bedrooms, baths, and private family spaces. The loft area with a private deck separates the fourth bedroom and guest bedroom; both are oversized, have walk-in closets and private baths and the guest room has an octagonal sitting room ensconced in window views. A fifth bedroom is also similarly appointed and the master suite is the definition of grandeur and luxury with its enormous master bedroom footprint, a warming fireplace, and elegantly designed ceiling work. There is an adjacent sitting room, huge his and her walk-in closets and an en suite bath designed with the “wow” factor that includes access to a private deck. A designated conference room, office space, and craft room envelope a kitchenette and private bath; this space could be utilized as a self-contained executive office or could function as an in-law suite. The terrace level features an abundance of outdoor space and casual entertaining space along with a third bedroom offering private patio access and an oversized bath along with a walk-in closet. There is a recreation room with covered patio and spa access, a game room and a media room that is open to the walk-up bar for convenience. Amazing storage space lines the perimeter of the terrace level and could be utilized for an assortment of purposes. This executive home is perfect for the individual who values their space, family and friends and the opportunity to provide a lavish and fulfilling lifestyle.
