Luxury Plan 341-00298

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #341-00298
Floorplan 2
Floorplan 2 for House Plan #341-00298
Floorplan 3
Floorplan 3 for House Plan #341-00298
Floorplan 4
Floorplan 4 for House Plan #341-00298


What's Included in these plans?

  • Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation specs, and Washington State Energy Code compliance information.
  • Detail Sheet: The detail sheet shows building components at large scale as required to explain construction, including footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.

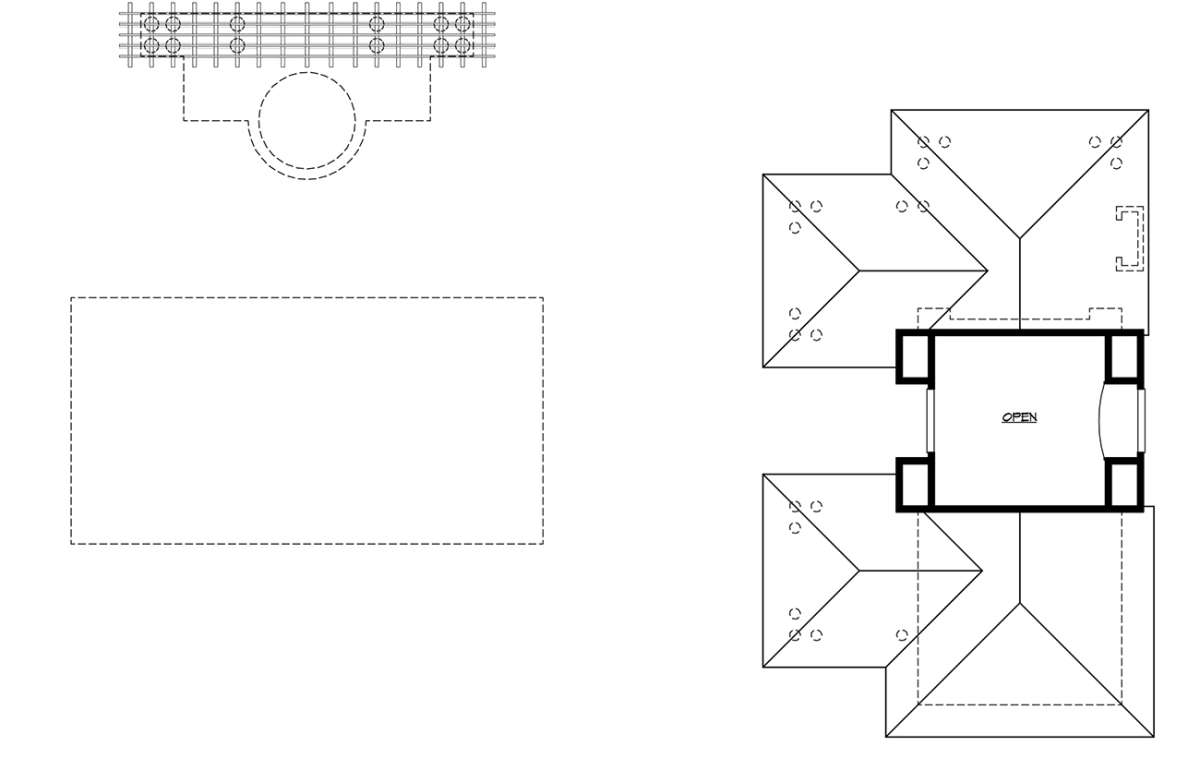

  • Roof and Foundation Plan Sheet: The roof plan shows the location of all hips, ridges, valleys, dormers, overhangs, gutters, downspouts, roof pitches, structural members, vents, skylights, and all other roof features.  The foundation plan shows the layout and location of the crawl space, walk-out basement or slab foundation, along with all necessary notes, dimensions, and structural information.

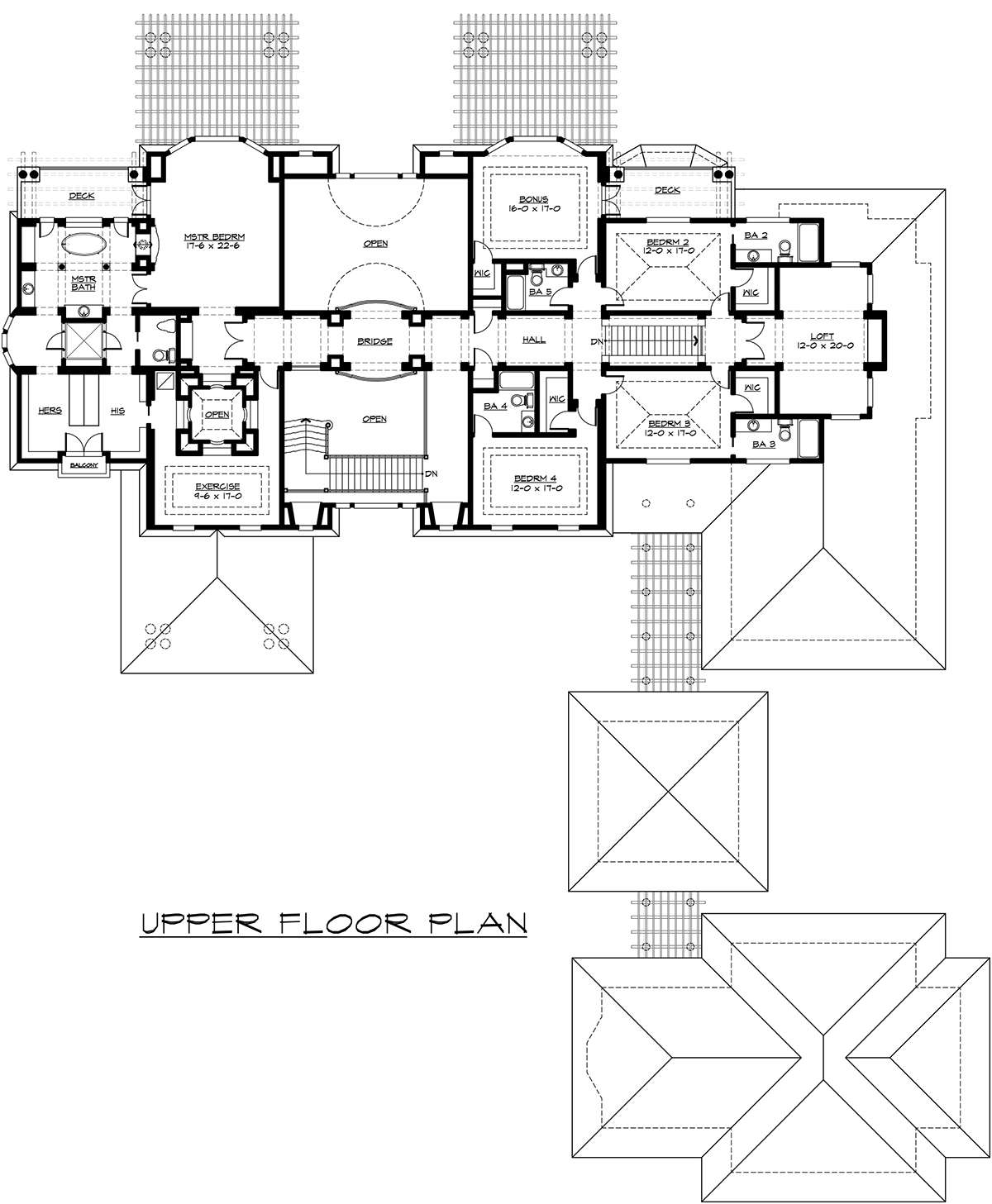

  • Floor Plan Sheet: Floor plans are horizontal sections through each floor level of the home, usually at five feet above the floor, showing the location of interior and exterior walls, floors, stairs, doors, closets, cabinets, flooring, appliances, plumbing fixtures, posts and beams.

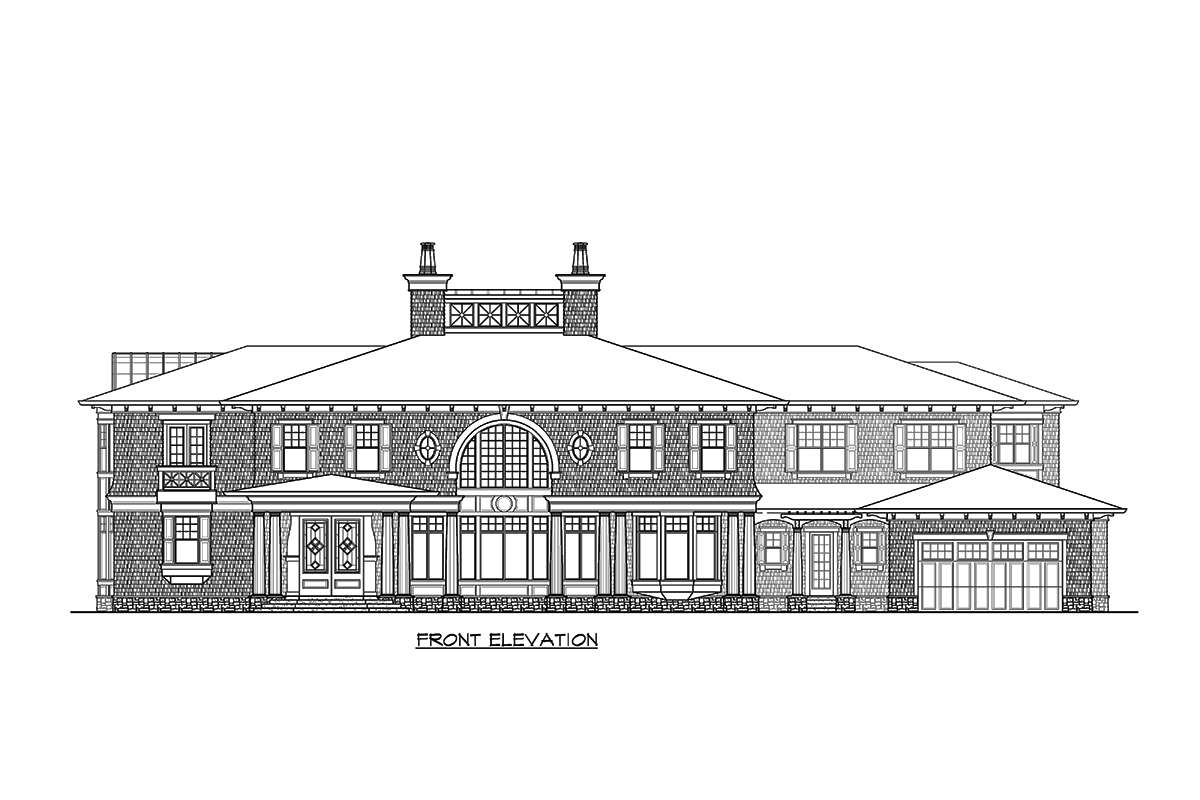

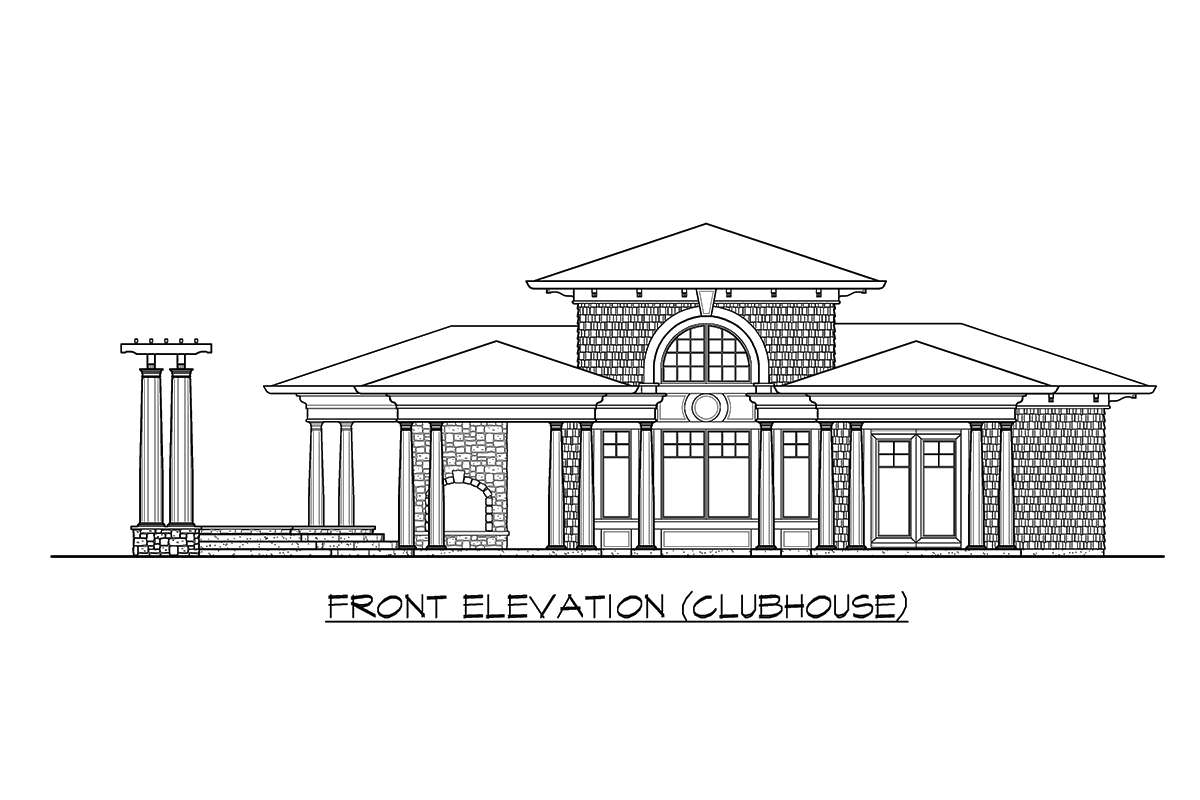

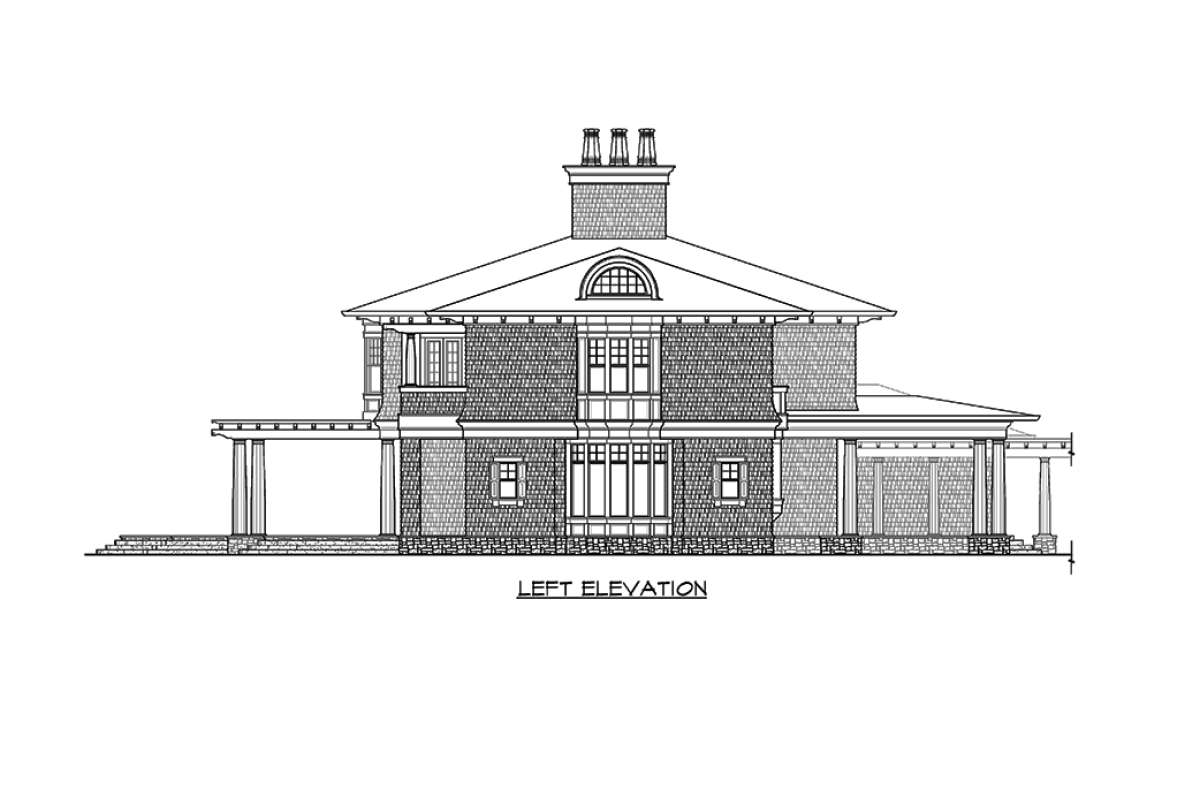

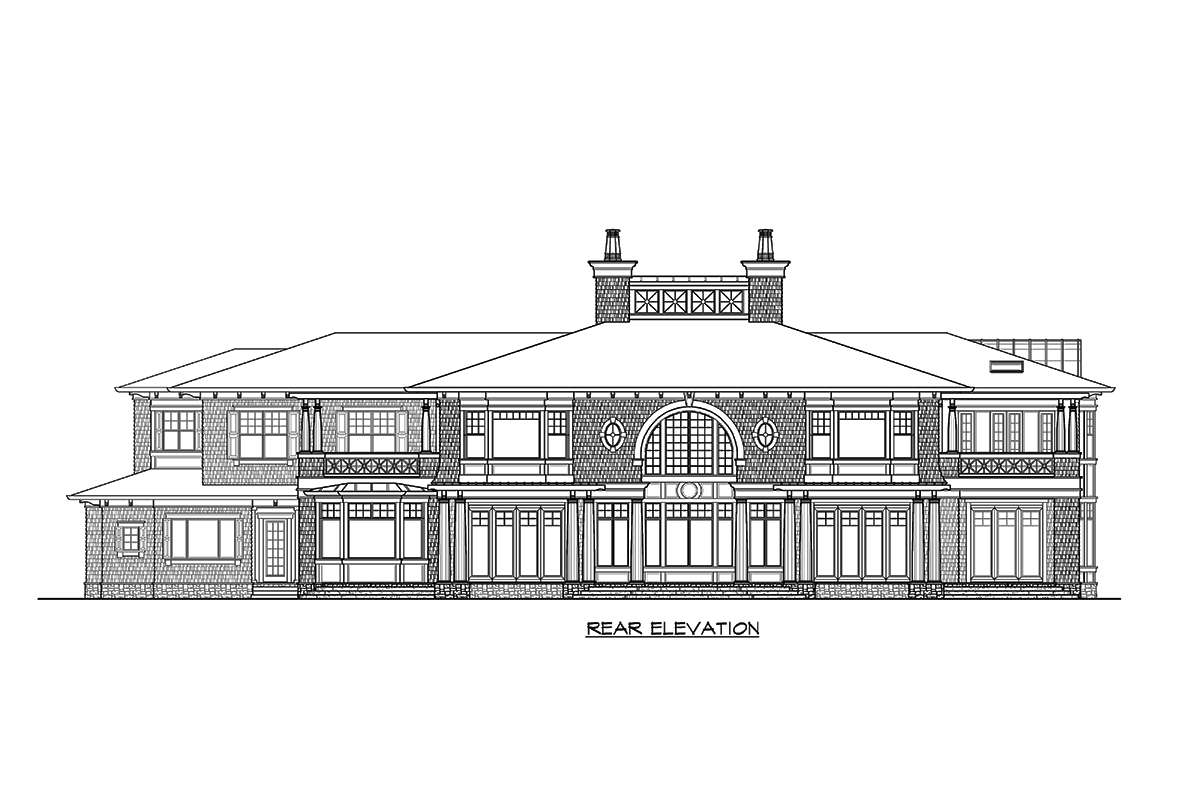

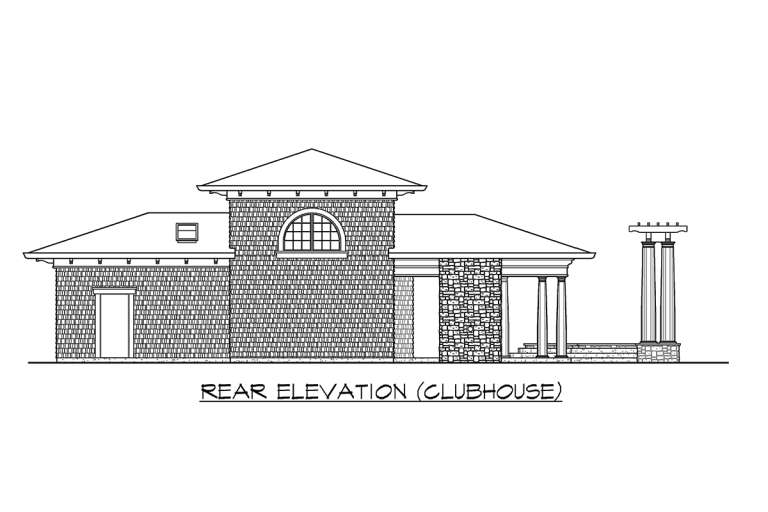

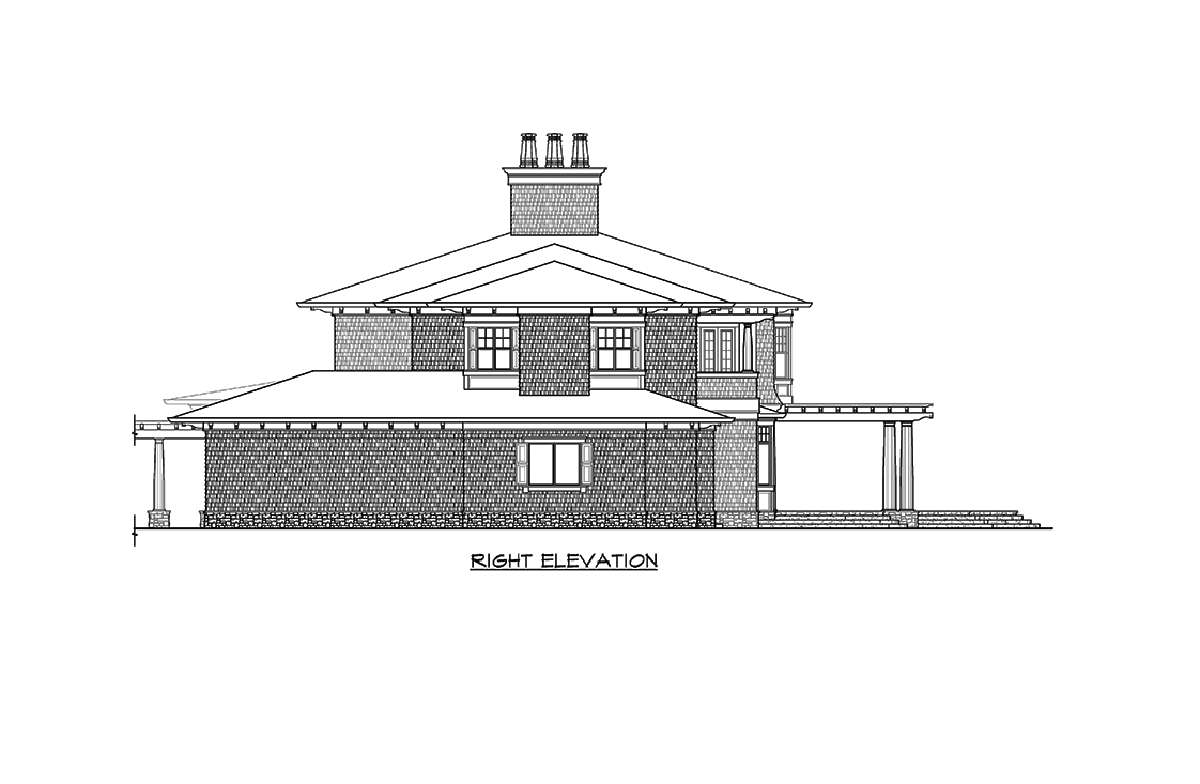

  • Exterior Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet: Building sections are vertical cuts through the home from the roof to the foundation.  The sections illustrate the construction sequence from bottom to top, starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, roof framing, stair construction, windows, doors, venting, exterior and interior finisheds.

Plan FAQs

Important Note--Why can't this plan be sold in the State of Washington?

Not for Sale for Construction in the State of Washington. If you live in the State of Washington and would like to purchase these plans, please contact us for more information. WA State law requires that all plans produced by an architect licensed in the state of WA for construction be stamped by the the architect; consequently, plans not stamped by this designer cannot be built in WA State.  The architect who designed this plan must provide in-state pricing with pricing for any revisions and the required structural engineering. WA State plans must comply with the WA State Energy Code, and the architect guarantees permit approval for the plans, site issues excepted. If you want to build this plan in WA State, please contact us for custom pricing.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

IMPORTANT NOTE: Not for Sale for Construction in the State of Washington. If you live in the State of Washington and would like to purchase these plans, please contact us for more information.

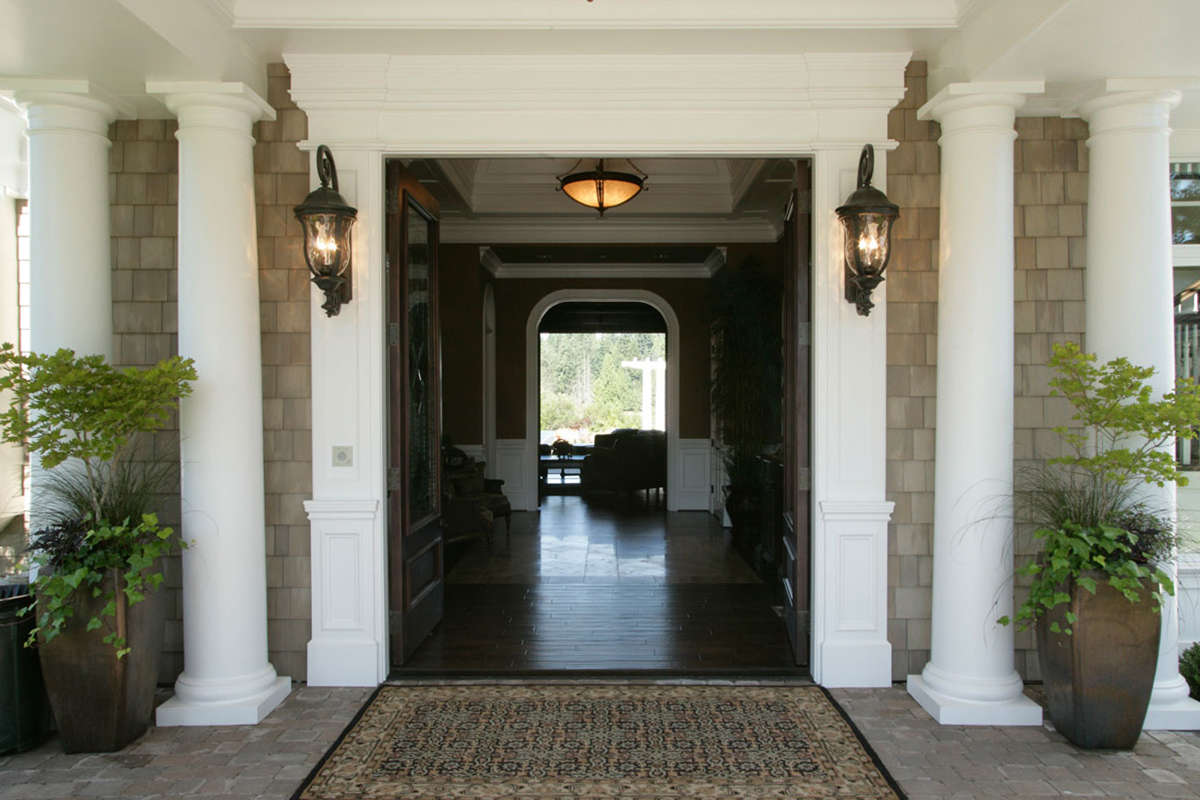

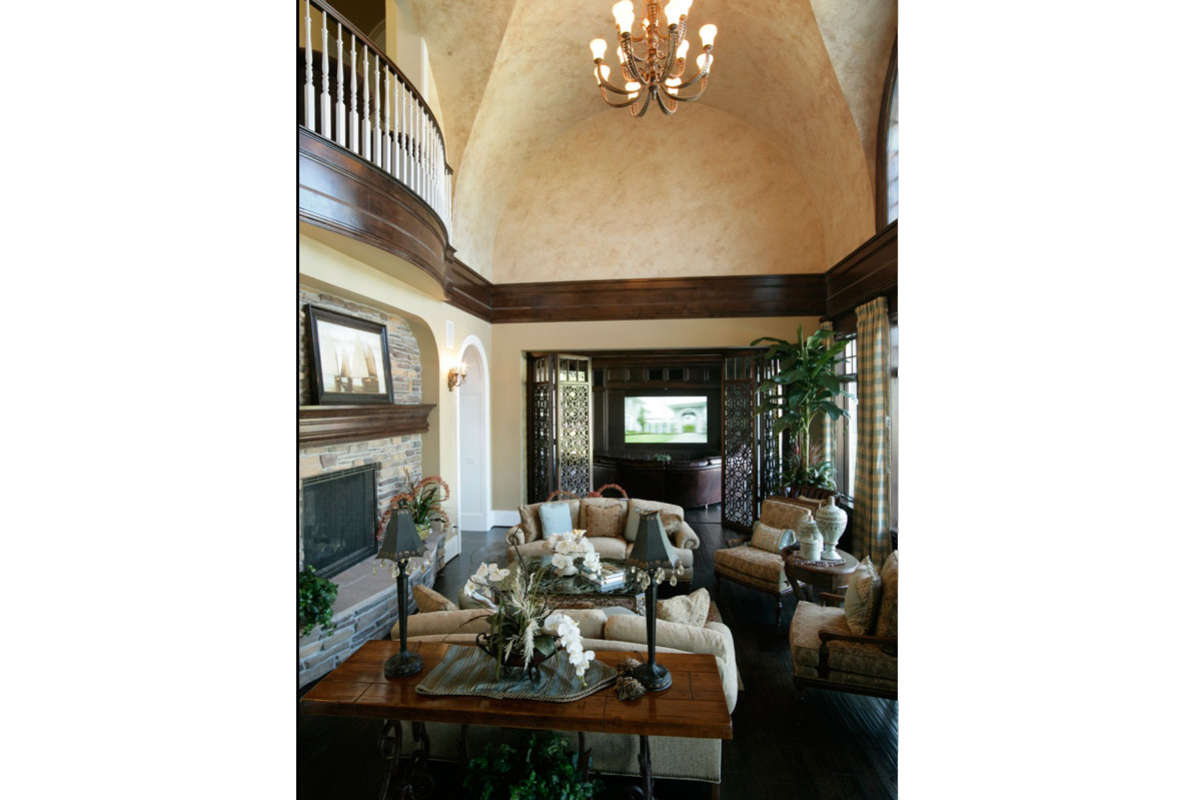

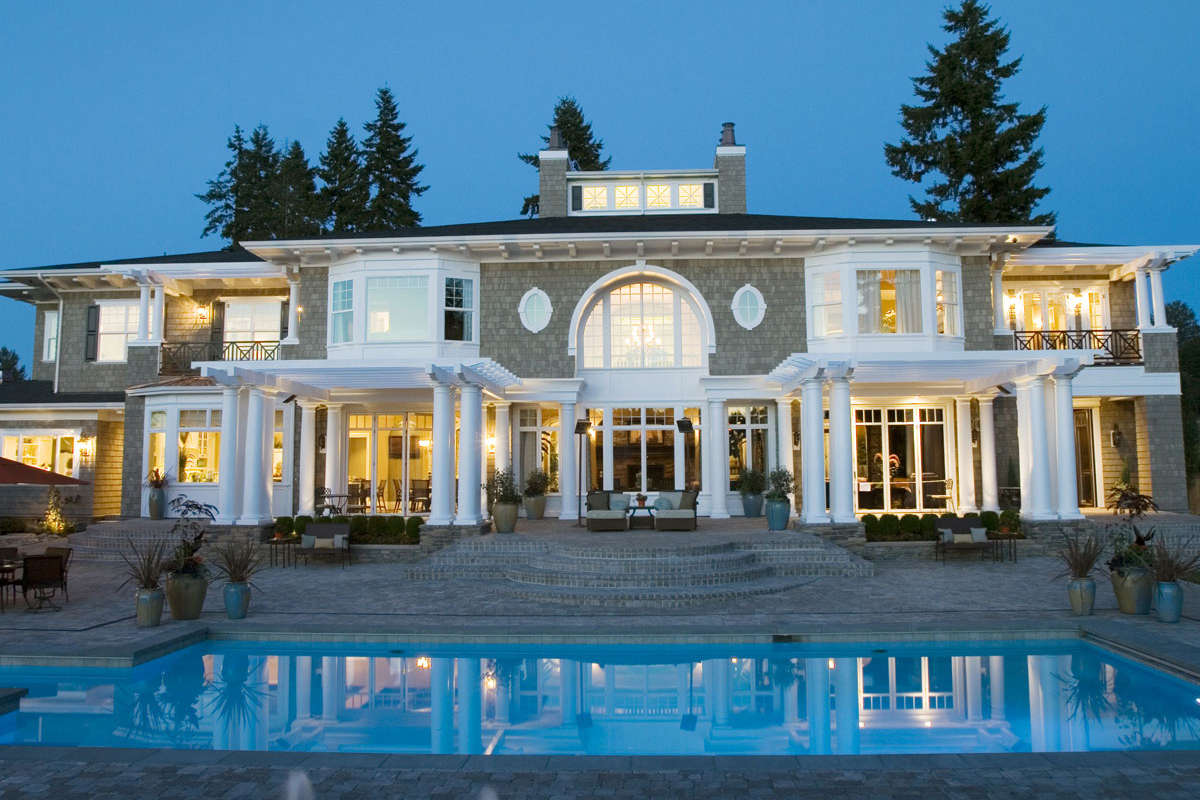

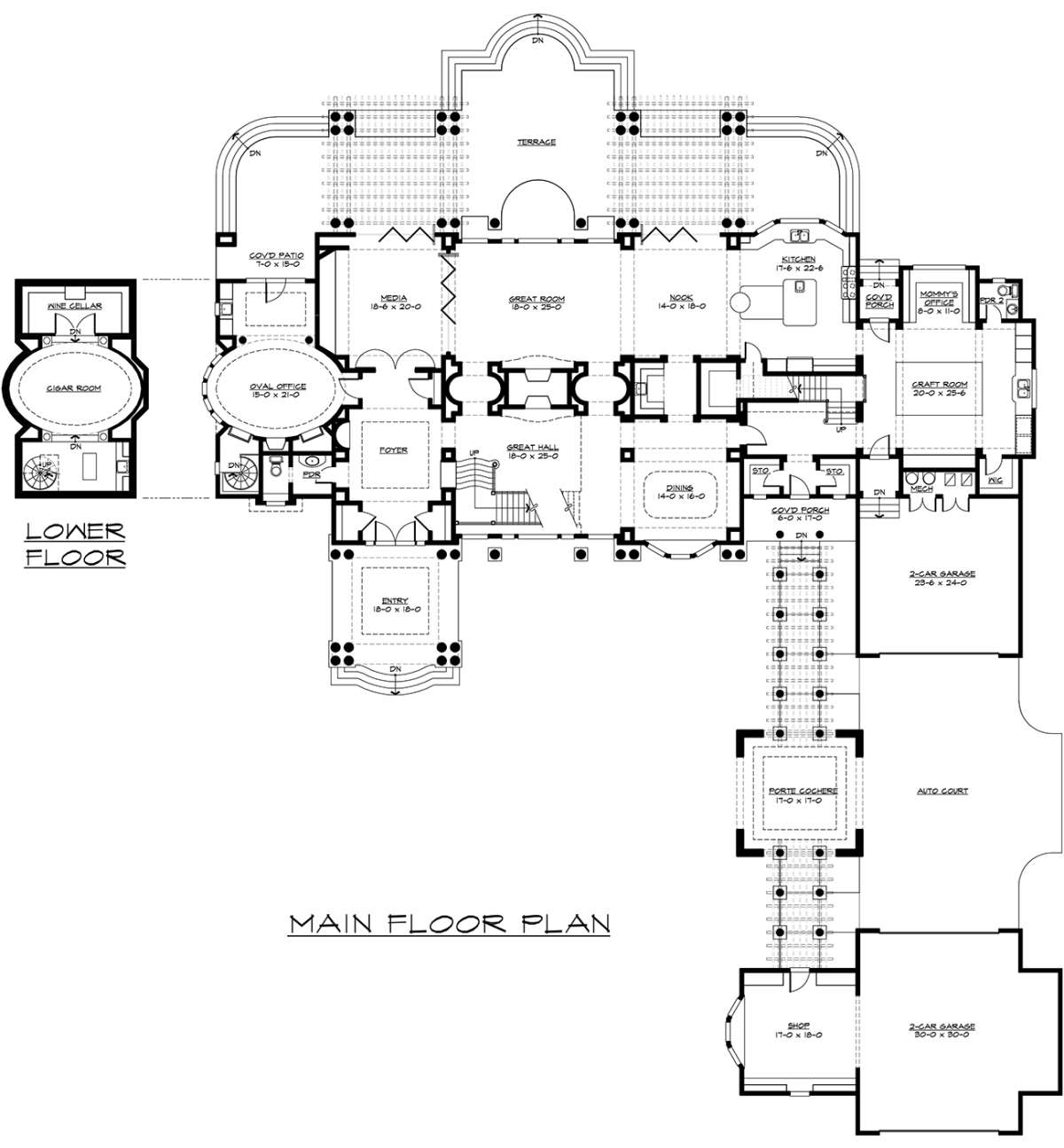

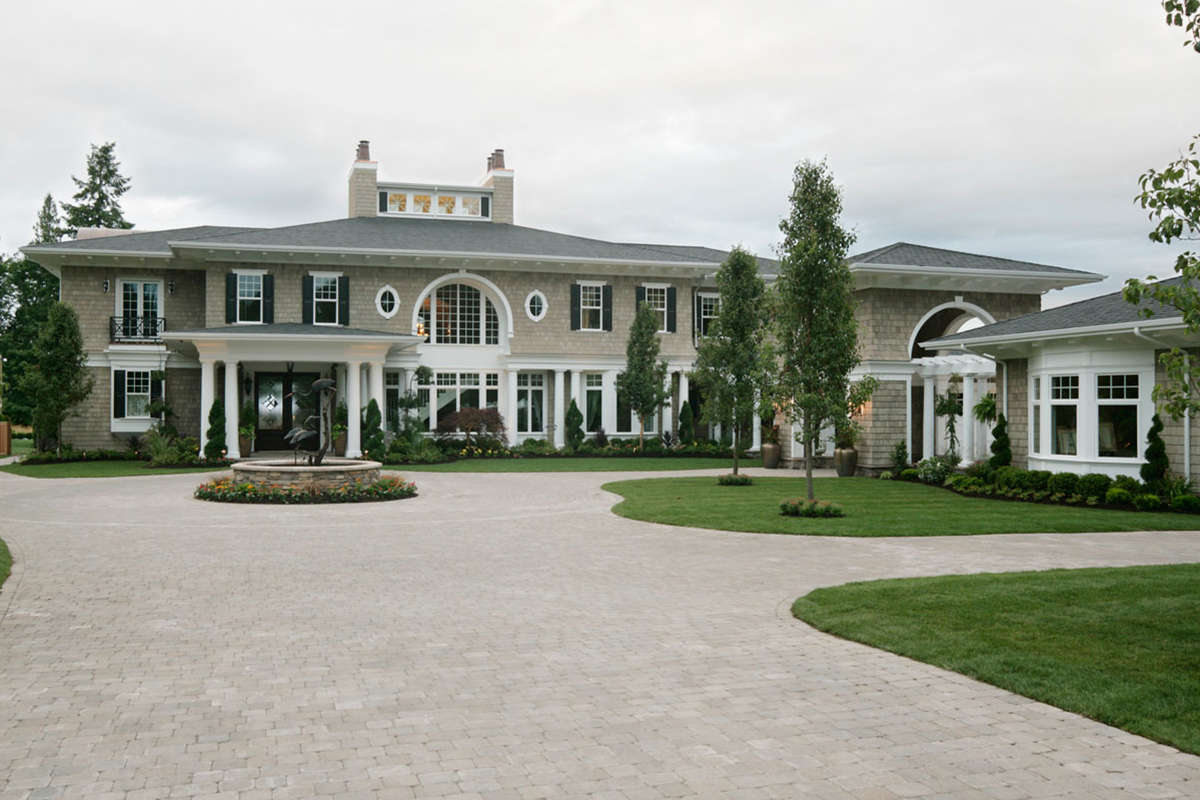

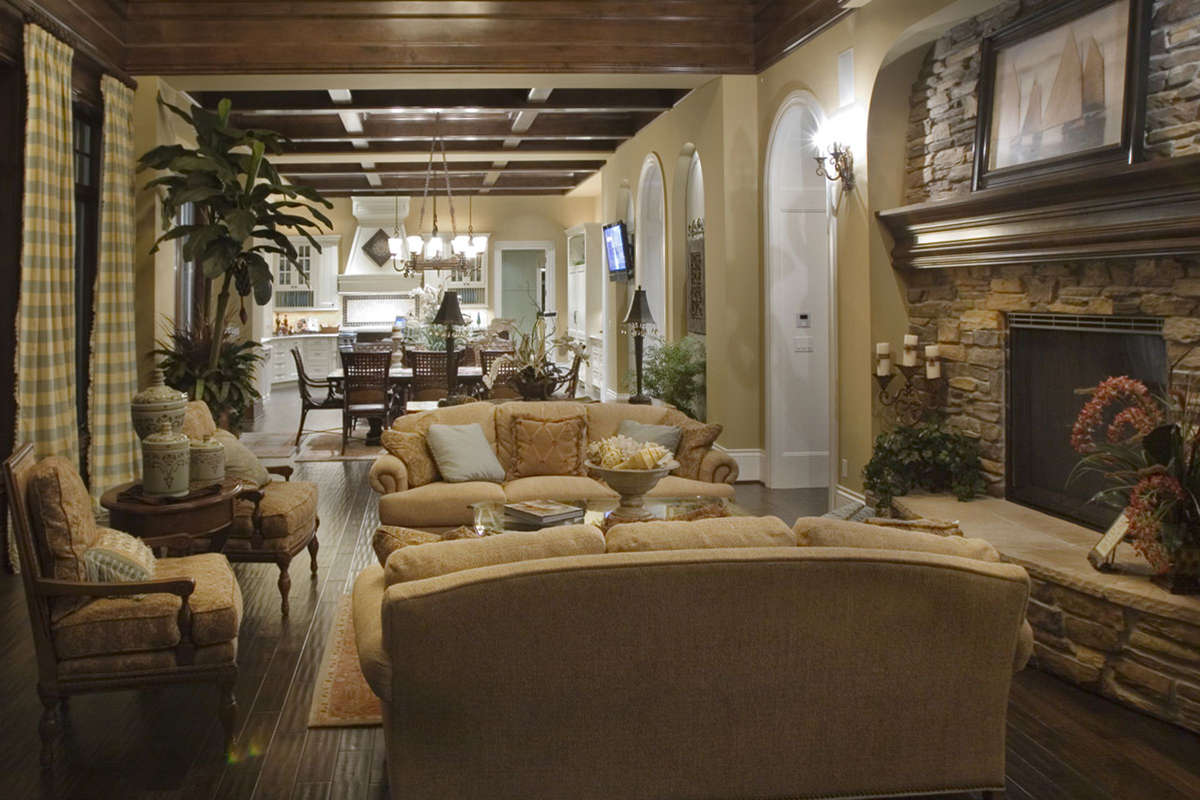

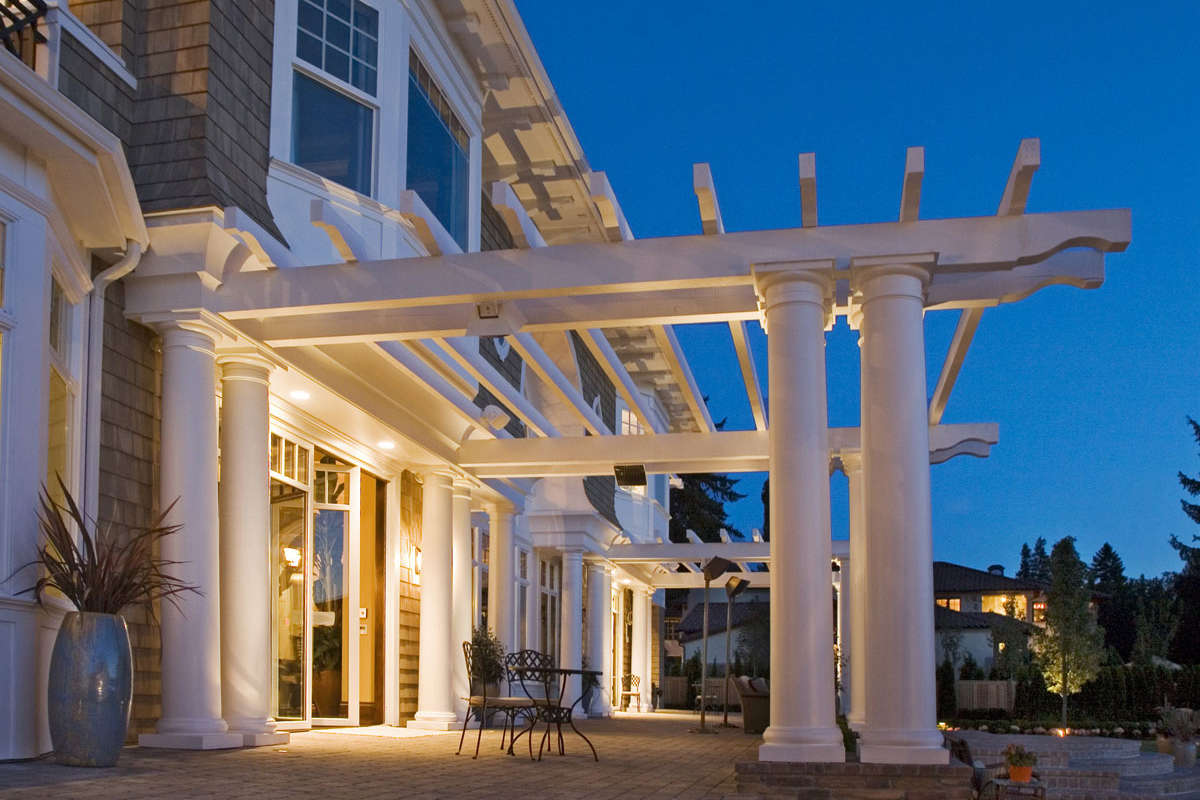

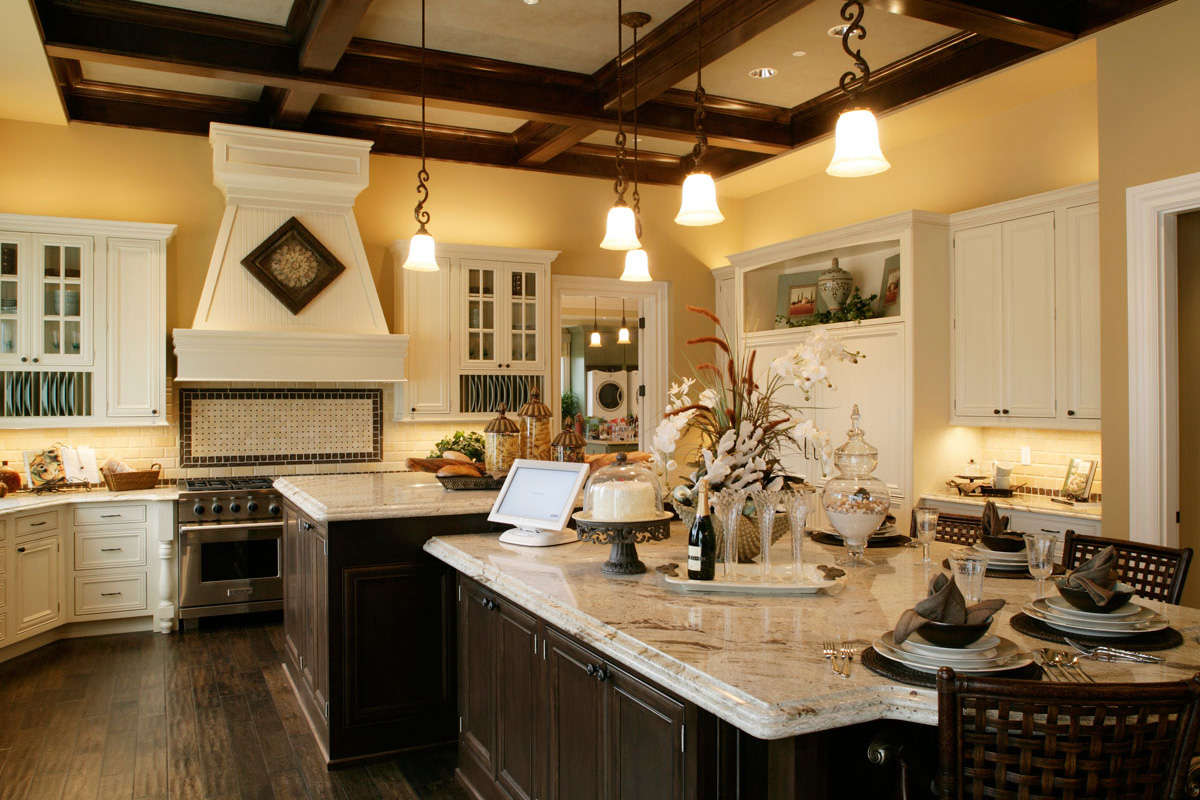

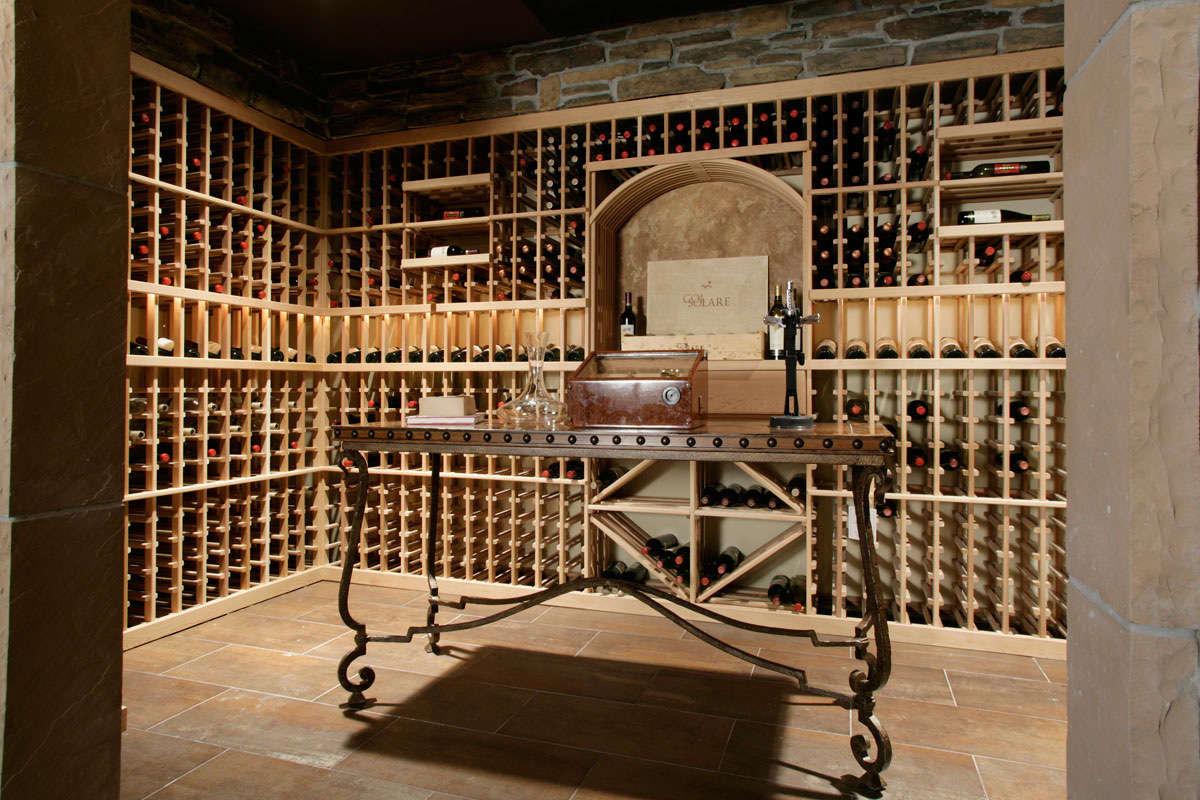

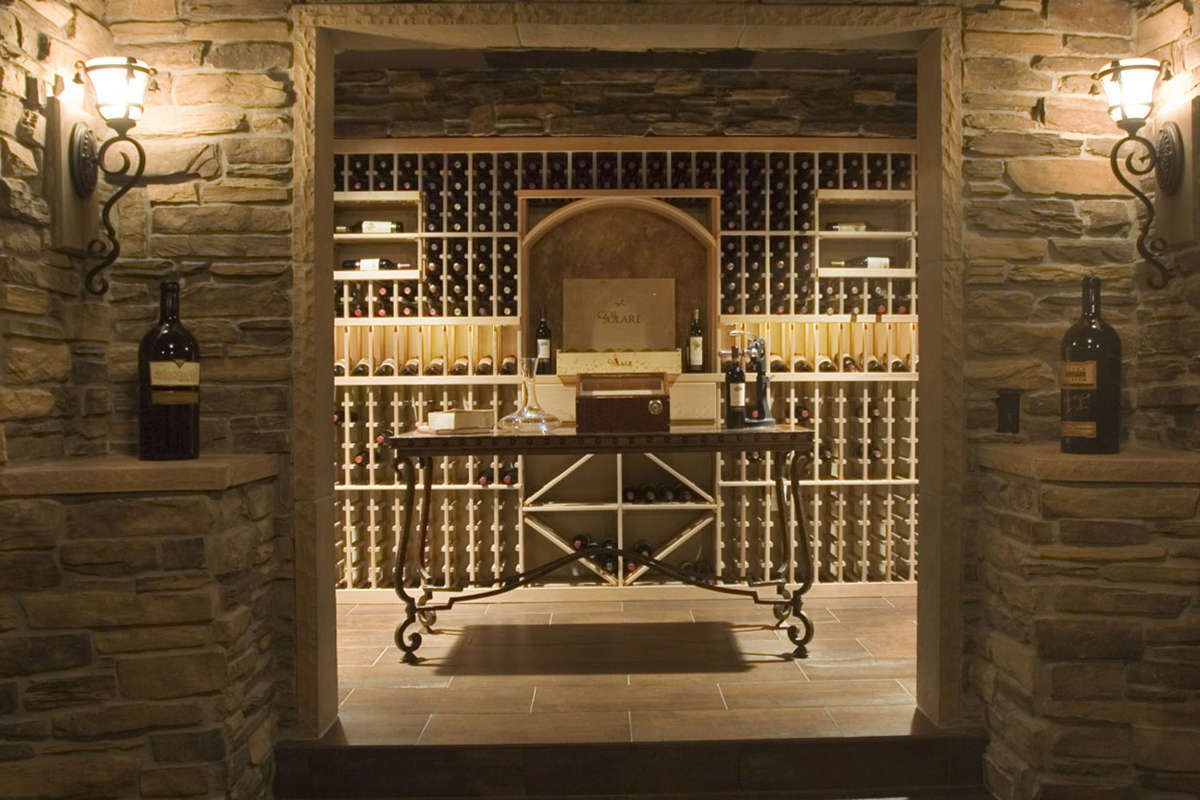

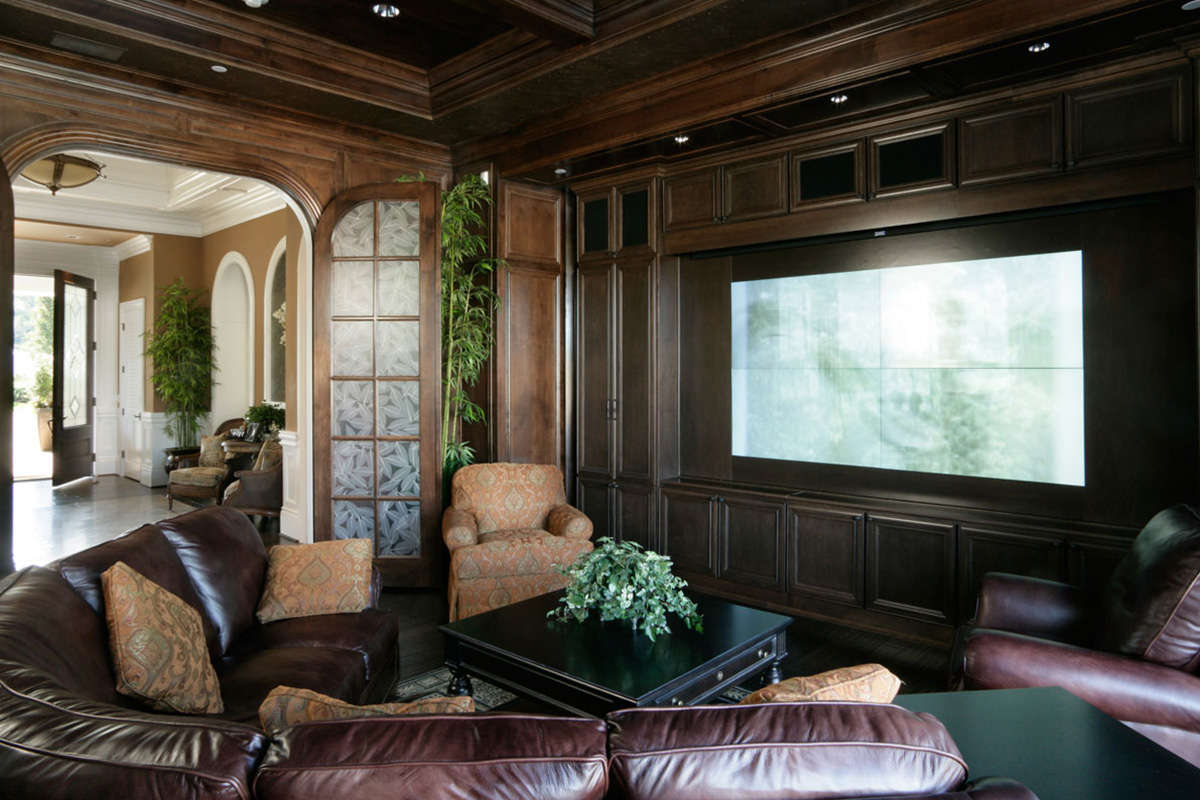

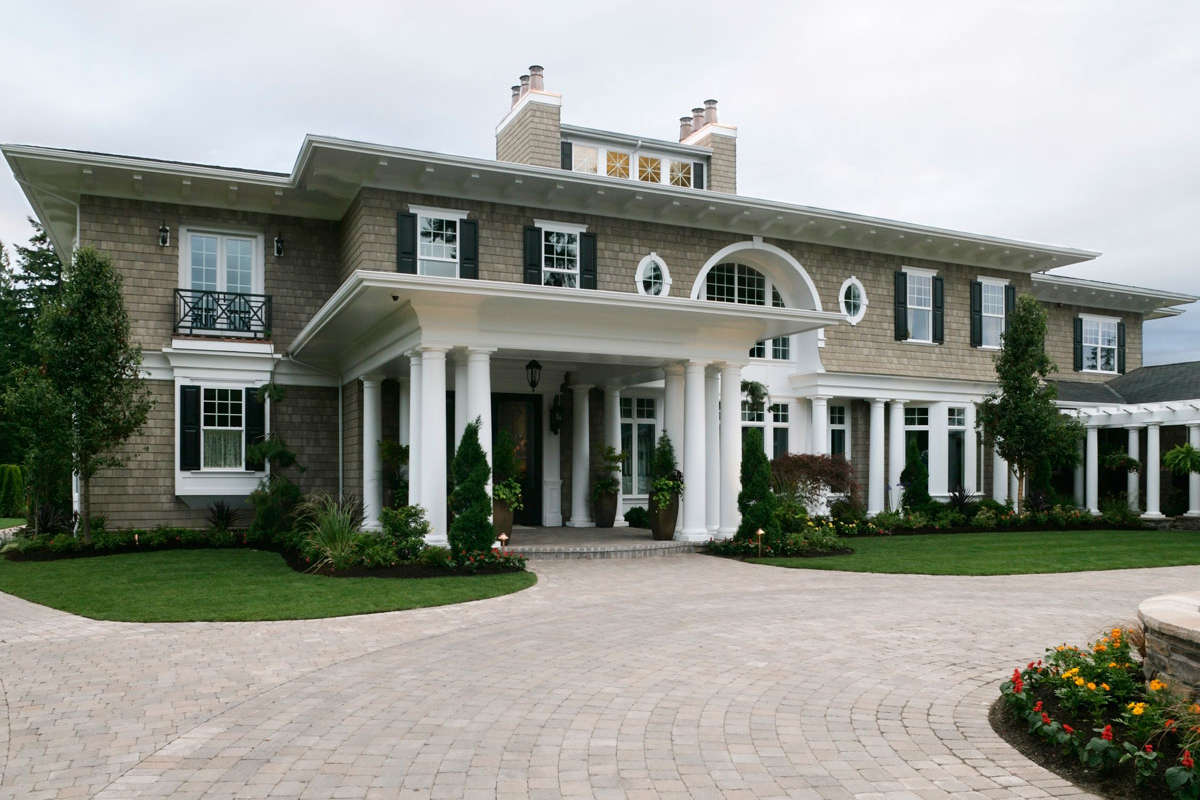

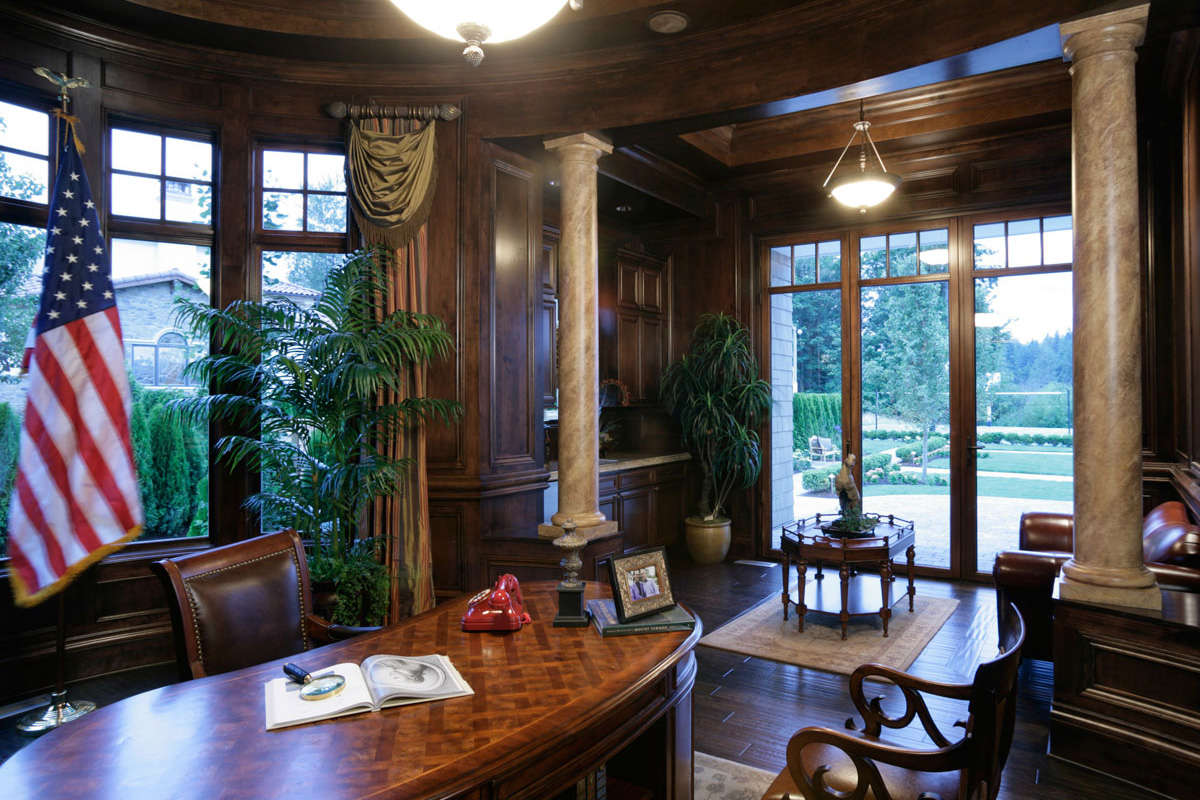

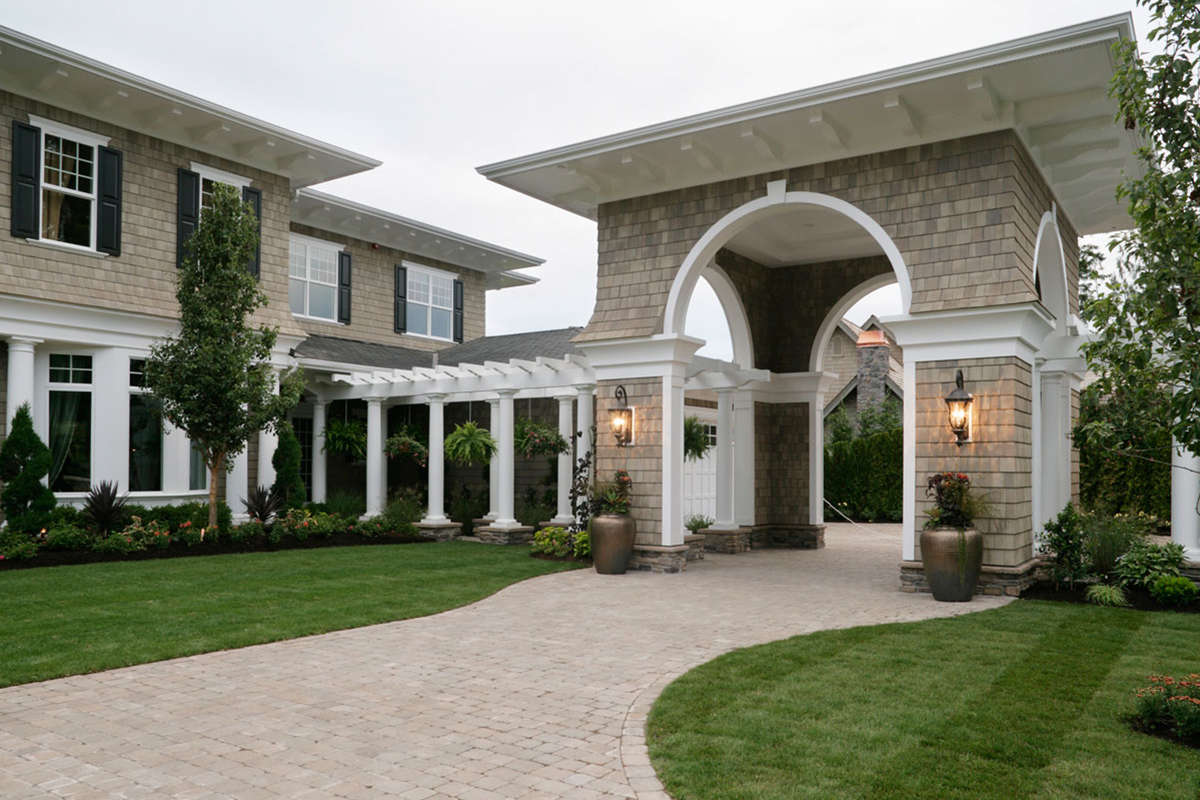

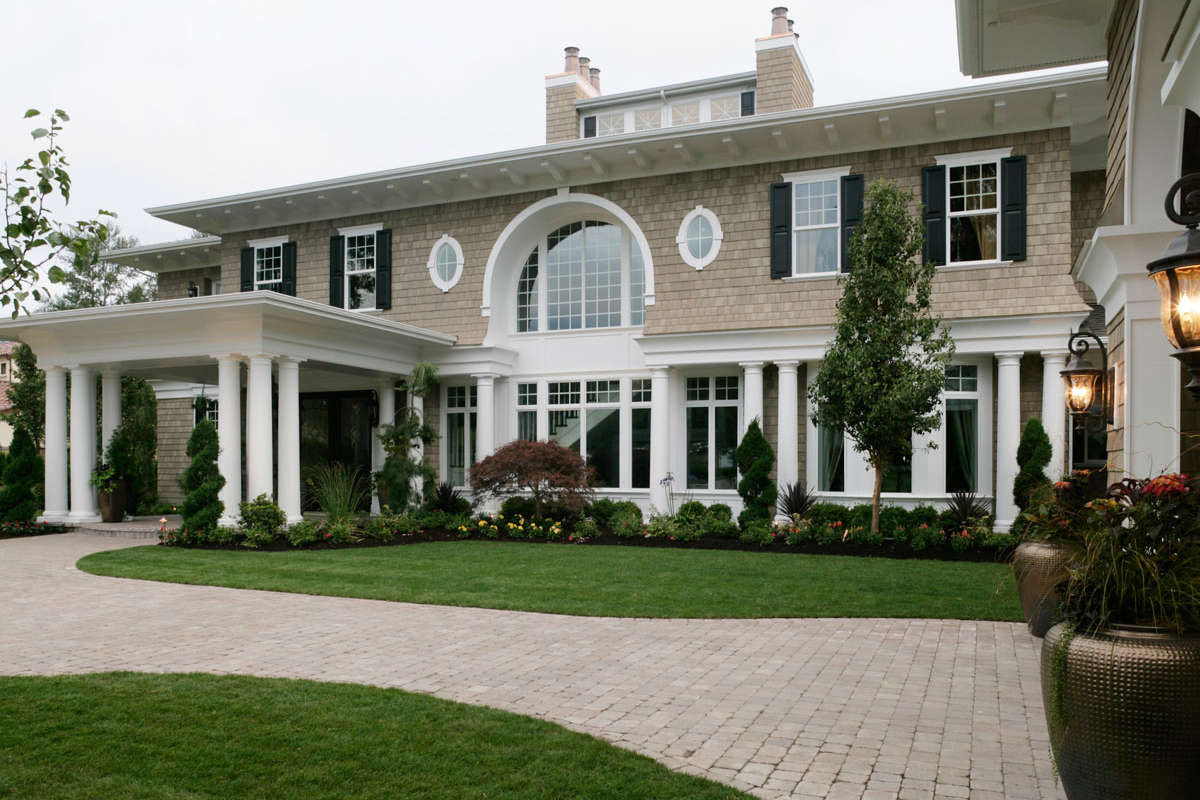

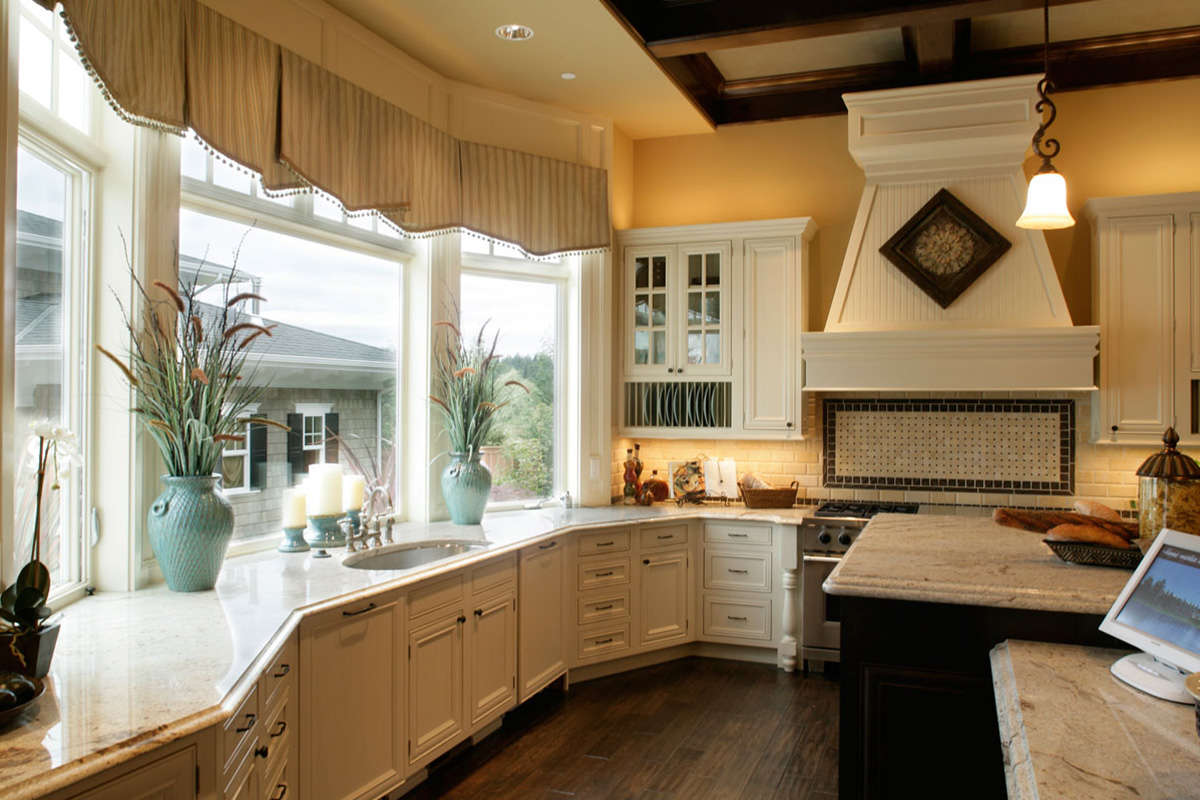

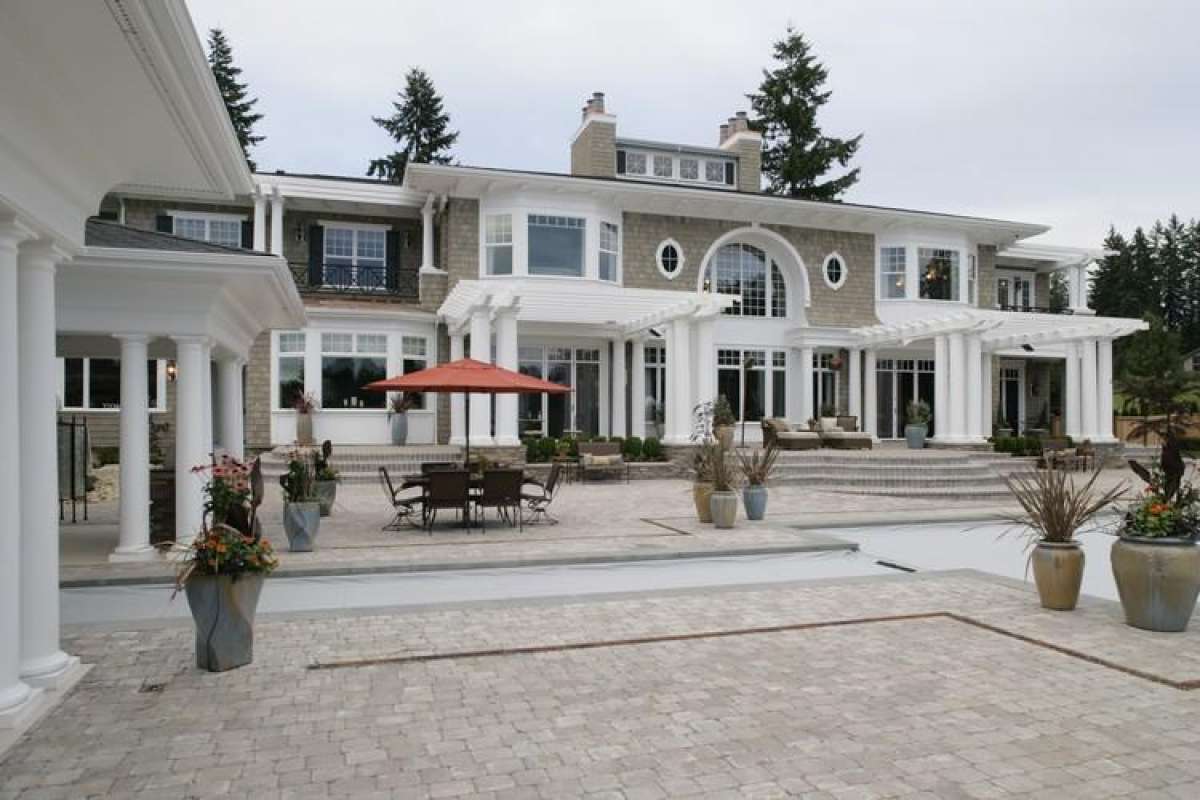

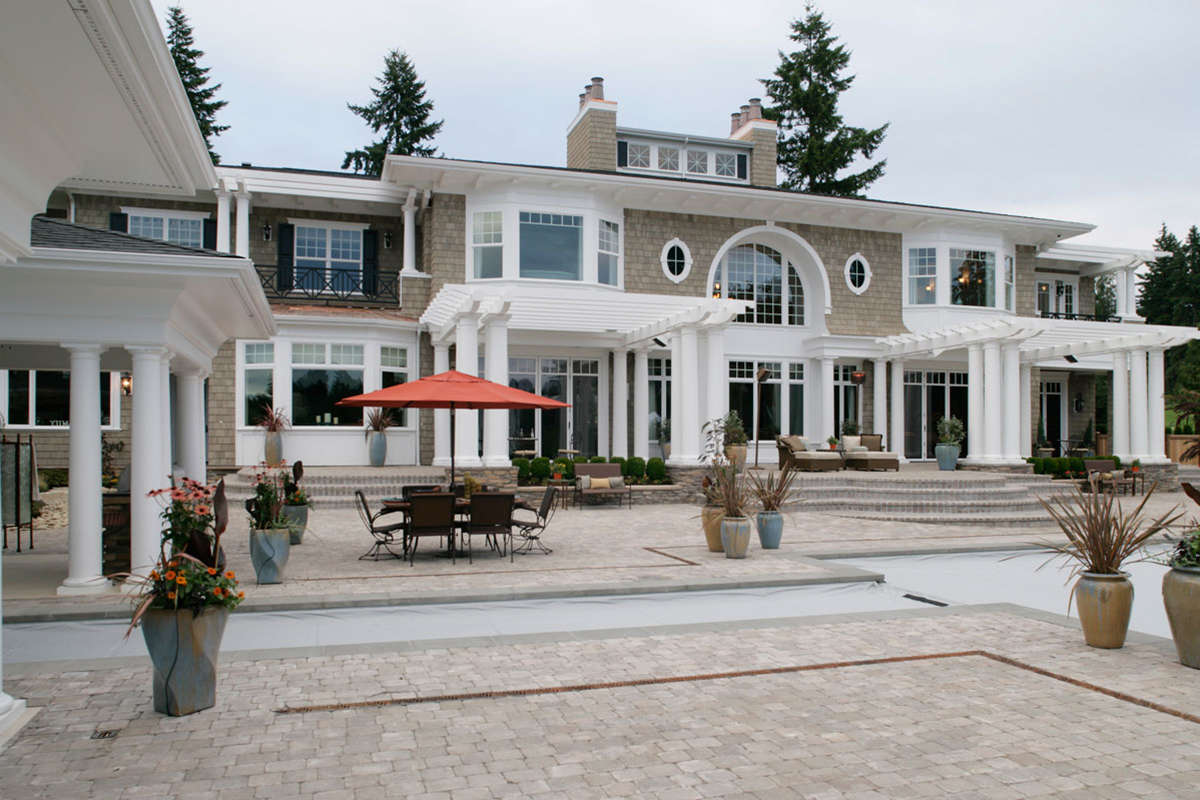

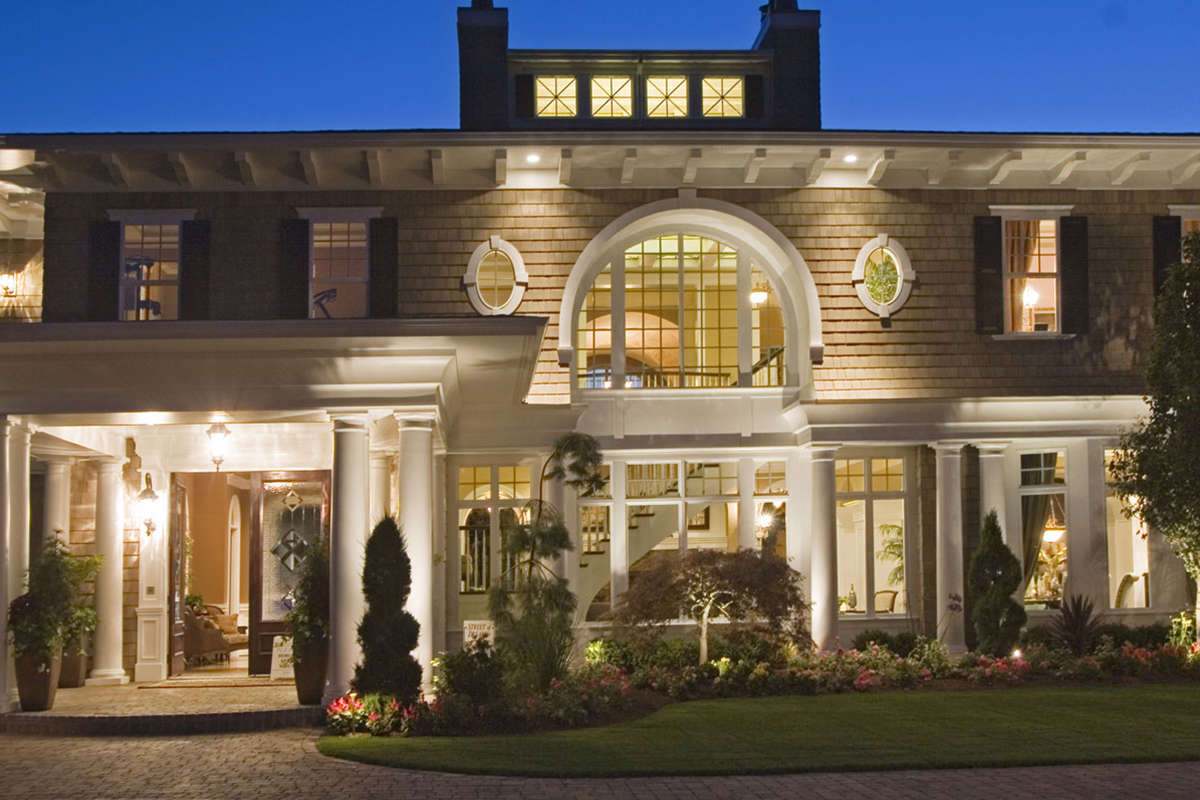

Saturated in gorgeous architectural design elements, the exterior of this Luxury house plan features contemporary components grounded in modern methodology and arranged to heighten visual awareness. Simply stunning, the sprawling exterior features a side porte-cochere for delivery and assembly of family and house guests, a plethora of unique window features and a structurally substantial front covered entrance. The interior floor plan is comprehensive and features in excess of 9,800 square feet of usable living space and there is a 1,525 square foot garage which includes double bays, a workshop and assorted storage options. Well-appointed and spacious rooms abound in the home and include a bevy of entertaining and private family spaces. Double door entry into the home reveals a dramatic foyer which fans out in multiple directions; there is an oval shaped office, a separate cigar room with wine cellar, a media room and great hall before accessing the common family spaces. These spaces feature a great room with a double sided fireplace, a formal dining room and casual breakfast room along with a grand state-of-the-art kitchen which is highlighted with modern amenities, a center island and additional prep/work space. A second office and craft room is strategically arranged and features a half bath, a walk-in closet and access to a covered porch. There is a second covered porch for informal entry into the home, additional storage space and a rear terrace flanked by covered porches and subsequent patio areas for amazing entertaining space.

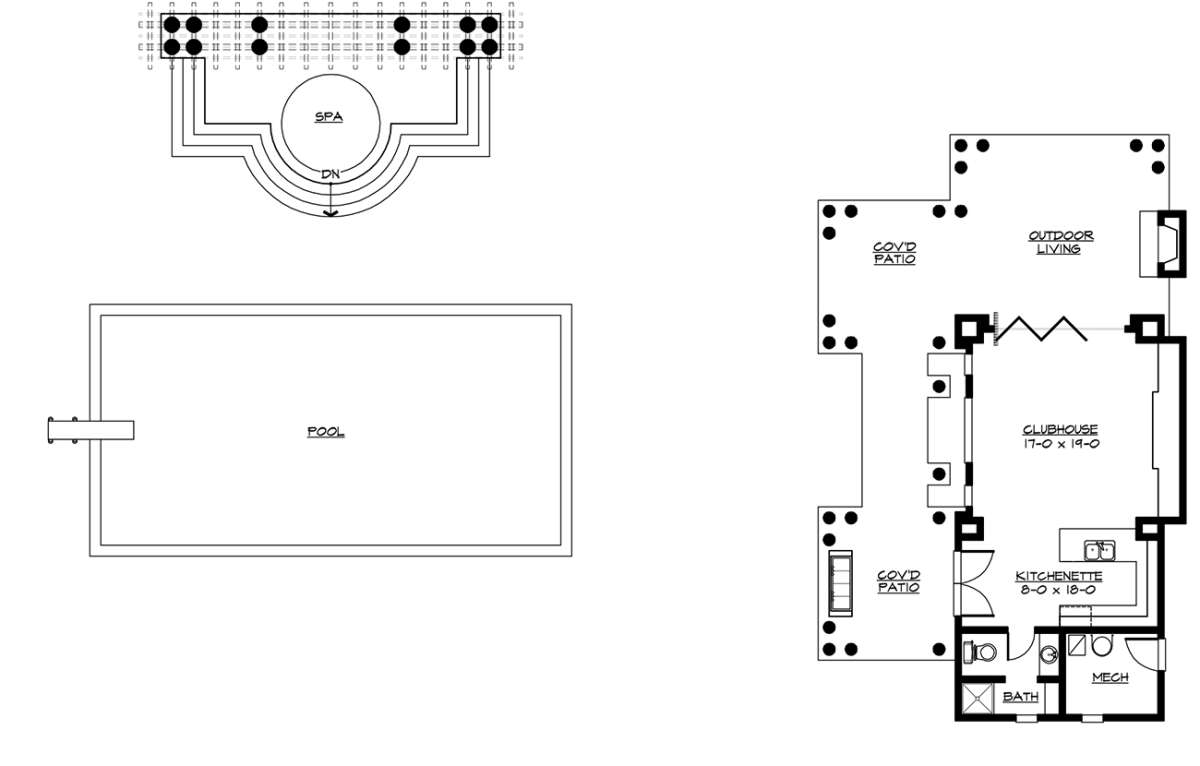

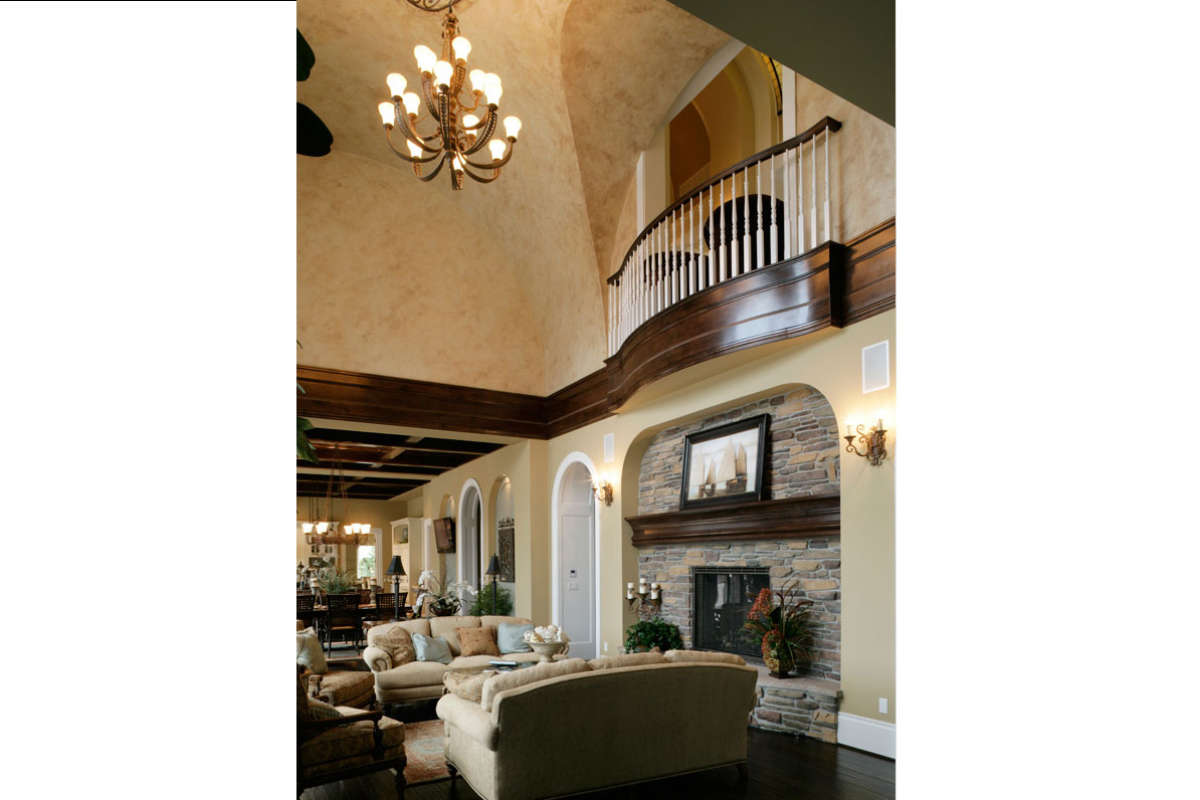

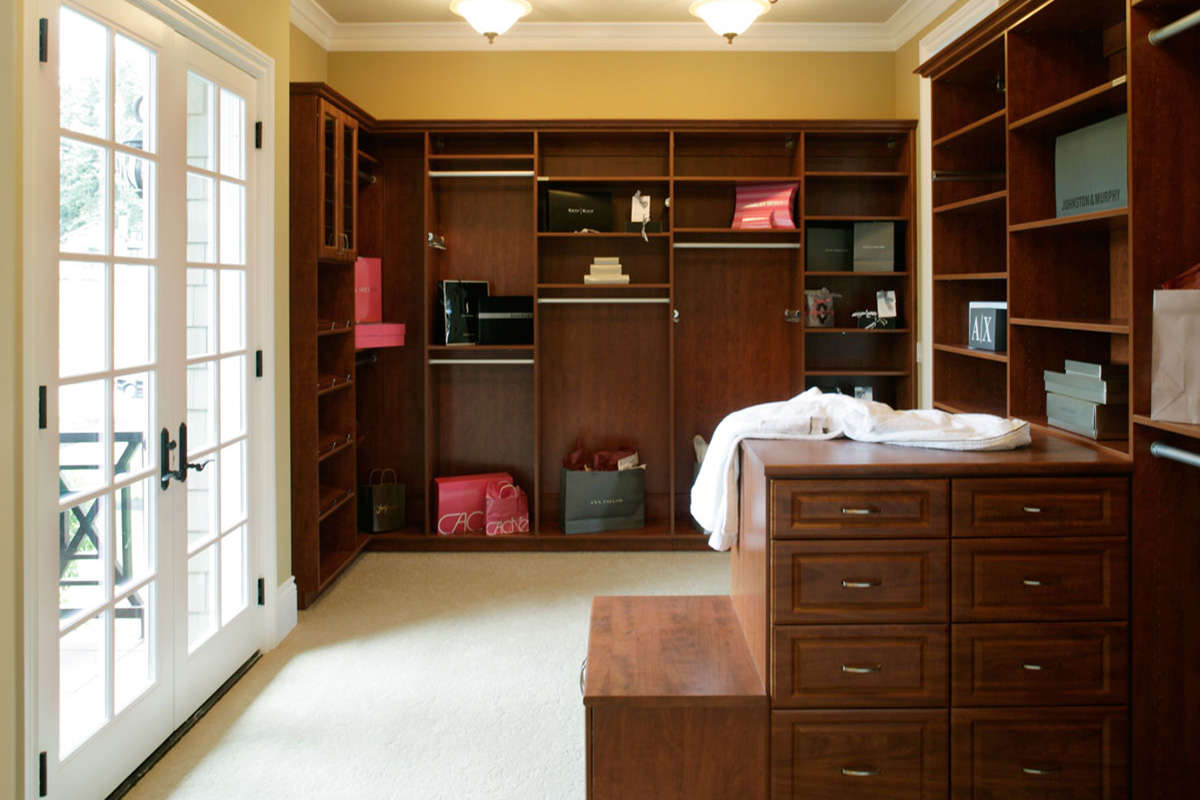

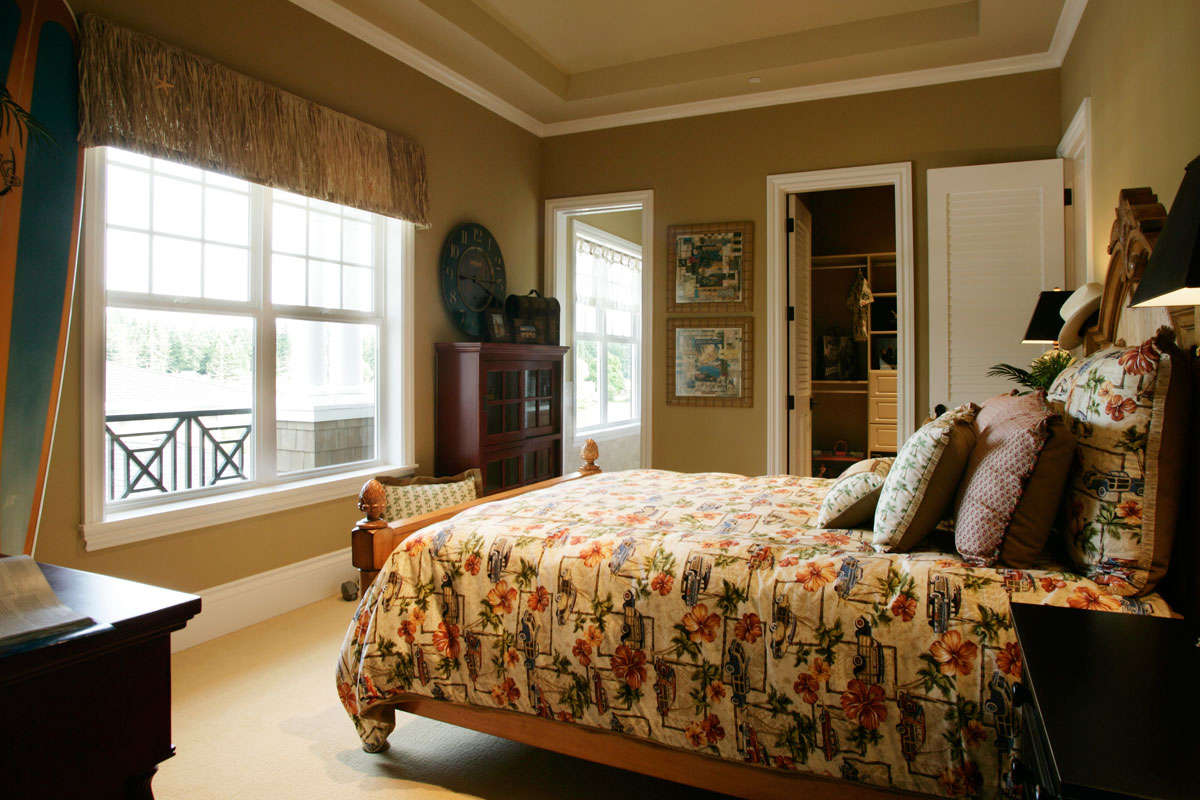

A gorgeous bridge hallway and double balcony overlooks line the second story along with family bedrooms and baths. The master suite features a modern compilation of elegant and grand rooms for the homeowner’s pleasure and comfort. There is an enormous bedroom with a bayed window and private deck access, an attached exercise room, his and her walk-in closets and an en suite bath fully lined with modern amenities. Three large bedroom suites with walk-in closets and private baths also line the upper level along with a bonus room space with private deck access and a loft space for family lounging. There is a third living space comprised of outdoor terrace living space and an interior clubhouse with kitchenette and full bath. This home features contemporary and modern elements both on the interior and exterior of the home for an unparalleled living experience.
