Craftsman House Plan 341-00276

Sq Ft4,725
Beds4
Baths4
1/2 Baths1
Stories2
Cars4
Width71' 0"
Depth70' 0"
  REVERSE    Images copyrighted by the designer, and may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

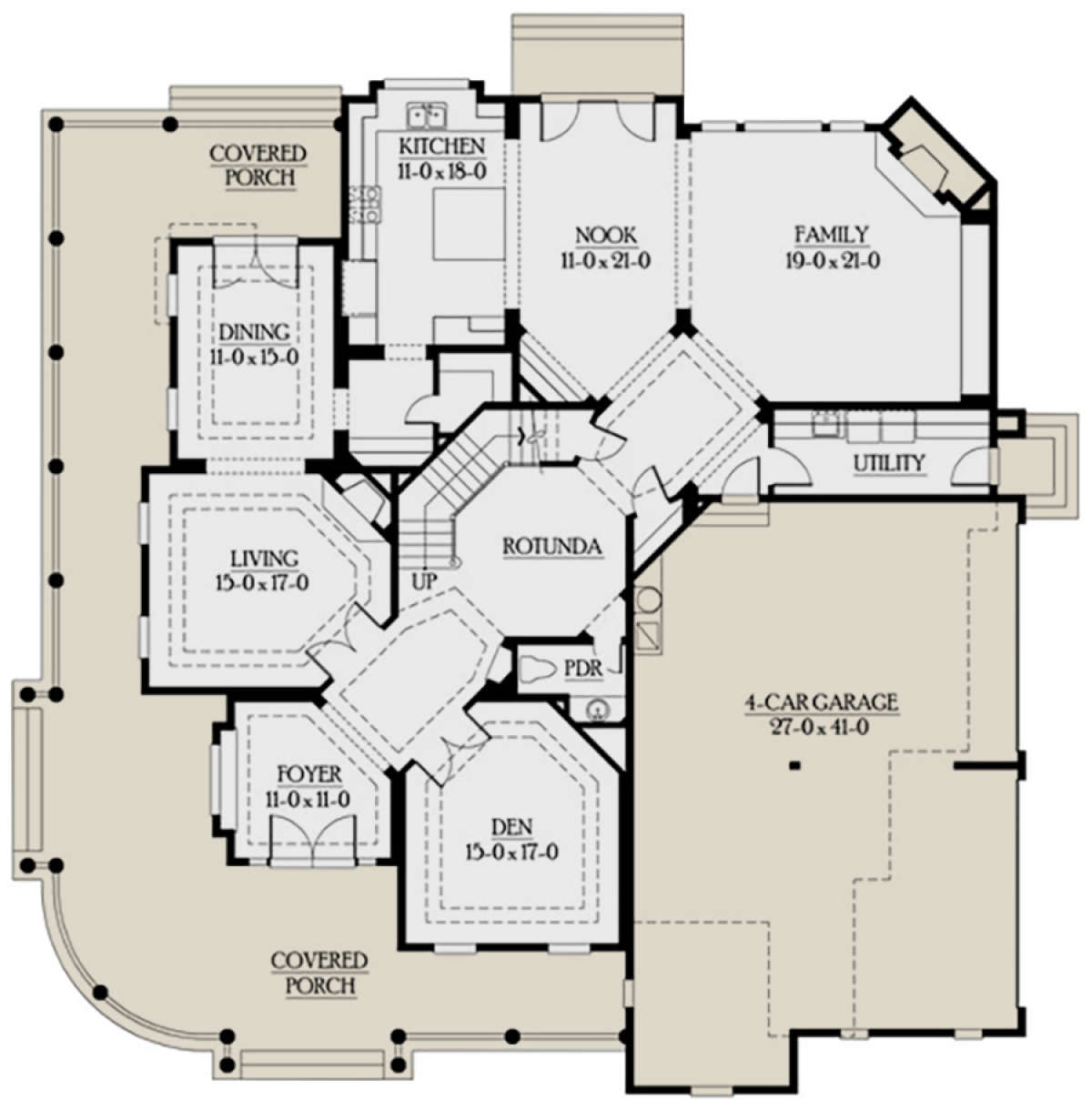

Floorplan 1
Floorplan 2


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation specs, and Washington State Energy Code compliance information.
  • Detail Sheet: The detail sheet shows building components at large scale as required to explain construction, including footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Roof and Foundation Plan Sheet: The roof plan shows the location of all hips, ridges, valleys, dormers, overhangs, gutters, downspouts, roof pitches, structural members, vents, skylights, and all other roof features.  The foundation plan shows the layout and location of the crawl space, walk-out basement or slab foundation, along with all necessary notes, dimensions, and structural information.
  • Floor Plan Sheet: Floor plans are horizontal sections through each floor level of the home, usually at five feet above the floor, showing the location of interior and exterior walls, floors, stairs, doors, closets, cabinets, flooring, appliances, plumbing fixtures, posts and beams.

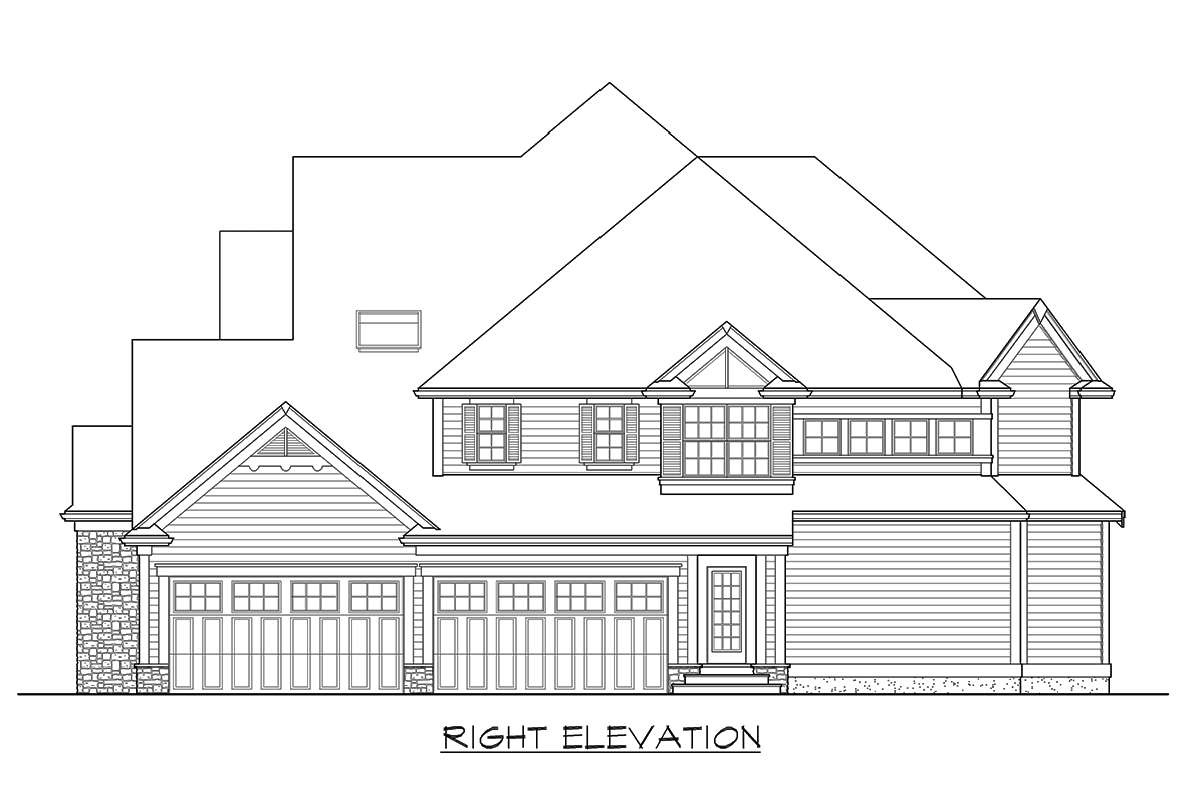

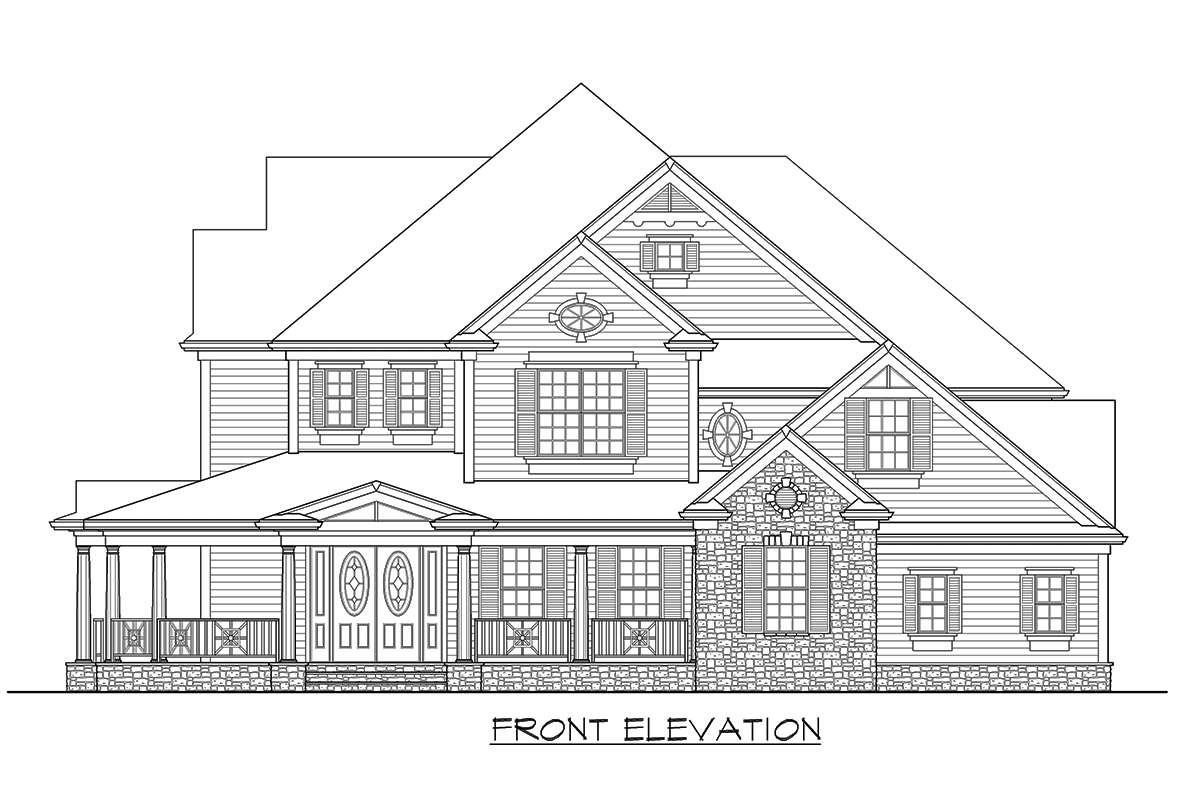

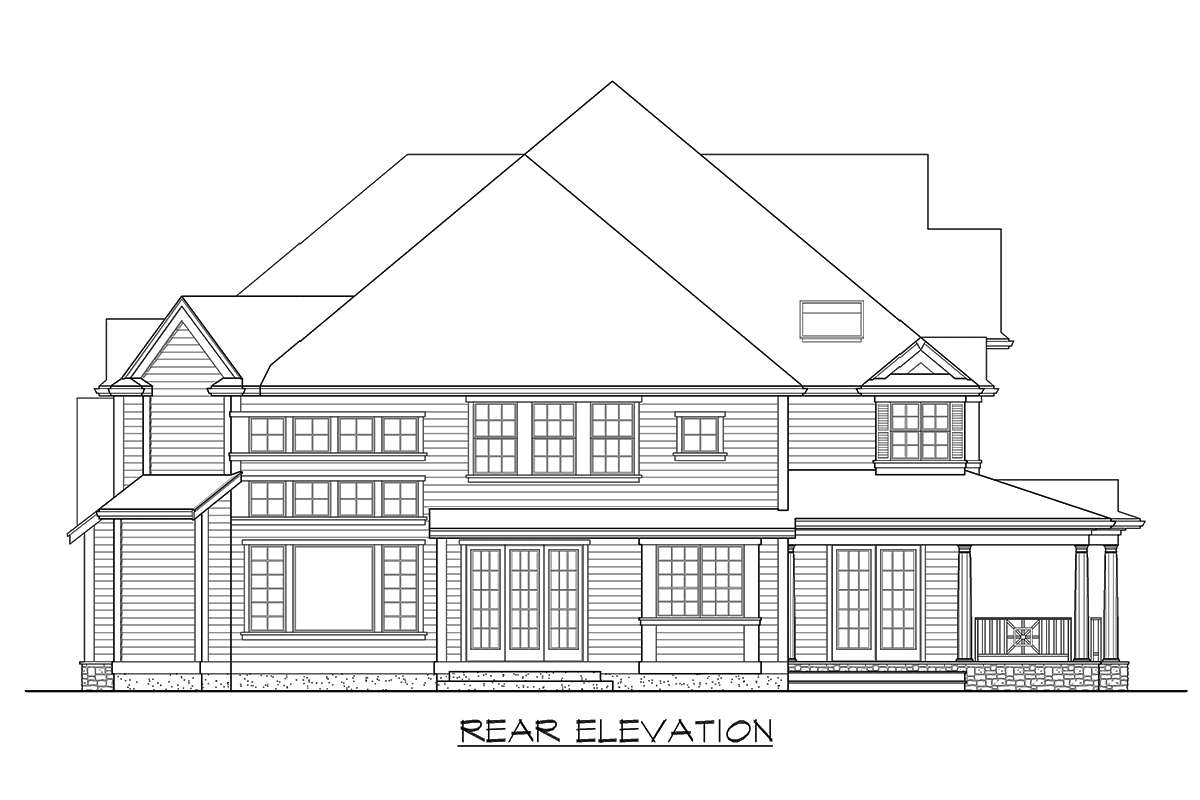

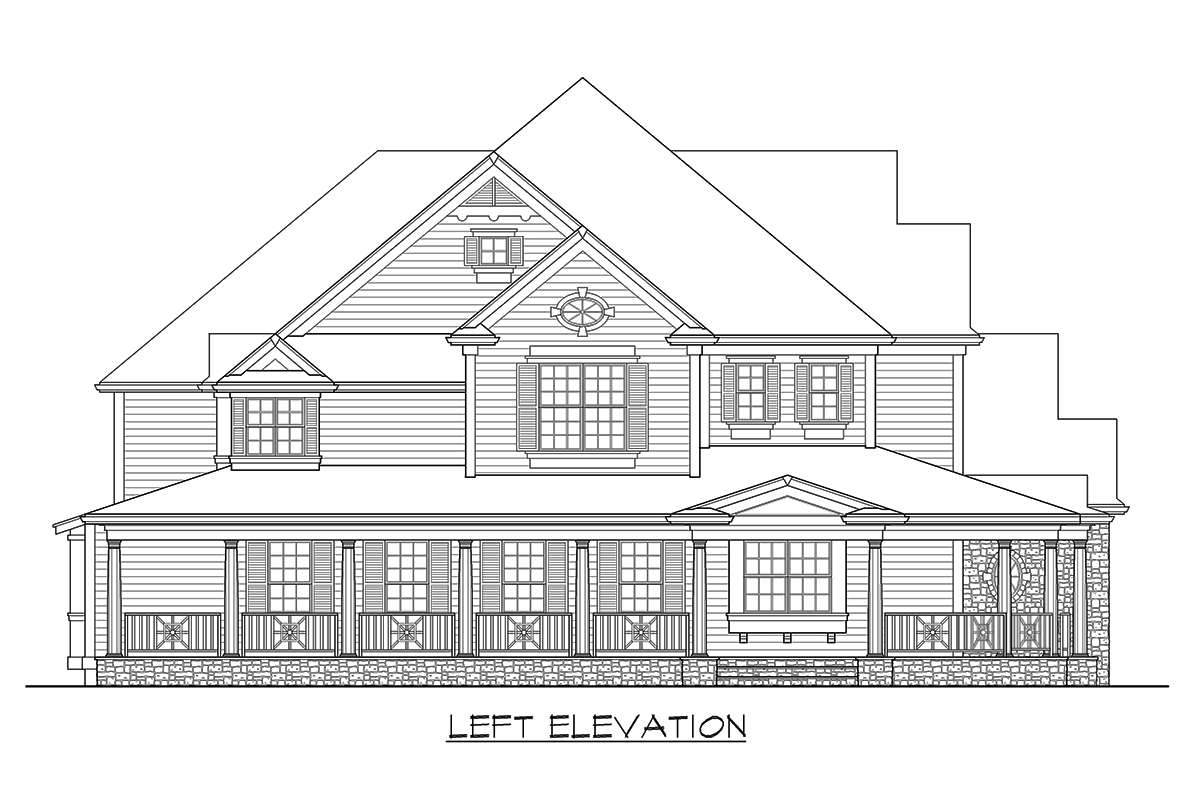

  • Exterior Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet: Building sections are vertical cuts through the home from the roof to the foundation.  The sections illustrate the construction sequence from bottom to top, starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, roof framing, stair construction, windows, doors, venting, exterior and interior finisheds.

Why can't this plan be sold in the State of Washington?

WA State law requires that all plans produced by an architect licensed in the state of WA for construction be stamped by the the architect; consequently, plans not stamped by this designer cannot be built in WA State.  The architect who designed this plan must provide in-state pricing with pricing for any revisions and the required structural engineering. WA State plans must comply with the WA State Energy Code, and the architect guarantees permit approval for the plans, site issues excepted. If you want to build this plan in WA State, please contact us for custom pricing.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

IMPORTANT NOTE: Not for Sale for Construction in the State of Washington. If you live in the State of Washington and would like to purchase these plans, please contact us for more information.

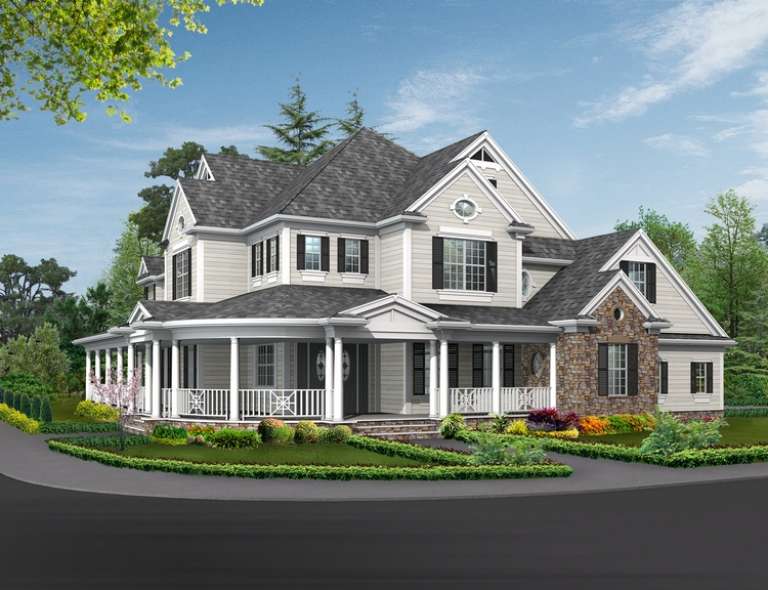

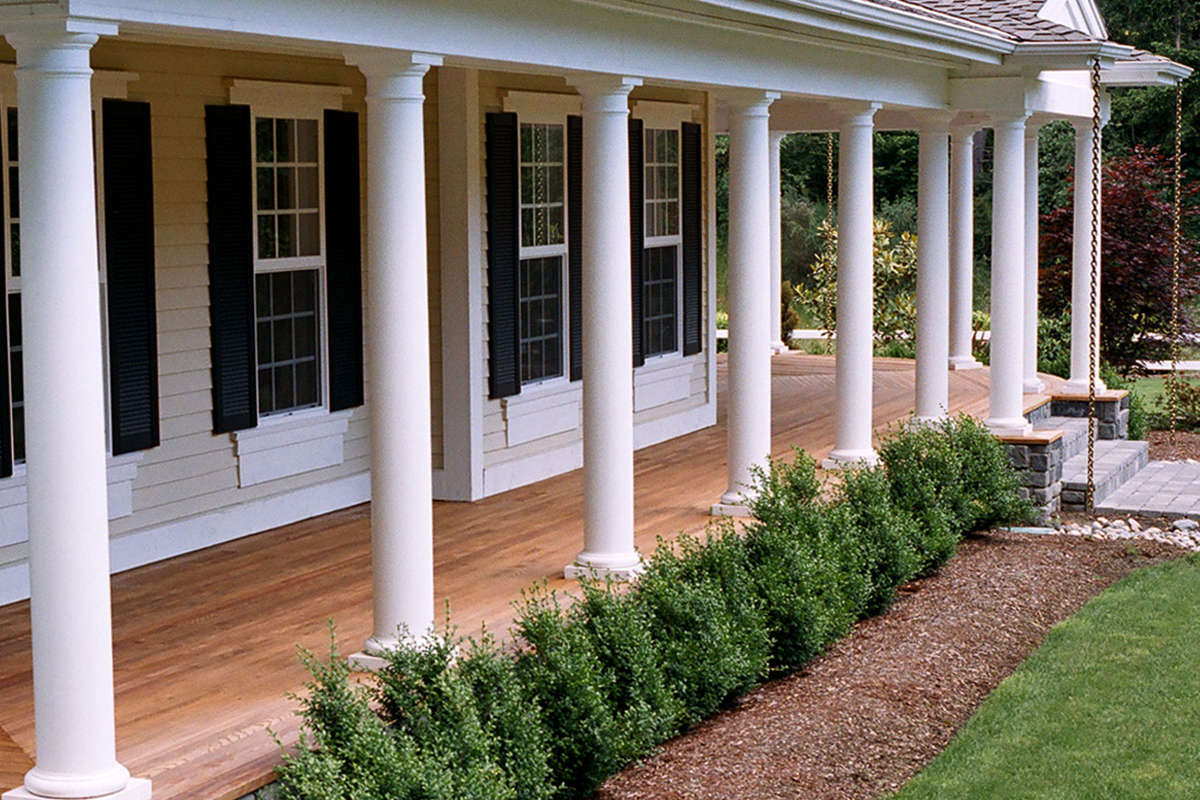

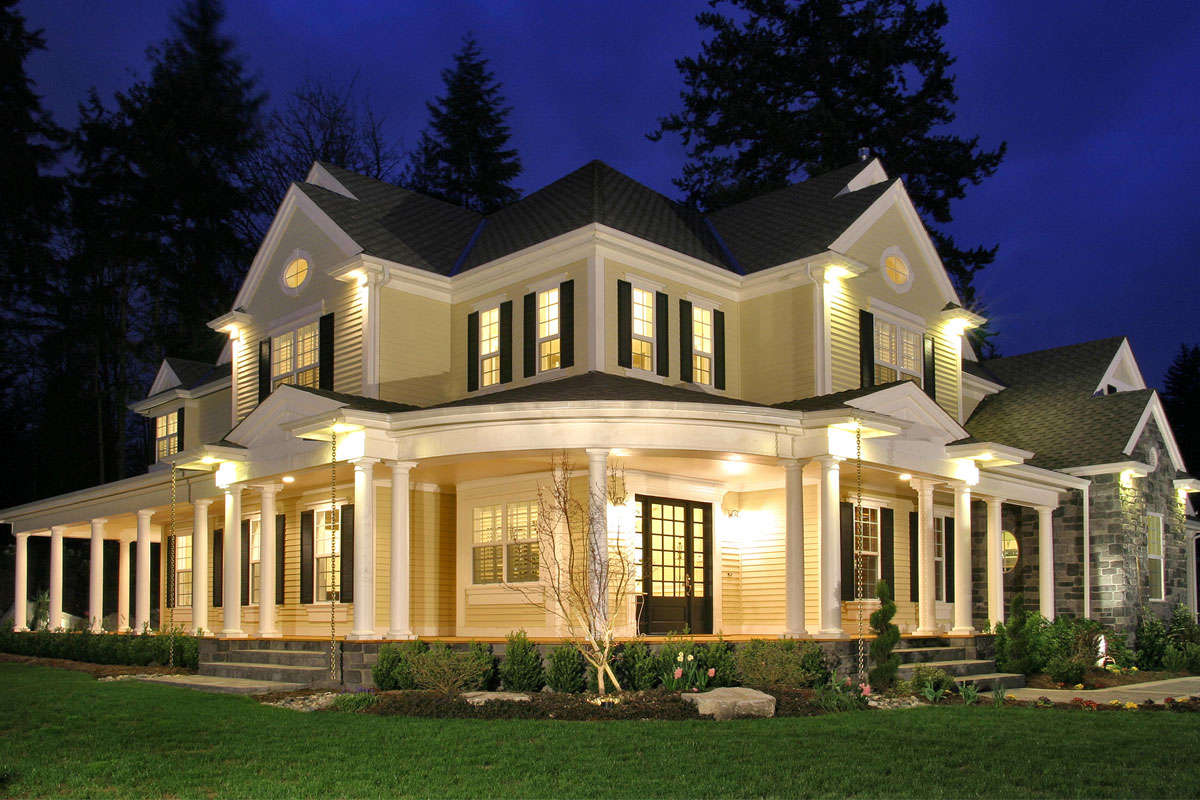

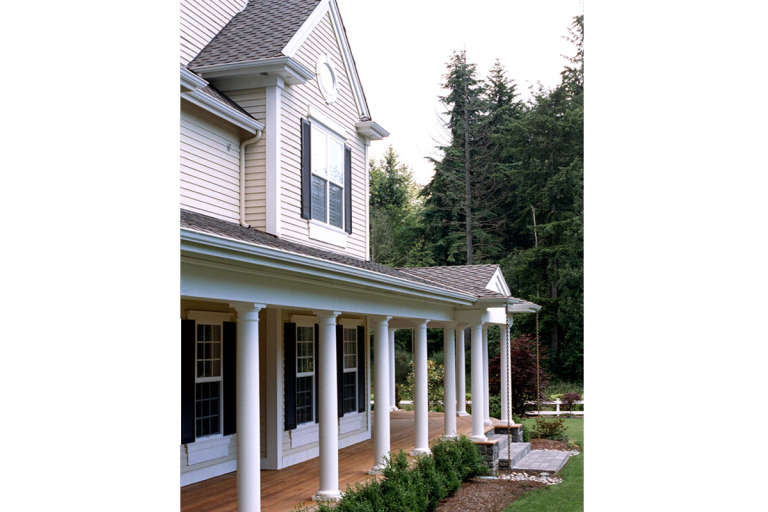

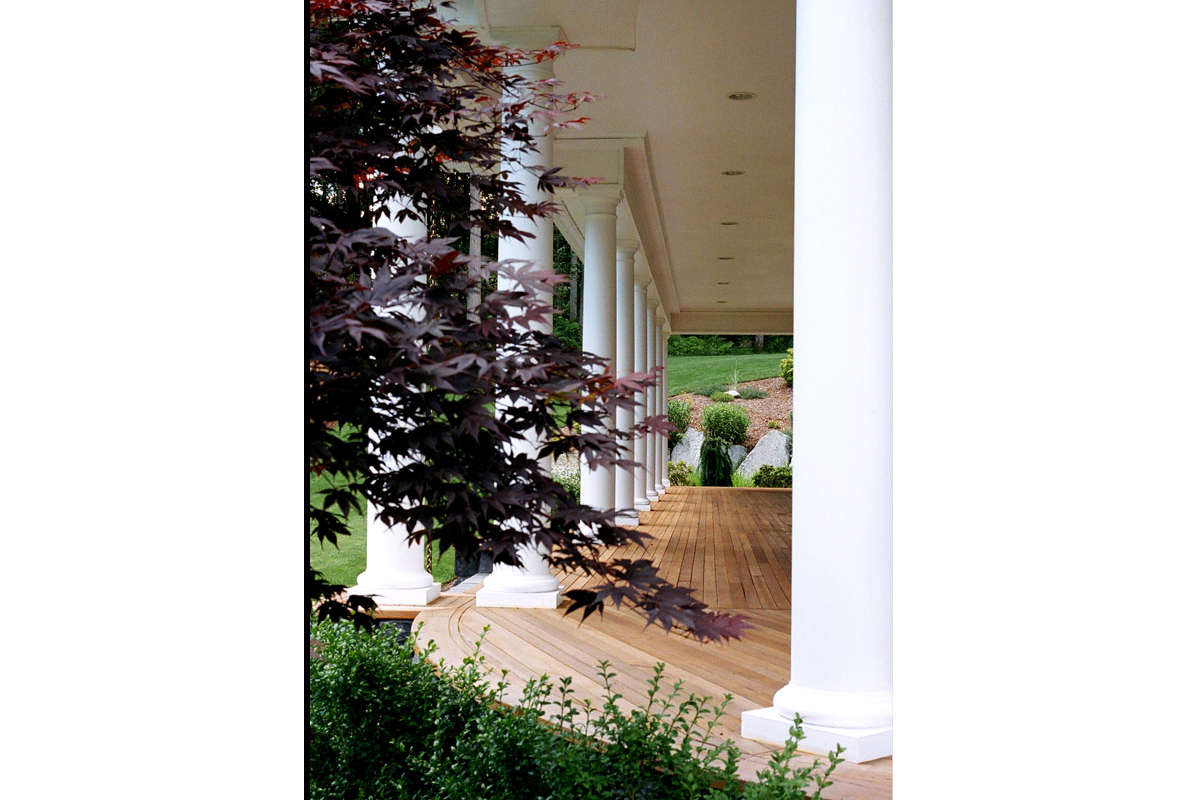

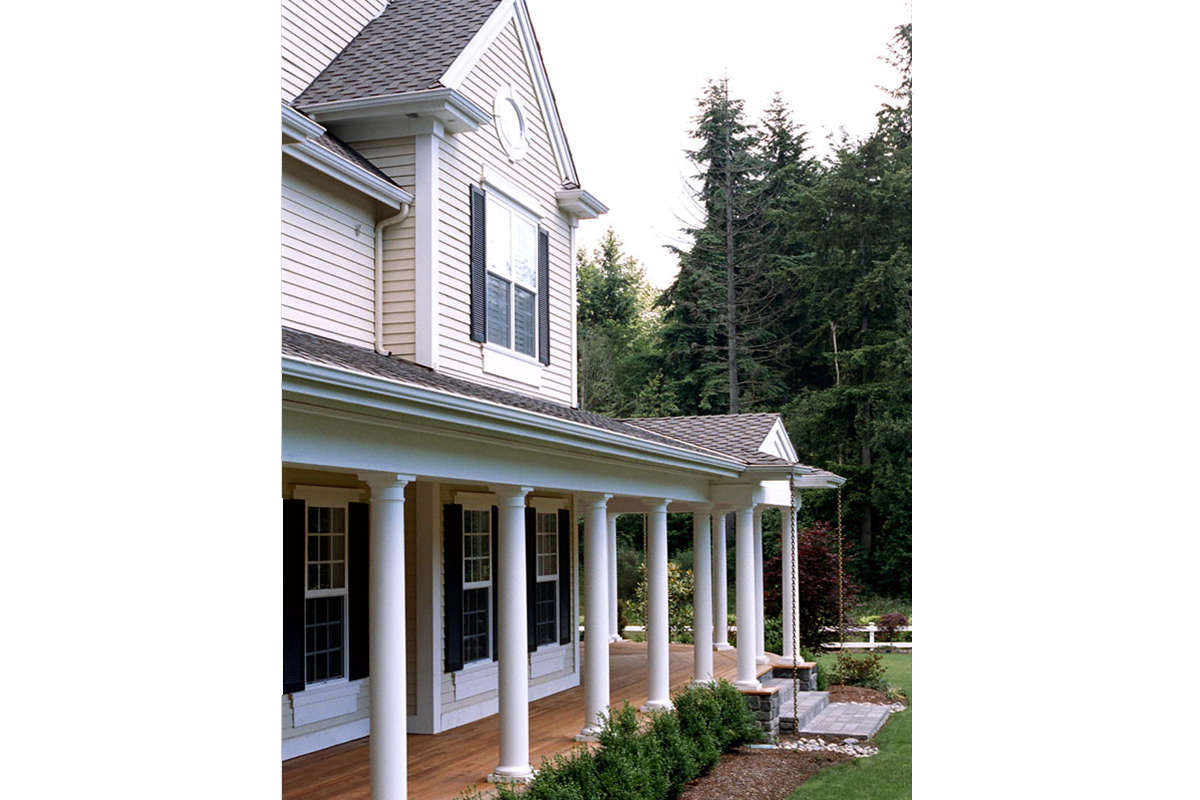

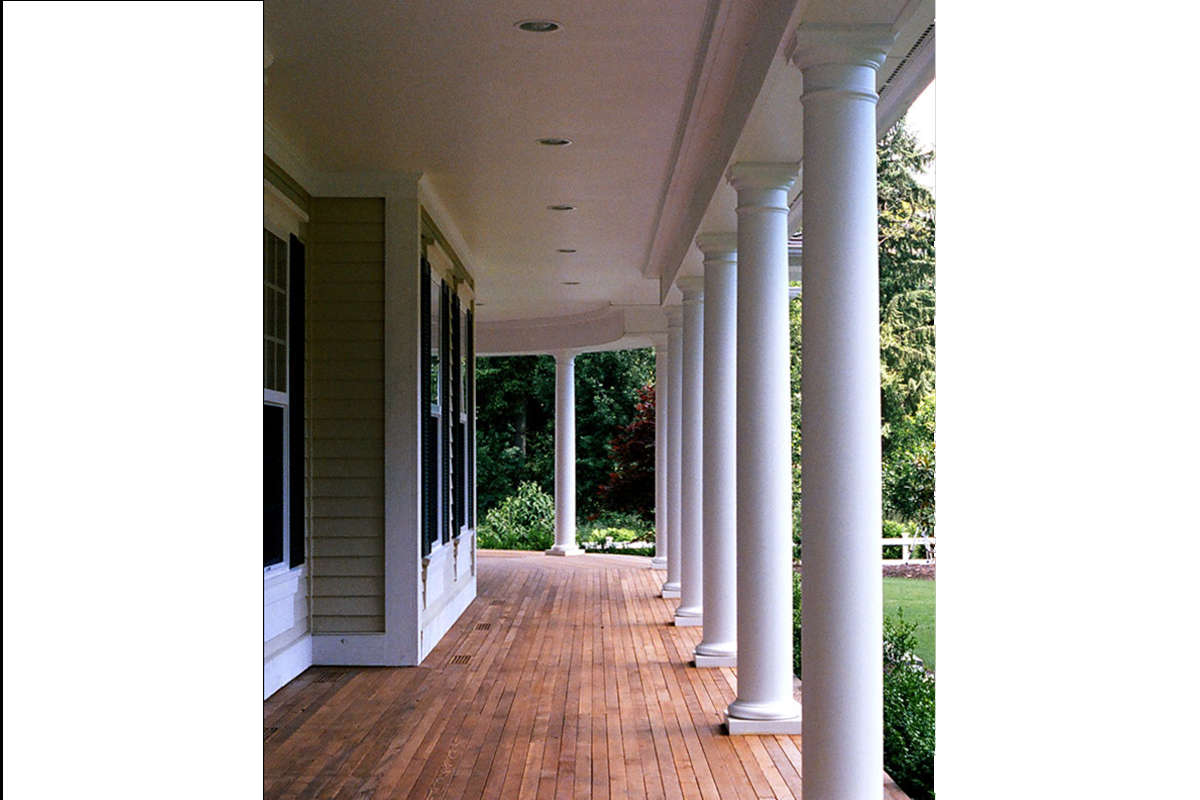

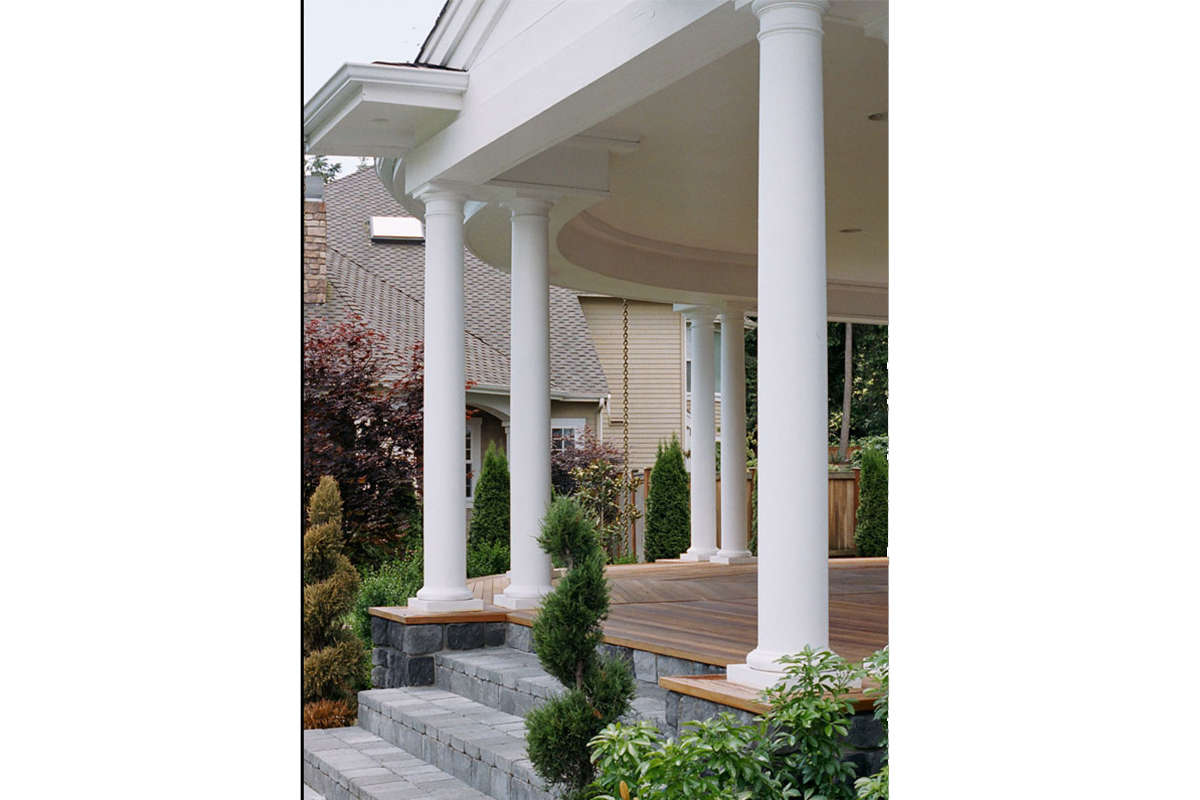

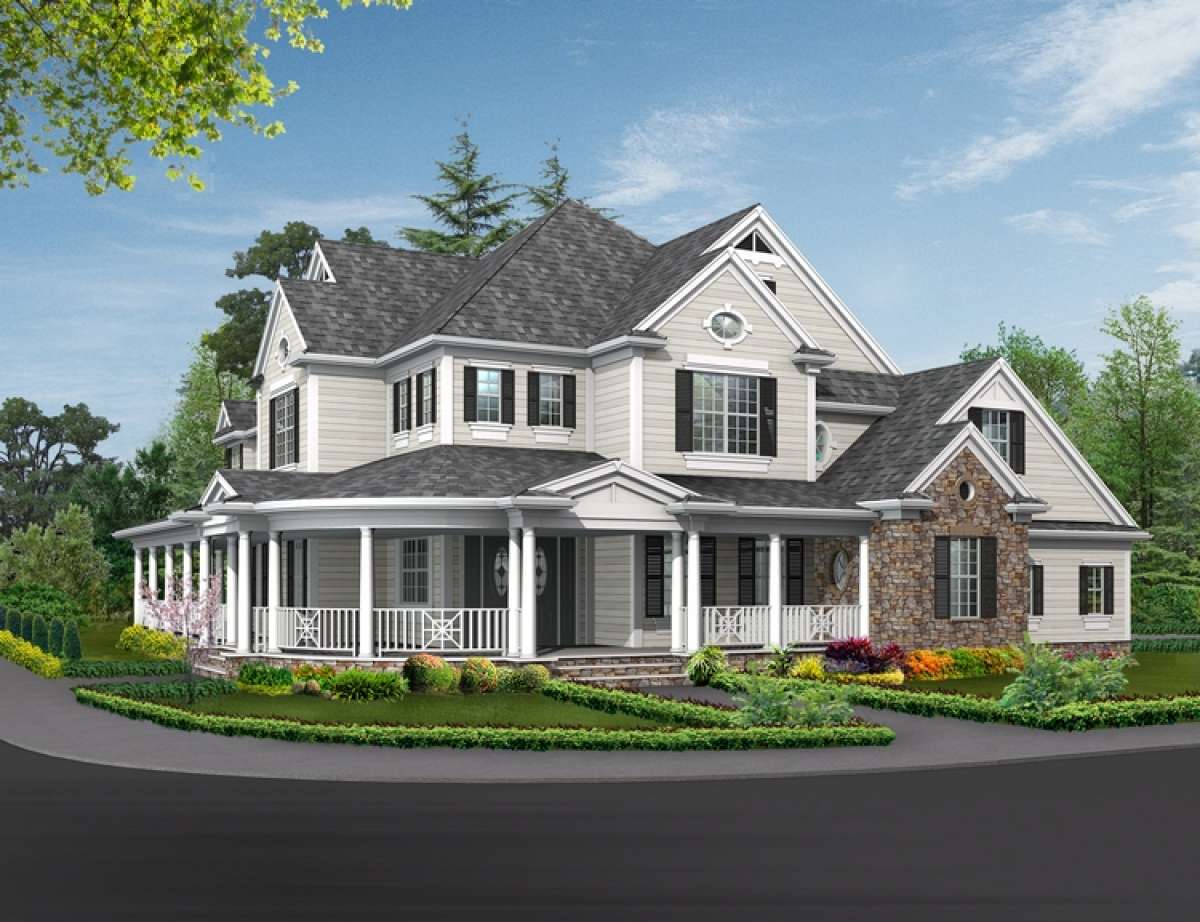

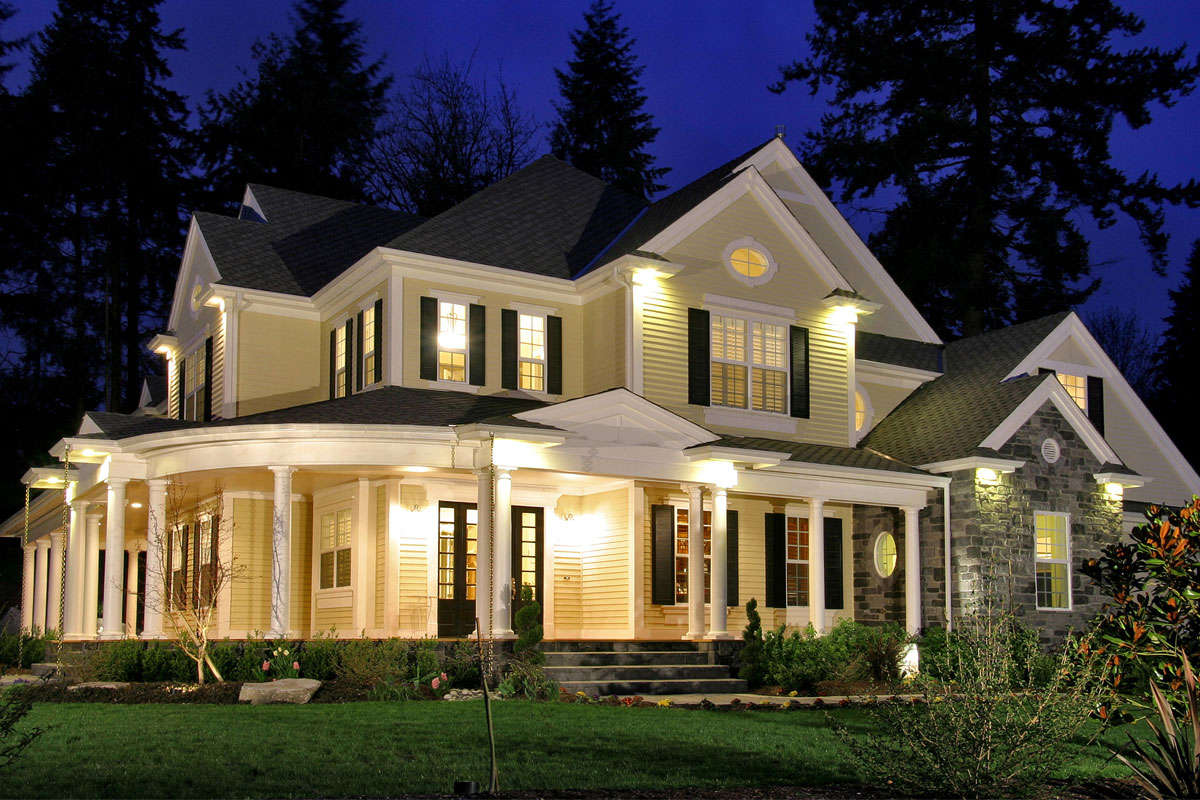

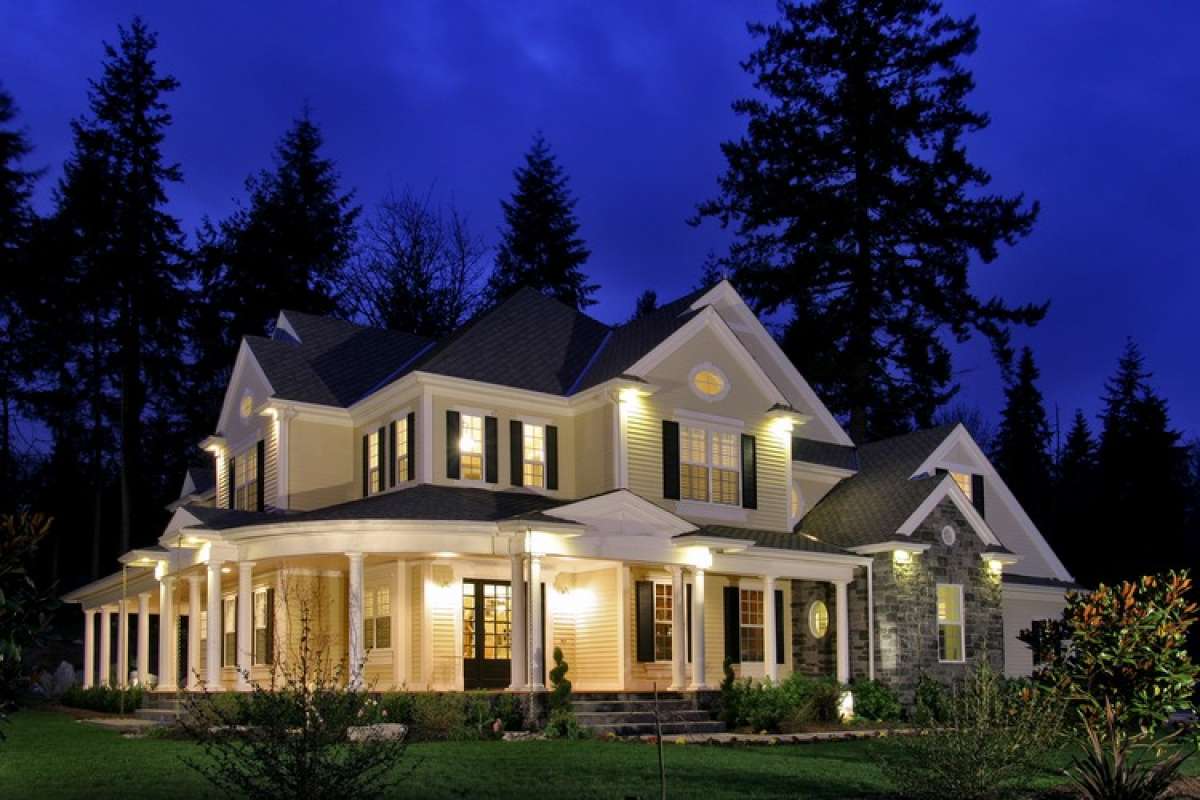

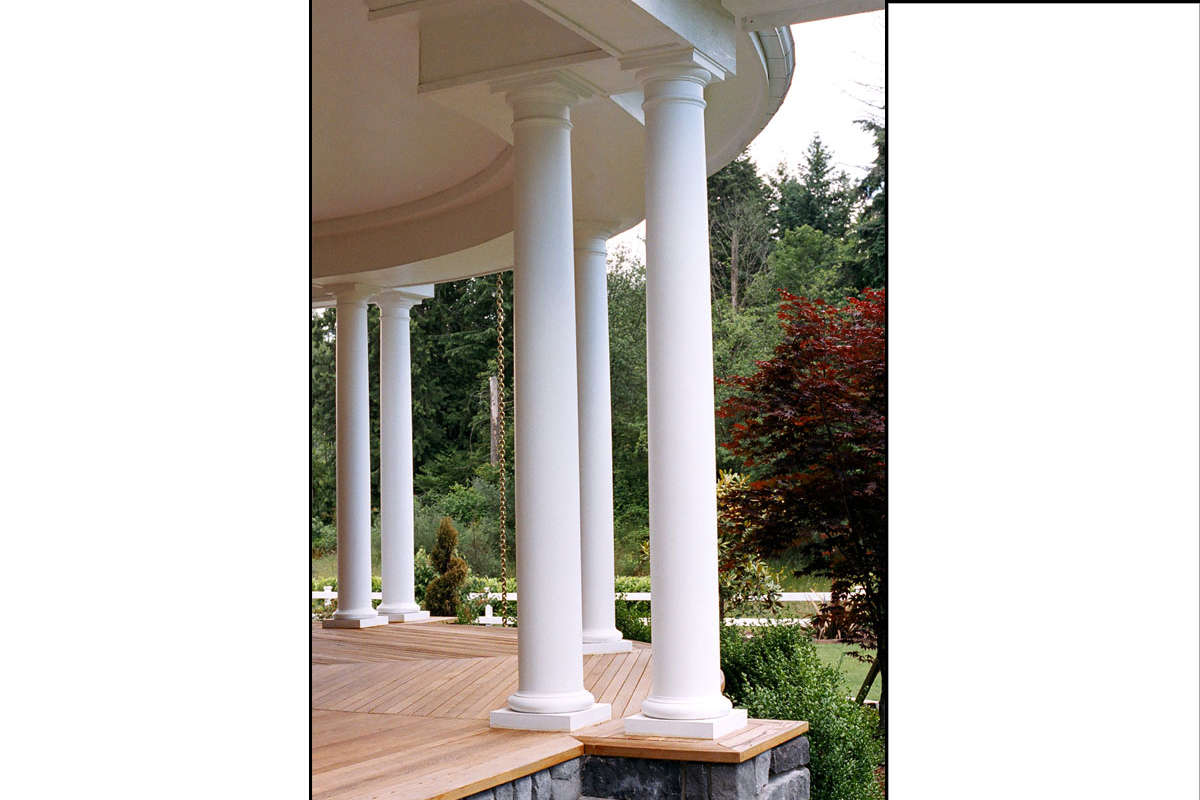

This Craftsman house plan boasts of country flair and meaningful outdoor space with its wraparound porch that sweeps the front exterior. Amazing rooflines adorn the home and add focus and depth to the home while varying architectural design elements accentuate the beauty of the exterior. Broadly proportioned columned beams are highlighted on the expansive covered porch positioning it to be a grand entertaining space. The interior floor plan matches the grandeur and luxury of the exterior and offers approximately 4,725 square feet of living space while incorporating four bedrooms and four plus baths into the home. An unbelievable amount of space is located in the four car garage; specifically, 1,090 square feet, plenty of room for vehicle and storage space. The spacious utility room and side porch is located off the garage for convenience and tidy clean-up. The gorgeous foyer is accessible through French doors and “sets the tone” for the remainder of the home with its trey ceiling and splendid detailing. The foyer extends on a diagonal and from there, the layout fans out in multiple directions. Double French doors adorn each side of the extended foyer and lead to the den and living room respectively where both rooms feature double trey ceilings and the living room is highlighted with a warming fireplace. The centrally located rotunda houses the winding staircase to the second floor and powder room for guests while the rear foyer allows access to the family room. The family room features a handsome fireplace, built-in cabinetry and a wall of windows. The open concept family spaces include a large breakfast nook with double points of access onto the rear yard. There is a lovely kitchen beyond the nook where an island takes “center stage” providing great space to prepare family meals and memories. Plenty of additional counter and cabinet space is available and an oversized walk-in pantry is situated on the back wall adjacent to the kitchen. The formal dining room features a double trey ceiling and French door access onto the covered wraparound porch.

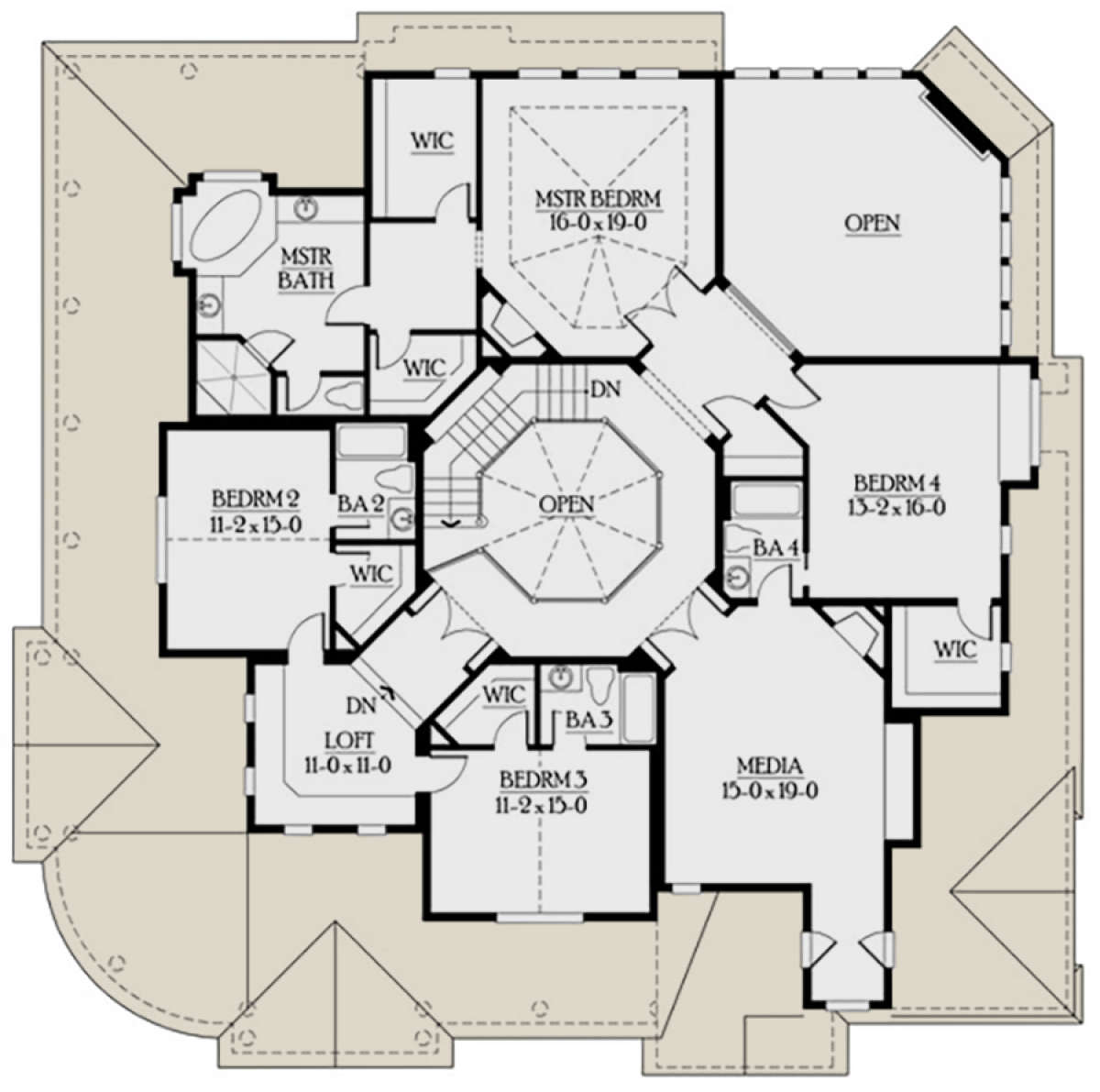

The second story staircase and landing provide beautiful overviews into the rotunda and family room below. An abundance of private family space along with sleeping and bathing quarters are situated on this floor. The second bedroom is a self-contained suite with a walk-in closet and private full bath. The third and fourth bedrooms each have walk-in closets and private access to the adjoining full baths. There is an enormous media room and additional loft space for the family’s, as well as close friends, enjoyment. The master retreat is truly spectacular and features French door access into the bedroom which is large, boasts of a beautiful trey ceiling accent, a warming fireplace and a triple wall of windows. His and her walk-in master closets line the hallway into the elegantly designed master bath. The en suite bath features separate dual vanities, a compartmentalized toilet, a corner shower and a garden tub ensconced in window views. This luxury house plan features an amazingly attractive exterior and grand interior layout exclusively designed for entertaining.
